P0108

DTC P0108 - INTAKE MANIFOLD PRESSURE SENSOR CIRCUIT HIGH INPUT

DTC DETECTING CONDITION:
- Immediately at fault recognition

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode .

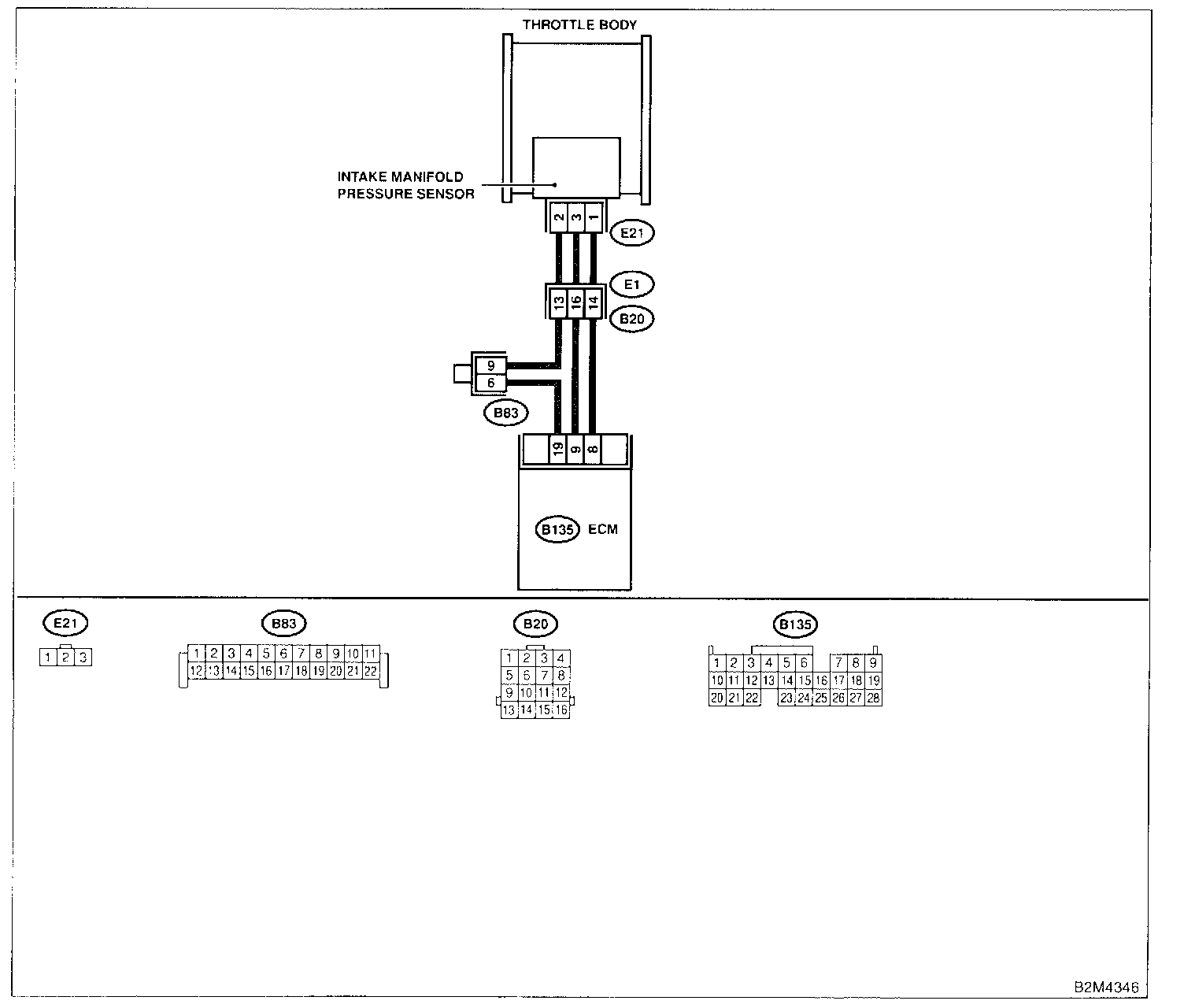

Wiring Diagram:

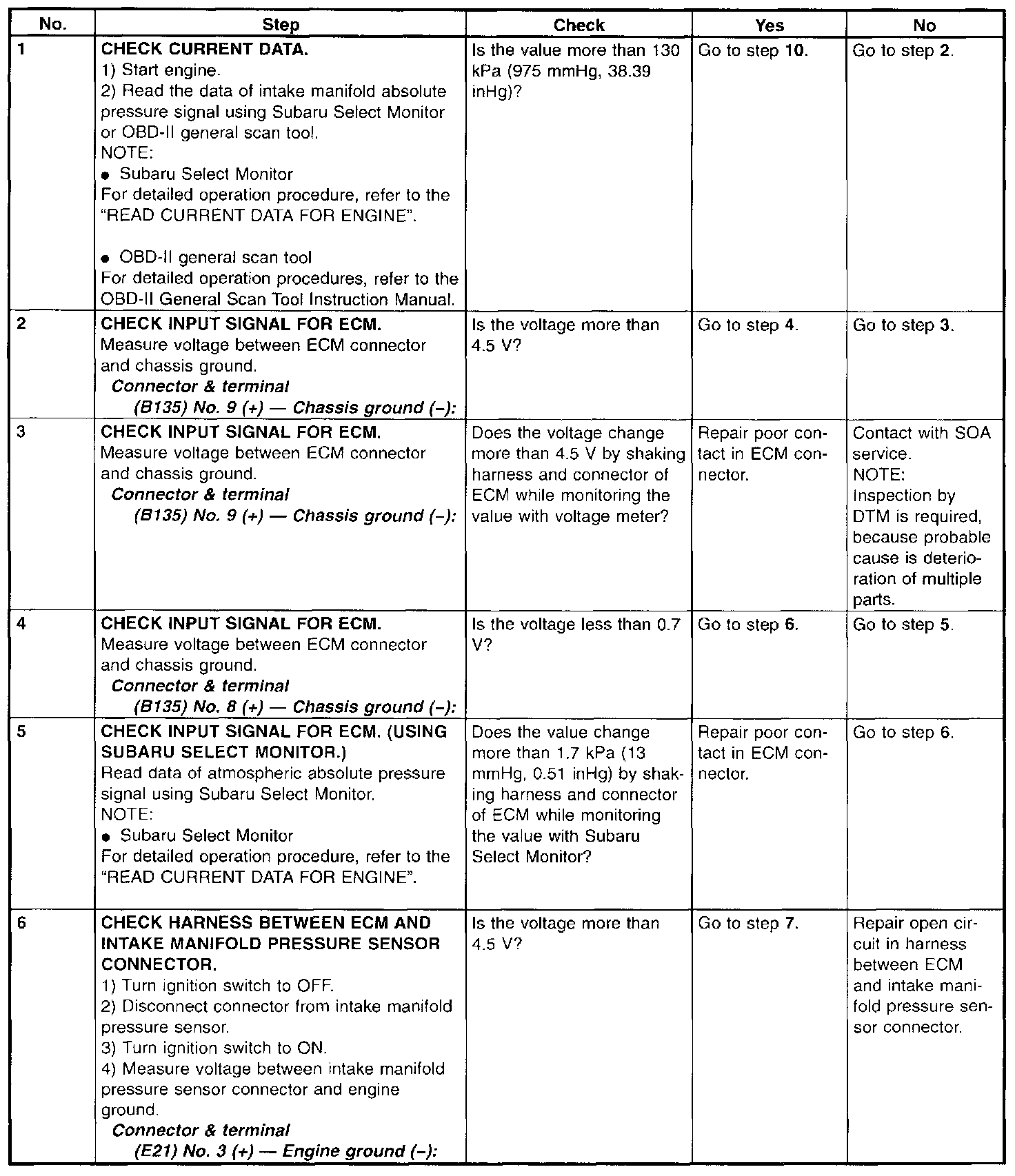

Step 1 - 6:

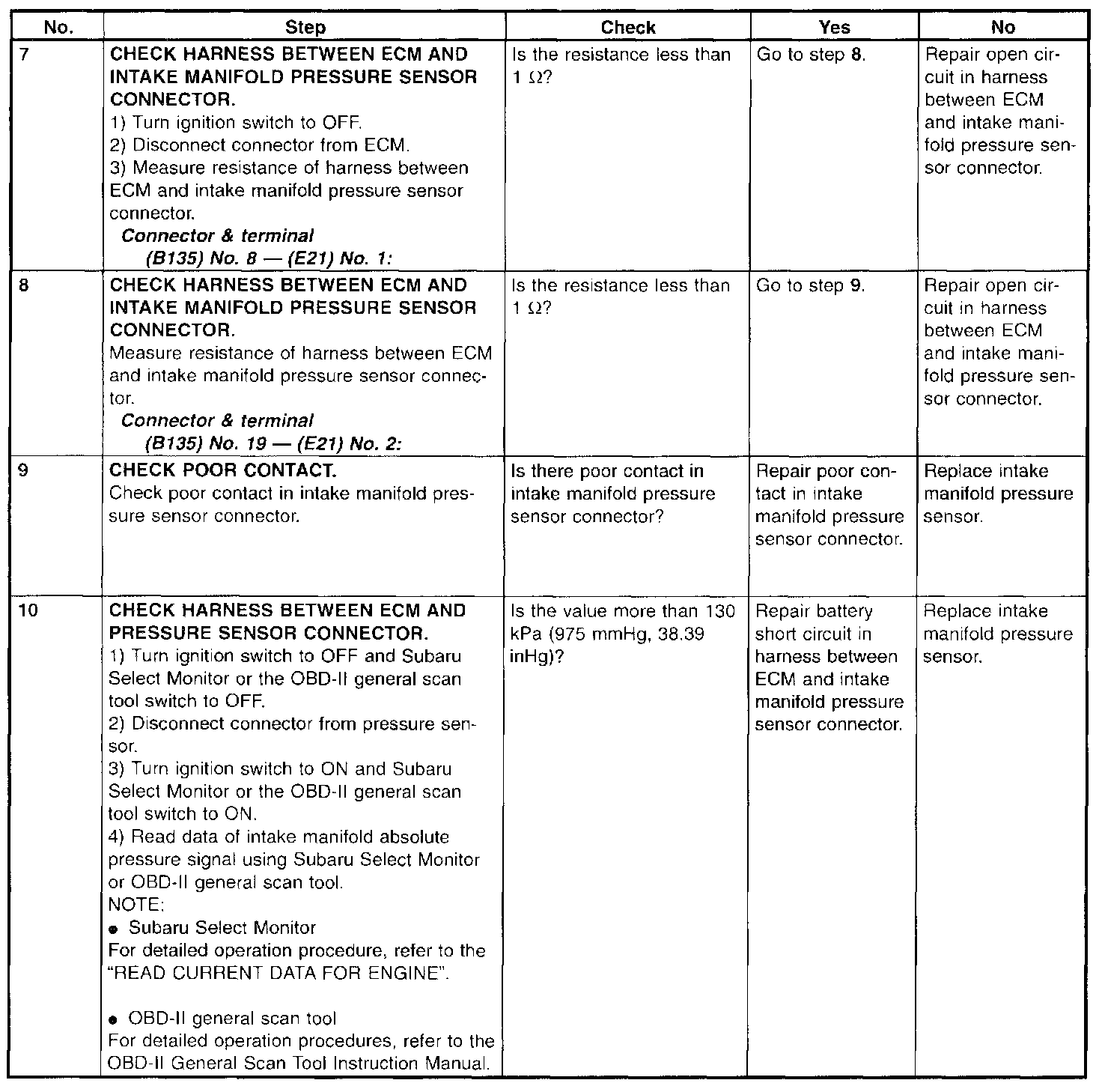

Step 7 - 10:

WIRING DIAGRAM
