P0107

DTC P0107 - INTAKE MANIFOLD PRESSURE SENSOR CIRCUIT LOW INPUT

DTC DETECTING CONDITION:
- Immediately at fault recognition

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode .

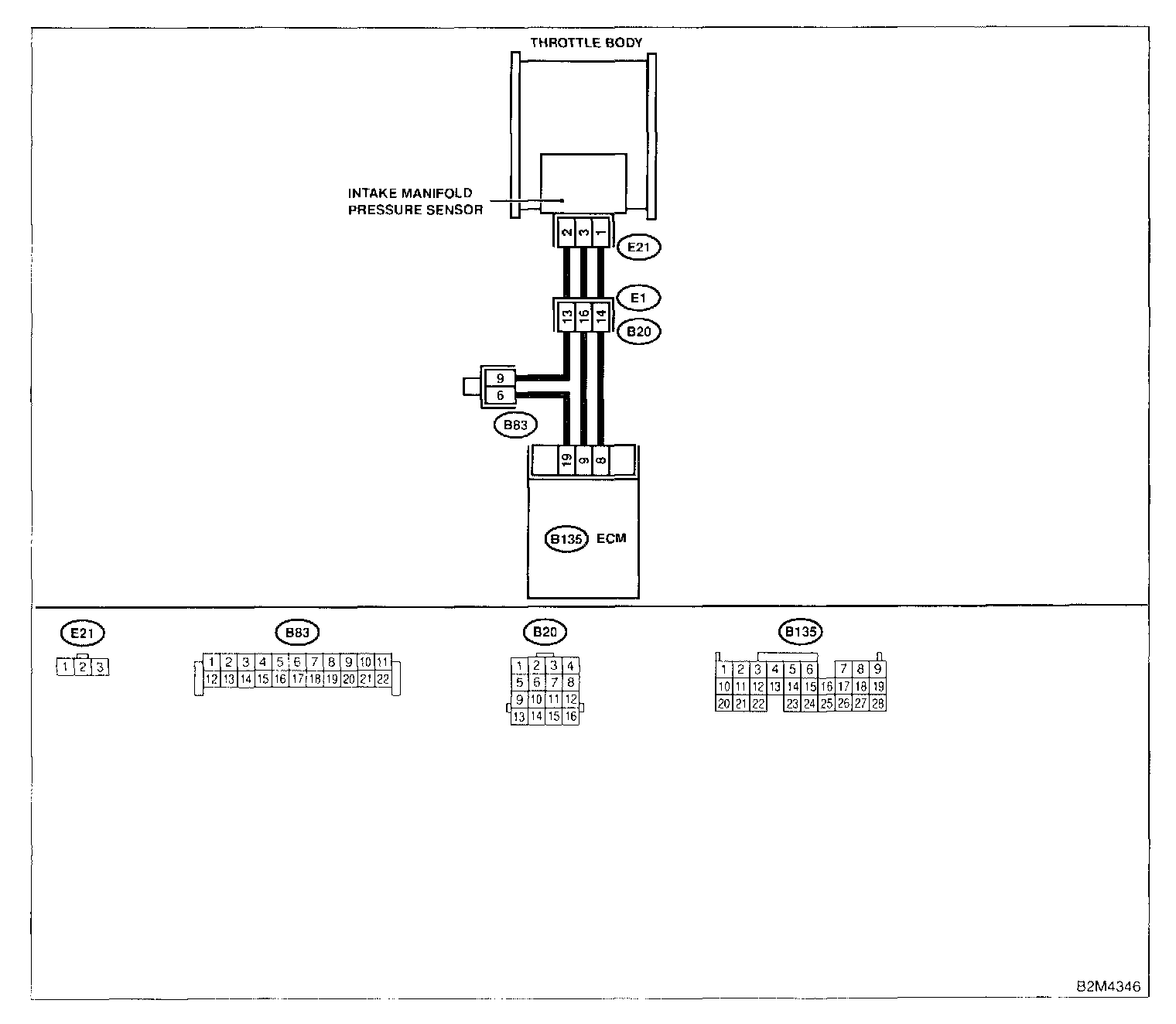

Wiring Diagram:

Step 1 - 7:

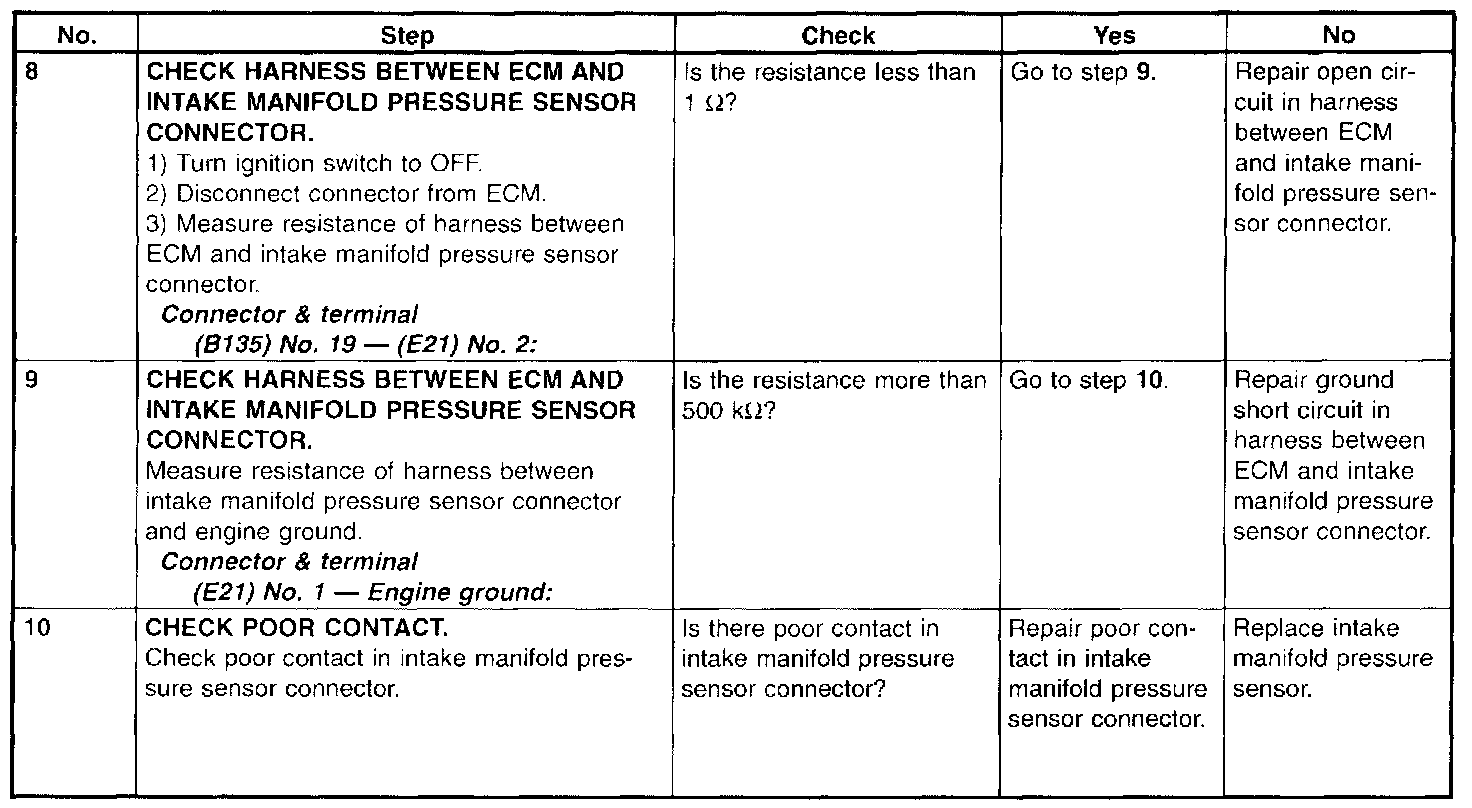

Step 8 - 10:

WIRING DIAGRAM
