P0051

DTC P0051 - BANK #2 AND SENSOR #1 OXYGEN (A/F) SENSOR (FRONT LH) HEATER CIRCUIT LOW INPUT

DTC DETECTING CONDITION:
- Immediately at fault recognition

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode .

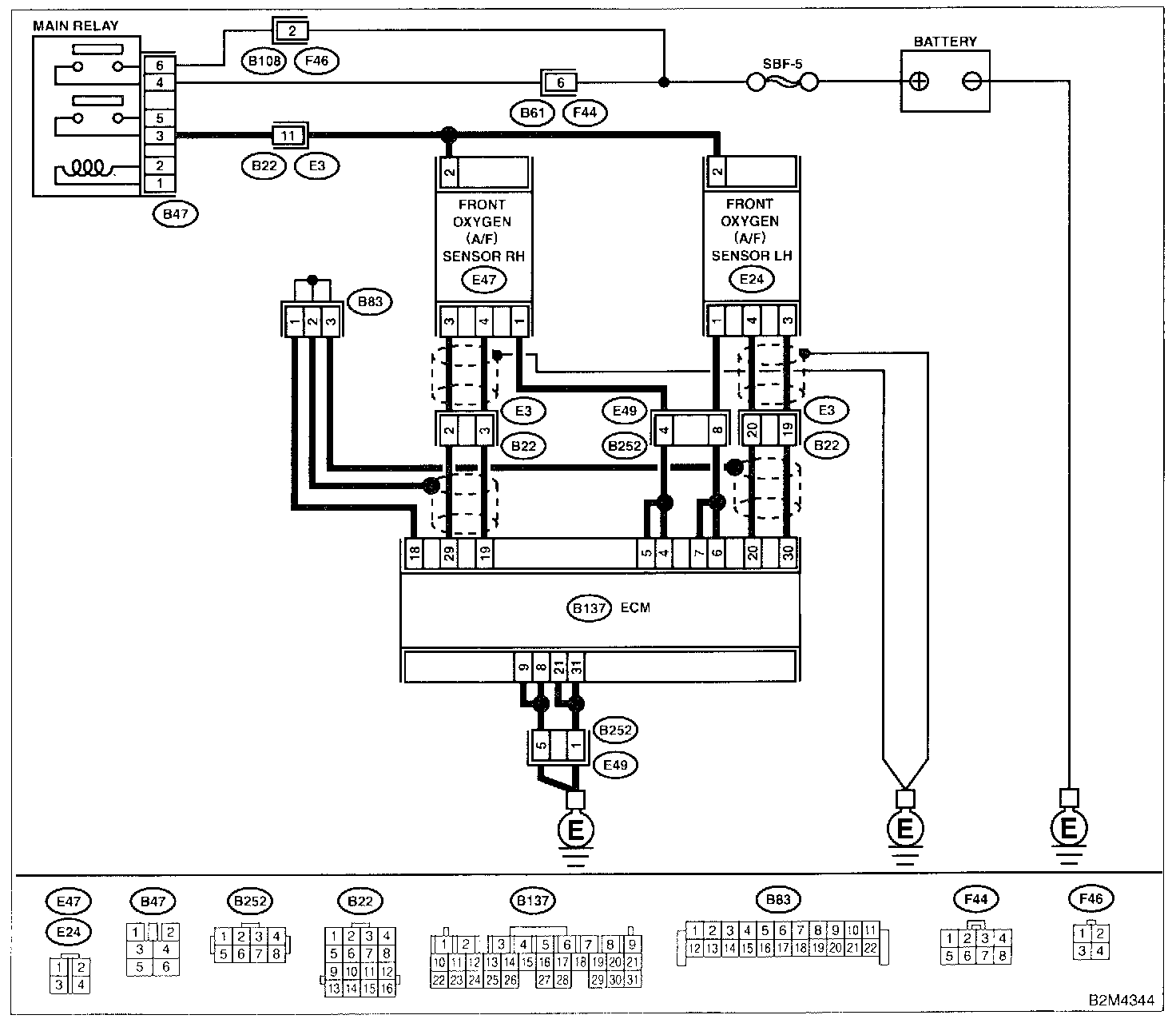

Wiring Diagram:

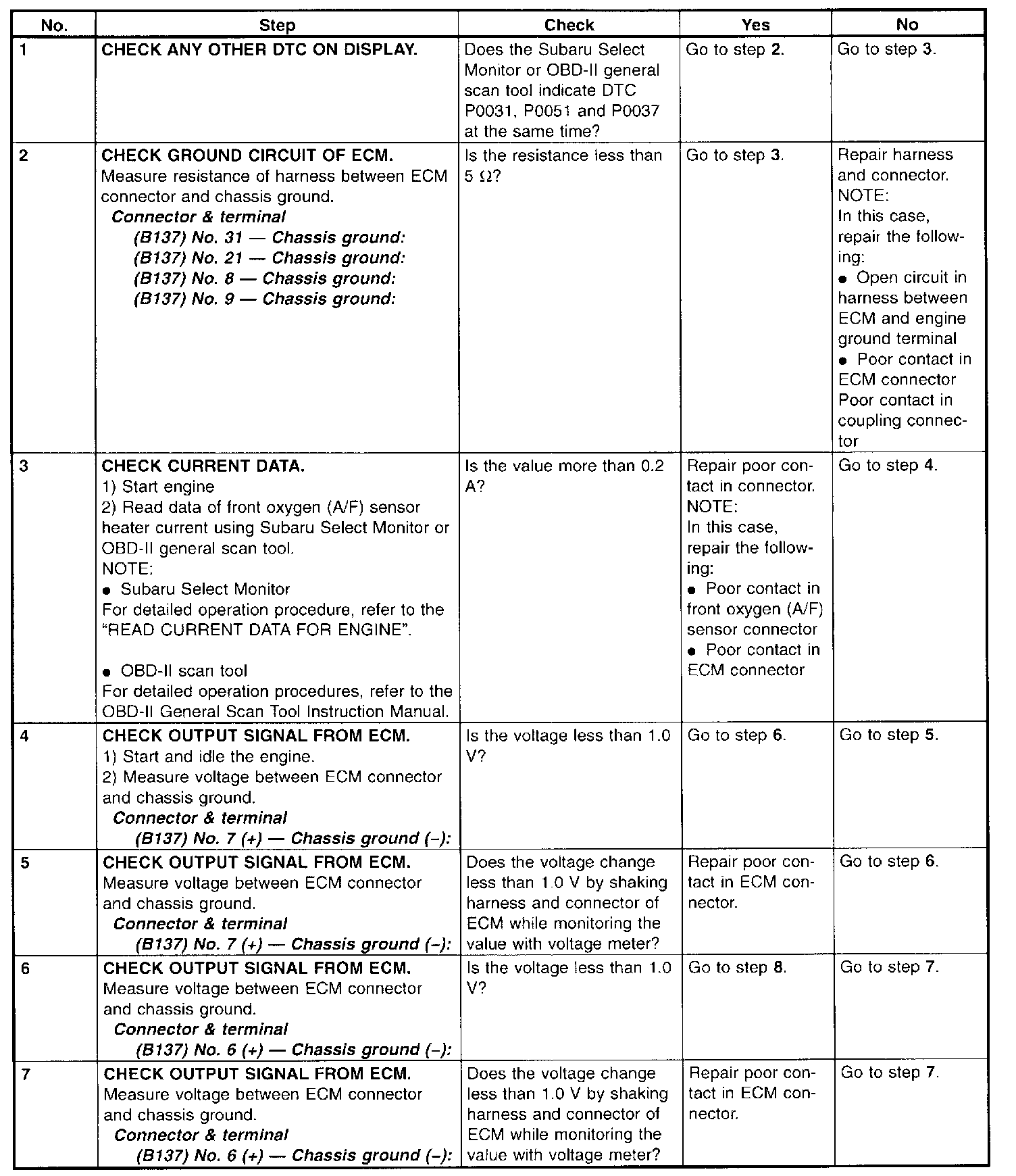

Step 1 - 7:

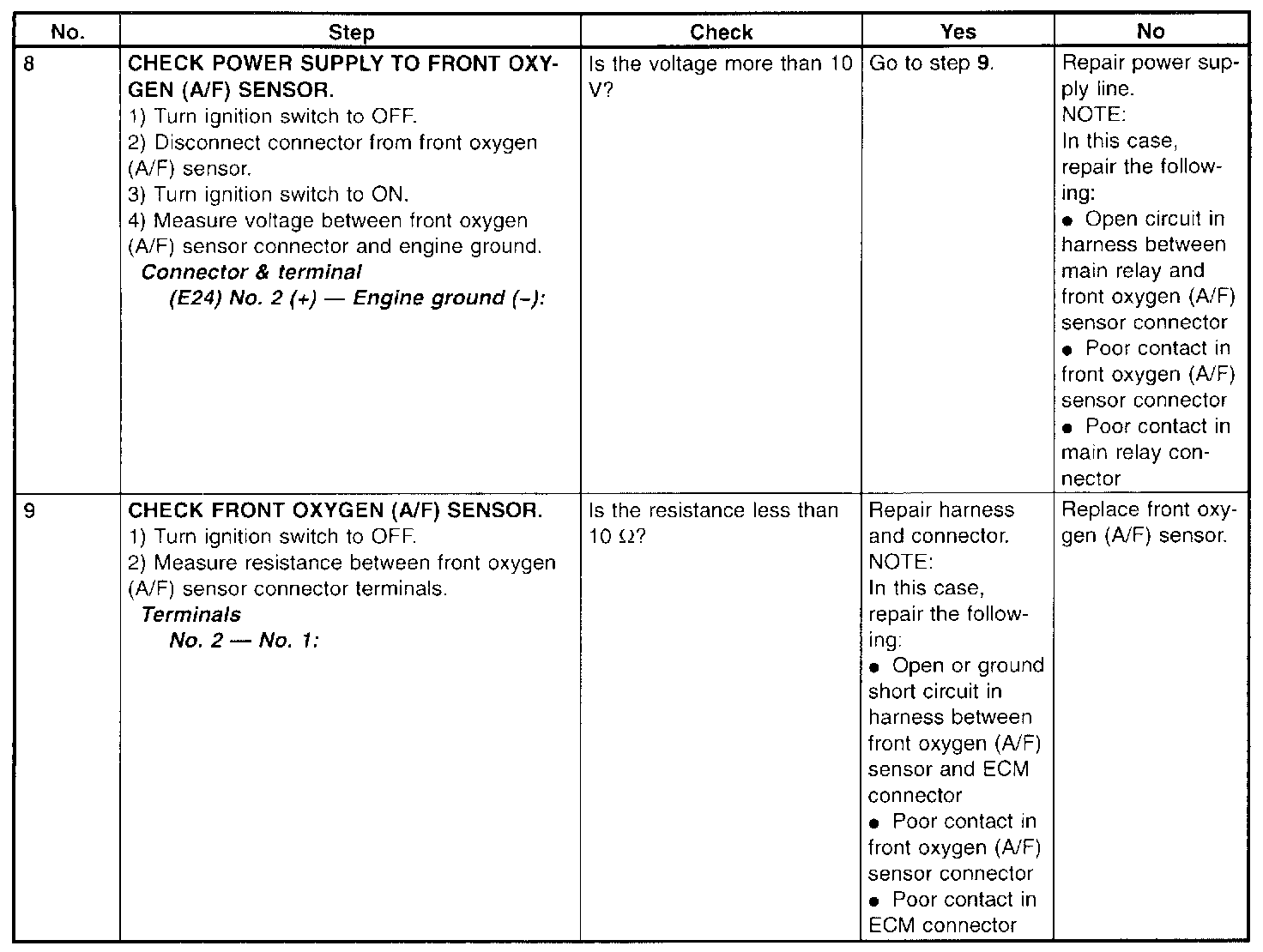

Step 8 - 9:

WIRING DIAGRAM
