DTC 79
P: TROUBLE CODE 79 TRANSFER DUTY SOLENOIDDIAGNOSIS: Output signal circuit of transfer duty solenoid is open or shorted.
TROUBLE SYMPTOM: Excessive "braking" in tight corners.

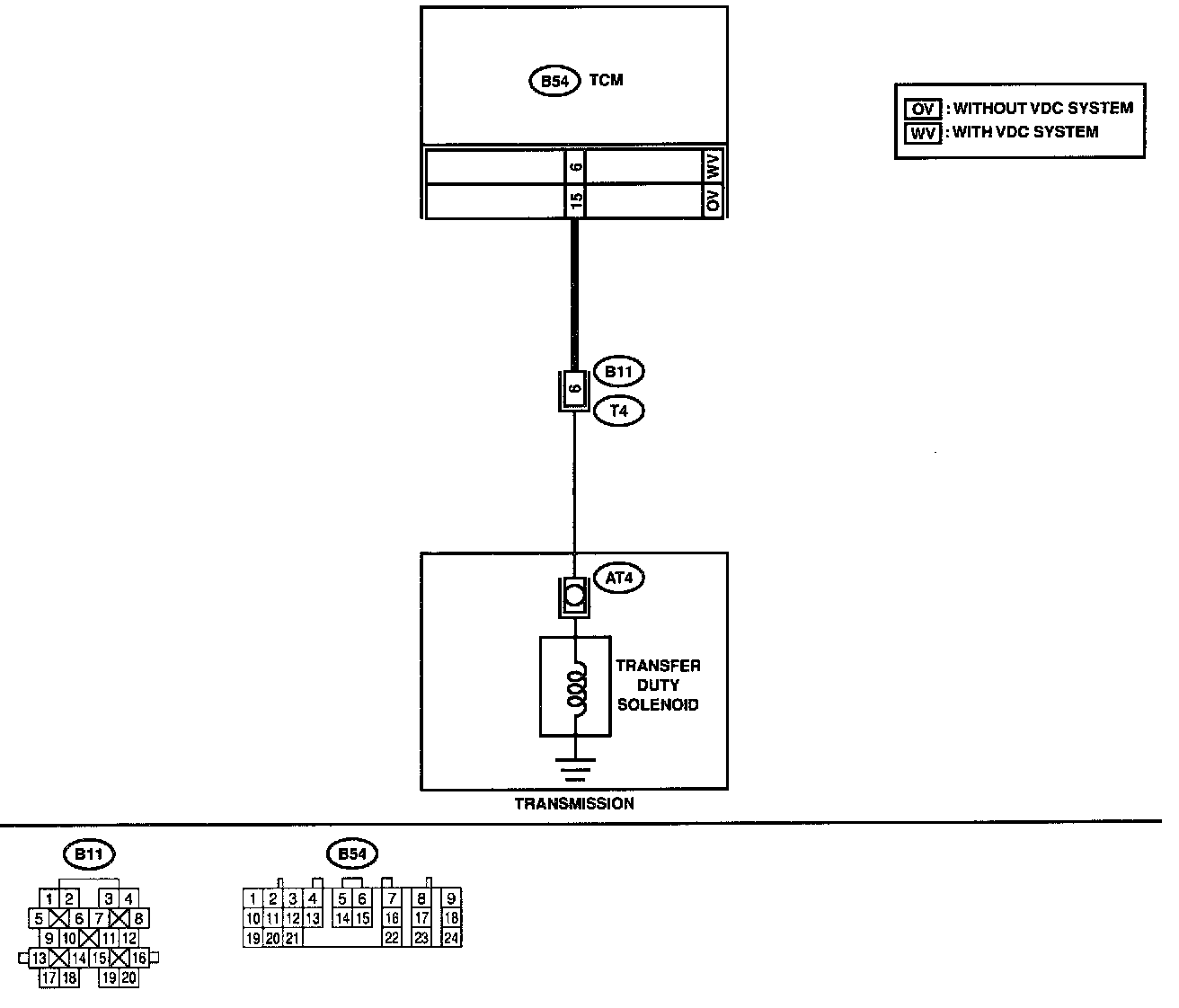

WIRING DIAGRAM:
PROCEDURE:

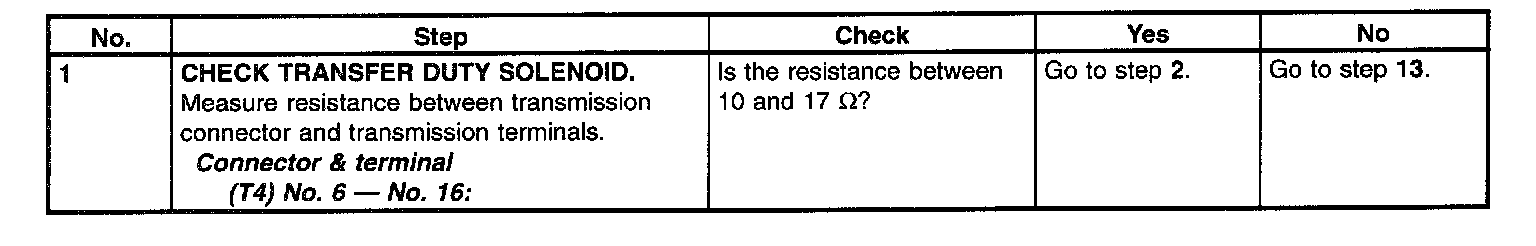

No.1

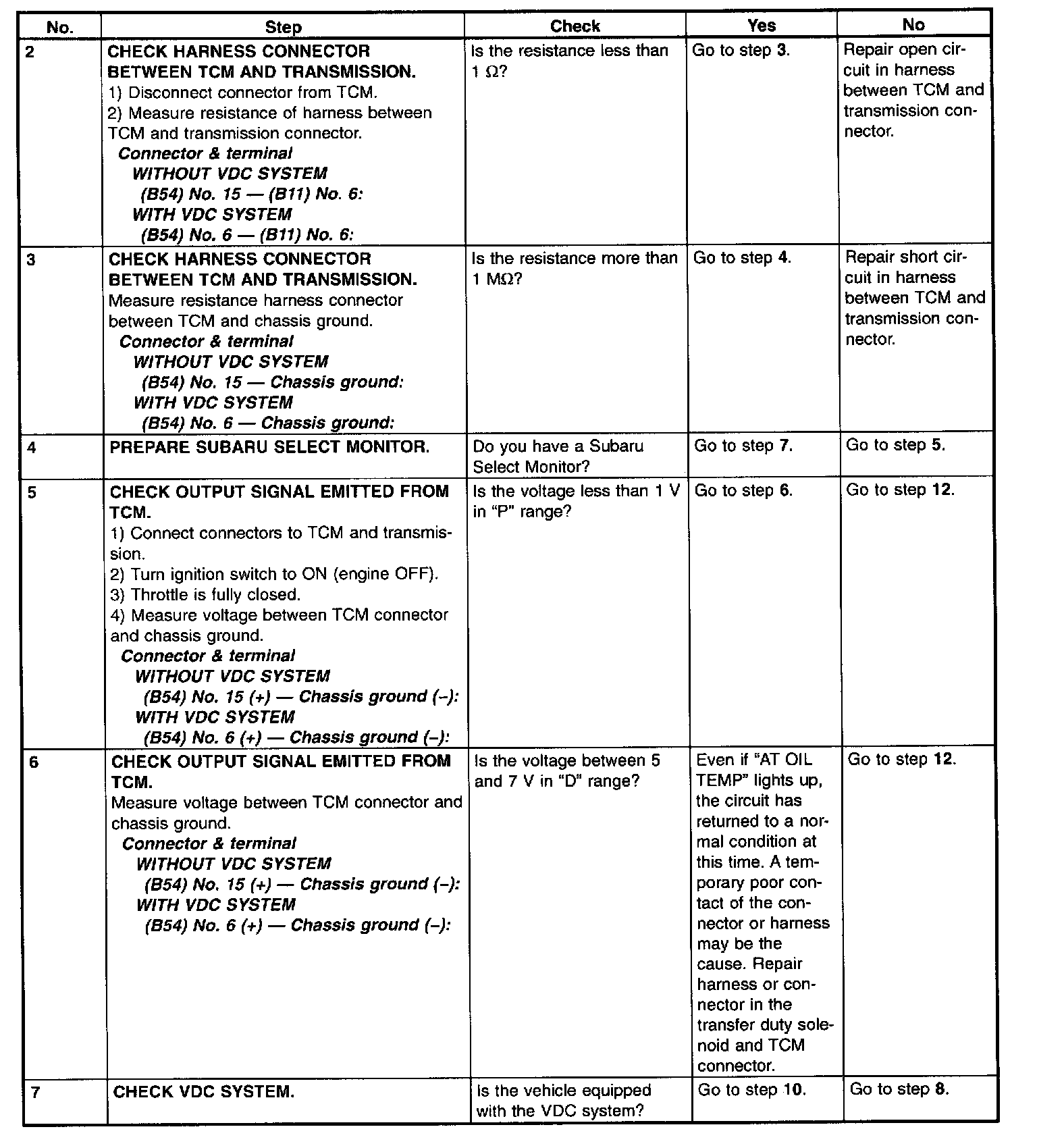

No.2 - 7

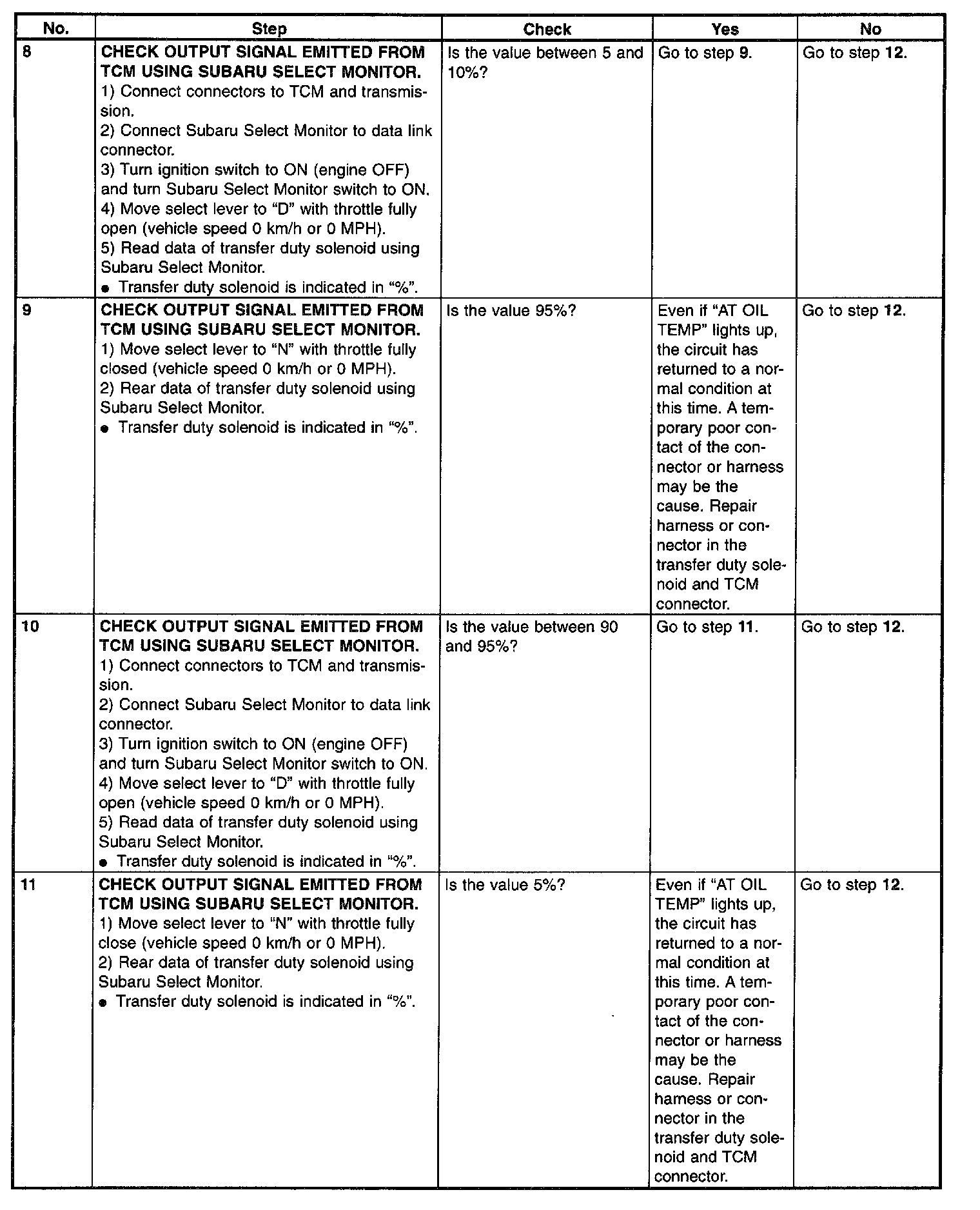

No.8 - 11

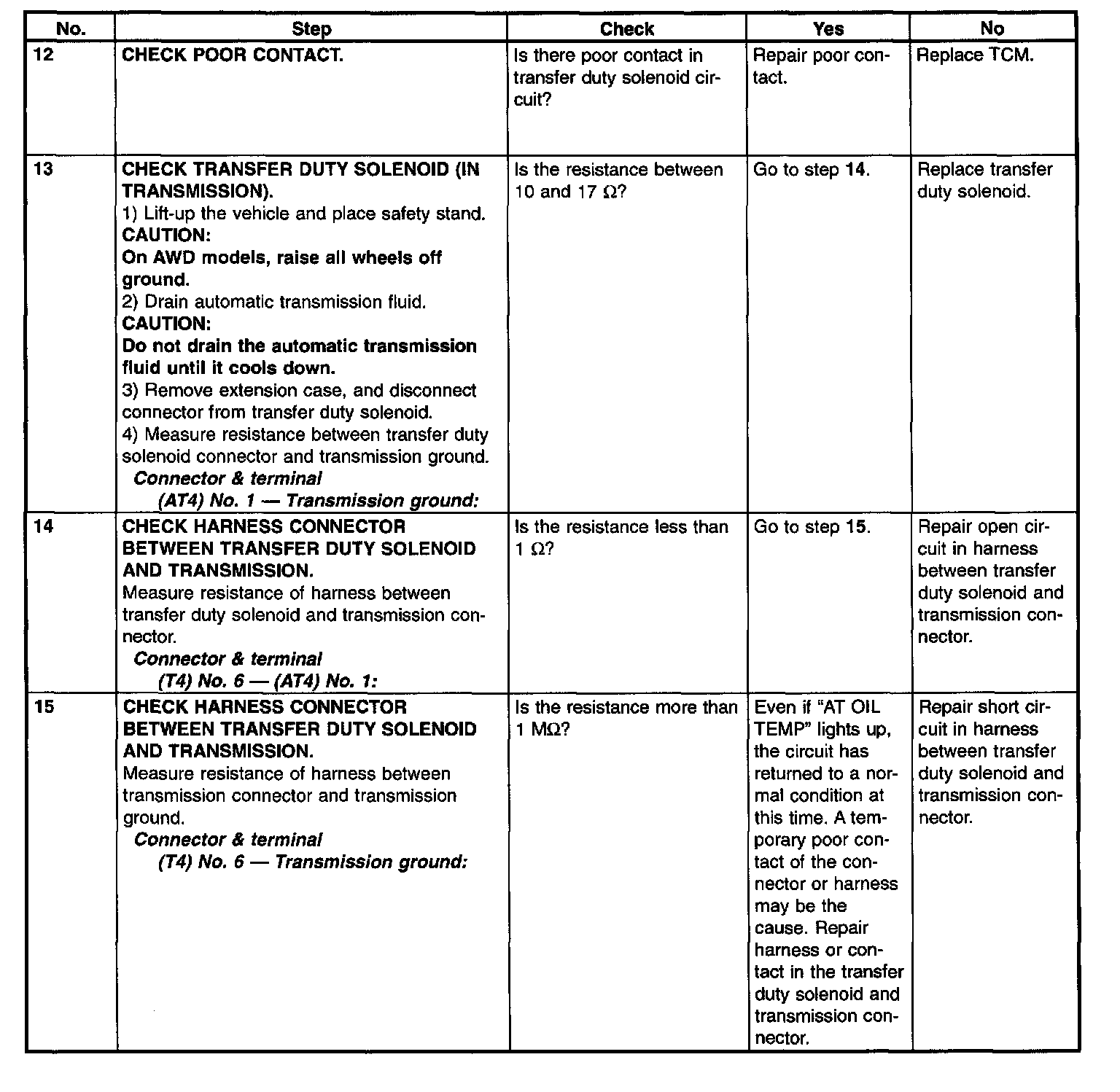

No.12 - 15
DIAGNOSIS: Output signal circuit of transfer duty solenoid is open or shorted.
TROUBLE SYMPTOM: Excessive "braking" in tight corners.
WIRING DIAGRAM:
PROCEDURE:
No.1
No.2 - 7
No.8 - 11
No.12 - 15
