Transmission Control Systems

N: TROUBLE CODE 76 2-4 BRAKE DUTY SOLENOID
DIAGNOSIS: Output signal circuit of 2-4 brake duty solenoid is open or shorted
TROUBLE SYMPTOM: Excessive shift shock.

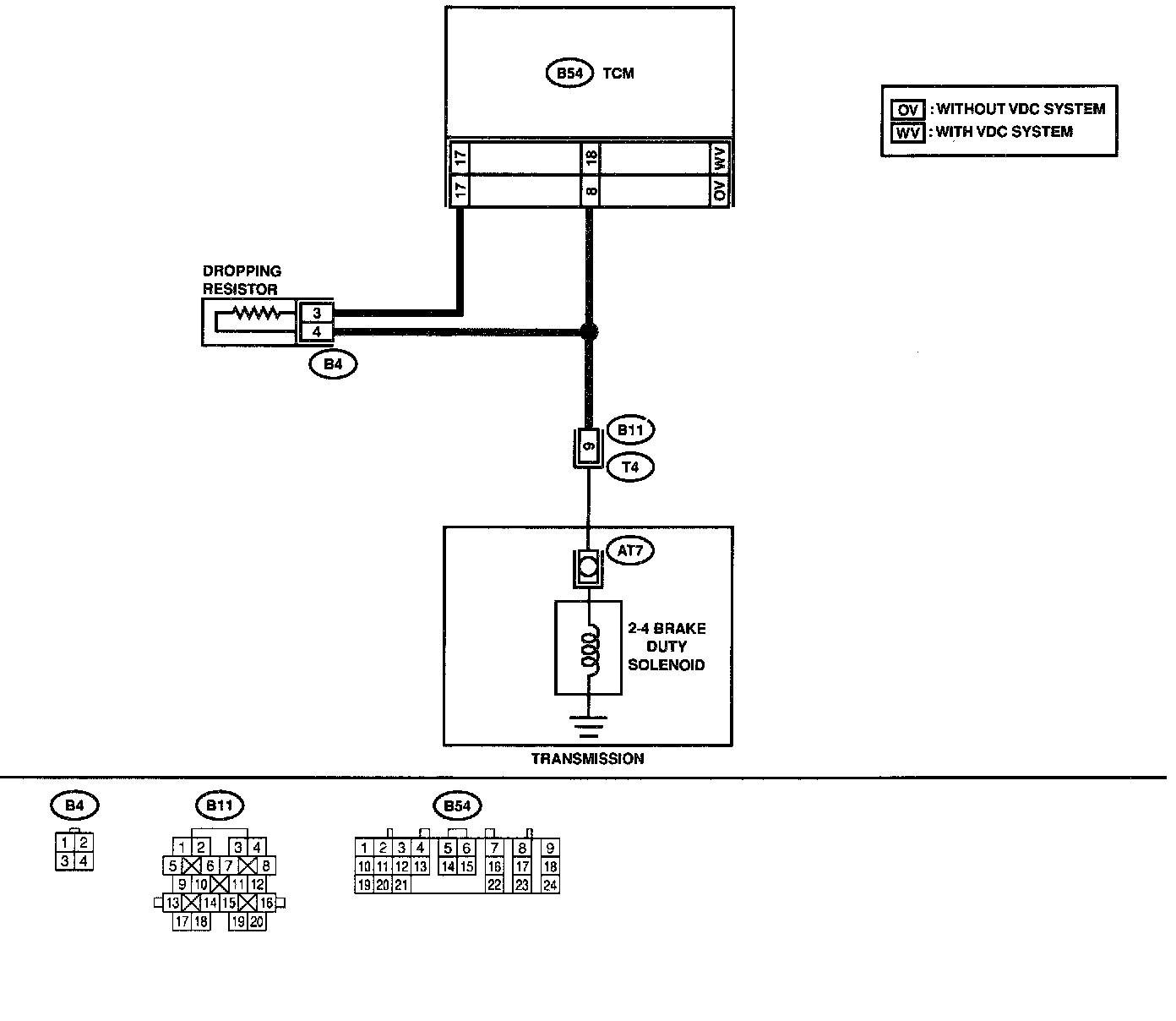

WIRING DIAGRAM:

PROCEDURE:

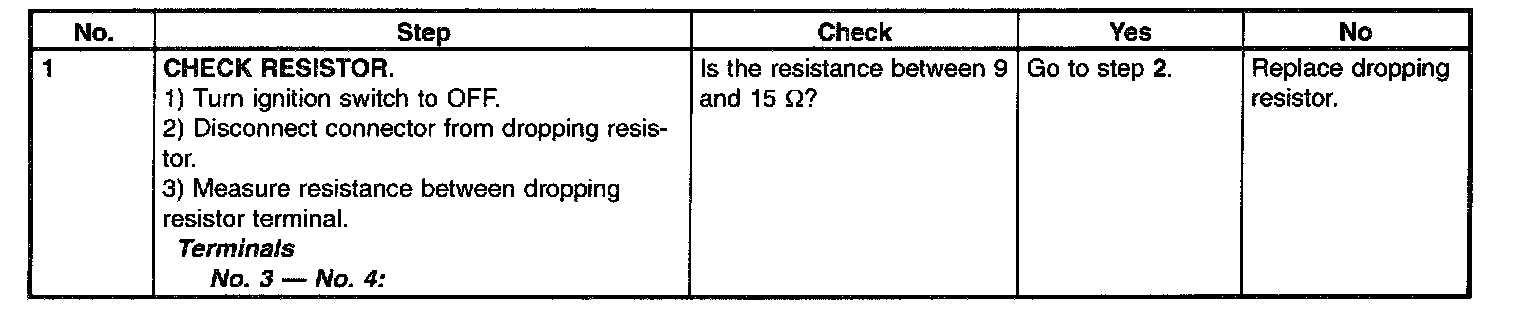

No.1

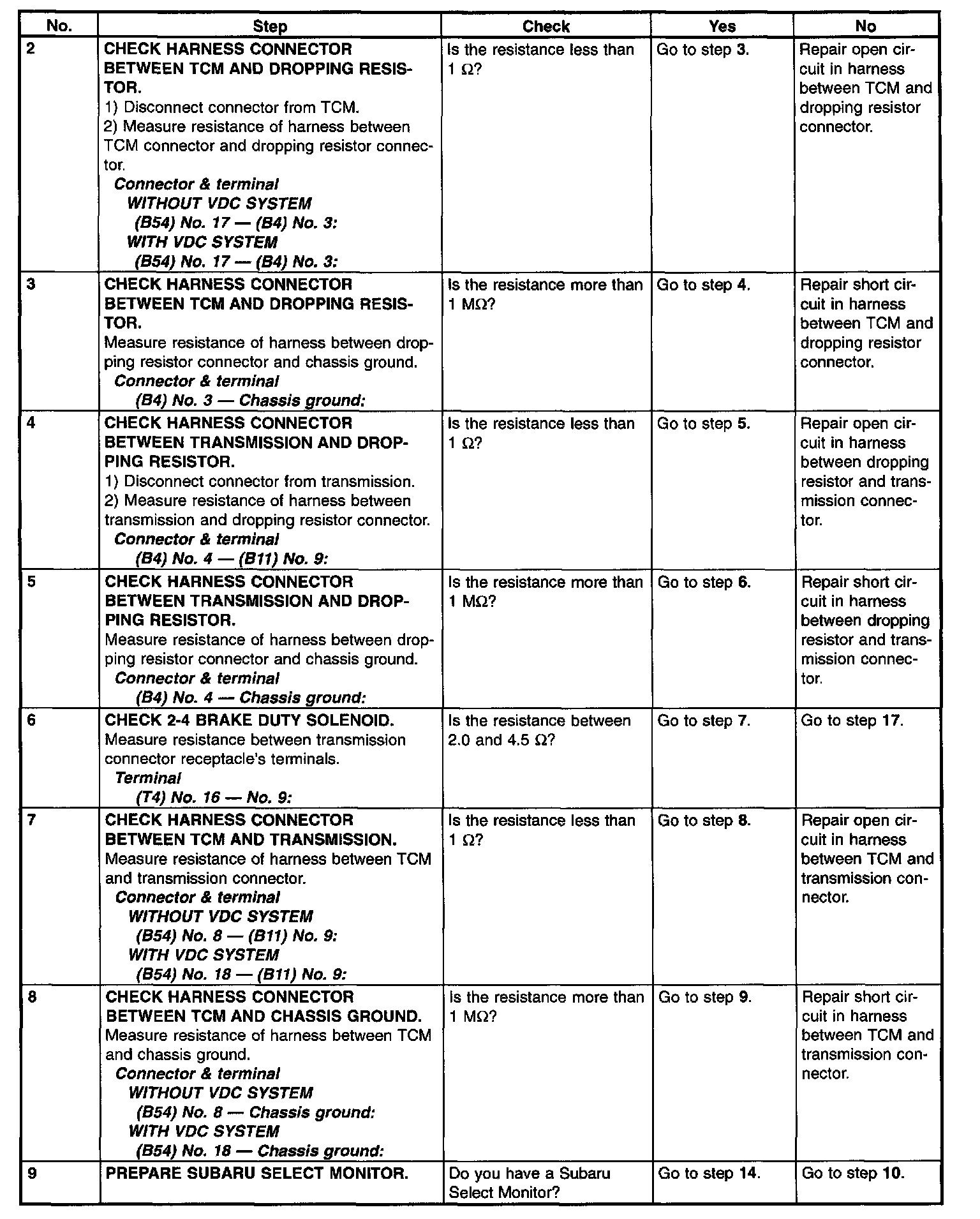

No.2 - 9

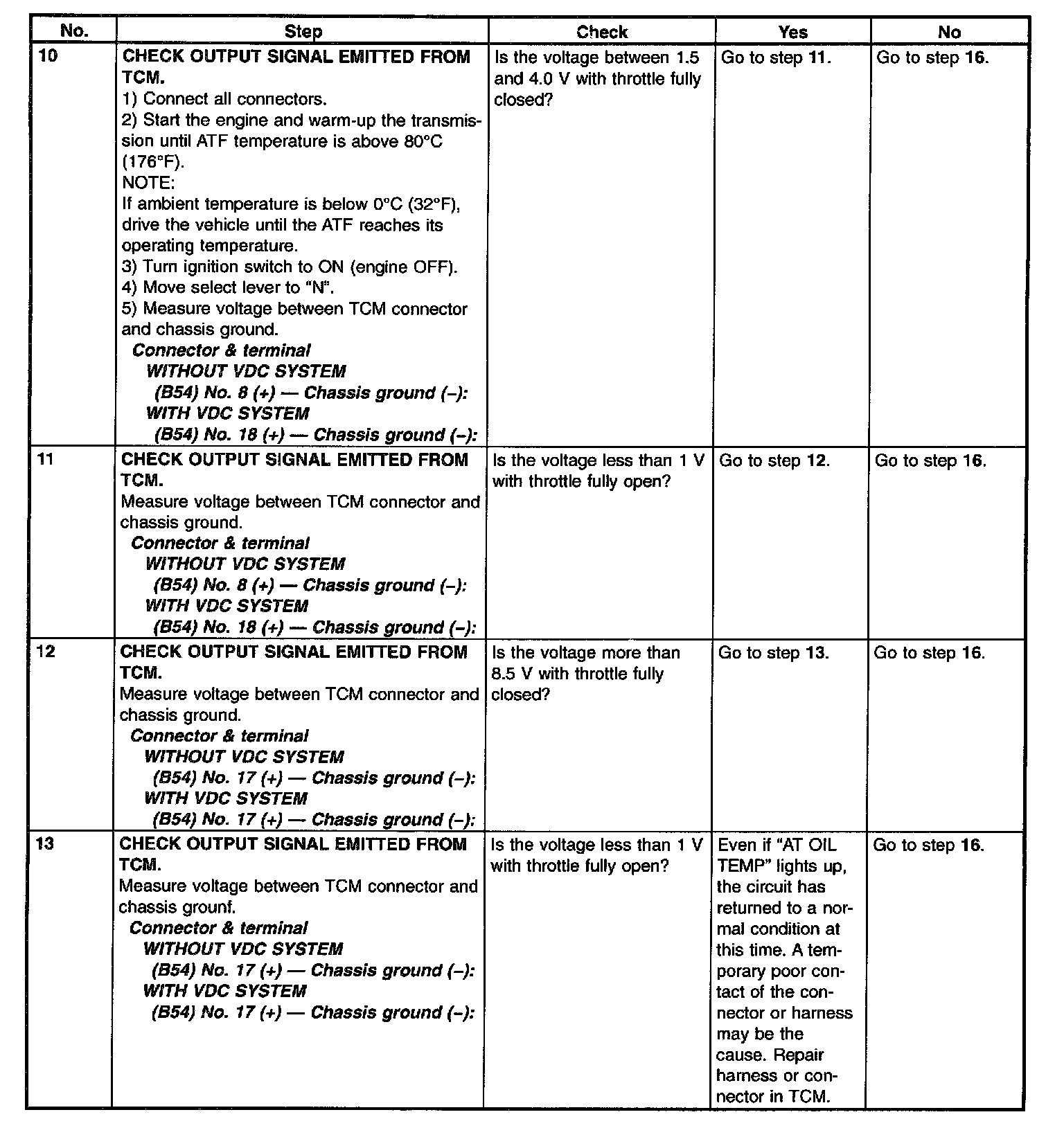

No.10 - 13

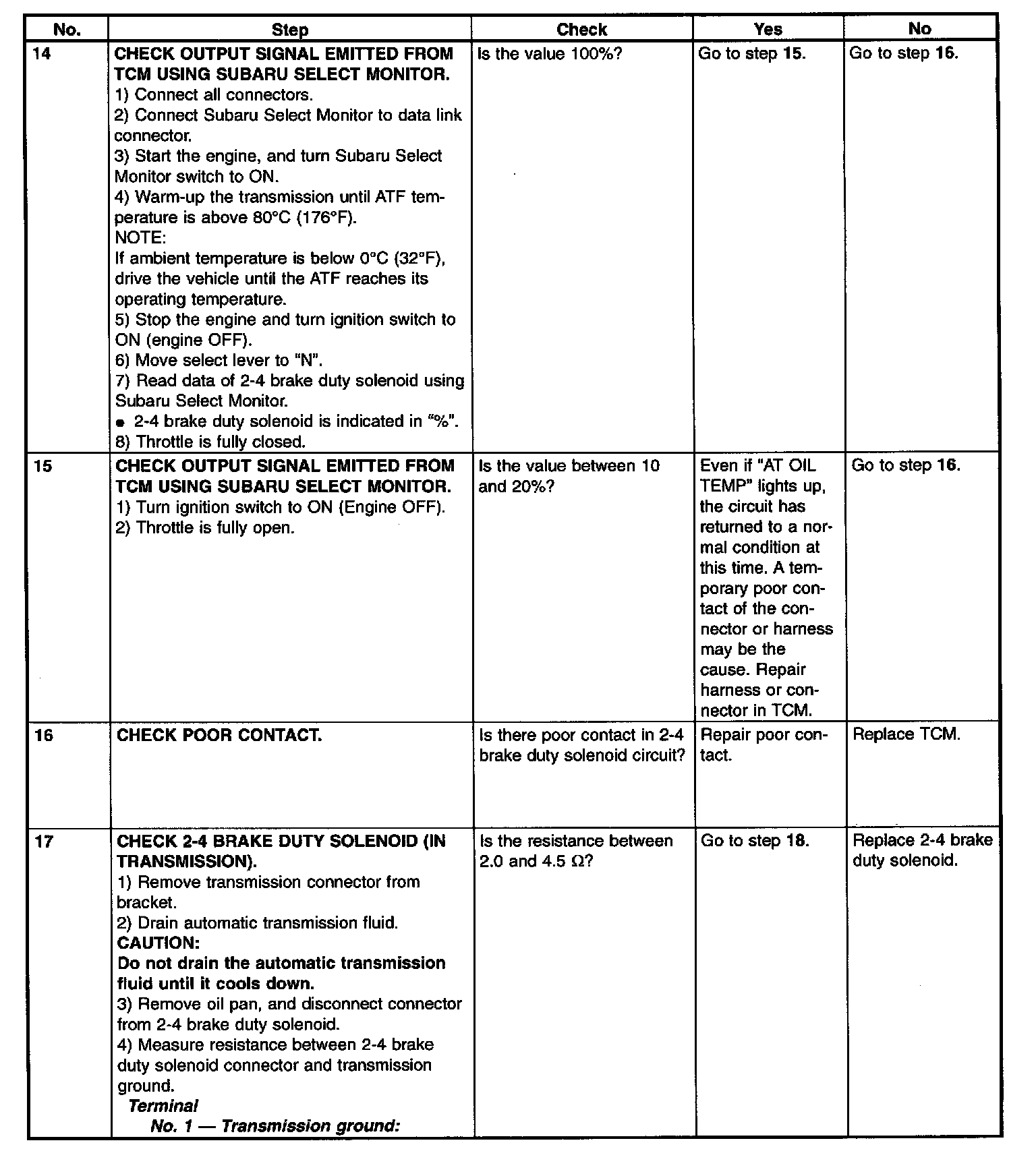

No.14 - 17

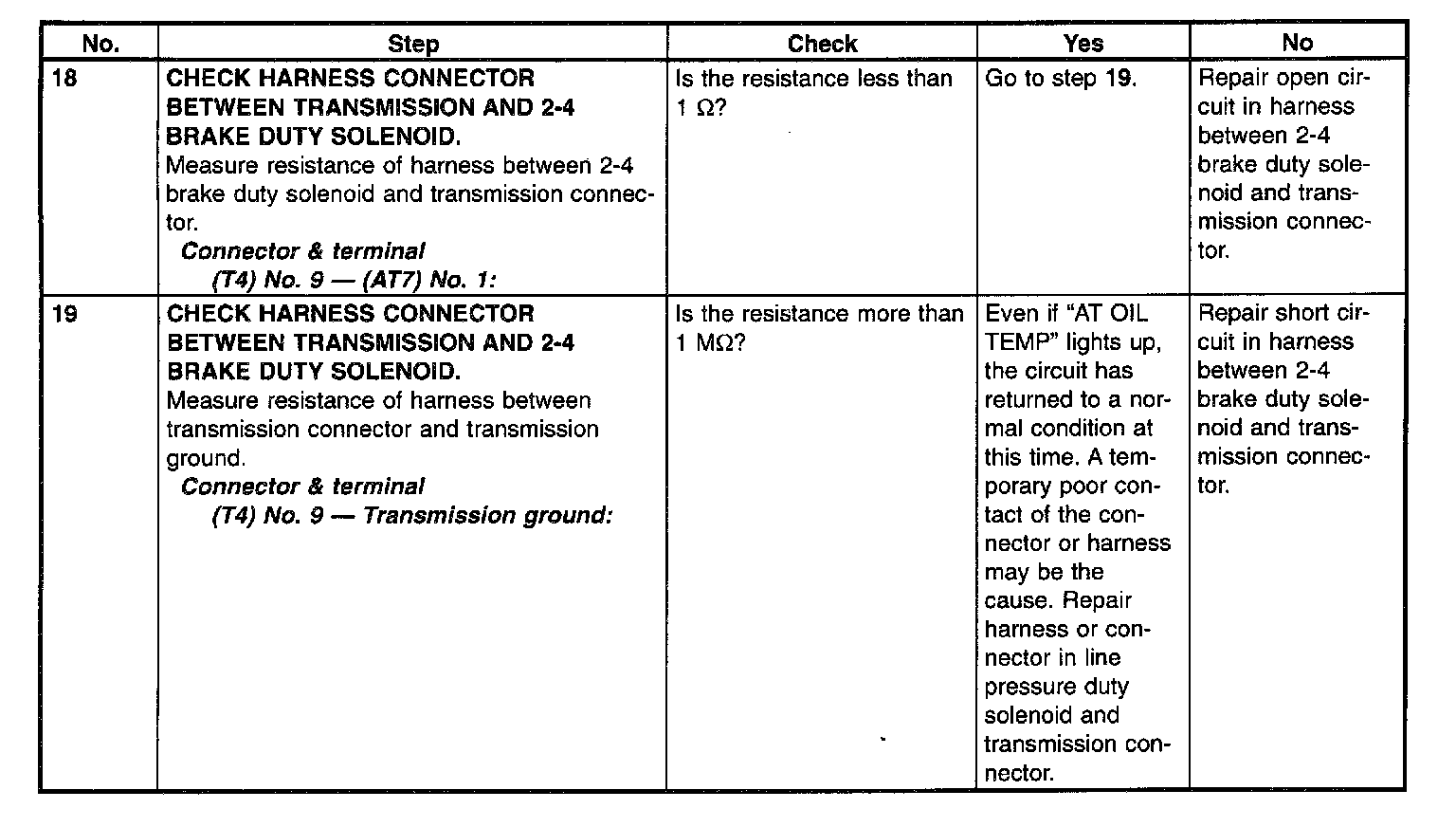

No.18 - 19
