Differential Pressure of Pressure Sensor Is Too Big

BG: TROUBLE CODE 74 DIFFERENTIAL PRESSURE OF PRESSURE SENSOR IS TOO BIG.

DIAGNOSIS:
- Faulty pressure sensor
TROUBLE SYMPTOM:
- ABS does not operate.
- VDC does not operate.

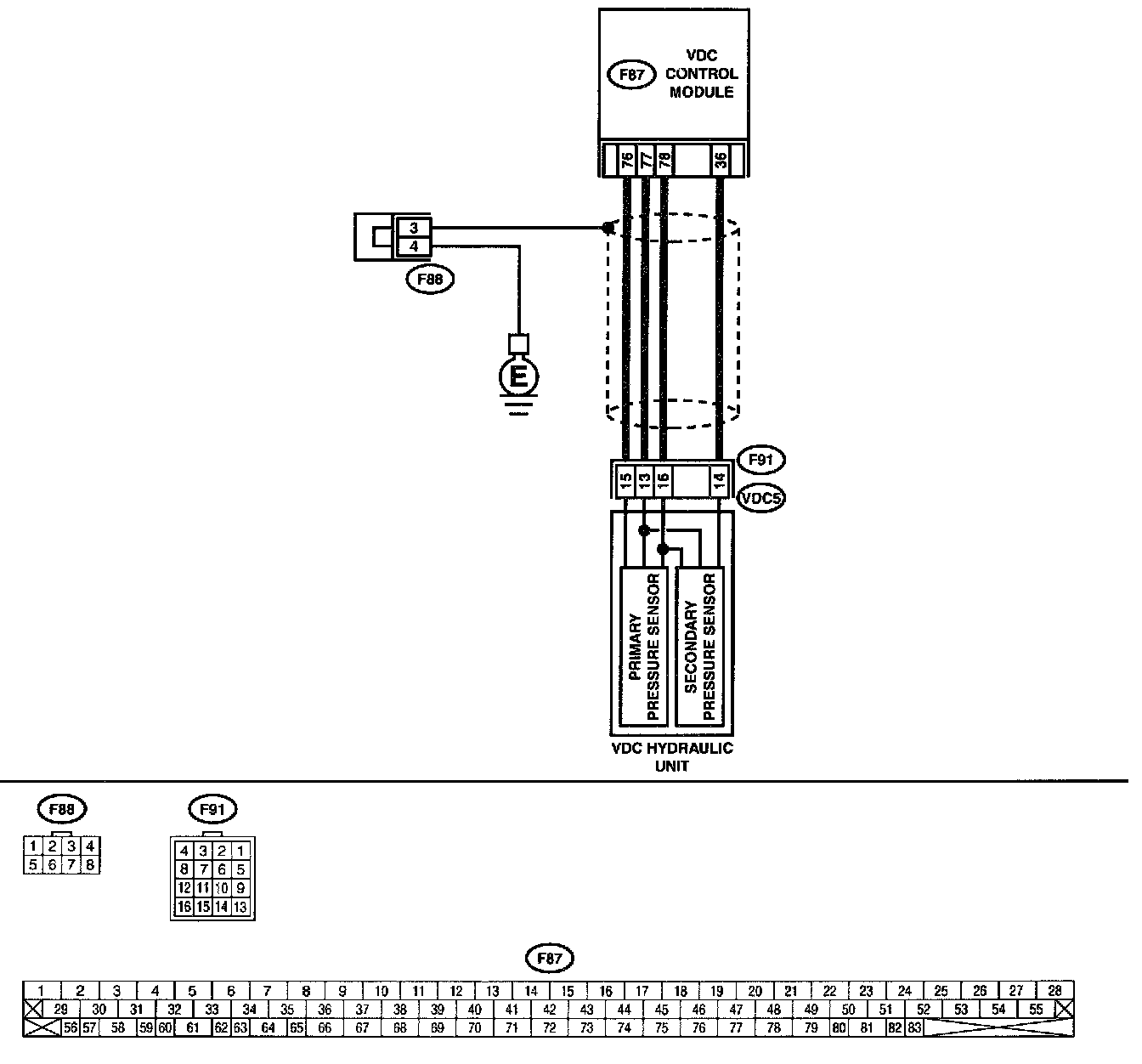

WIRING DIAGRAM

PROCEDURE:

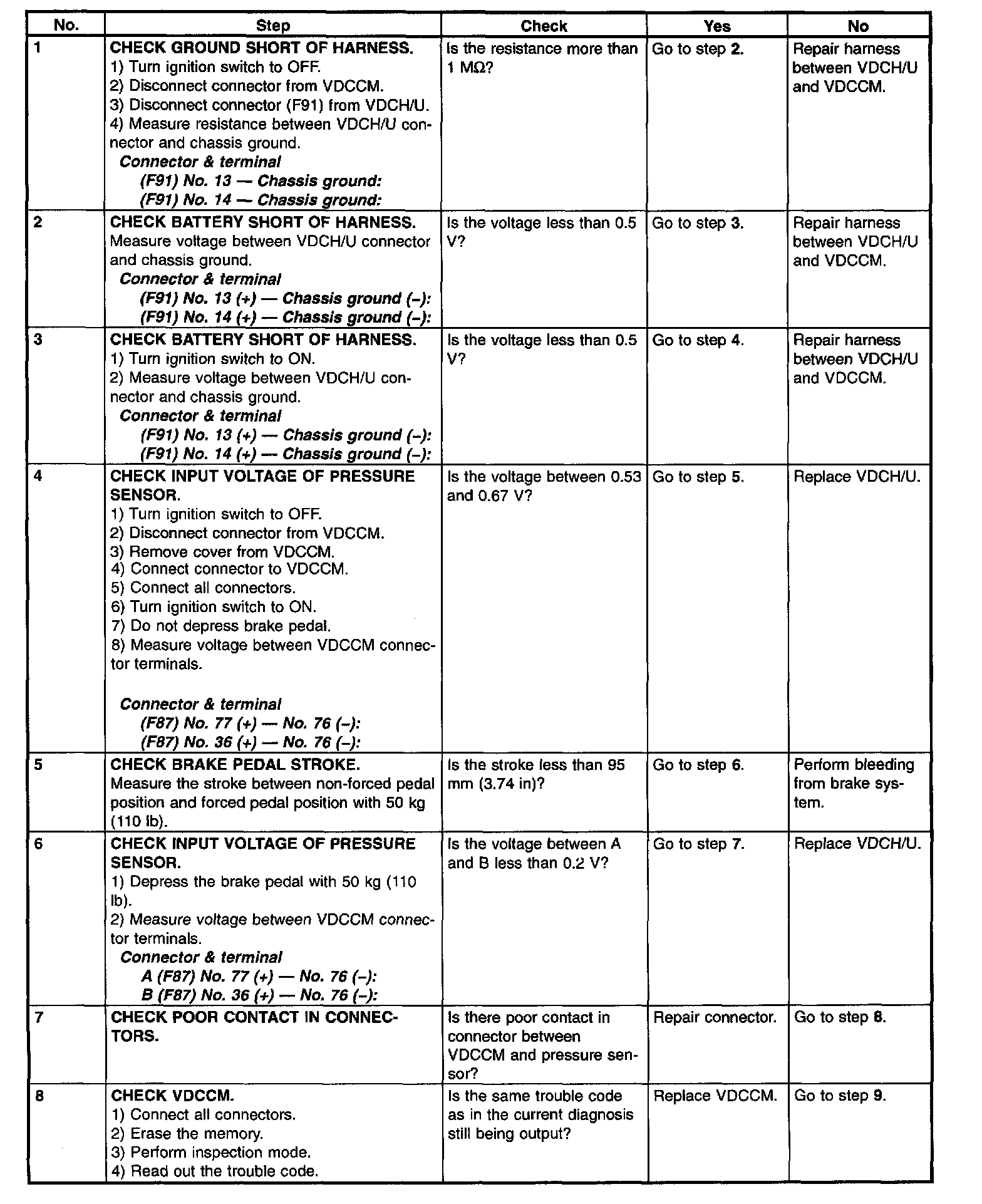

Part 1 of 2

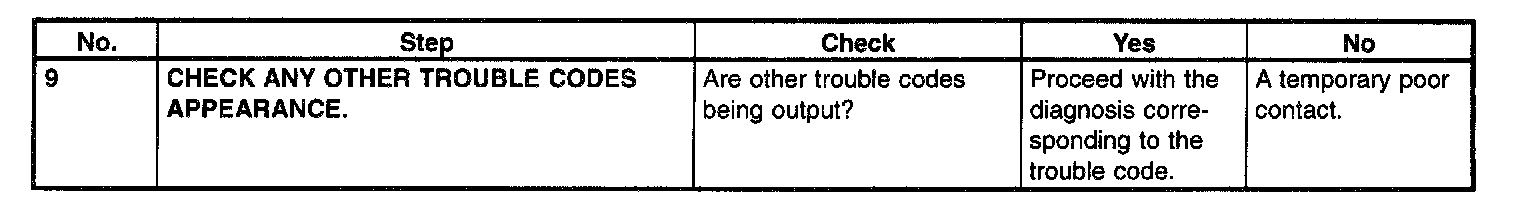

Part 2 of 2
