Vdc System Trouble Code Charts For Warning Light Codes

AN: TROUBLE CODE 73 ABNORMAL LATERAL G SENSOR

DIAGNOSIS:
- Faulty lateral G sensor
TROUBLE SYMPTOM:
- ABS does not operate.
- VDC does not operate.

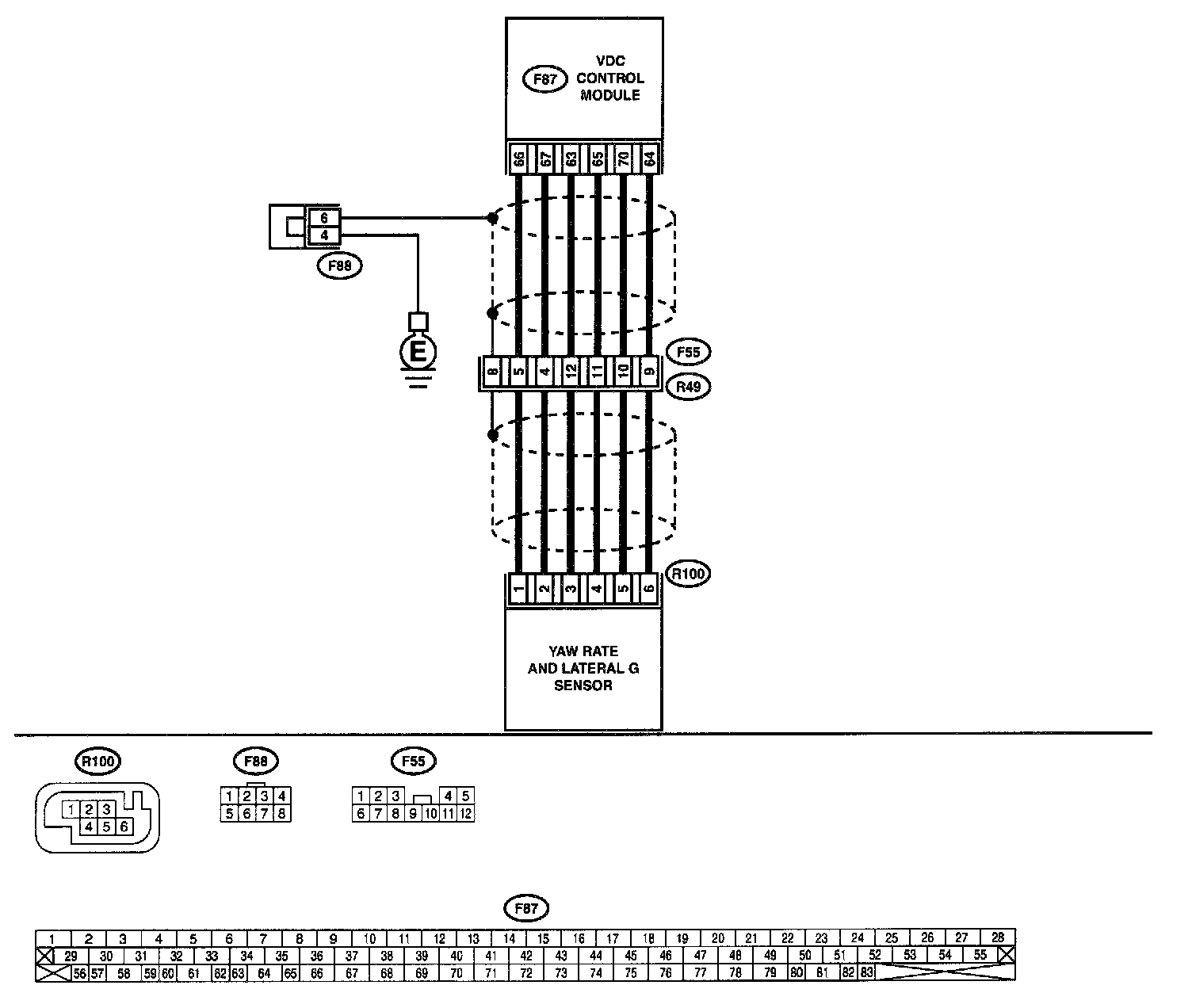

WIRING DIAGRAM

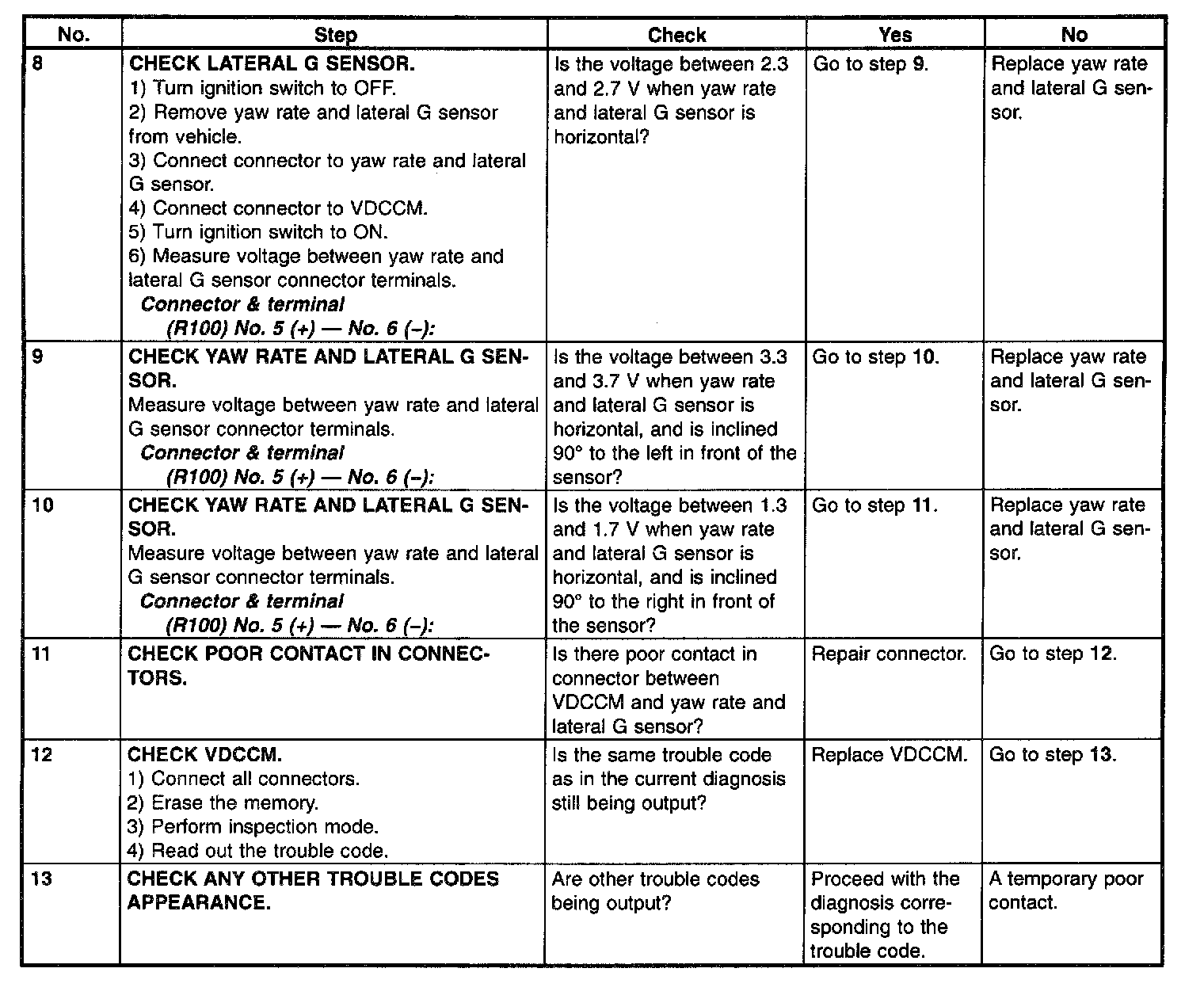

PROCEDURE:





Part 1 of 2





Part 2 of 2
