Transmission Control Systems
K: TROUBLE CODE 73 LOW CLUTCH TIMING SOLENOIDDIAGNOSIS: Output signal circuit of low clutch timing solenoid is open or shorted.
TROUBLE SYMPTOM: Excessive shift shock.

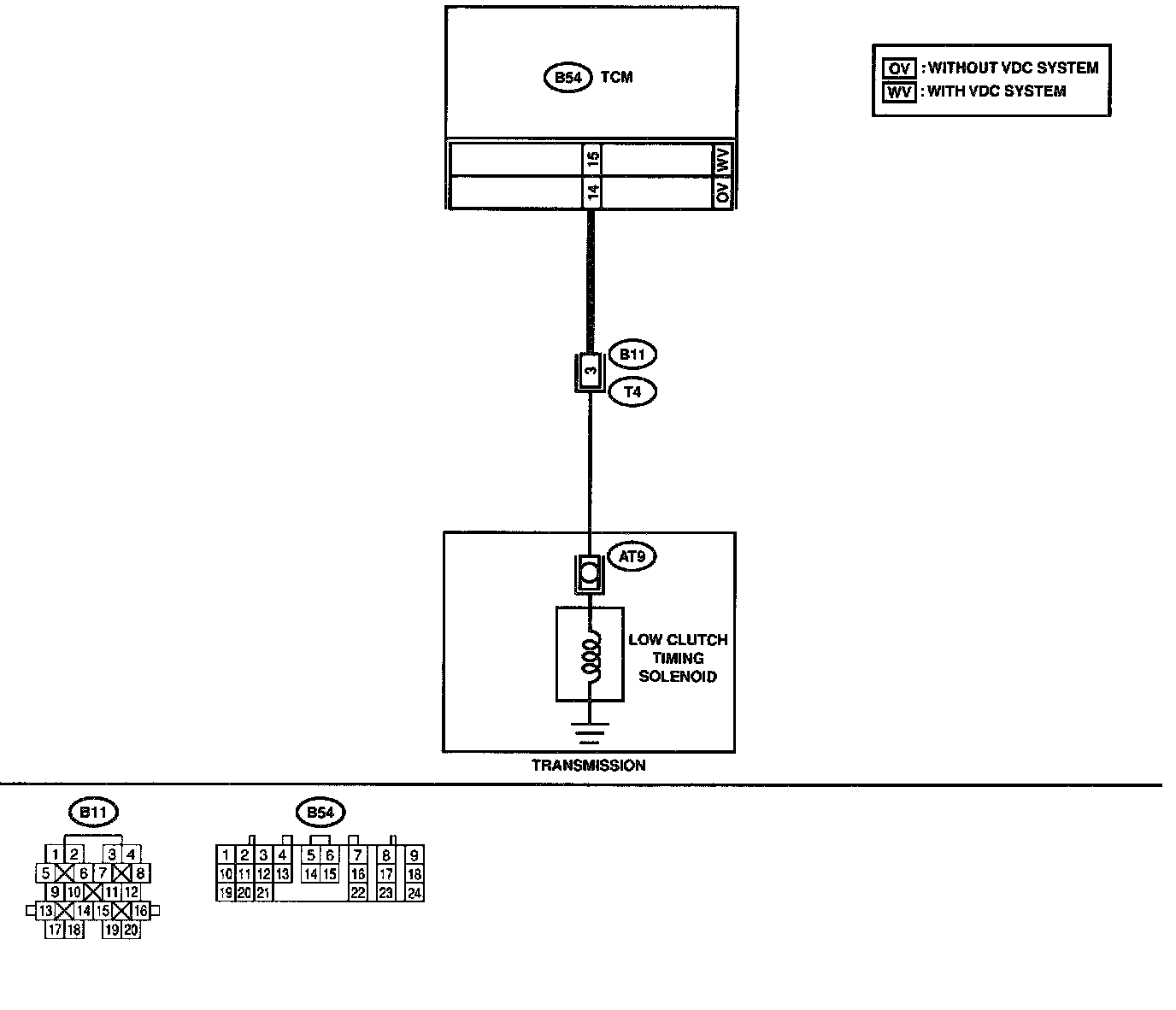

WIRING DIAGRAM:
PROCEDURE:

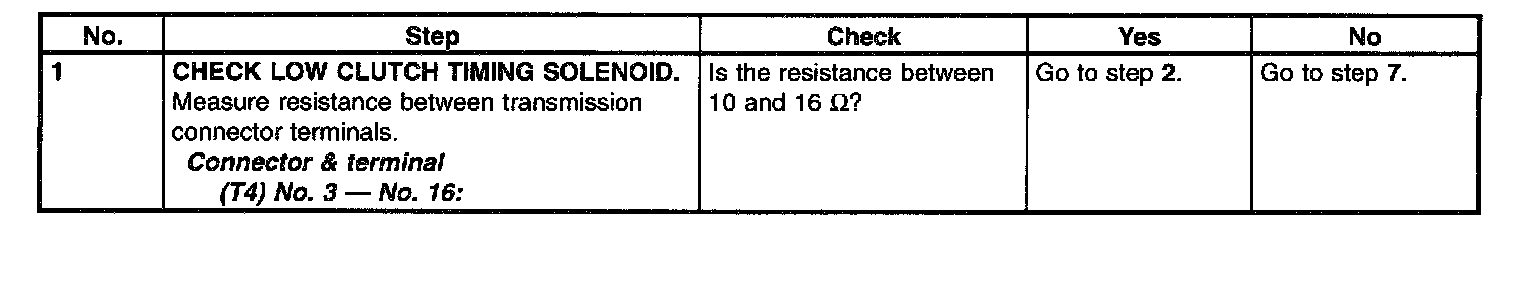

No.1

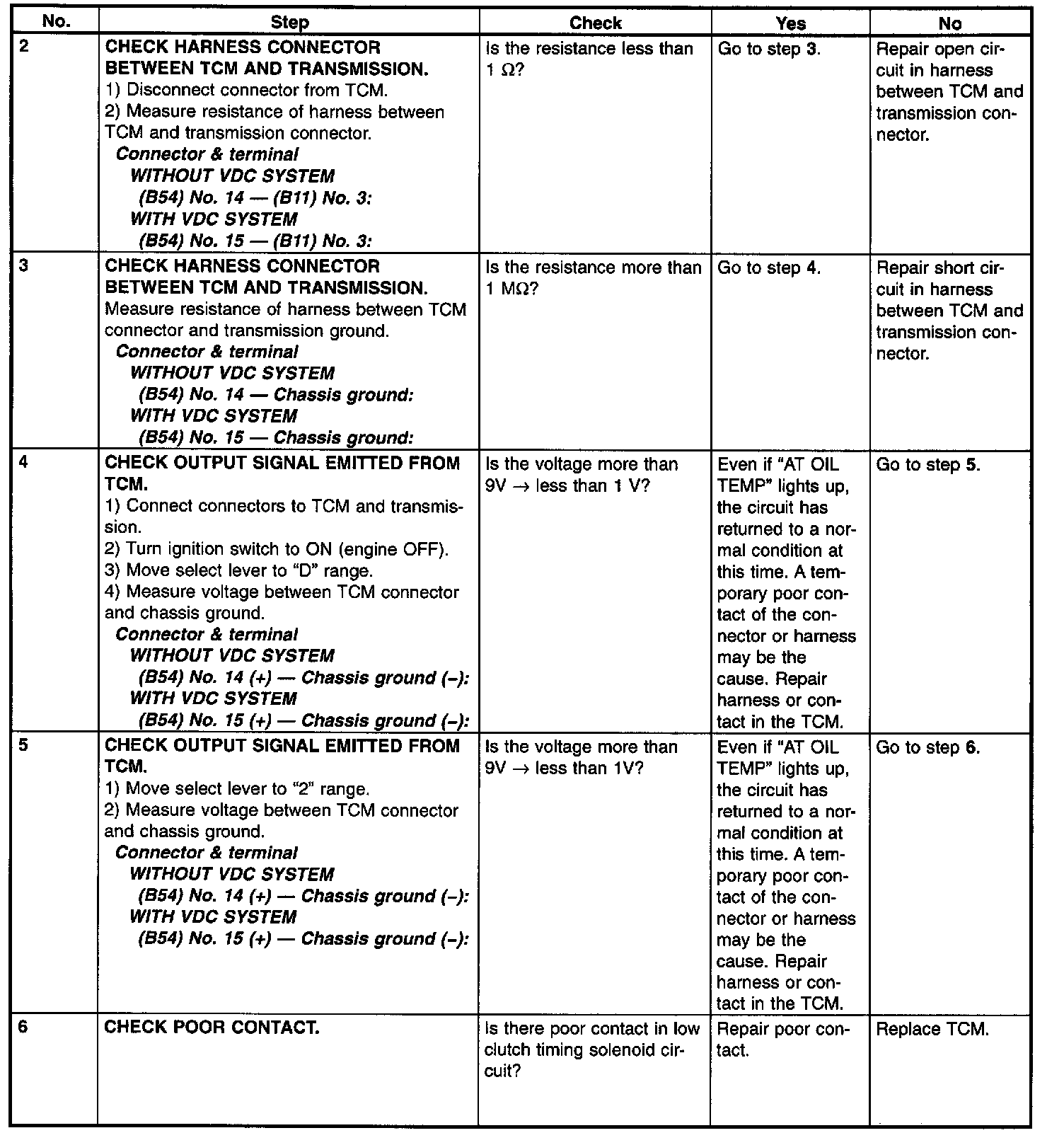

No.2 - 6

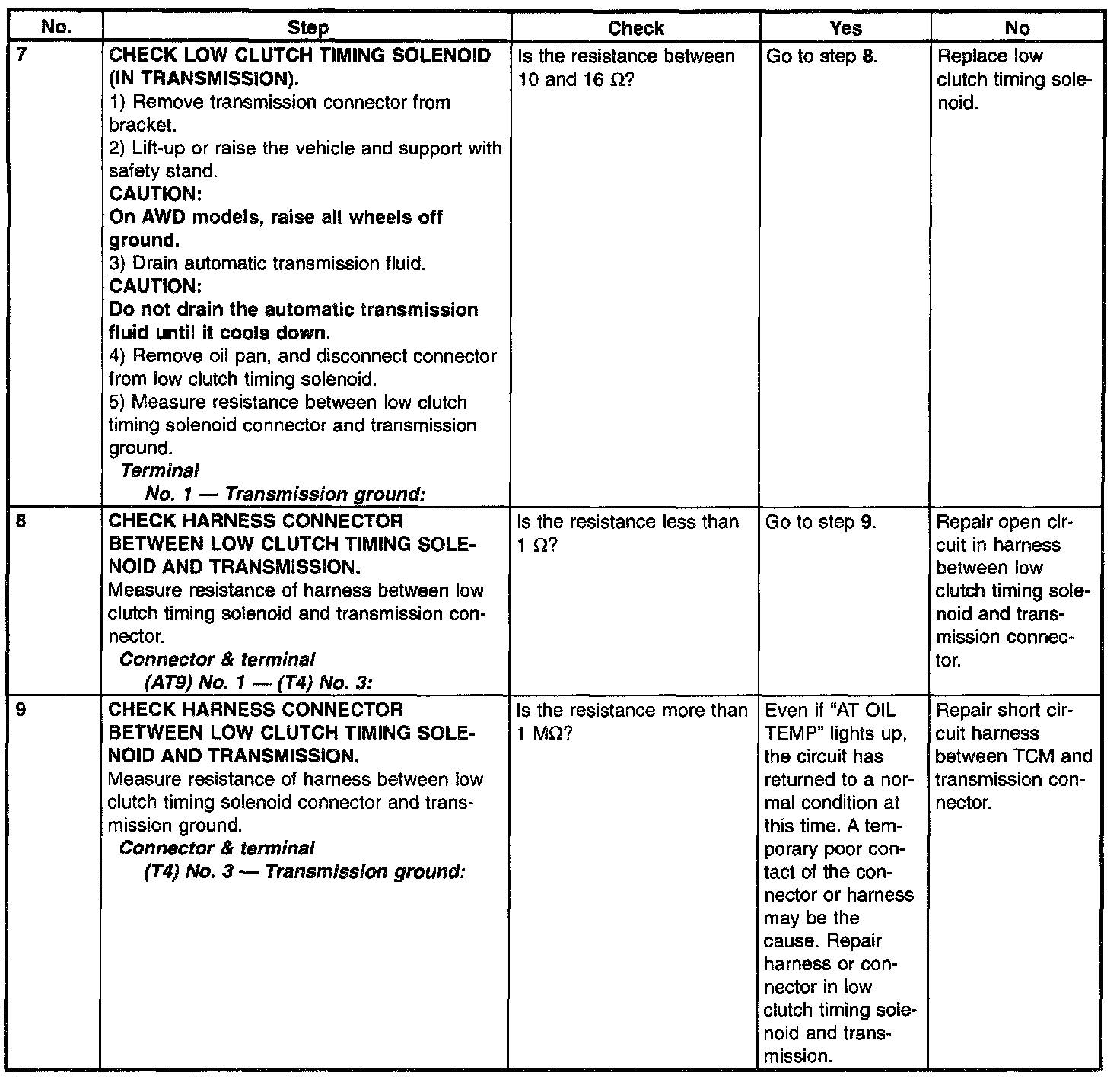

No.7 - 9
DIAGNOSIS: Output signal circuit of low clutch timing solenoid is open or shorted.
TROUBLE SYMPTOM: Excessive shift shock.
WIRING DIAGRAM:
PROCEDURE:
No.1
No.2 - 6
No.7 - 9
