Vdc System Trouble Code Charts For Warning Light Codes

AM: TROUBLE CODE 72 ABNORMAL YAW RATE SENSOR

DIAGNOSIS:
- Faulty yaw rate sensor
TROUBLE SYMPTOM:
- ABS does not operate.
- VDC does not operate.

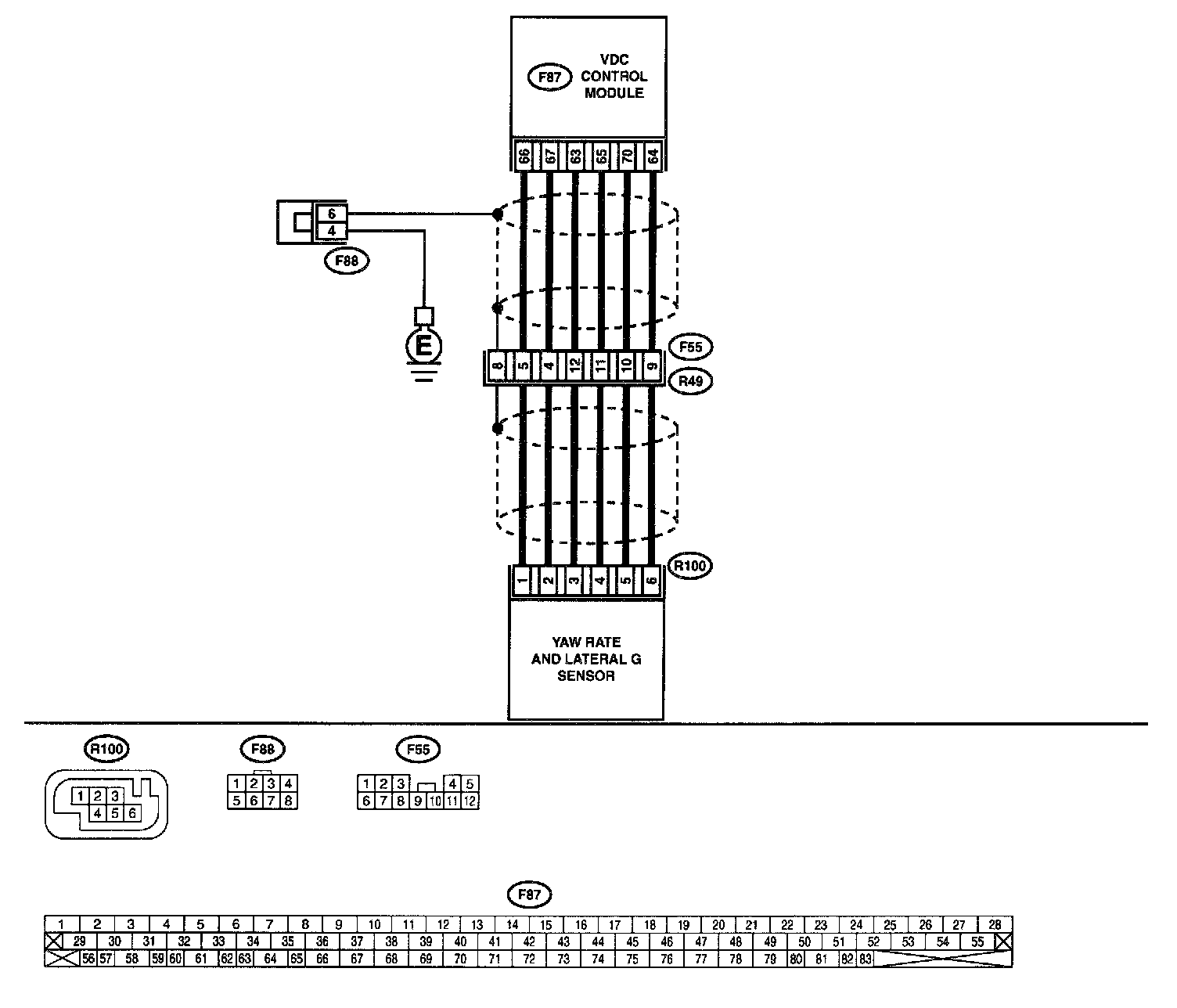

WIRING DIAGRAM

PROCEDURE:

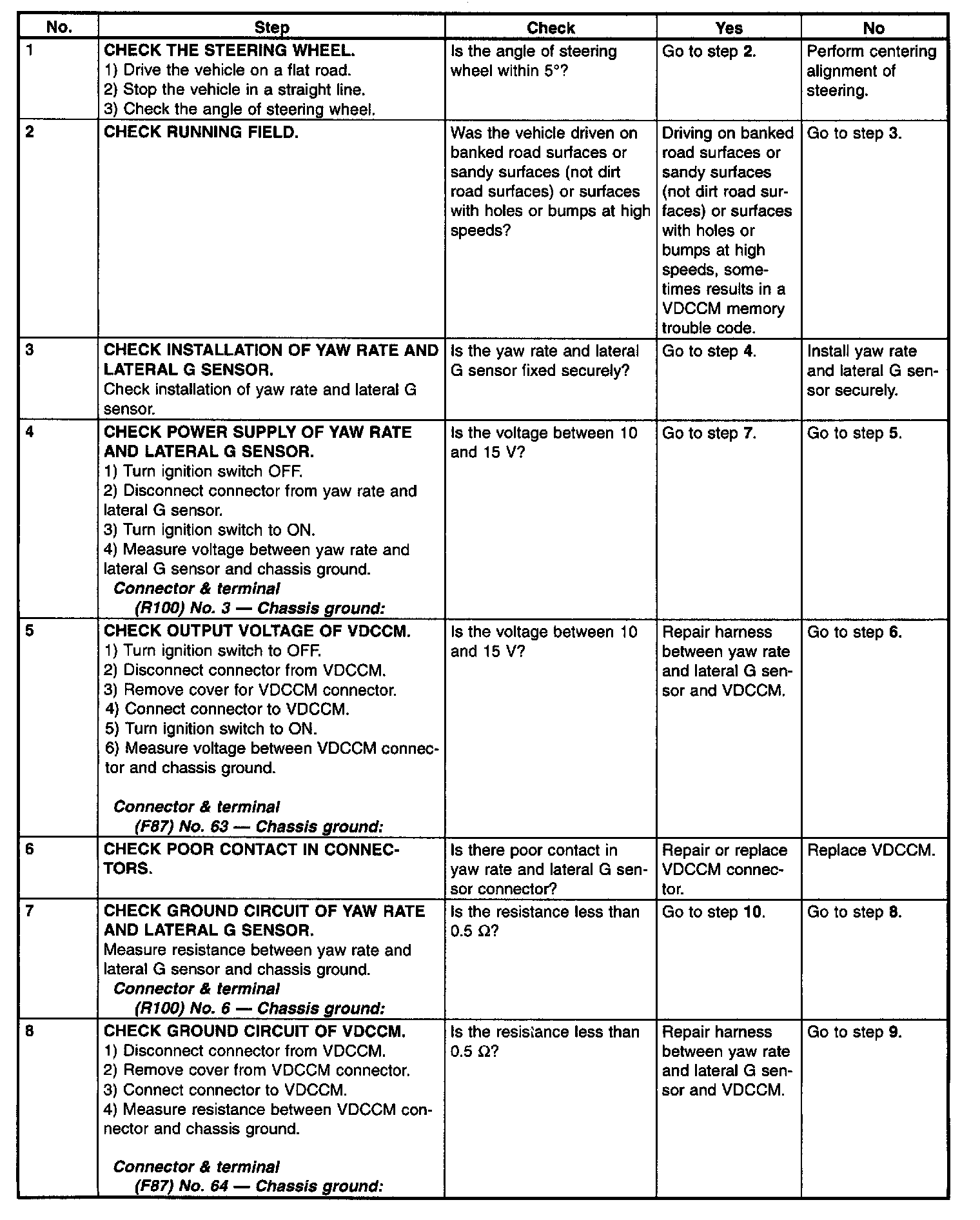

Part 1 of 3

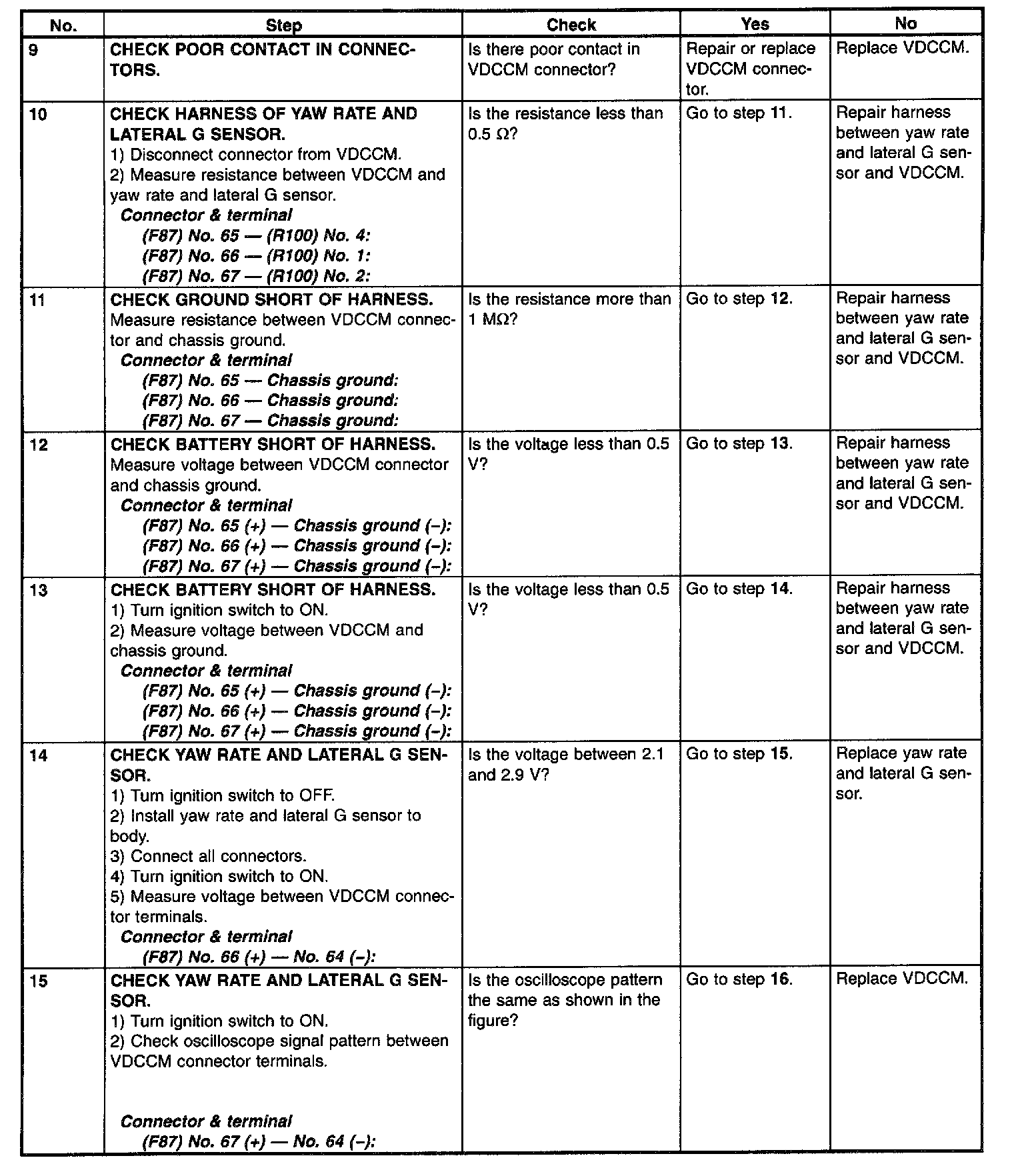

Part 2 of 3

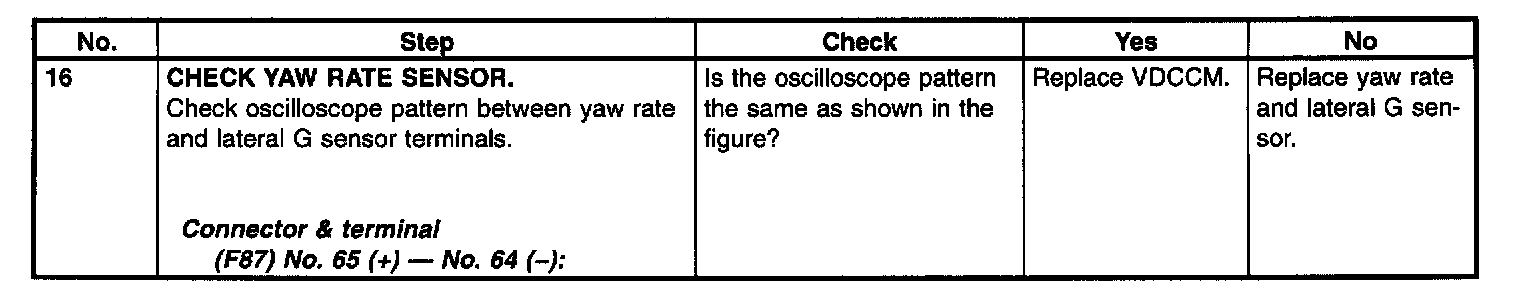

Part 3 of 3
