Change Range of Yaw Rate Sensor Signal Is Too Big

AW: TROUBLE CODE 72 CHANGE RANGE OF YAW RATE SENSOR SIGNAL IS TOO BIG

DIAGNOSIS:
- Faulty yaw rate sensor
TROUBLE SYMPTOM:
- VDC does not operate.

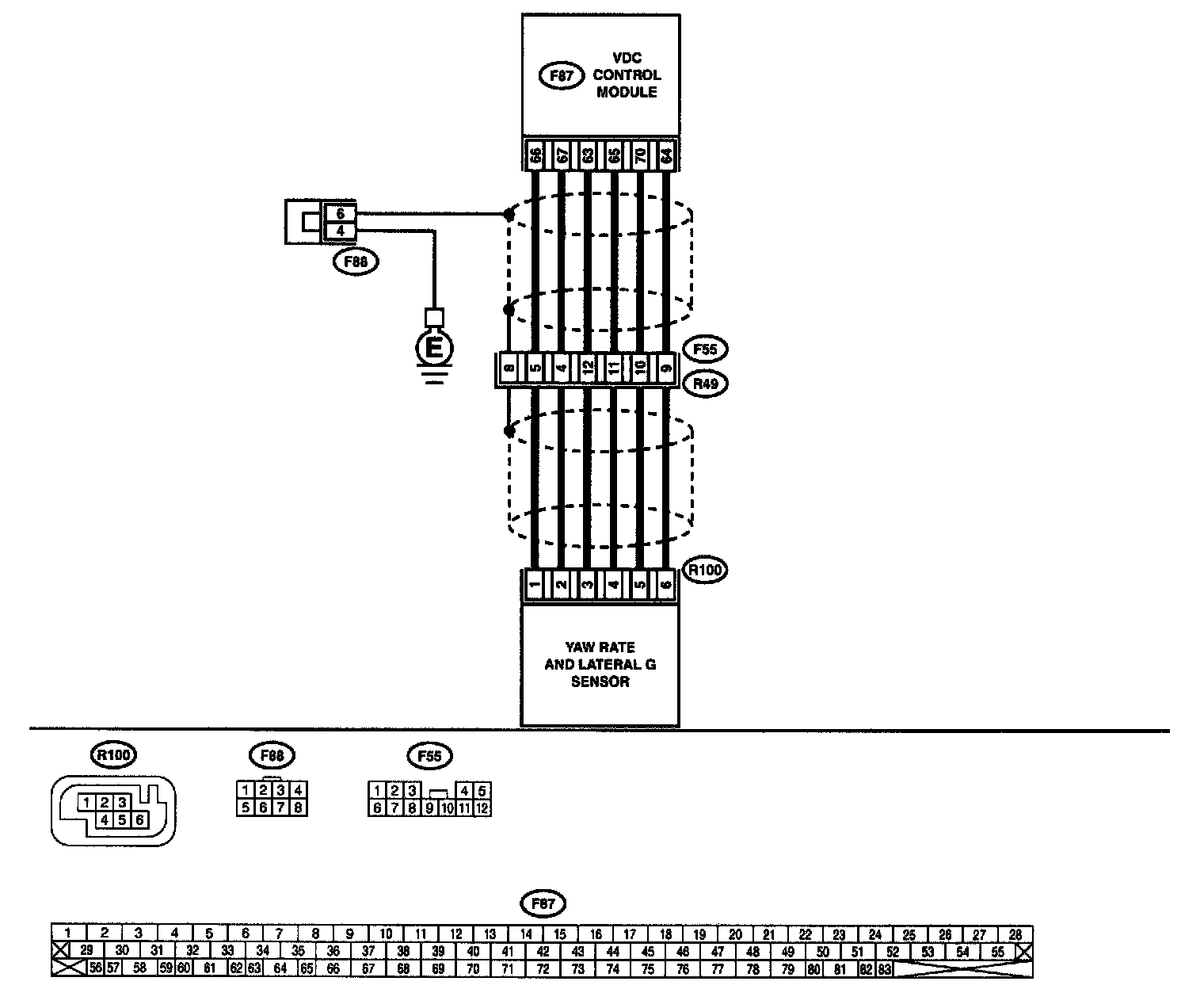

WIRING DIAGRAM

PROCEDURE:

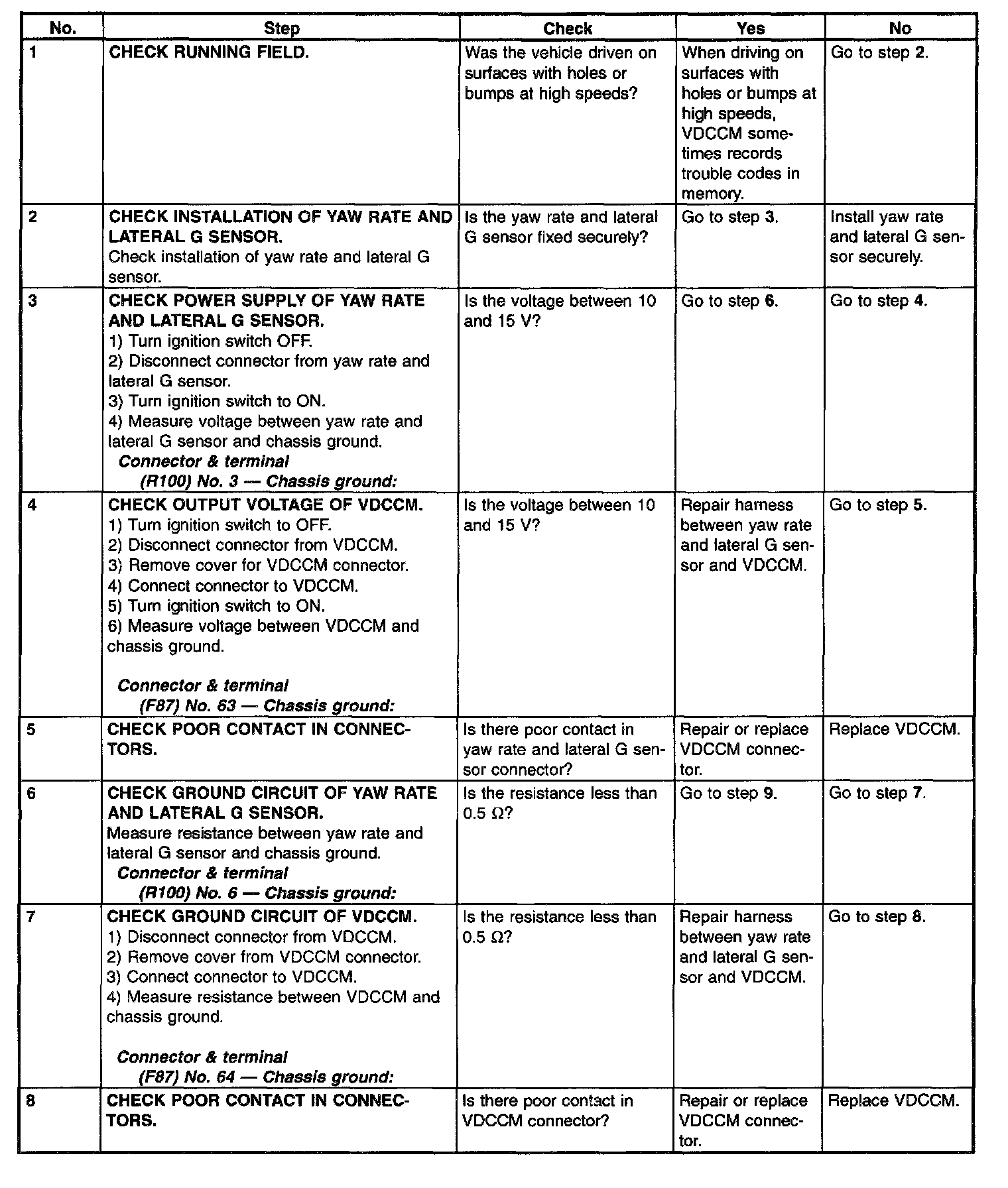

Part 1 of 2

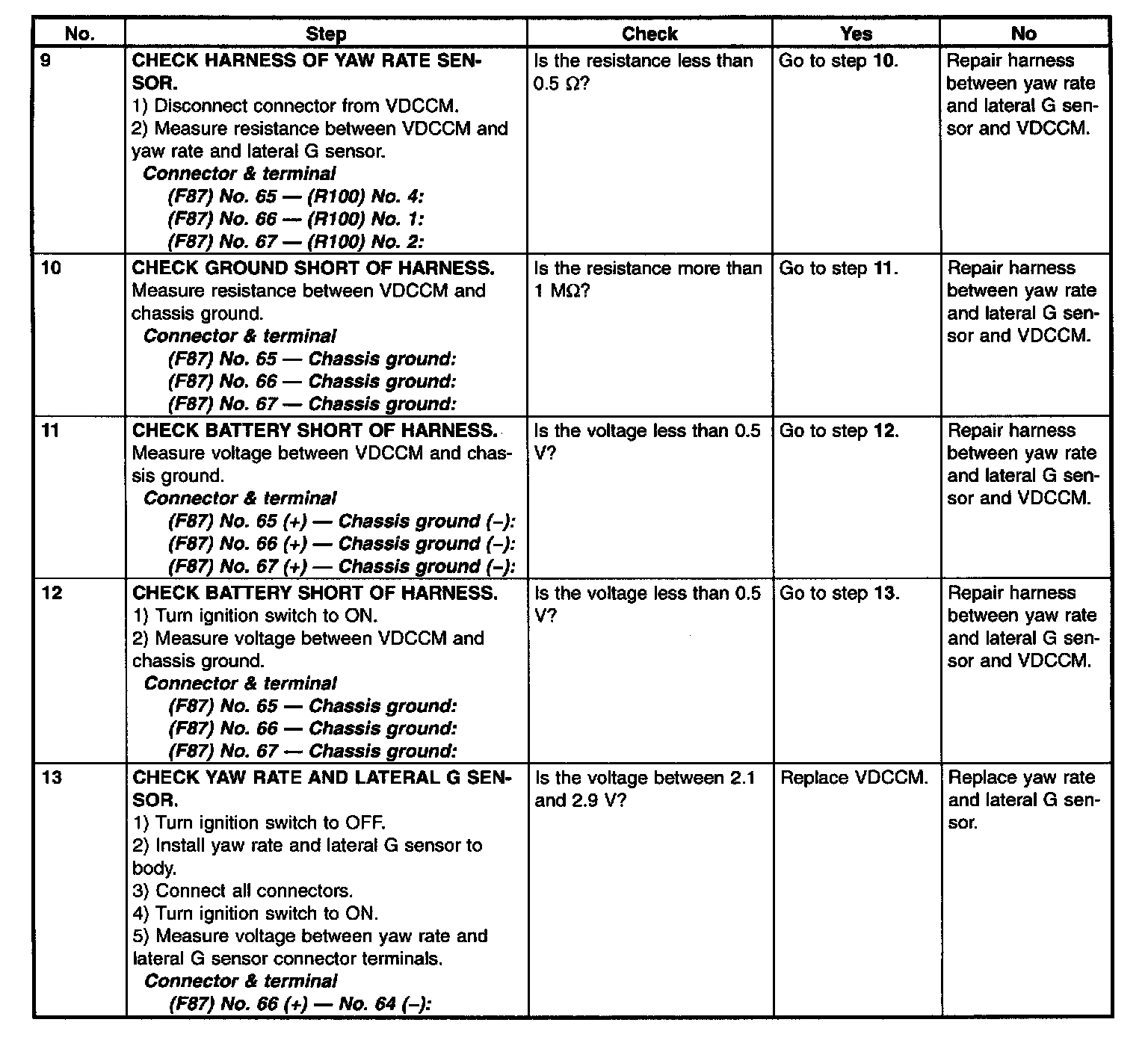

Part 2 of 2
