Abnormal Yaw Rate Sensor Output

AT: TROUBLE CODE 72 ABNORMAL YAW RATE SENSOR OUTPUT

DIAGNOSIS:
- Faulty yaw rate sensor
TROUBLE SYMPTOM:
- VDC does not operate.

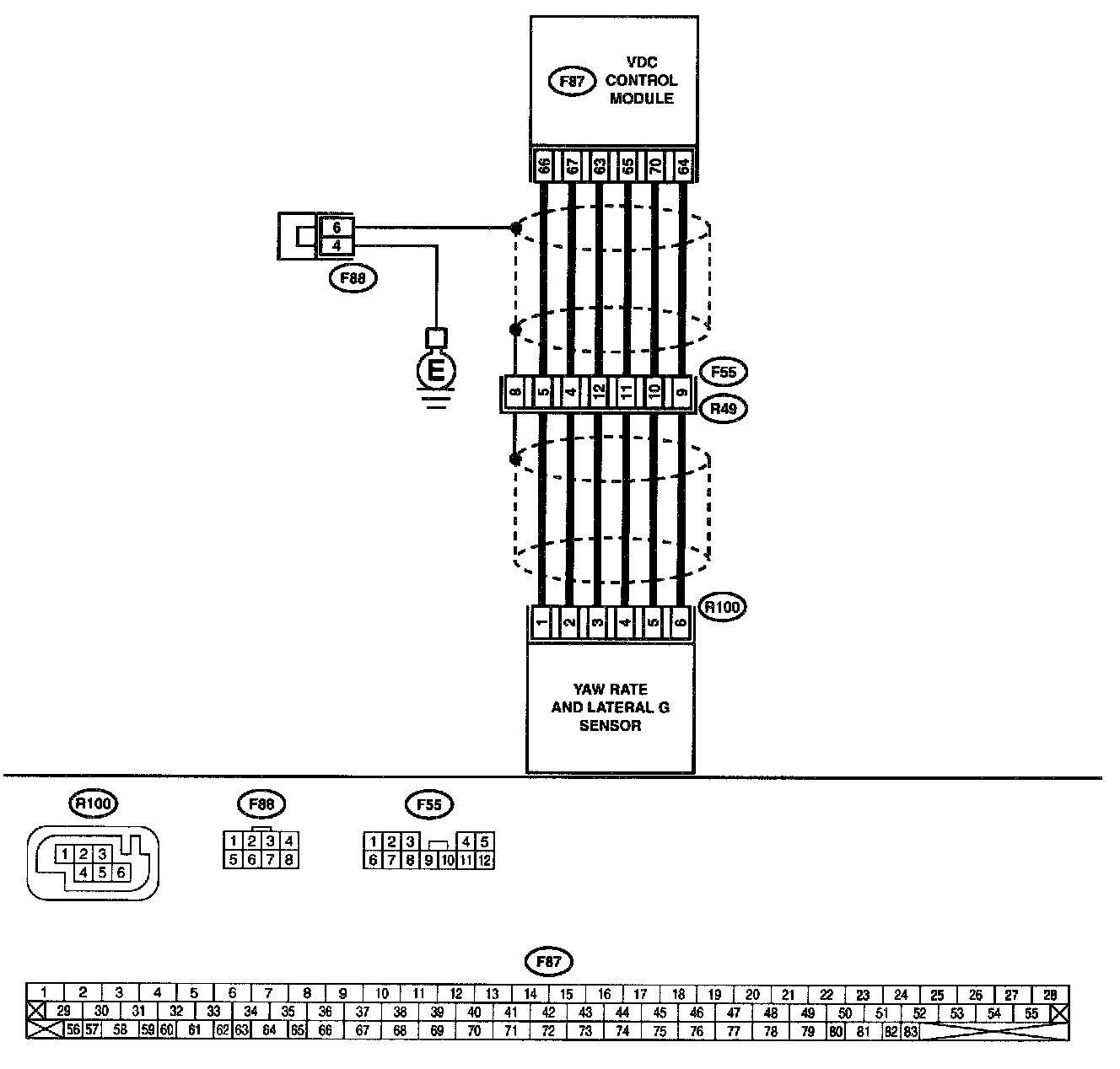

WIRING DIAGRAM

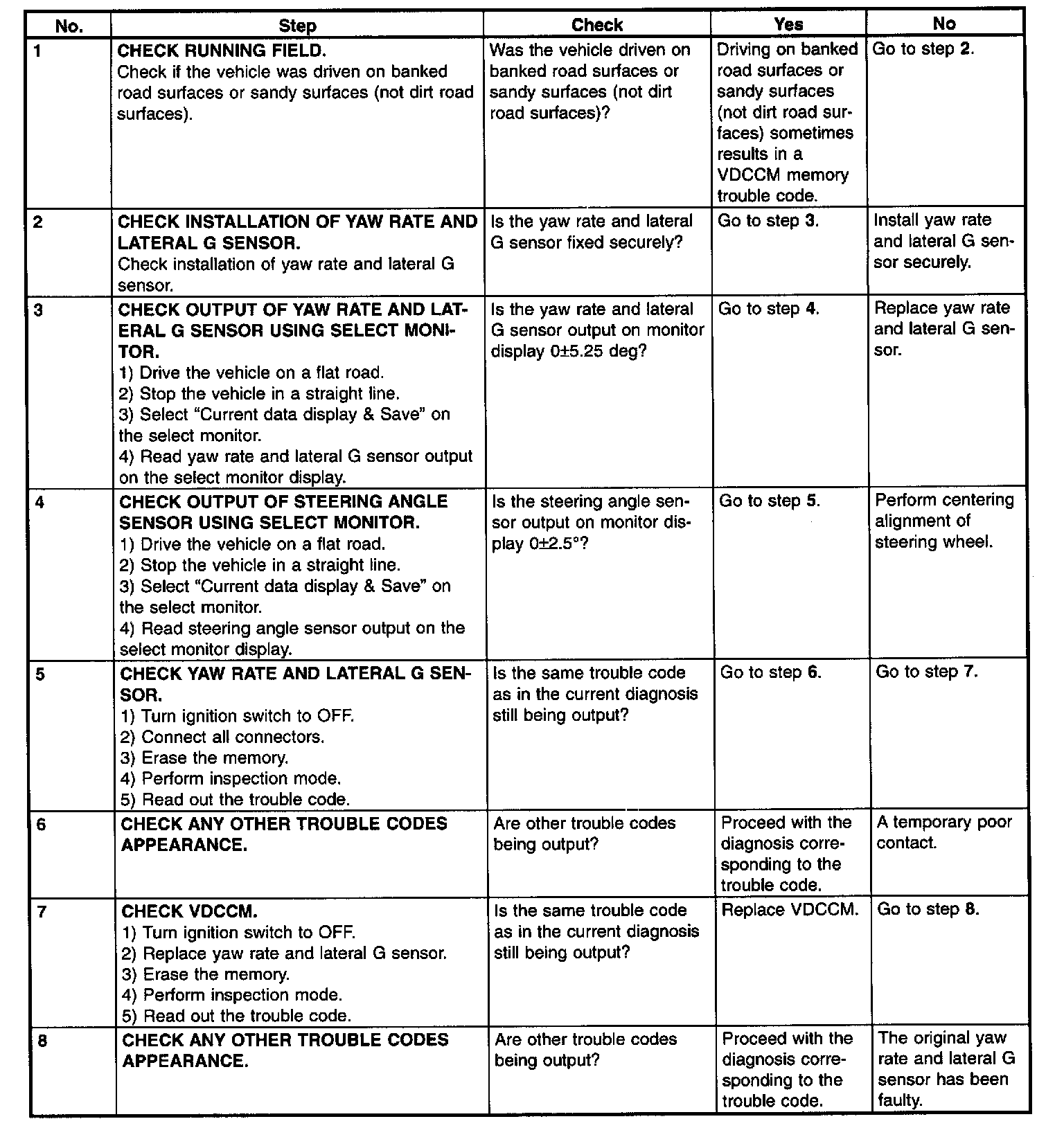

PROCEDURE
