Transmission Control Systems
J: TROUBLE CODE 72 SHIFT SOLENOID 2DIAGNOSIS: Output signal circuit of shift solenoid 2 is open or shorted.
TROUBLE SYMPTOM: Does not shift.

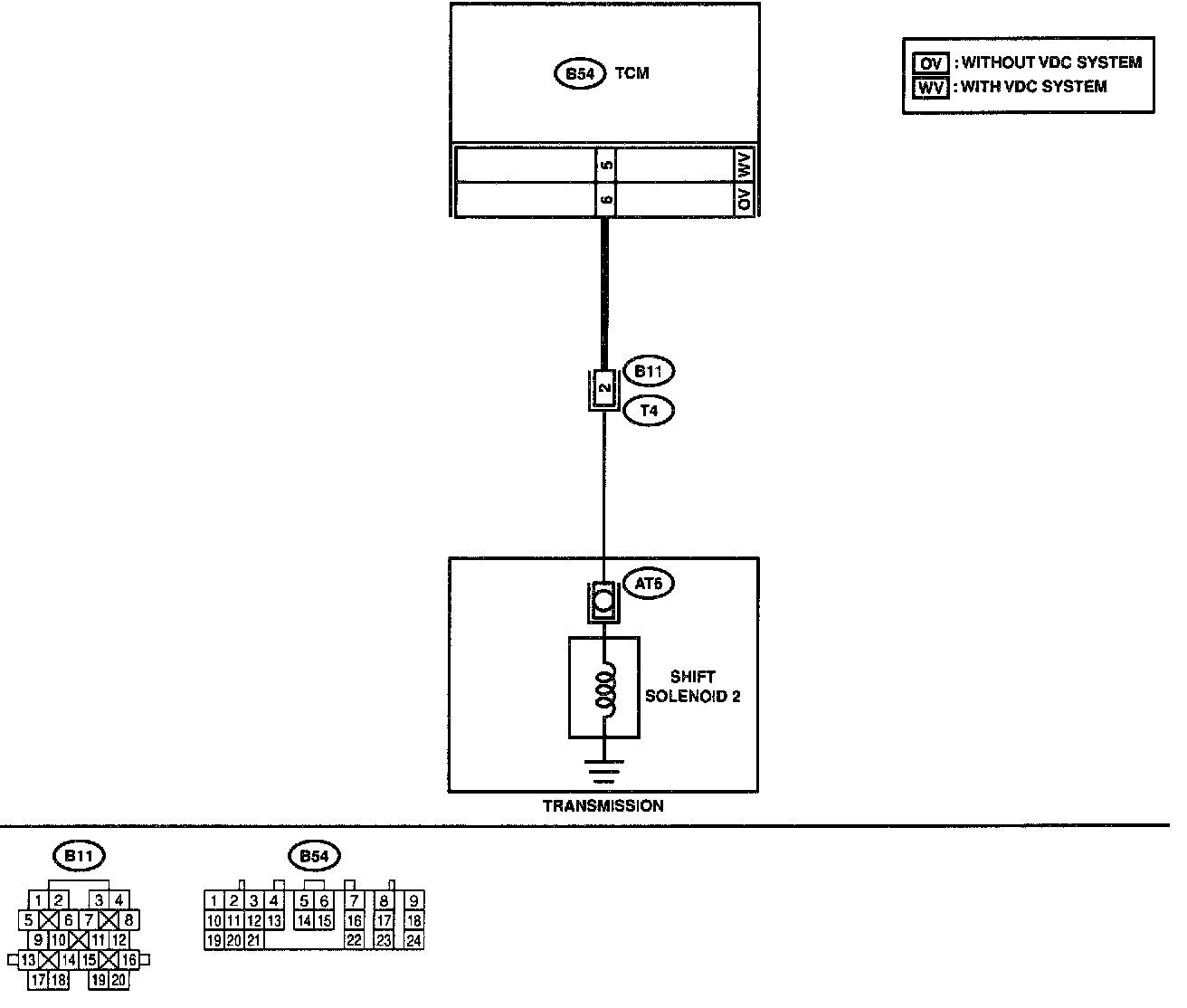

WIRING DIAGRAM:
PROCEDURE:

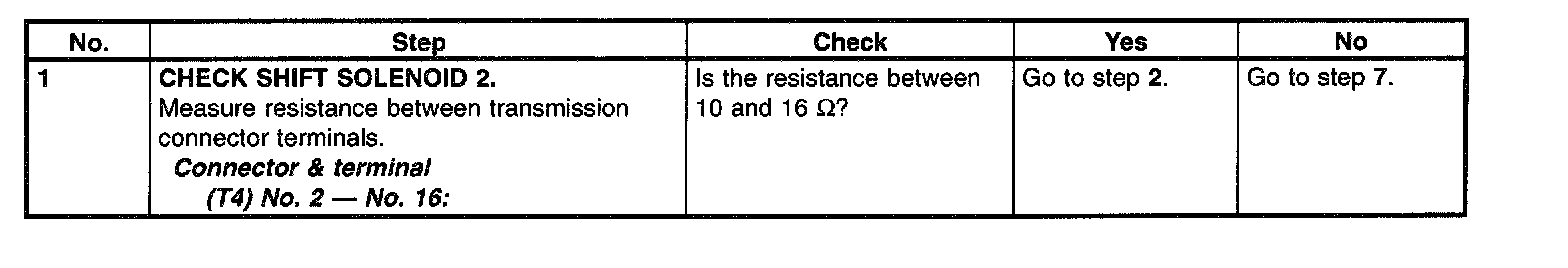

No.1

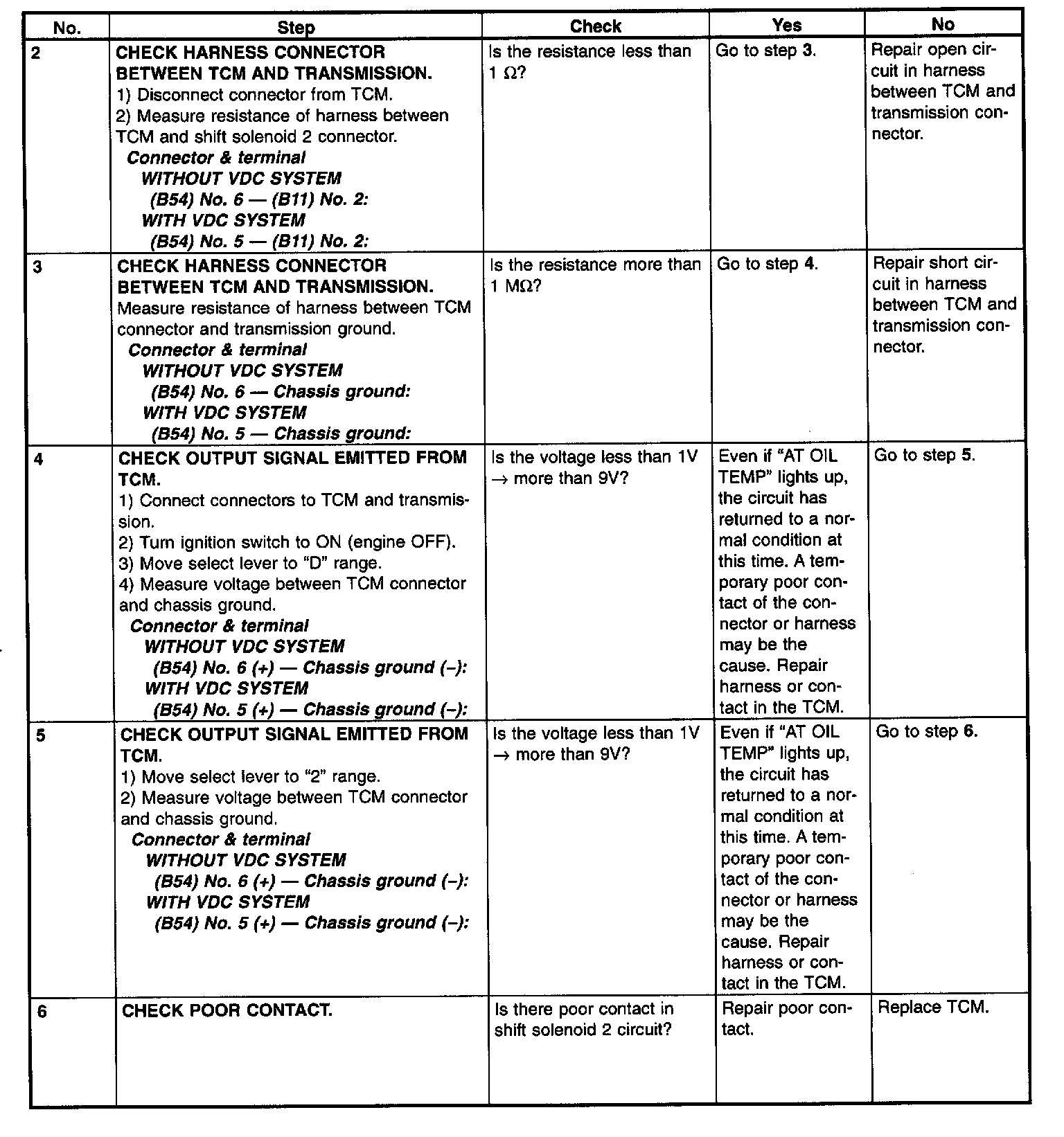

No.2 - 6

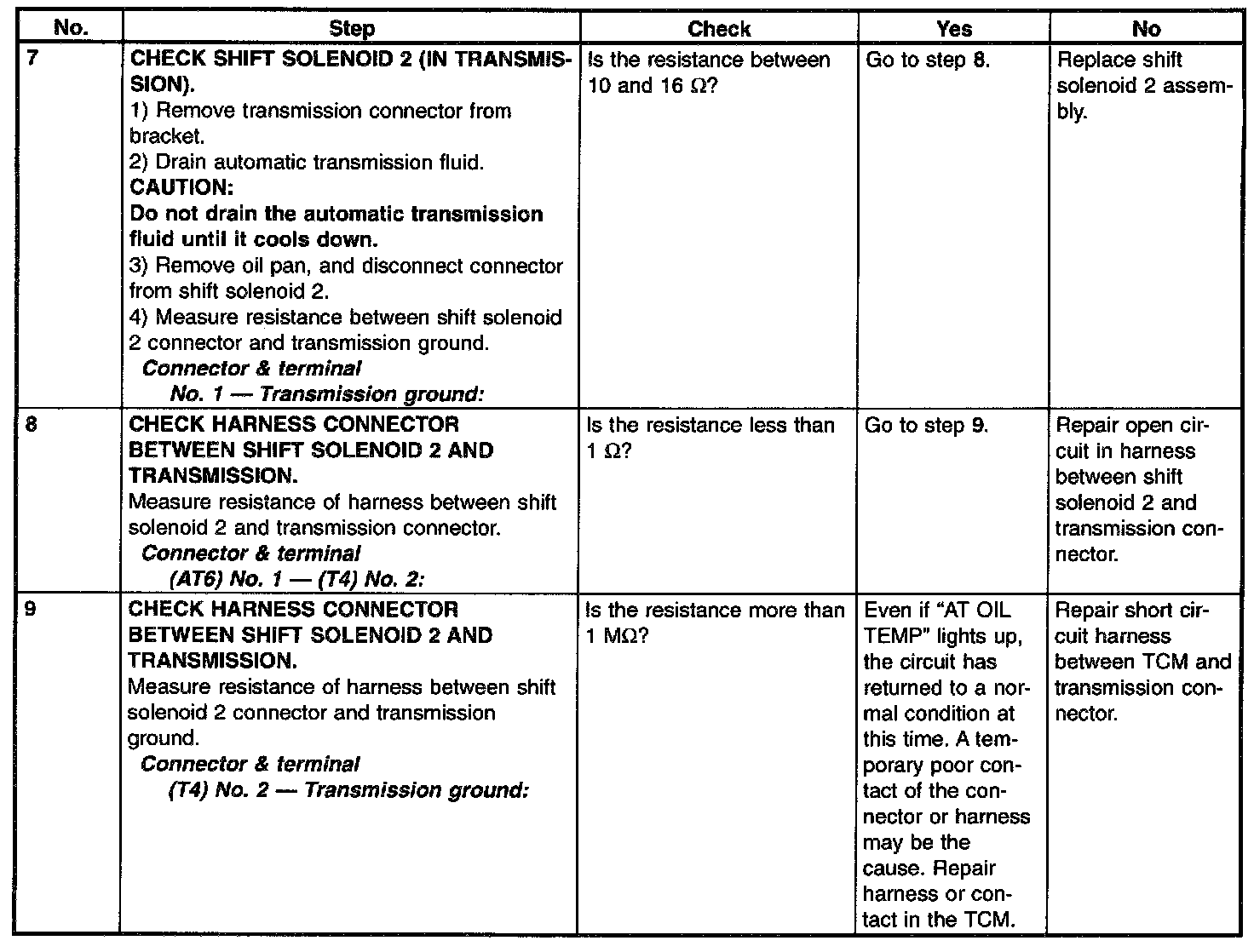

No.7 - 9
DIAGNOSIS: Output signal circuit of shift solenoid 2 is open or shorted.
TROUBLE SYMPTOM: Does not shift.
WIRING DIAGRAM:
PROCEDURE:
No.1
No.2 - 6
No.7 - 9
