Vdc System Trouble Code Charts For Warning Light Codes

AL: TROUBLE CODE 71 ABNORMAL STEERING ANGLE SENSOR

DIAGNOSIS:
- Faulty steering angle sensor
TROUBLE SYMPTOM:
- ABS does not operate.
- VDC does not operate.

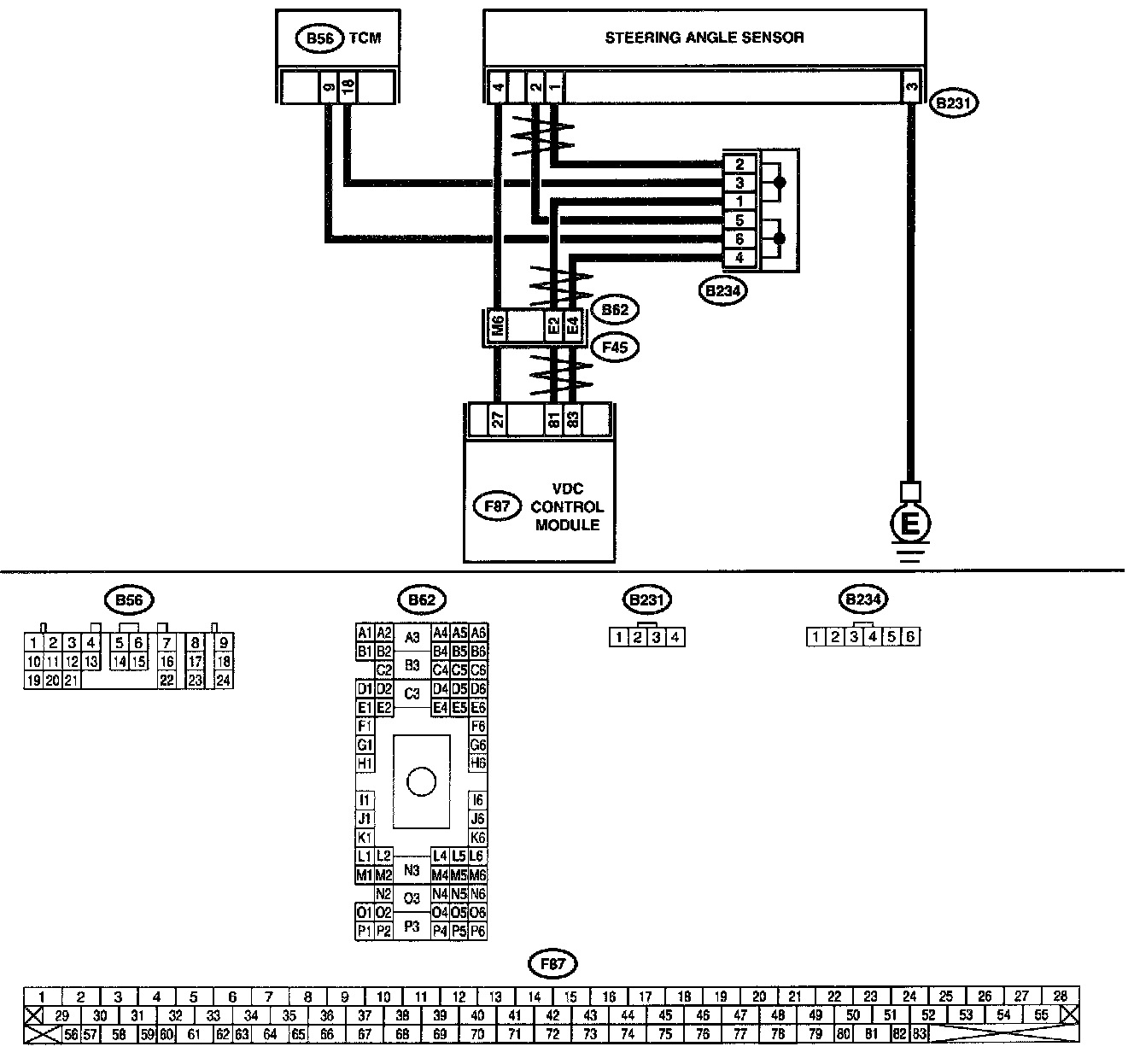

WIRING DIAGRAM

PROCEDURE:

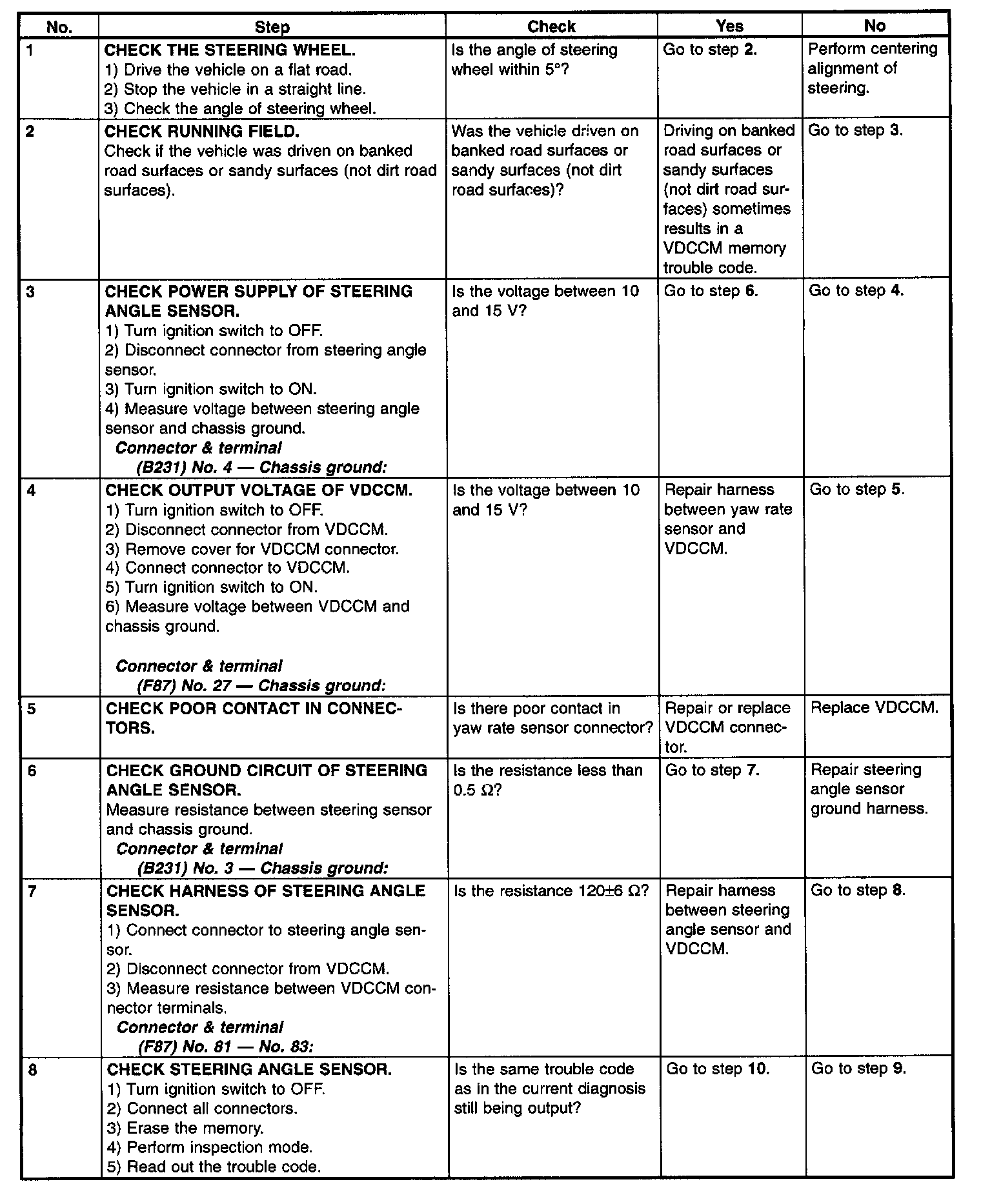

Part 1 of 2

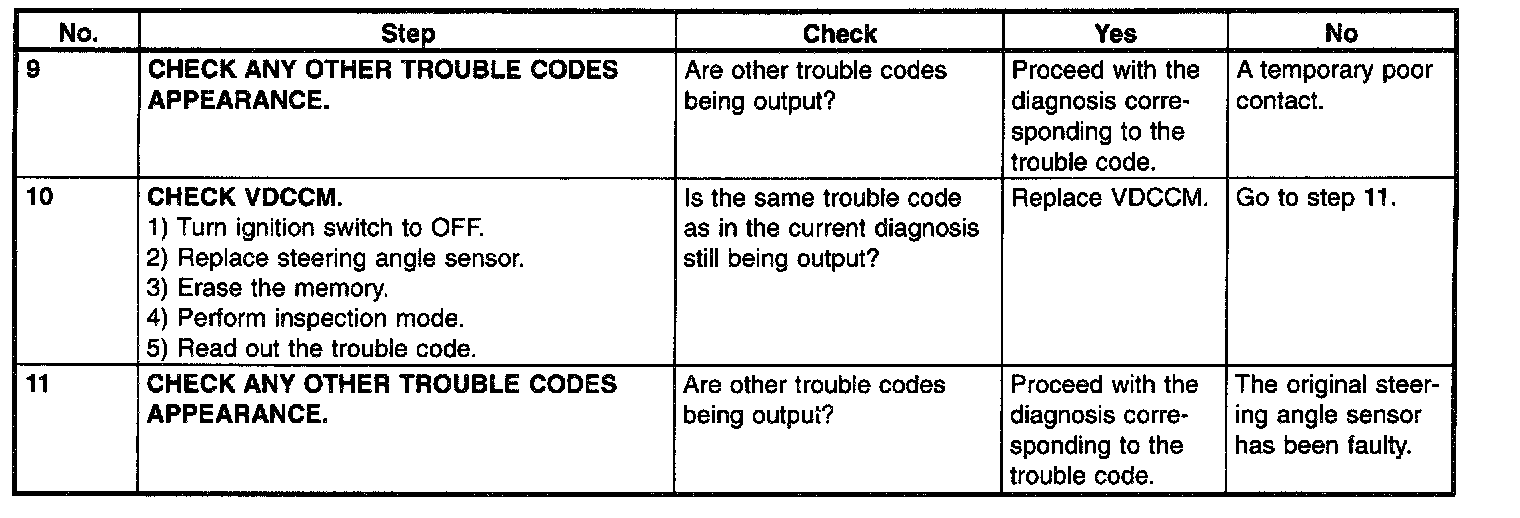

Part 2 of 2
