Steering Angle Sensor Offset Is Too Big

AP: TROUBLE CODE 71 STEERING ANGLE SENSOR OFFSET IS TOO BIG.

DIAGNOSIS:
- Faulty steering angle sensor
TROUBLE SYMPTOM:
- VDC does not operate.

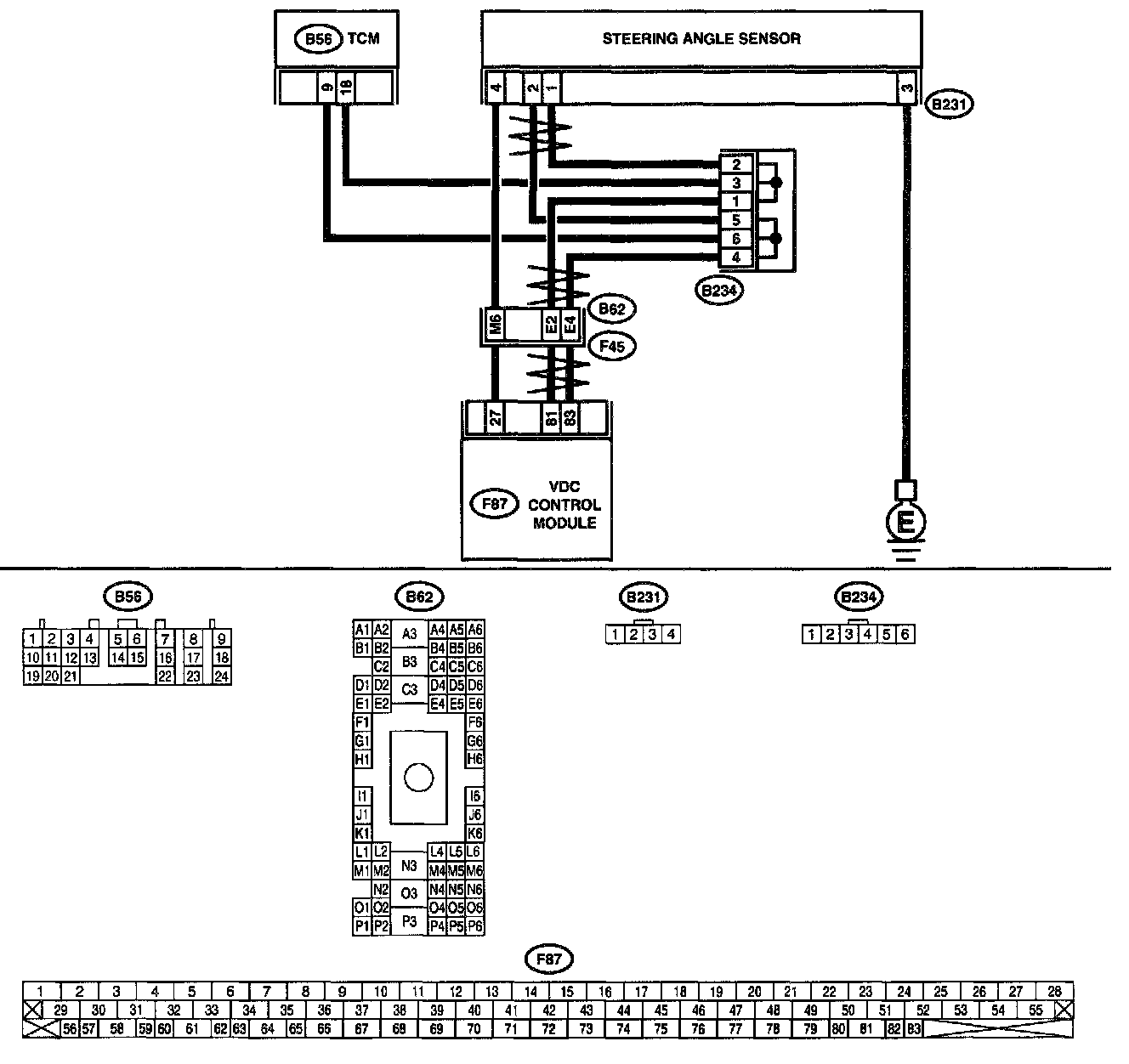

WIRING DIAGRAM

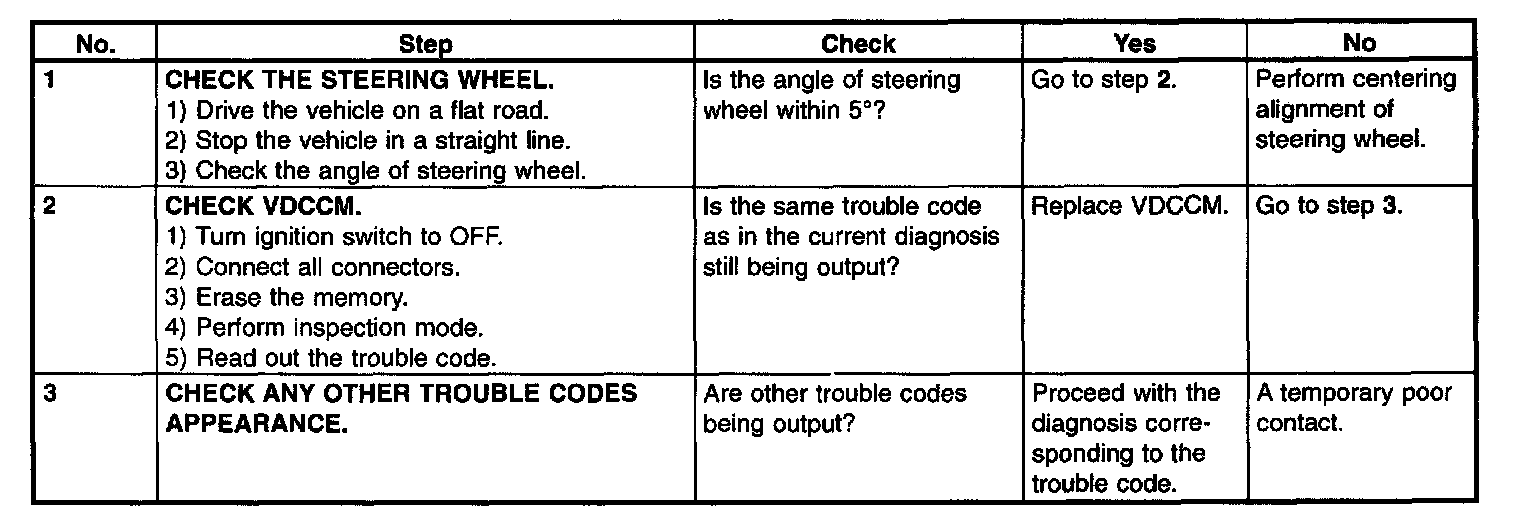

PROCEDURE
