Steering Angle Sensor Malfunction

AR: TROUBLE CODE 71 STEERING ANGLE SENSOR MALFUNCTION

DIAGNOSIS:
- Faulty steering angle sensor
TROUBLE SYMPTOM:
- VDC does not operate.

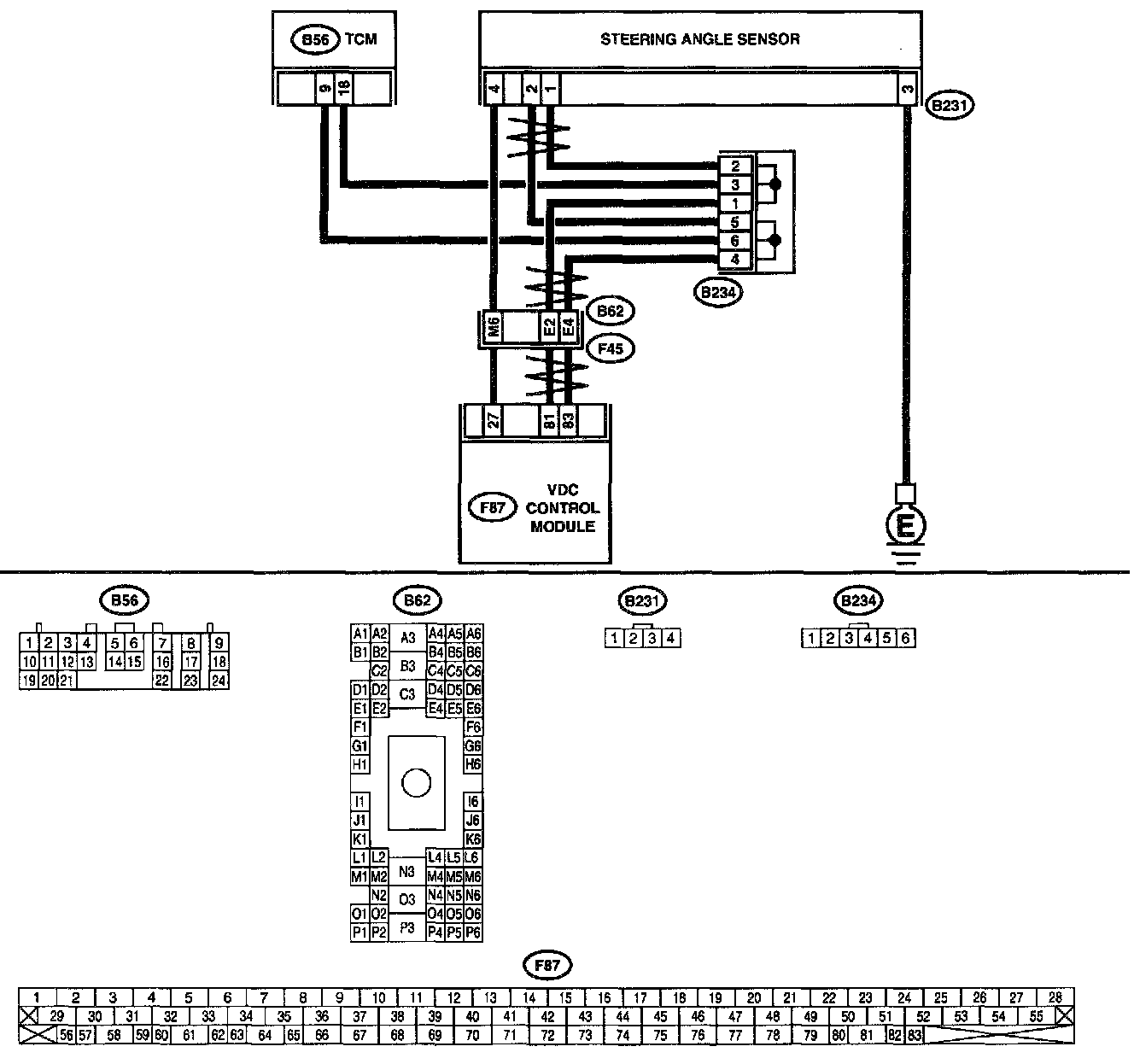

WIRING DIAGRAM

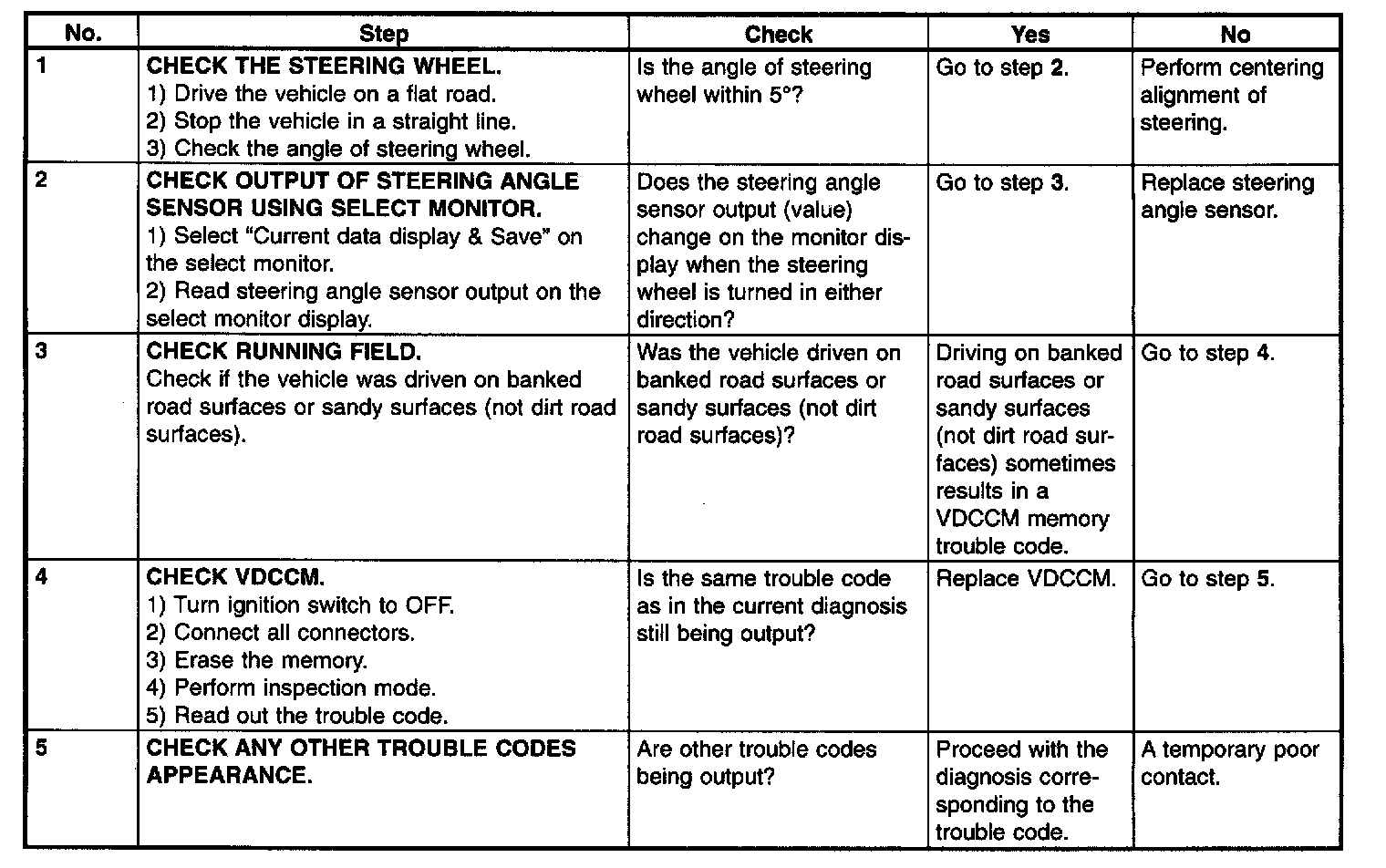

PROCEDURE
