No Signal From Steering Angle Sensor

AS: TROUBLE CODE 71 NO SIGNAL FROM STEERING ANGLE SENSOR

DIAGNOSIS:
- Faulty steering angle sensor
TROUBLE SYMPTOM:
- ABS does not operate.
- VDC does not operate.

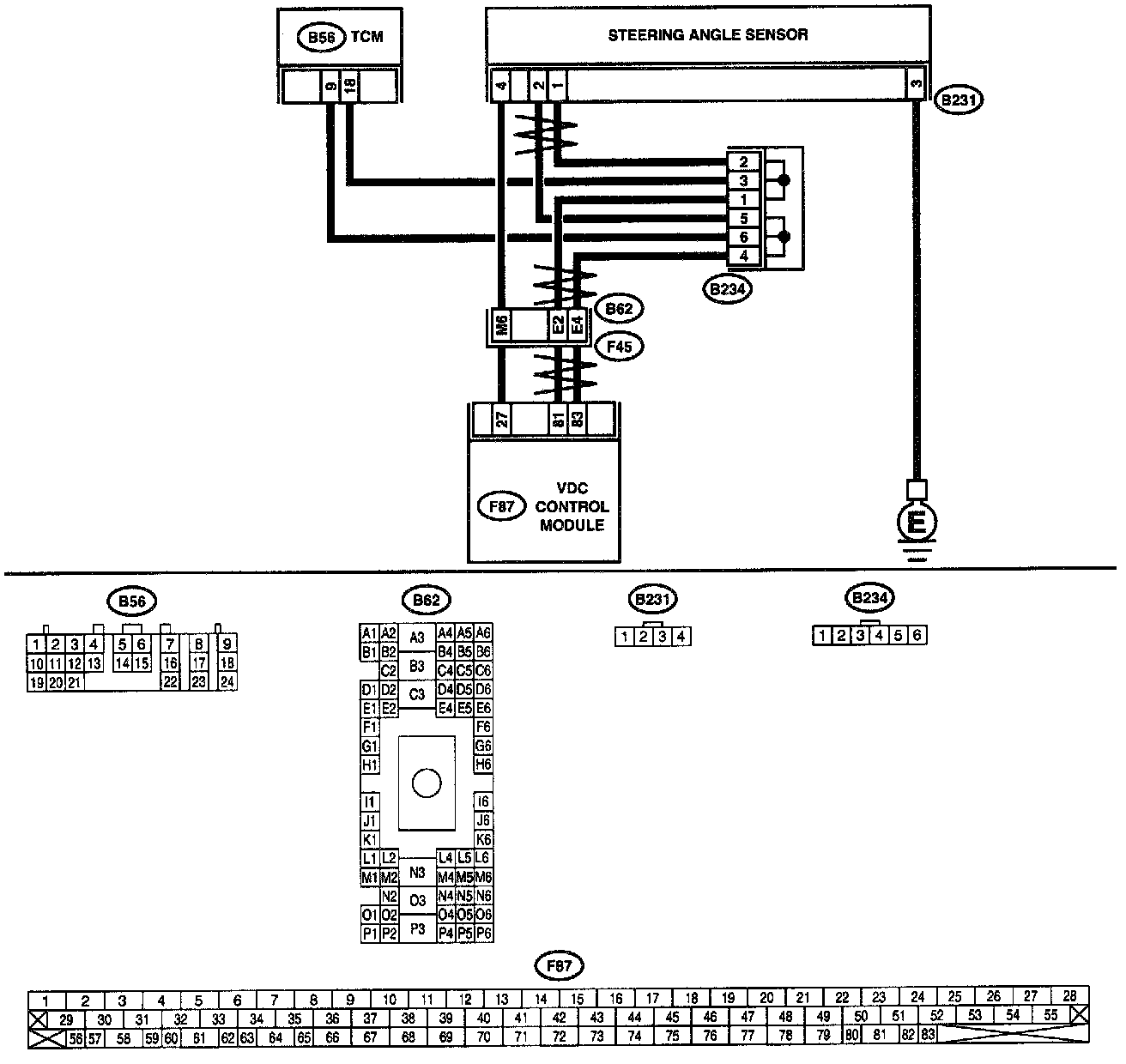

WIRING DIAGRAM

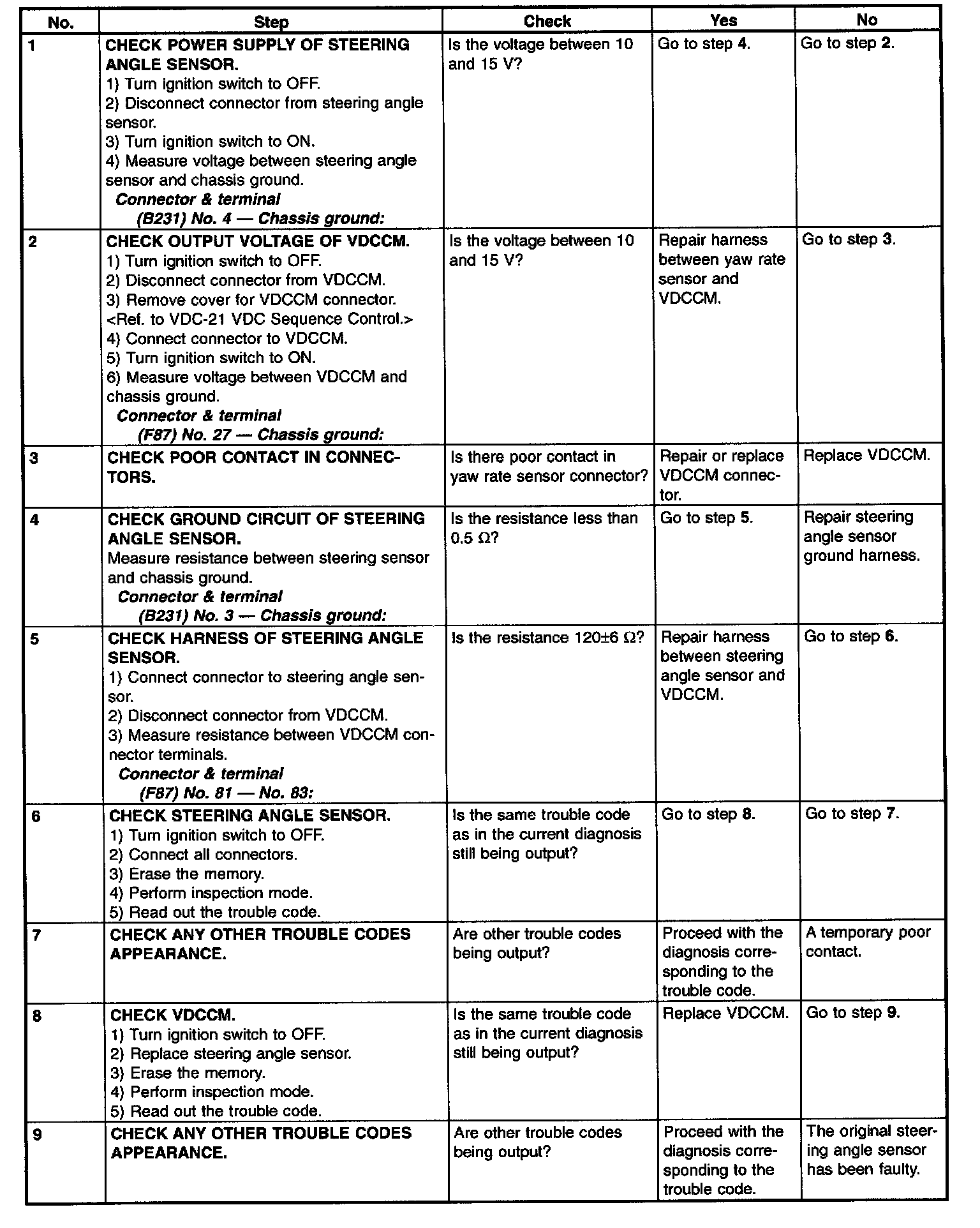

PROCEDURE
