Heating and Air Conditioning System

Trouble Code 21 or -21 (Ambient Sensor)

TROUBLE SYMPTOM:

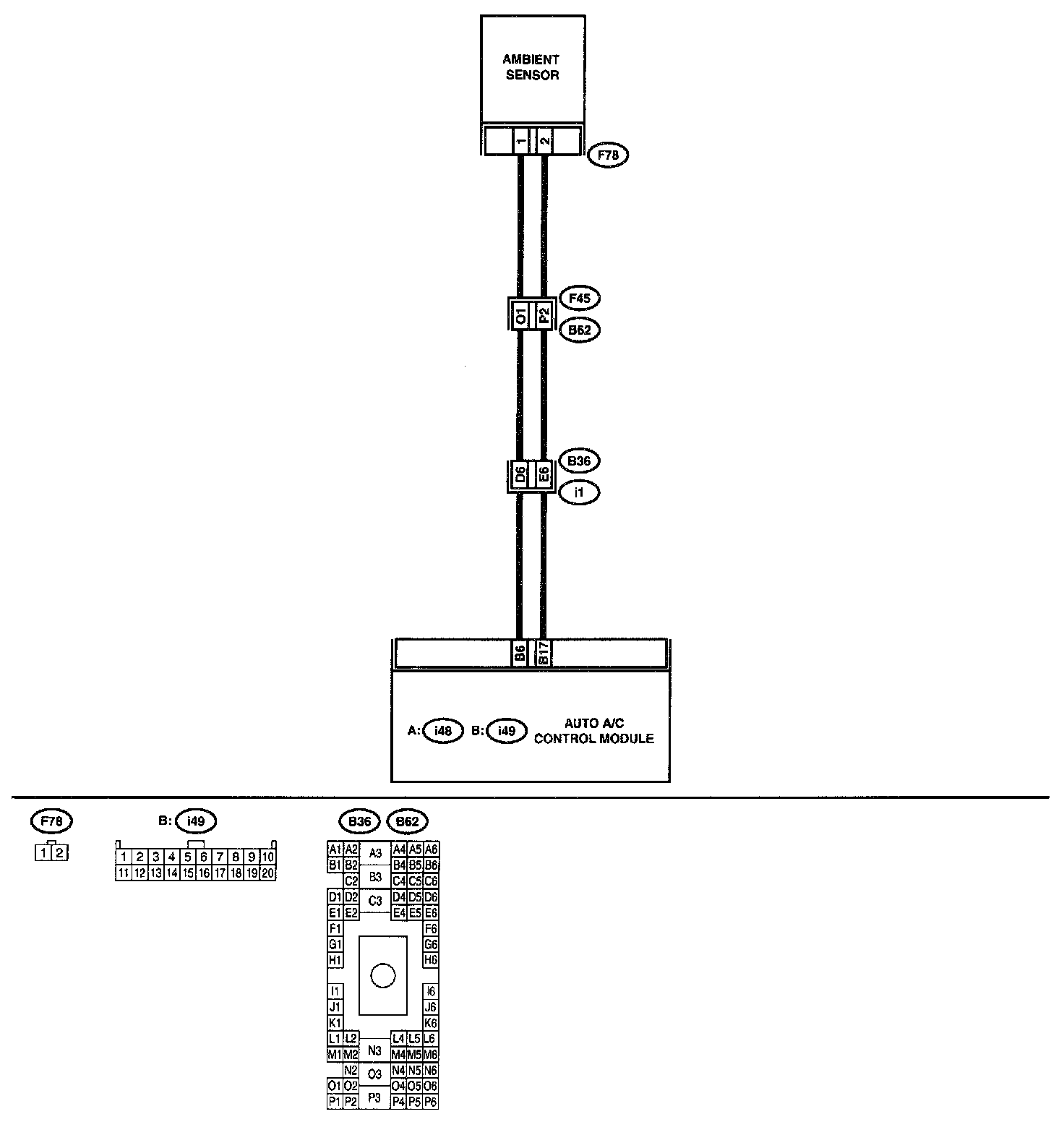

Wiring Diagram:

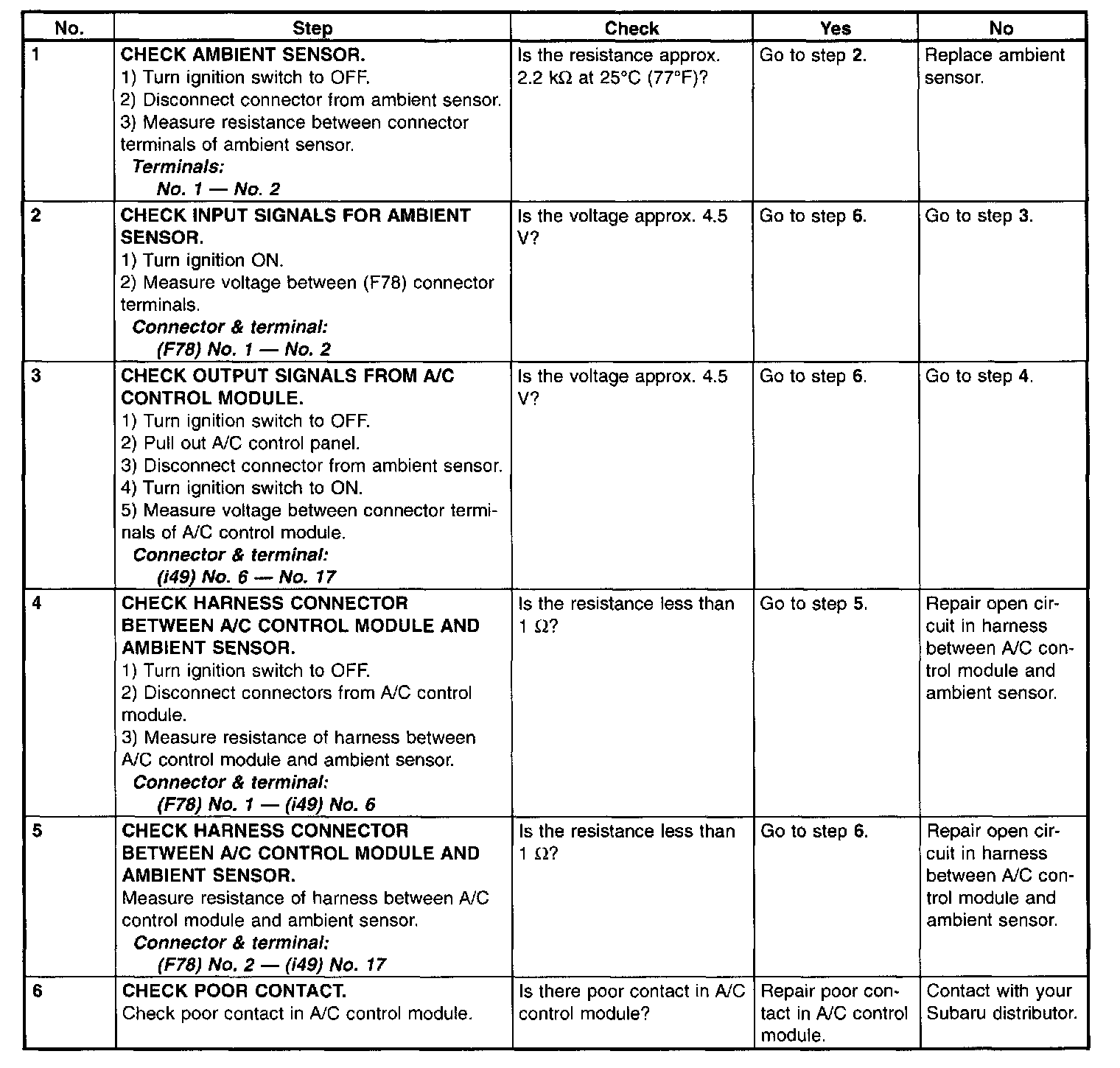

Step 1 - 6:

Fan speed, outlets and inlets are not switched when AUTO or ECON switch is ON.
