Open or Short Circuit In G Sensor Circuit

AE: TROUBLE CODE 56-OPEN OR SHORT CIRCUIT IN G SENSOR CIRCUIT-

DIAGNOSIS:
- Faulty G sensor output voltage.
TROUBLE SYMPTOM:
- ABS does not operate.

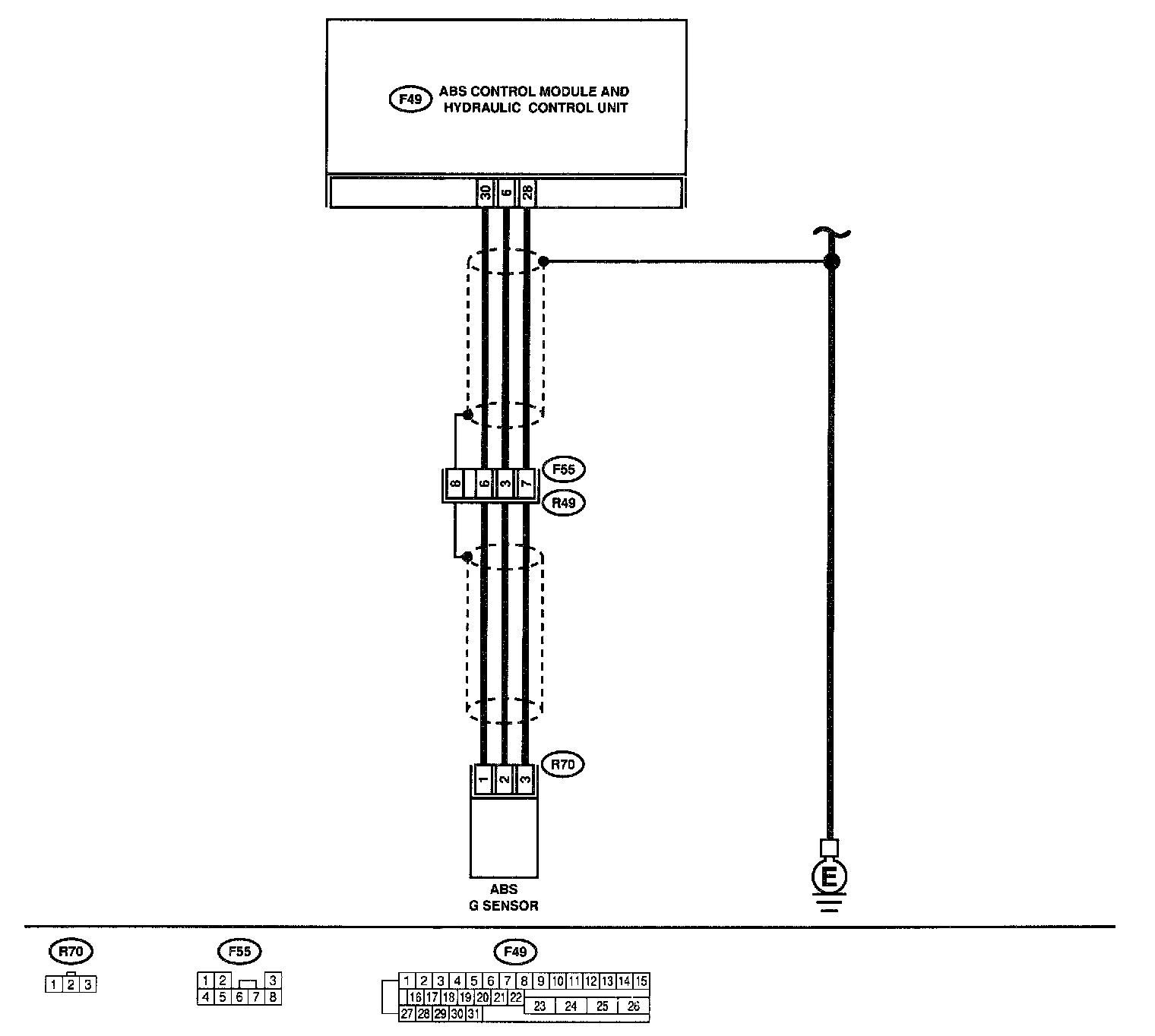

WIRING DIAGRAM

PROCEDURE:





Part 1 of 2

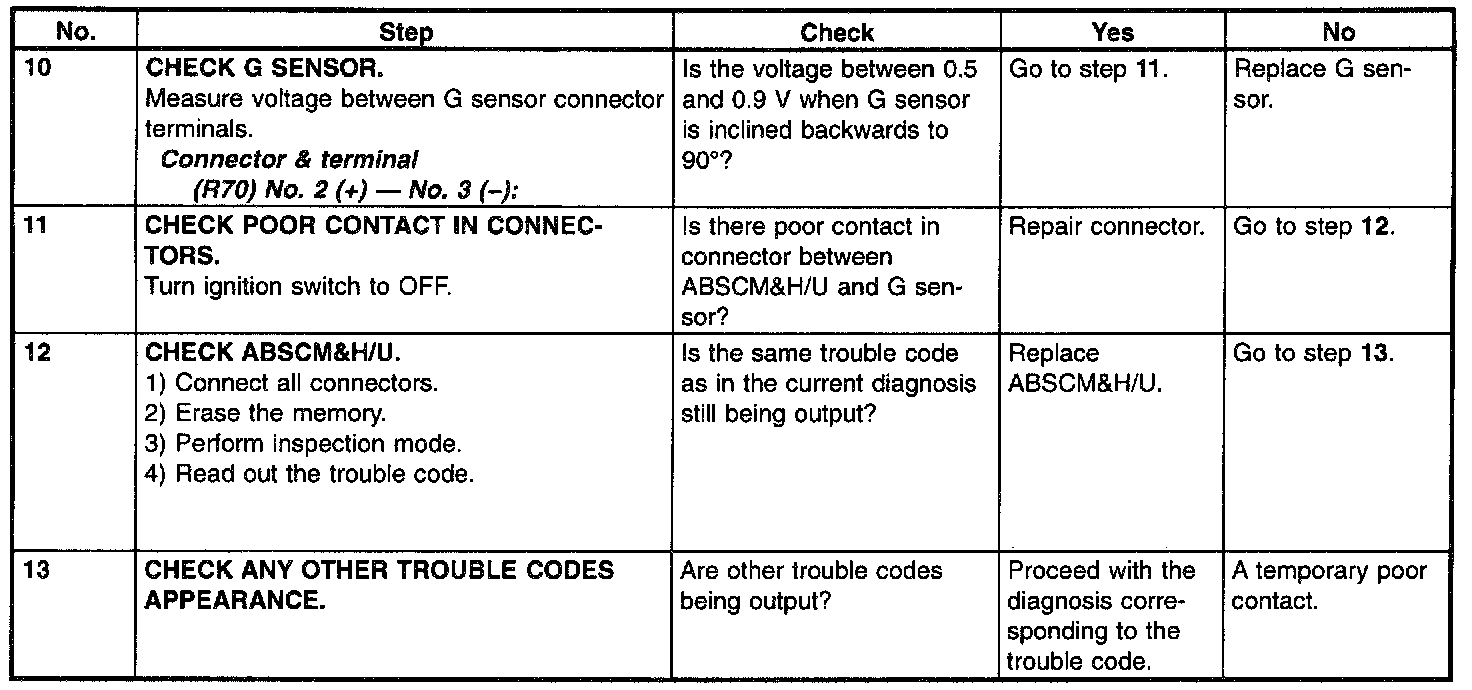

Part 2 of 2
