G Sensor High Friction Coefficient Against Road Surface

AG: TROUBLE CODE 56-ABNORMAL G SENSOR HIGH -OUTPUT-

DIAGNOSIS:
- Faulty G sensor output voltage
TROUBLE SYMPTOM:
- ABS does not operate.

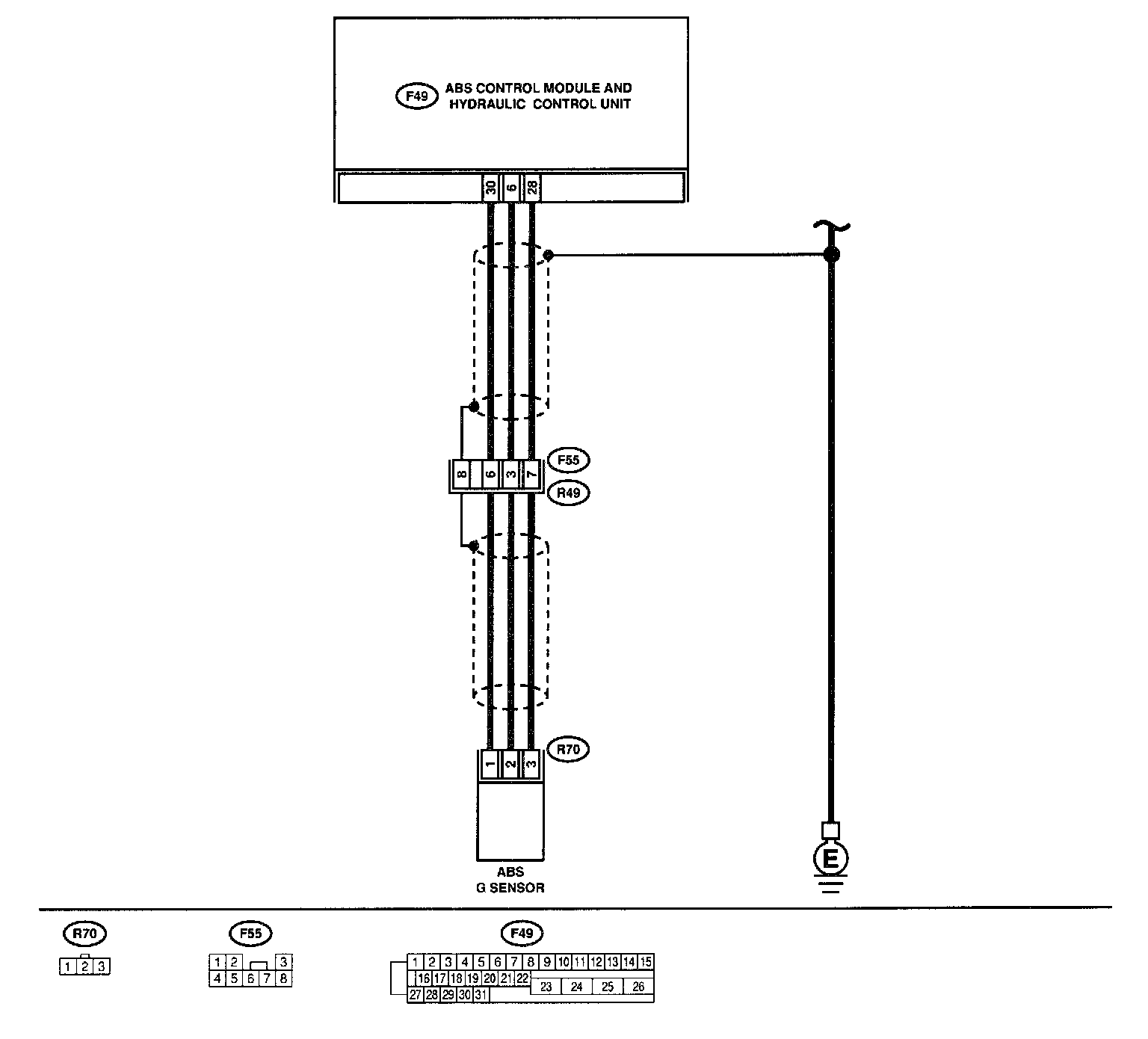

WIRING DIAGRAM

PROCEDURE:

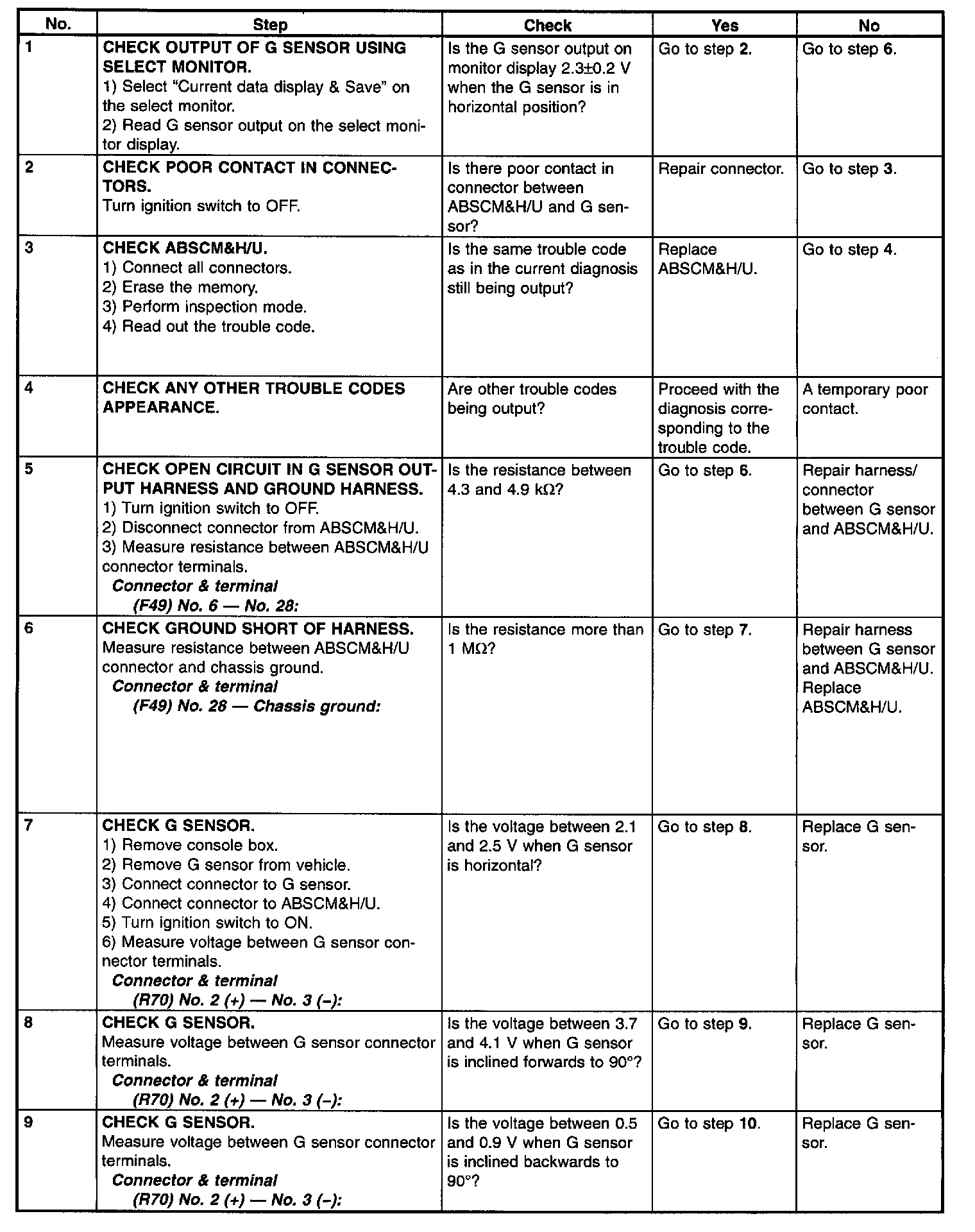

Part 1 of 2

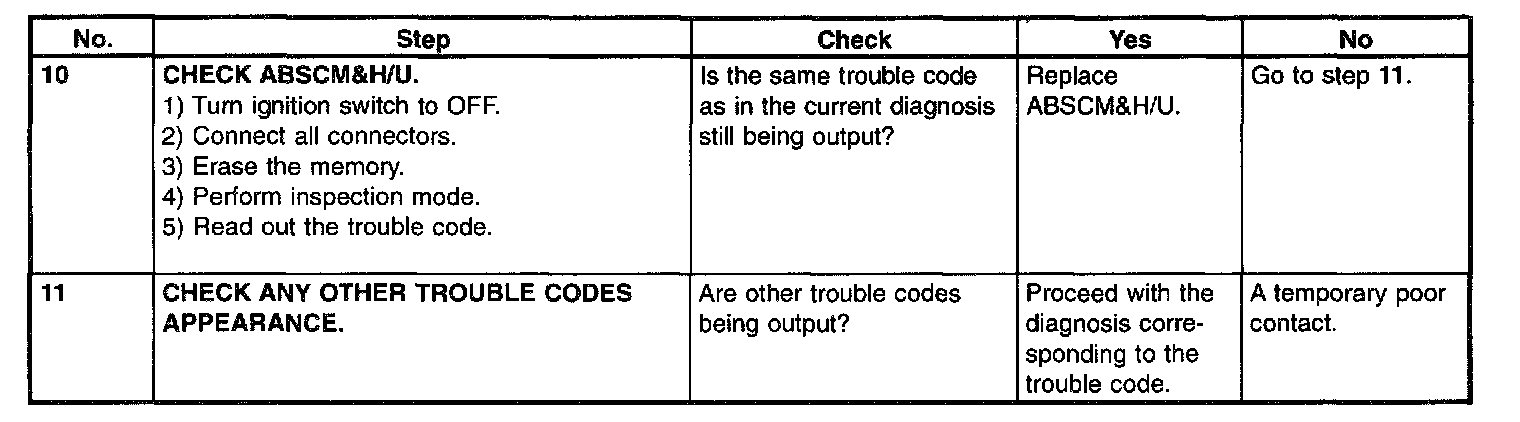

Part 2 of 2
