Detection of G Sensor Stick

AH: TROUBLE CODE 56-DETECTION OF G SENSOR STICK-

DIAGNOSIS:
- Faulty G sensor output voltage
TROUBLE SYMPTOM:
- ABS does not operate.





WIRING DIAGRAM

PROCEDURE:

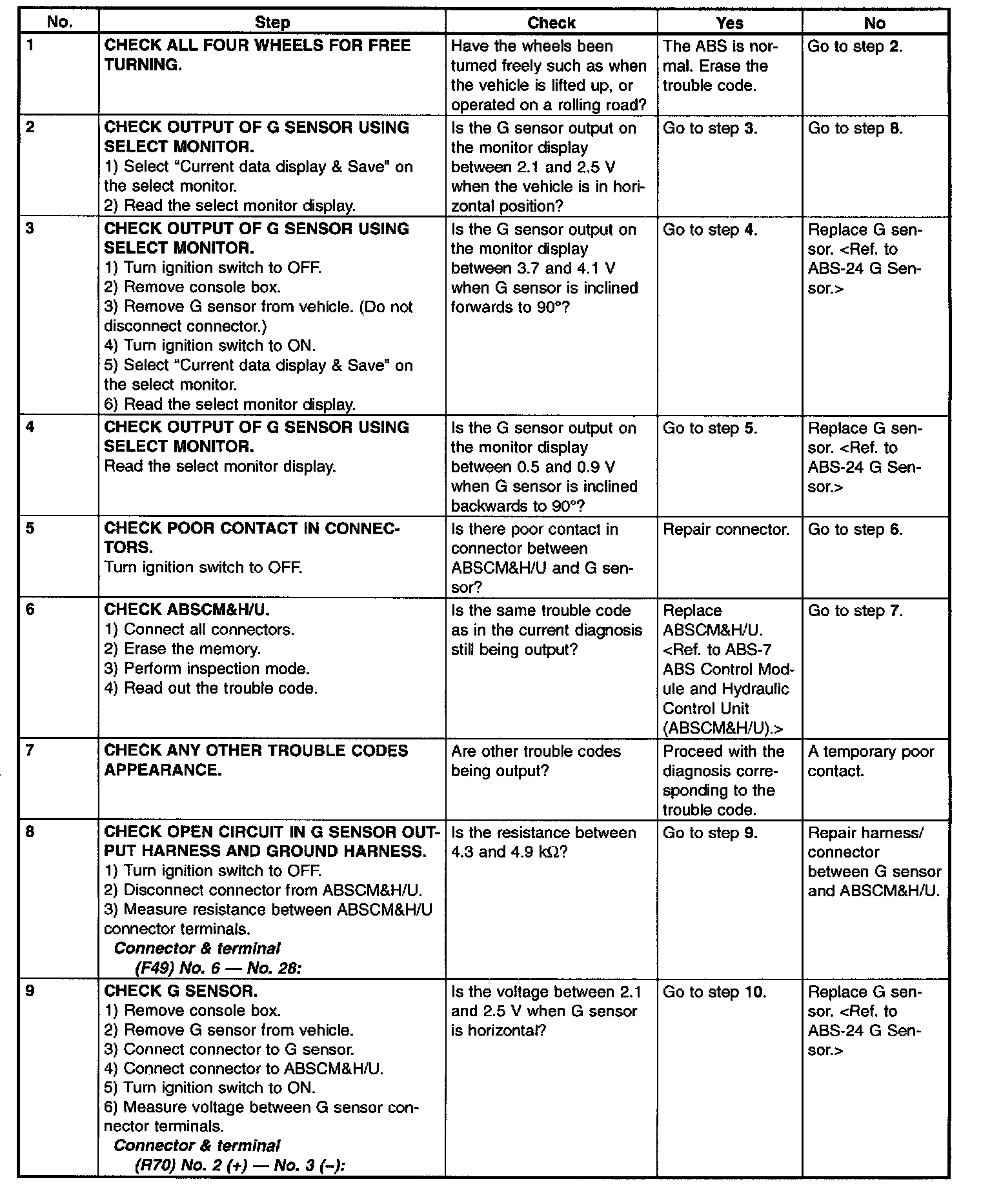

Part 1 of 2

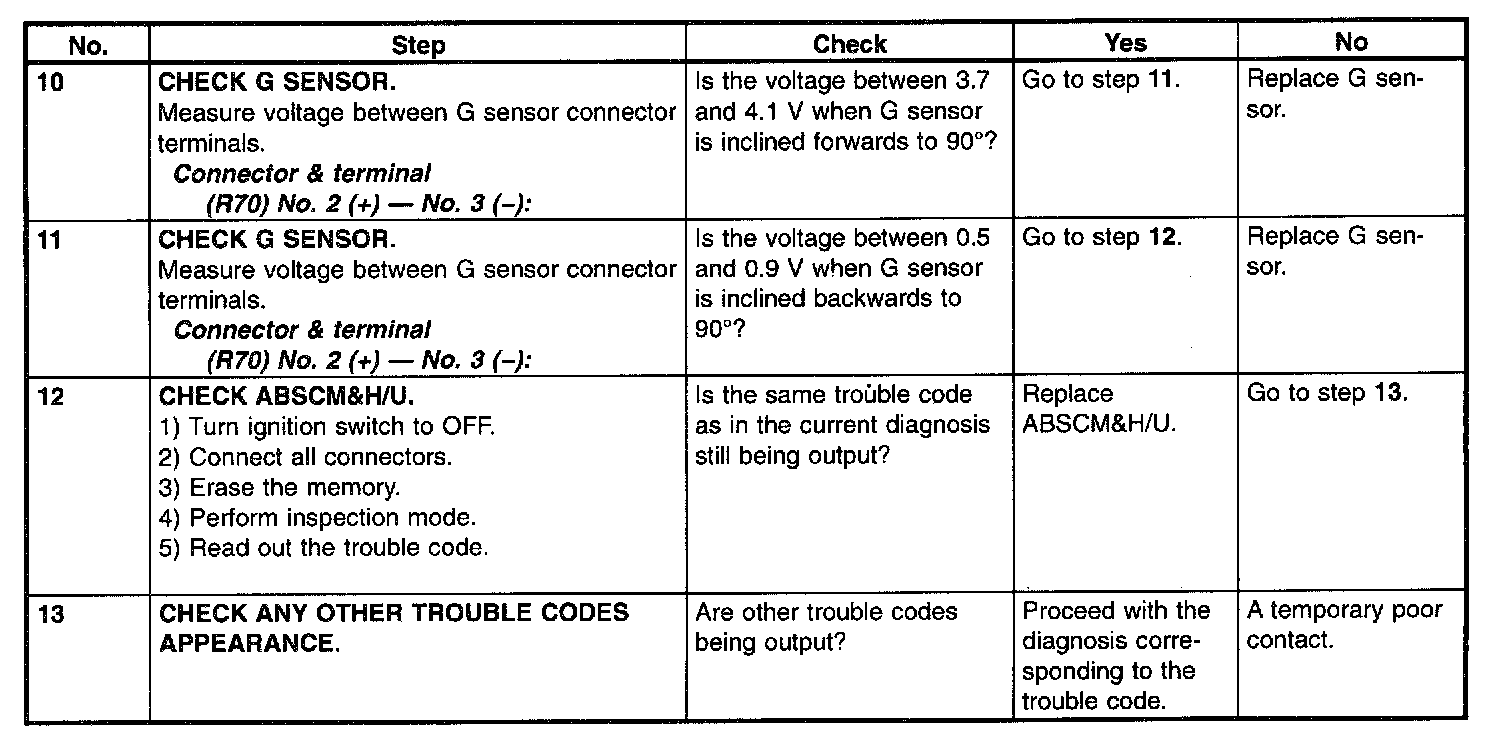

Part 2 of 2
