Battery Short In G Sensor Circuit

AF: TROUBLE CODE 56-BATTERY SHORT IN G SENSOR CIRCUIT-

DIAGNOSIS:
- Faulty G sensor output voltage.
TROUBLE SYMPTOM:
- ABS does not operate.

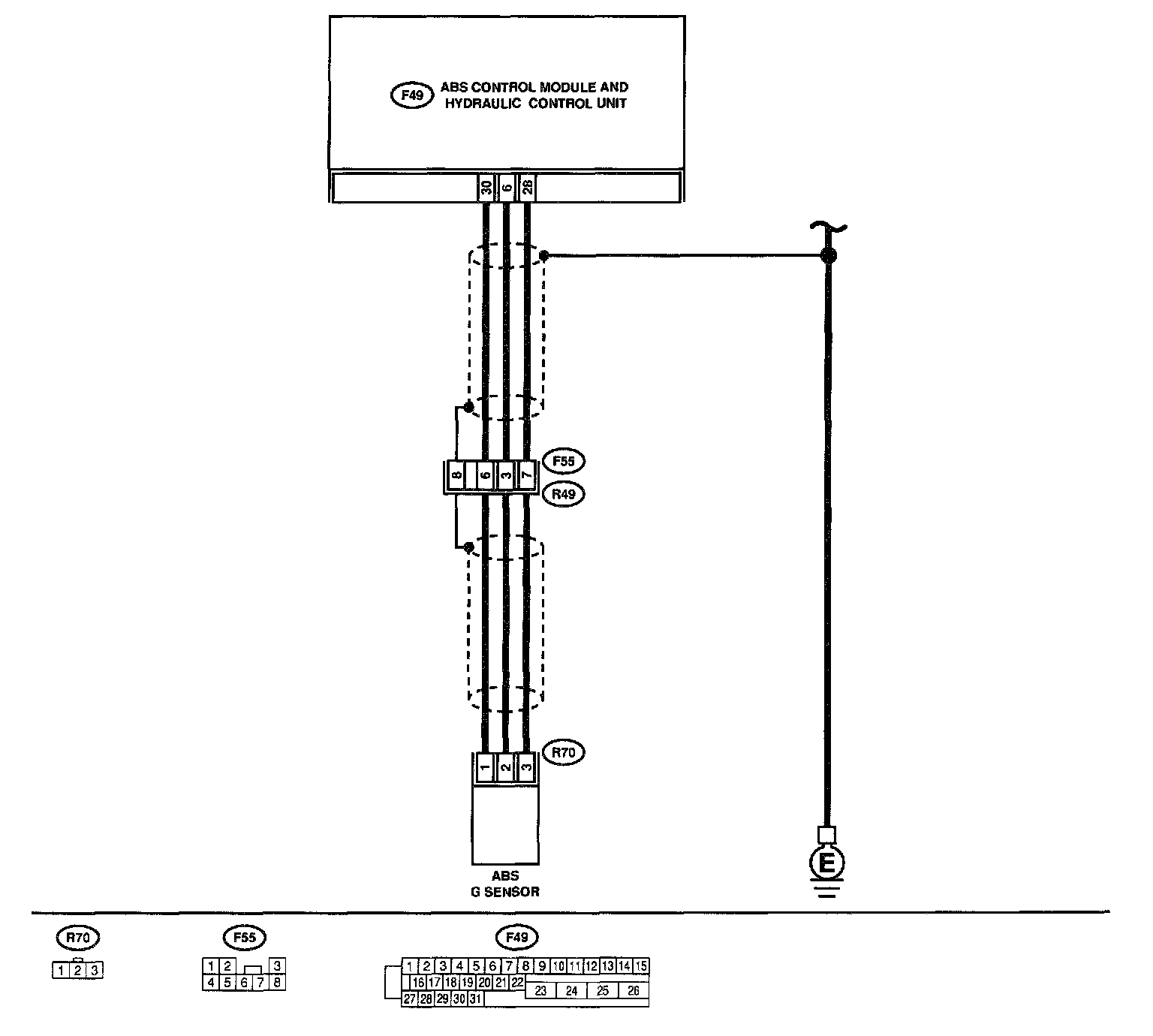

WIRING DIAGRAM

PROCEDURE:

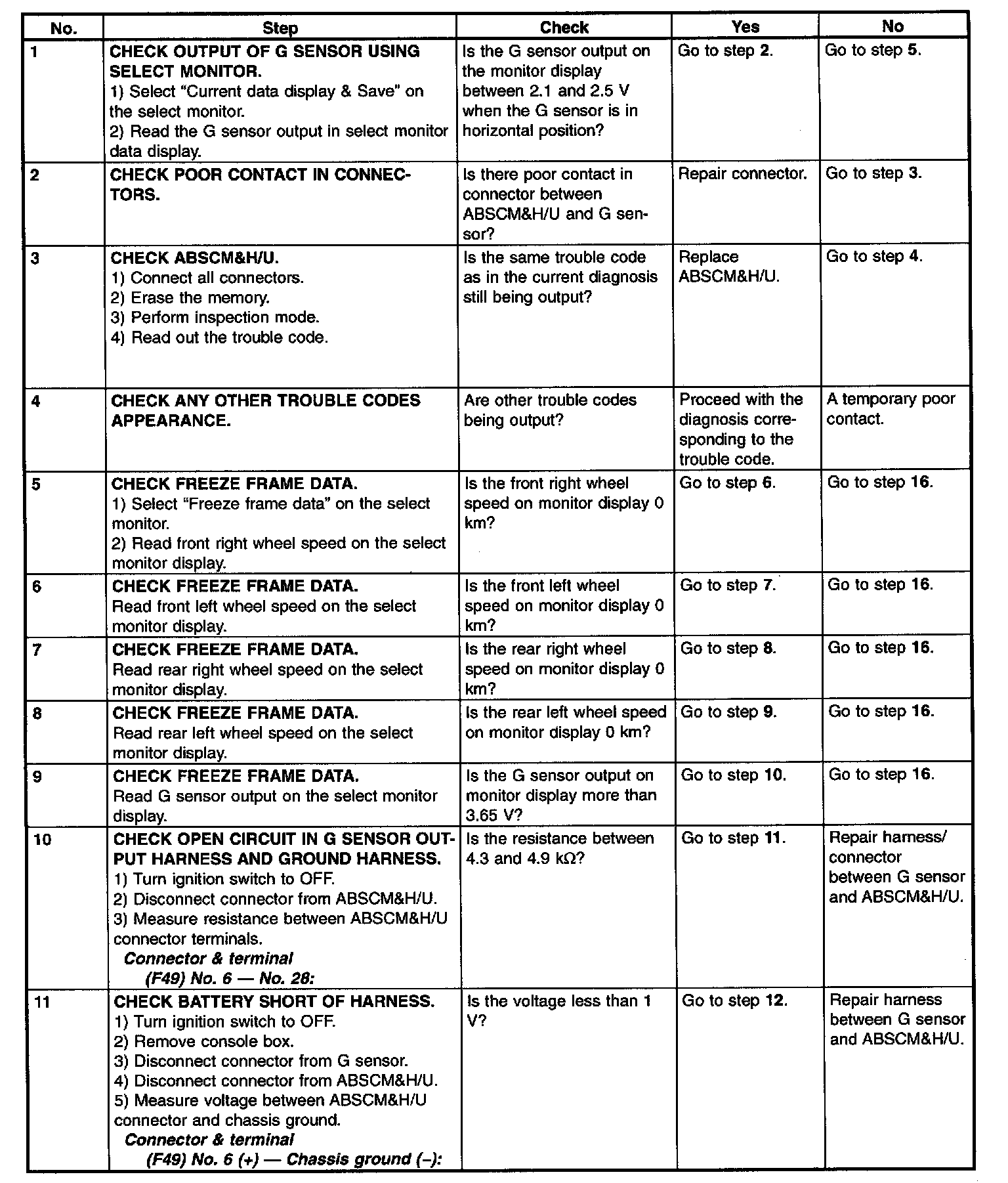

Part 1 of 3

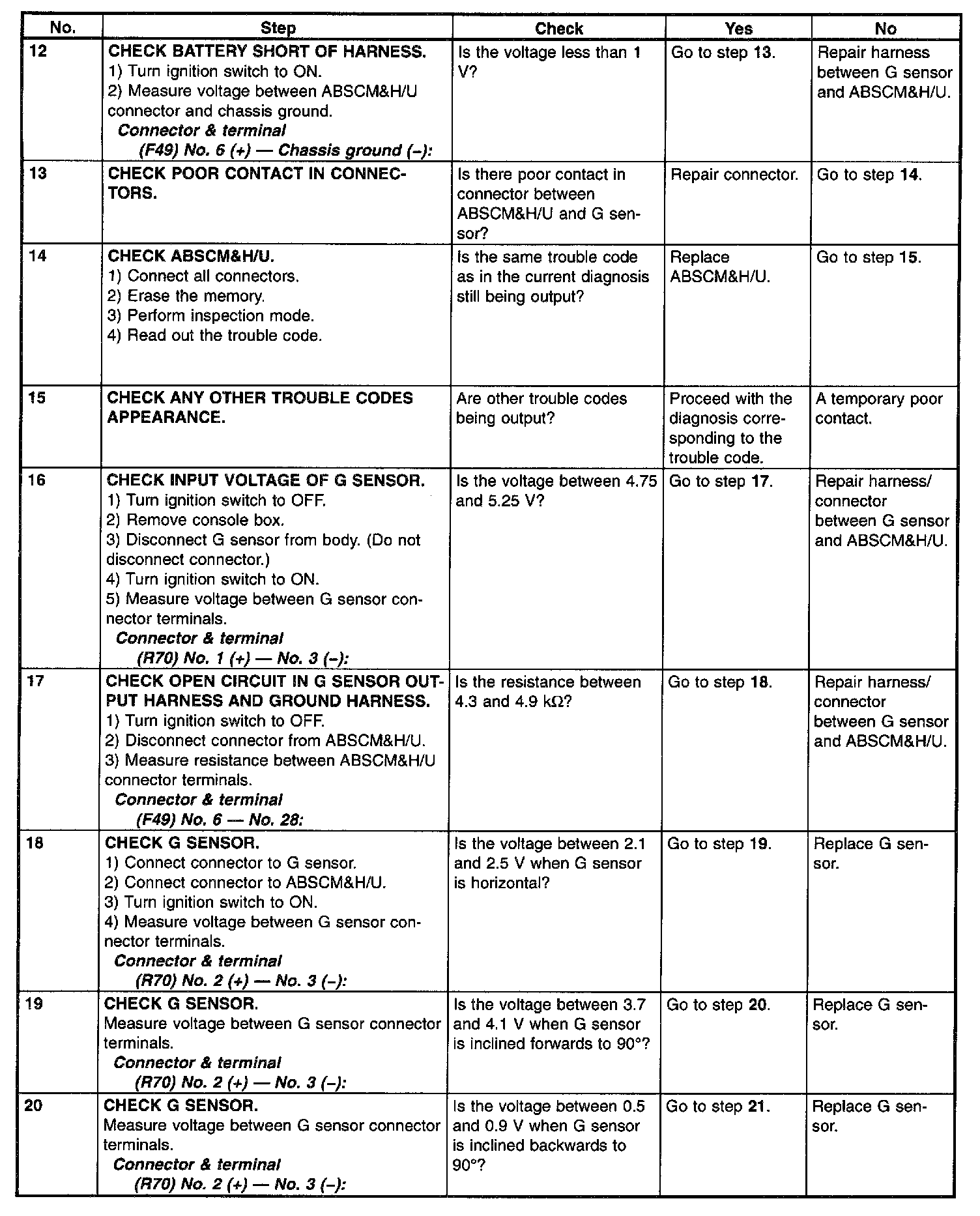

Part 2 of 3

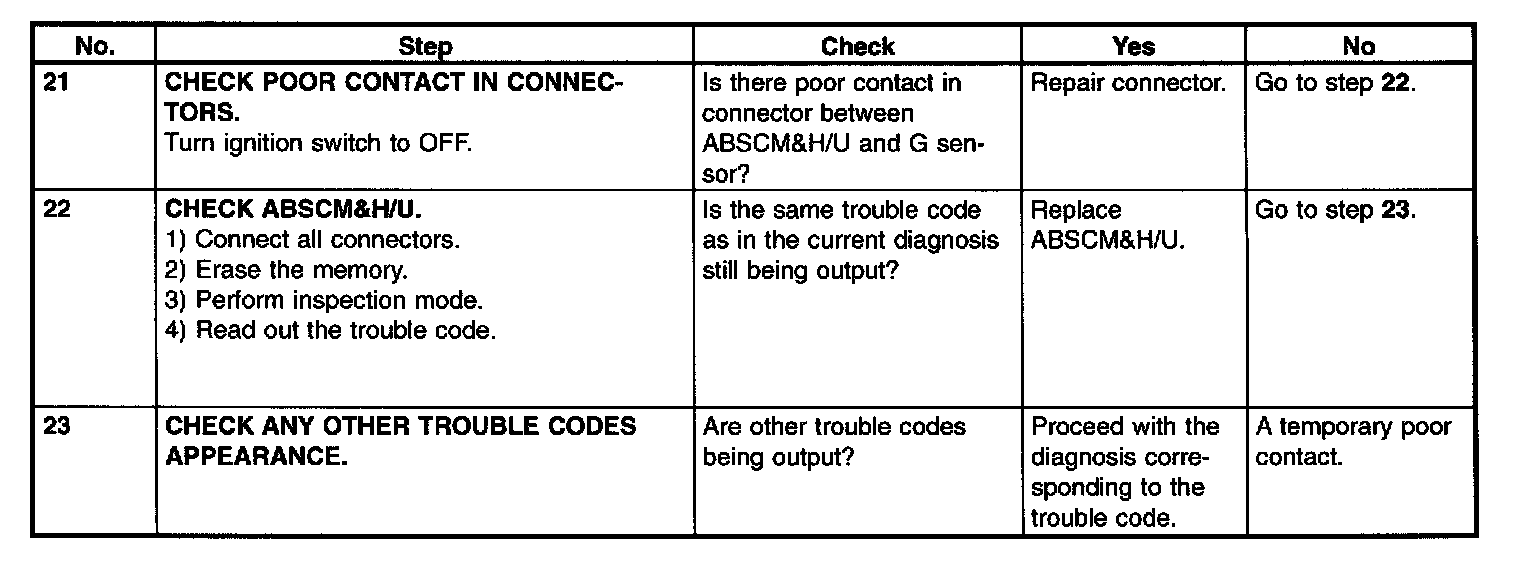

Part 3 of 3
