Vdc System

AK: TROUBLE CODE 52 ABNORMAL MOTOR AND/OR MOTOR RELAY

DIAGNOSIS:
- Faulty motor
- Faulty motor relay
- Faulty harness connector
TROUBLE SYMPTOM:
- ABS does not operate.
- VDC does not operate.

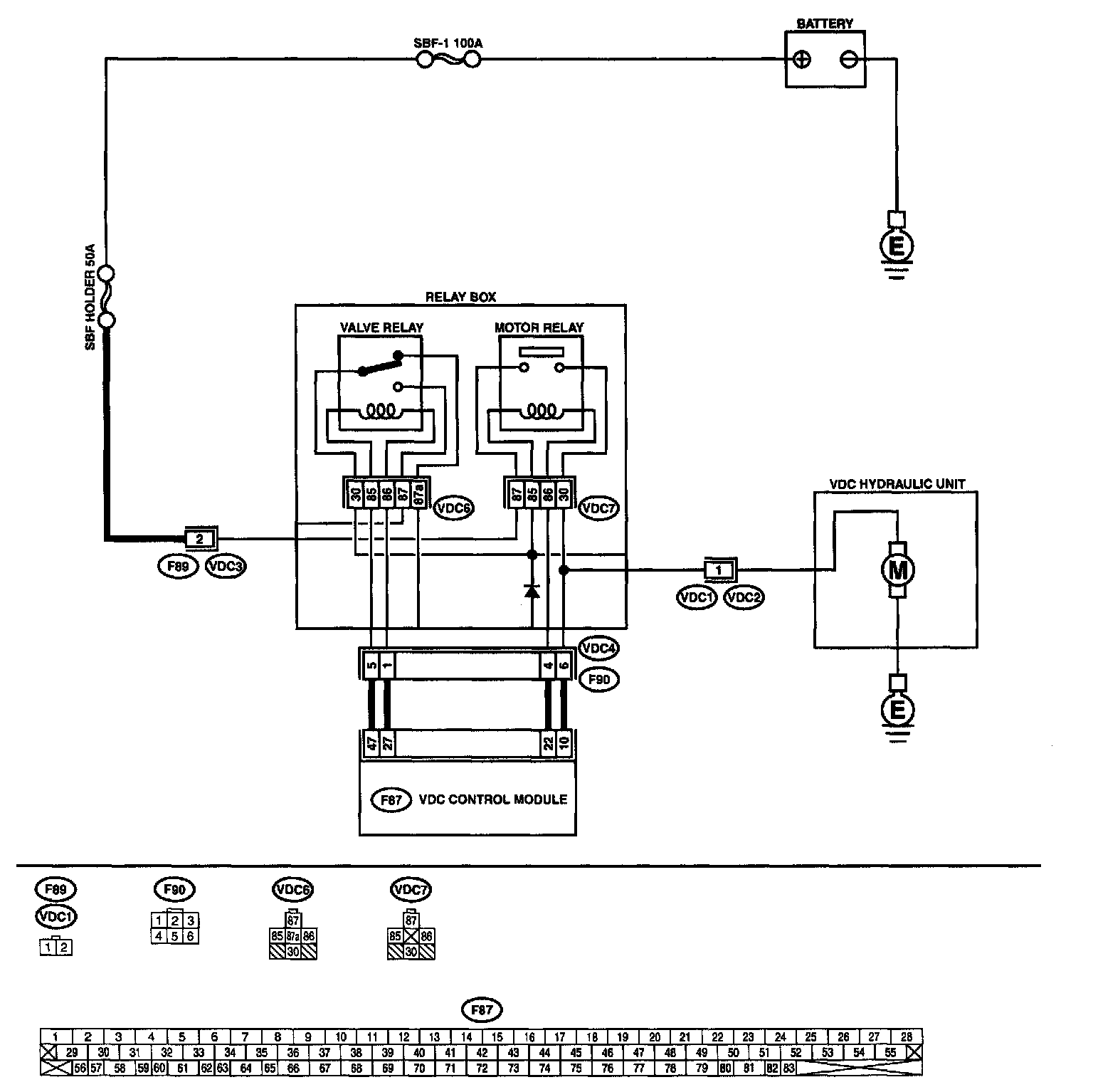

WIRING DIAGRAM

PROCEDURE:

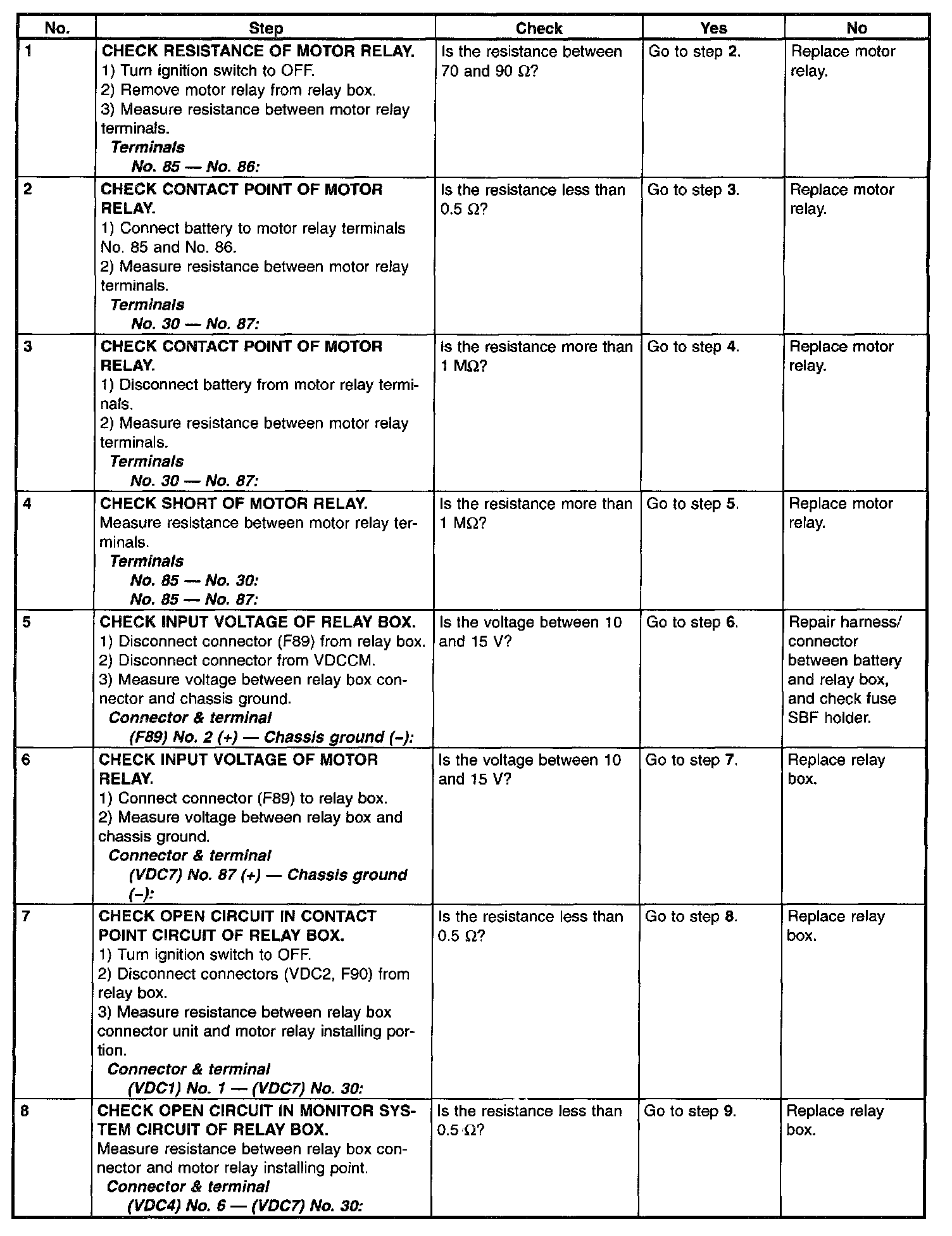

Part 1 of 3





Part 2 of 3

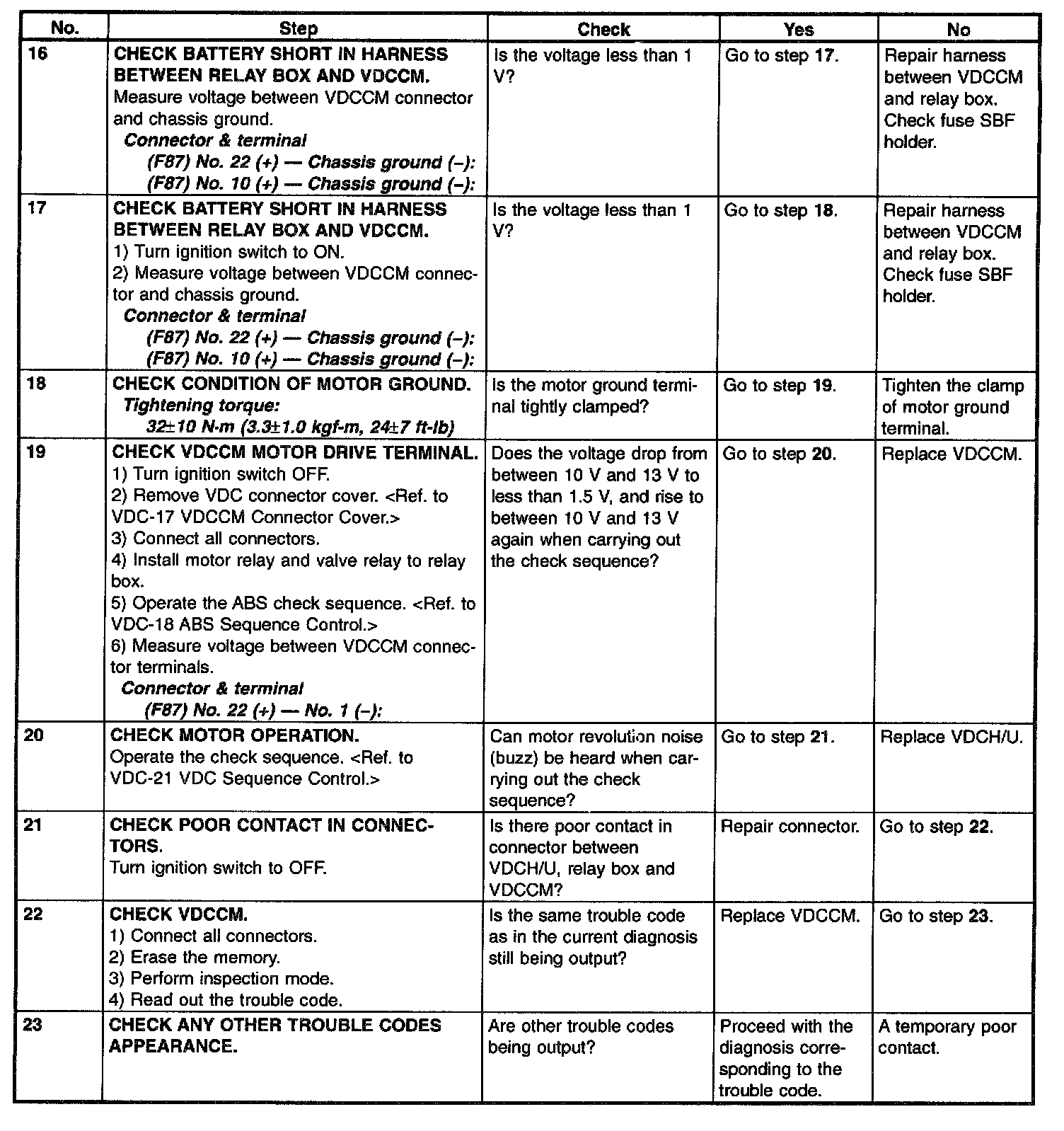

Part 3 of 3
