Motor Malfunction

AO: TROUBLE CODE 52 MOTOR MALFUNCTION

DIAGNOSIS:
- Faulty motor
- Faulty motor relay
- Faulty harness connector
TROUBLE SYMPTOM:
- ABS does not operate.
- VDC does not operate.

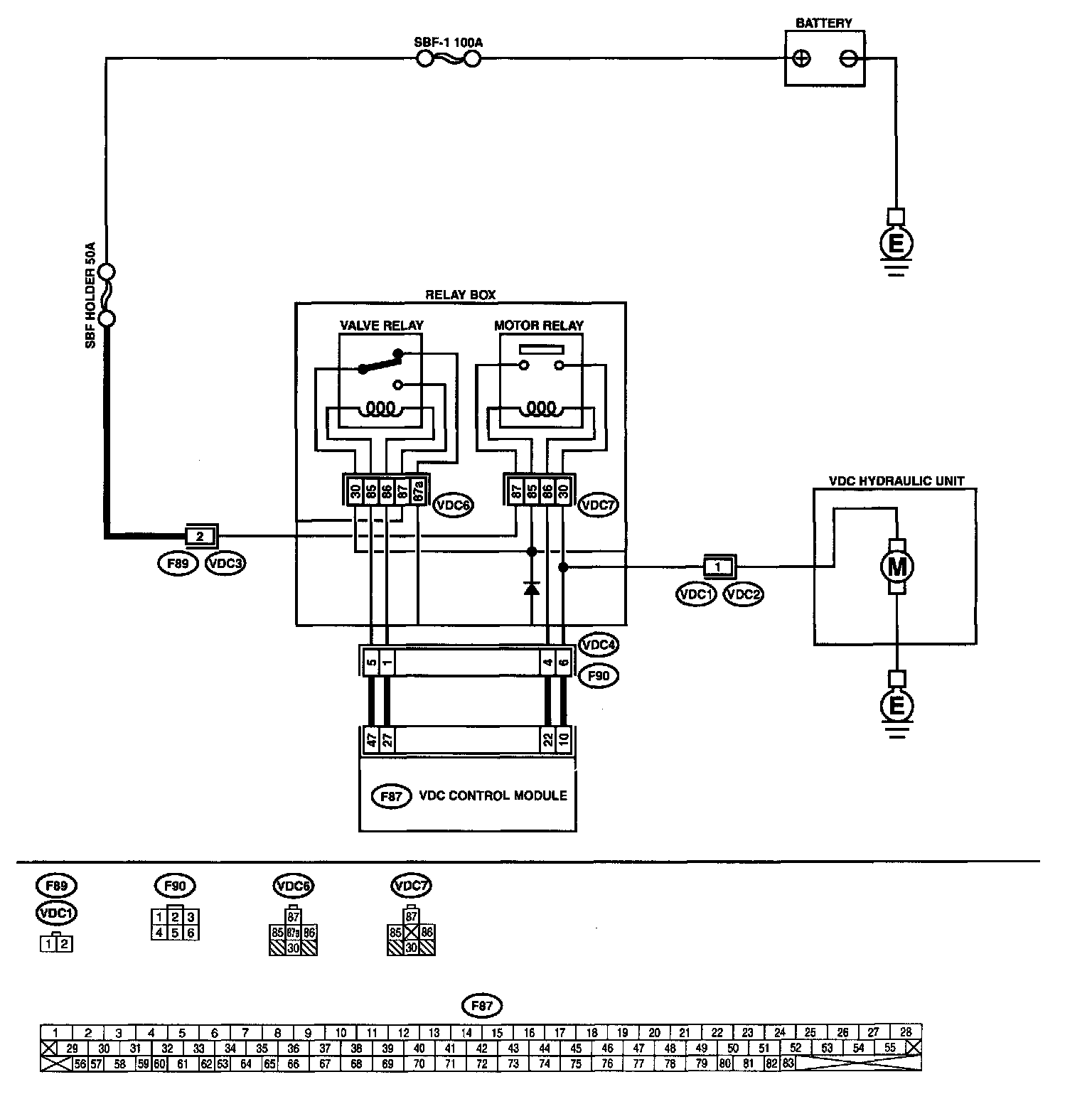

WIRING DIAGRAM

PROCEDURE:

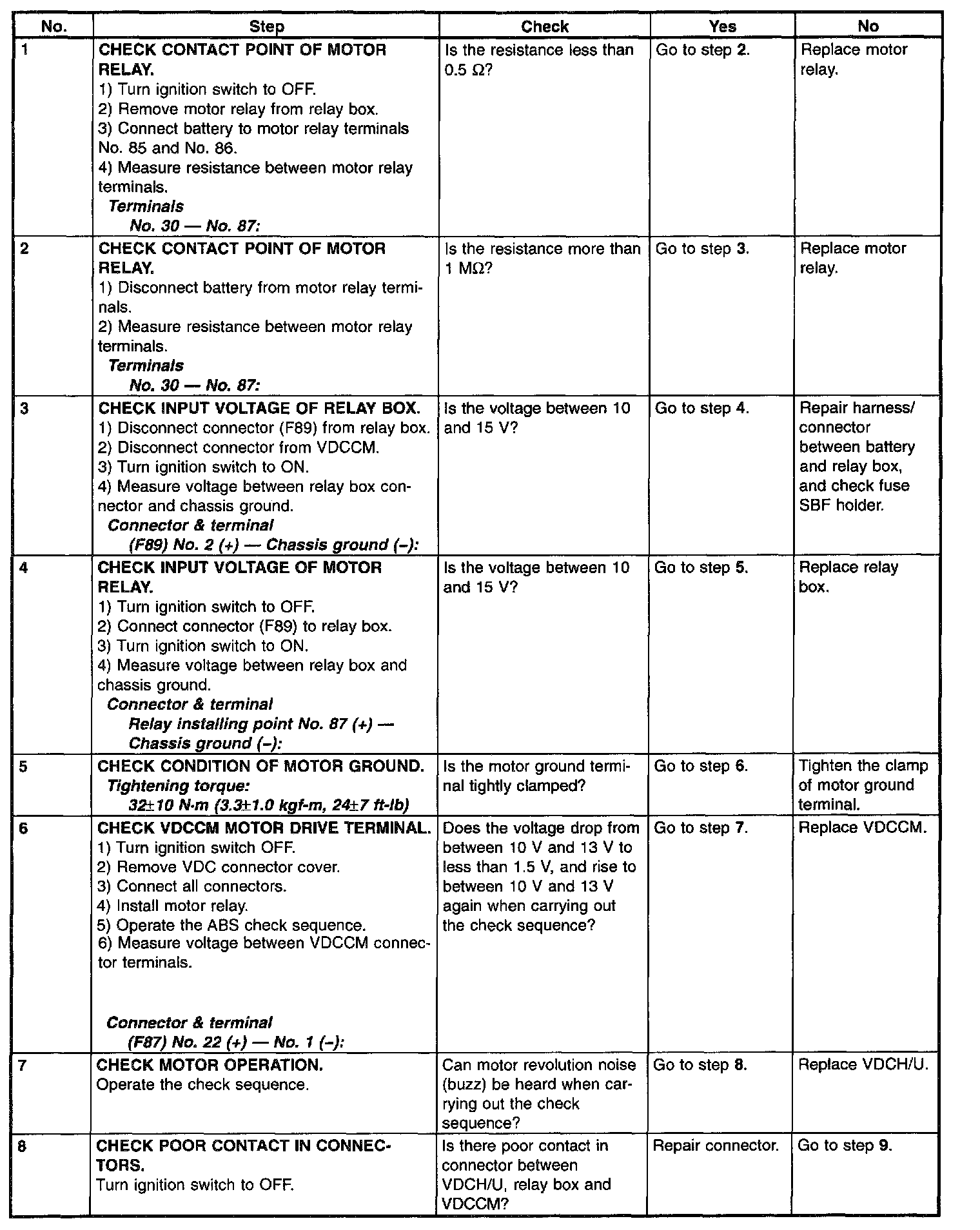

Part 1 of 2

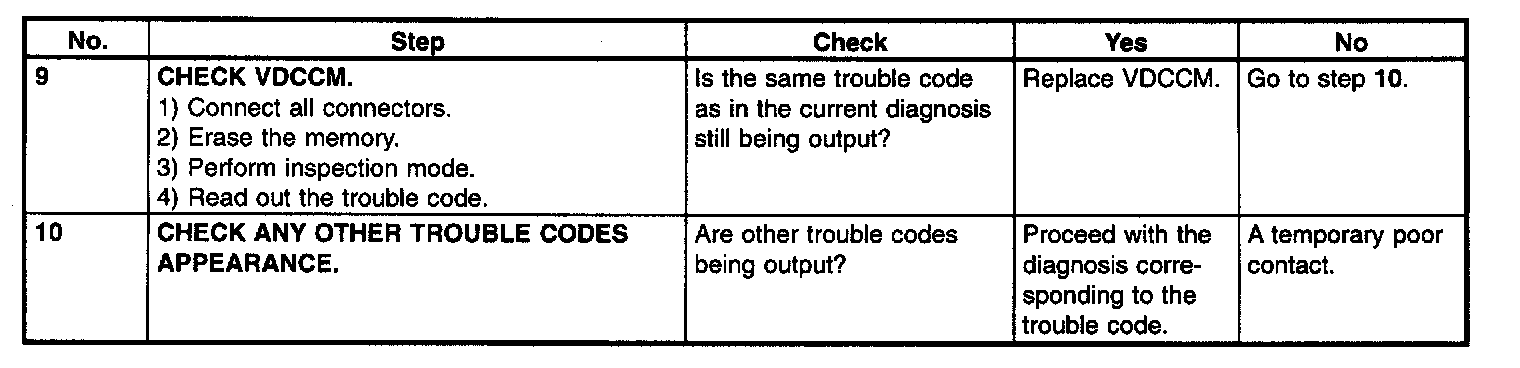

Part 2 of 2
