Vdc System Trouble Code Charts For Select Monitor Results

AC: TROUBLE CODE 52-MOTOR MALFUNCTION-

DIAGNOSIS:
- Faulty motor
- Faulty motor relay
- Faulty harness connector
TROUBLE SYMPTOM:
- ABS does not operate.

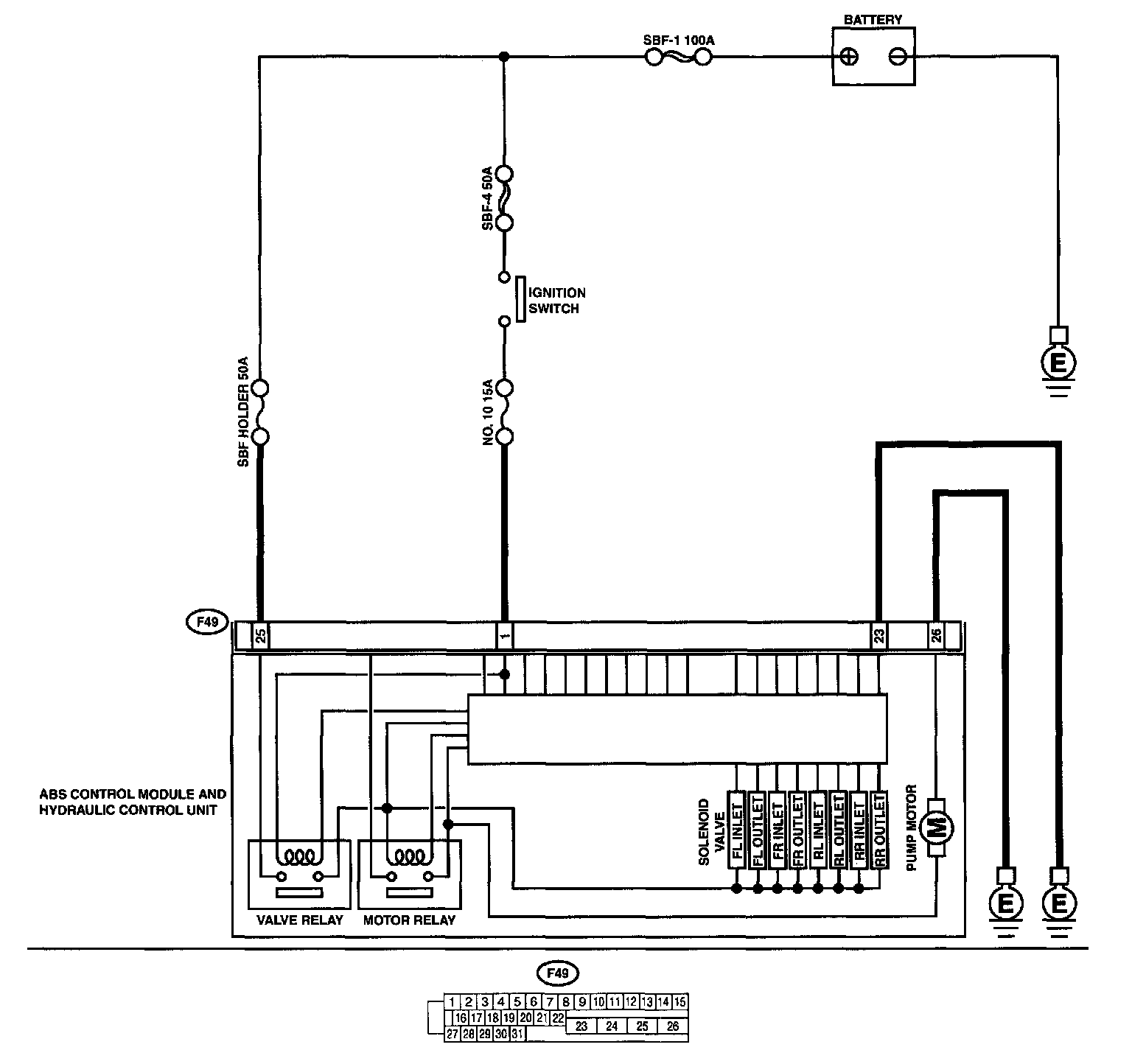

WIRING DIAGRAM

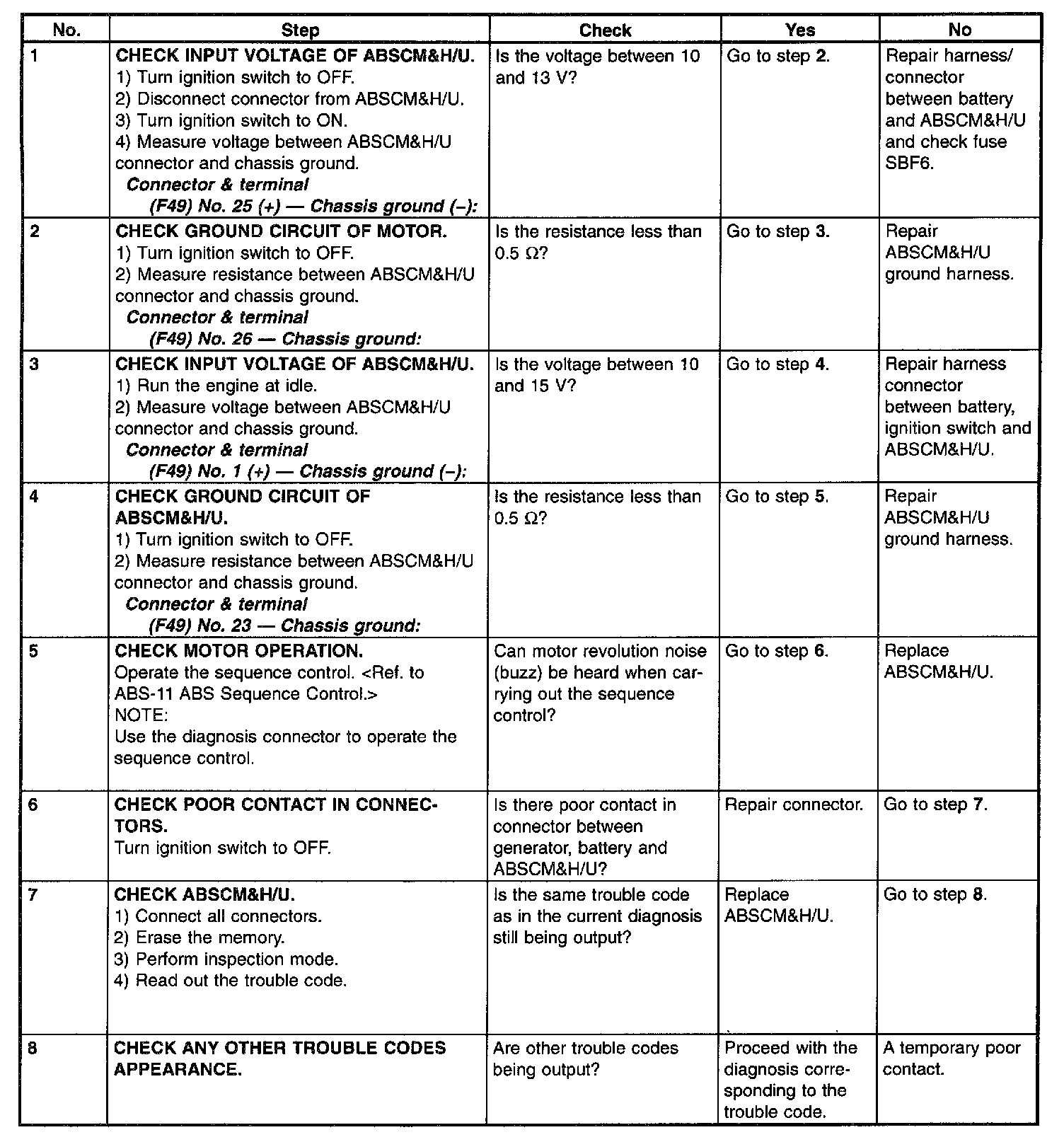

PROCEDURE
