DTC 52
>>
Open Circuit In Motor Relay Circuit
Open Circuit In Motor Relay Circuit
AA: TROUBLE CODE 52-OPEN CIRCUIT IN MOTOR RELAY CIRCUIT-
DIAGNOSIS:
-
Faulty motor
-
Faulty motor relay
-
Faulty harness connector
TROUBLE SYMPTOM:
-
ABS does not operate.

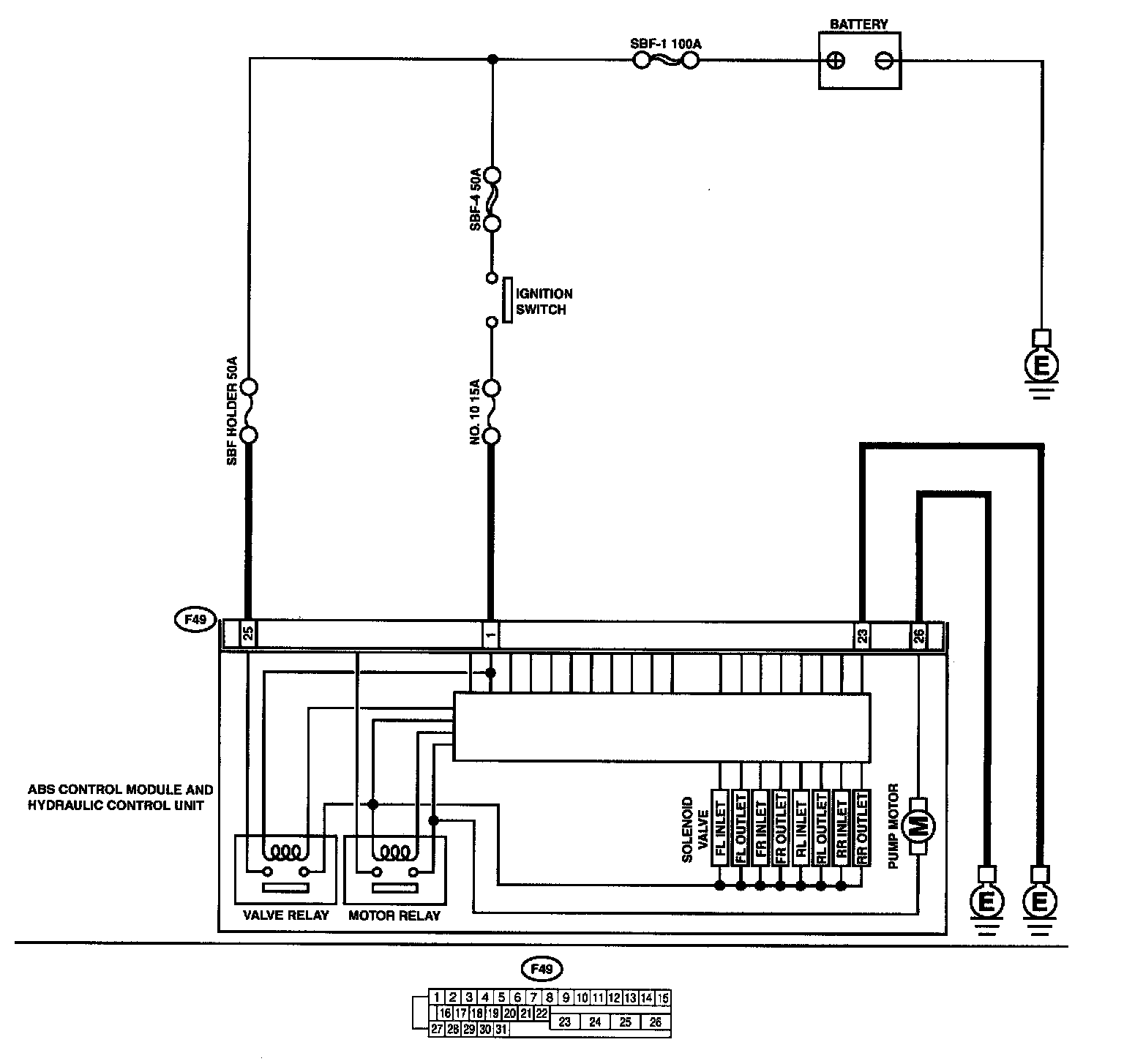

WIRING DIAGRAM

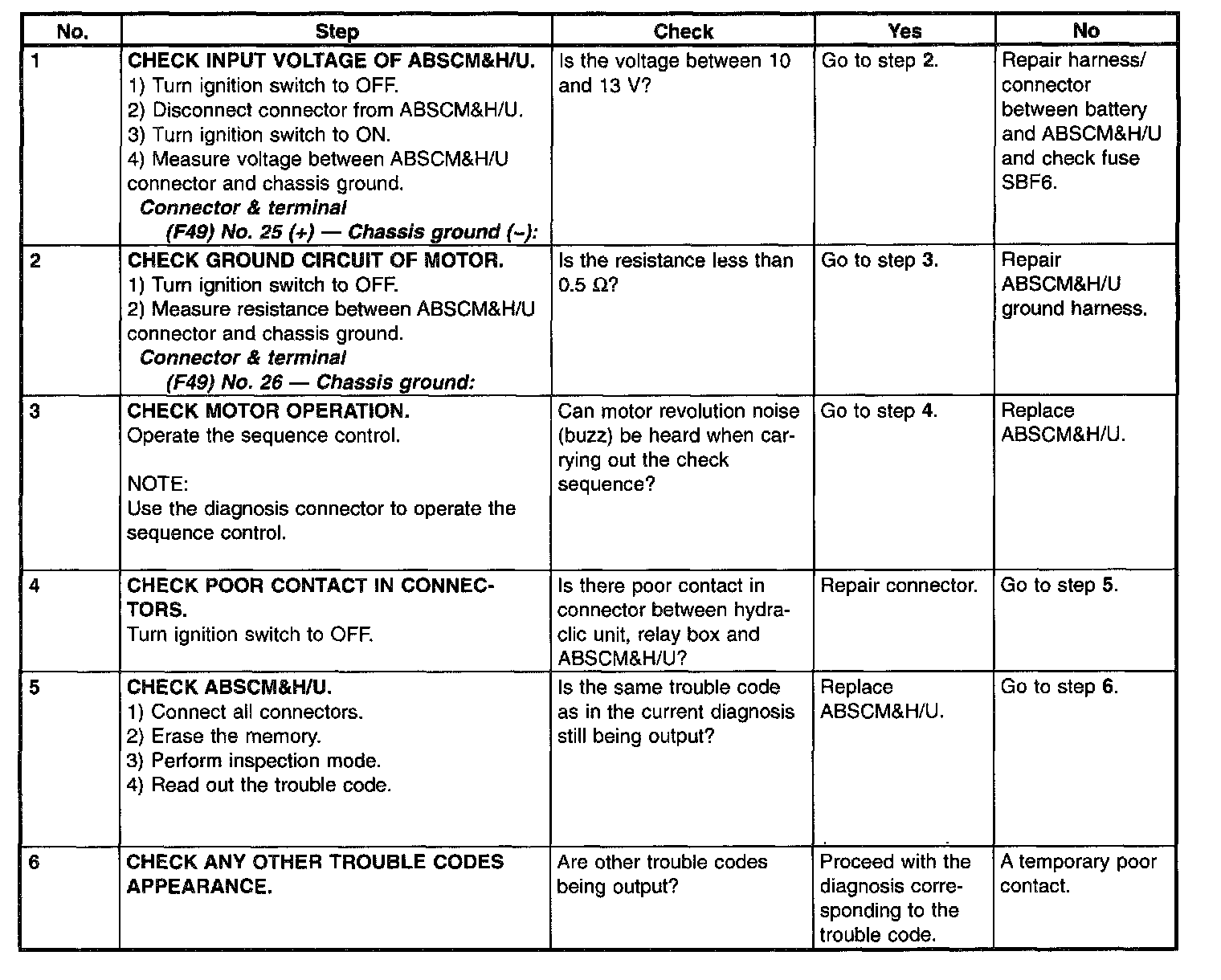

PROCEDURE
