Motor Relay on Failure

AB: TROUBLE CODE 52-MOTOR RELAY ON FAILURE-

DIAGNOSIS:
- Faulty motor
- Faulty motor relay
- Faulty harness connector
TROUBLE SYMPTOM:
- ABS does not operate

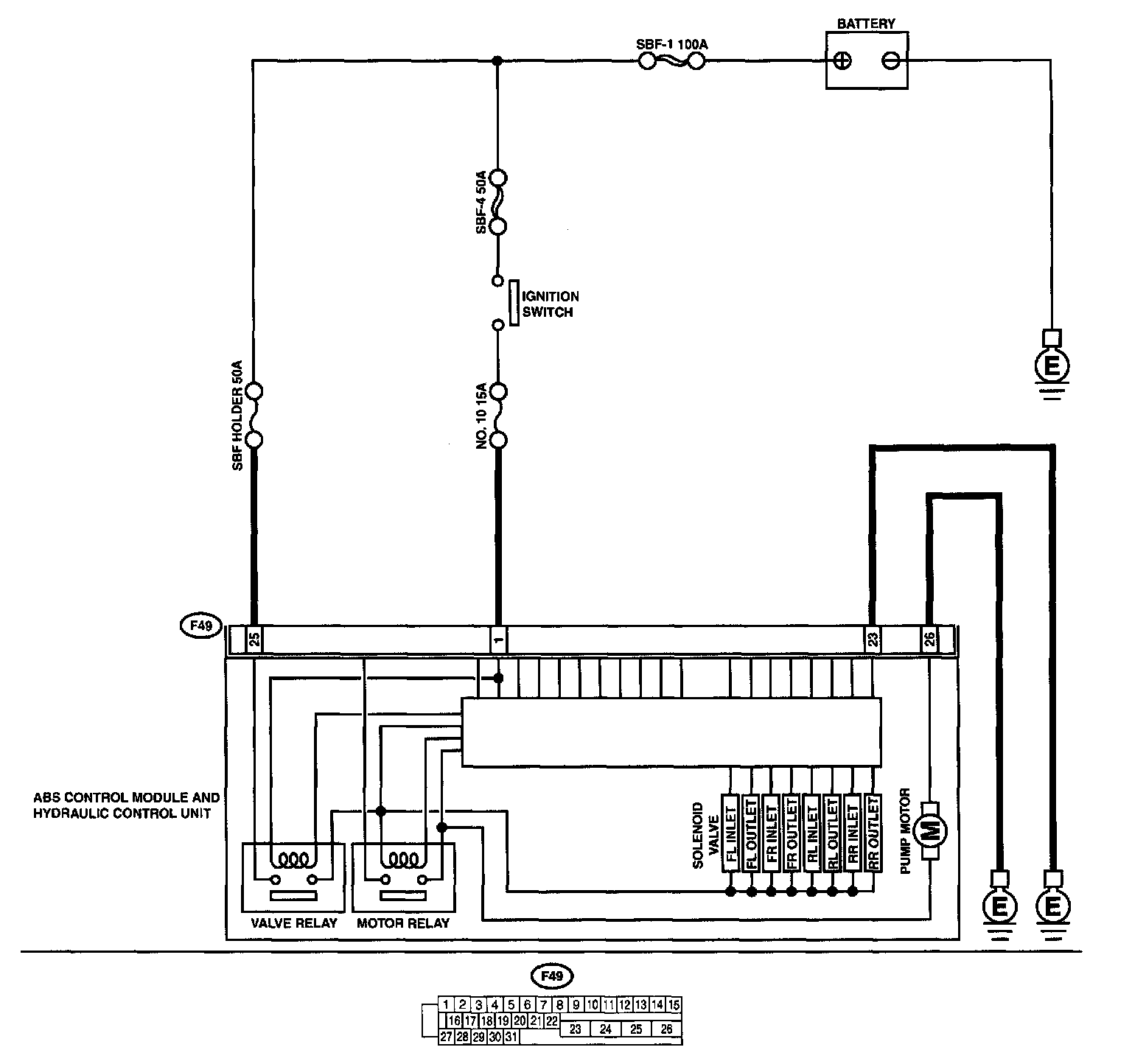

WIRING DIAGRAM

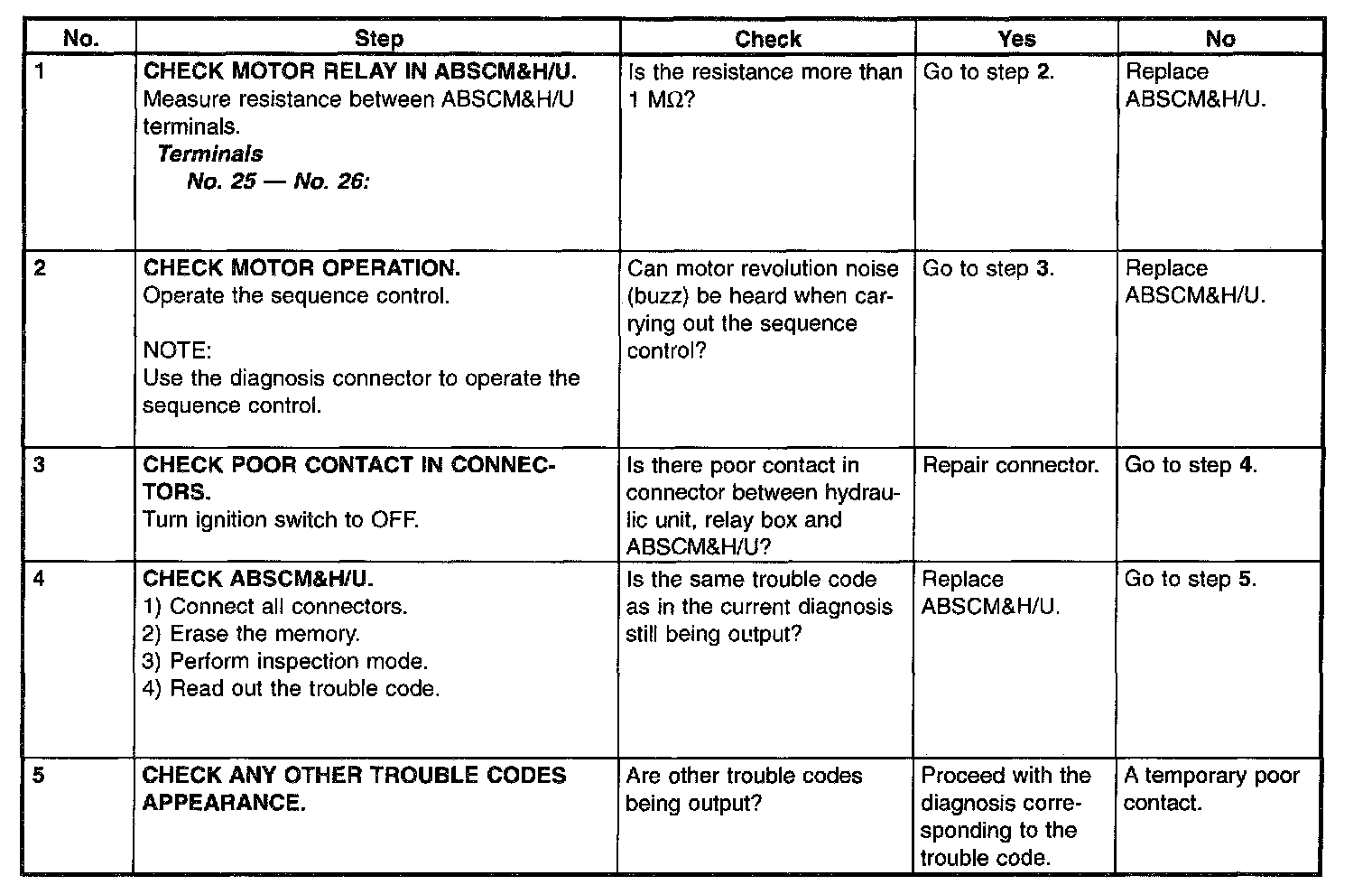

PROCEDURE
