ABS Trouble Code Charts For Warning Light Codes

Y: TROUBLE CODE 52 -ABNORMAL MOTOR AND/OR MOTOR RELAY-

DIAGNOSIS:
- Faulty motor
- Faulty motor relay
- Faulty harness connector
TROUBLE SYMPTOM:
- ABS does not operate.

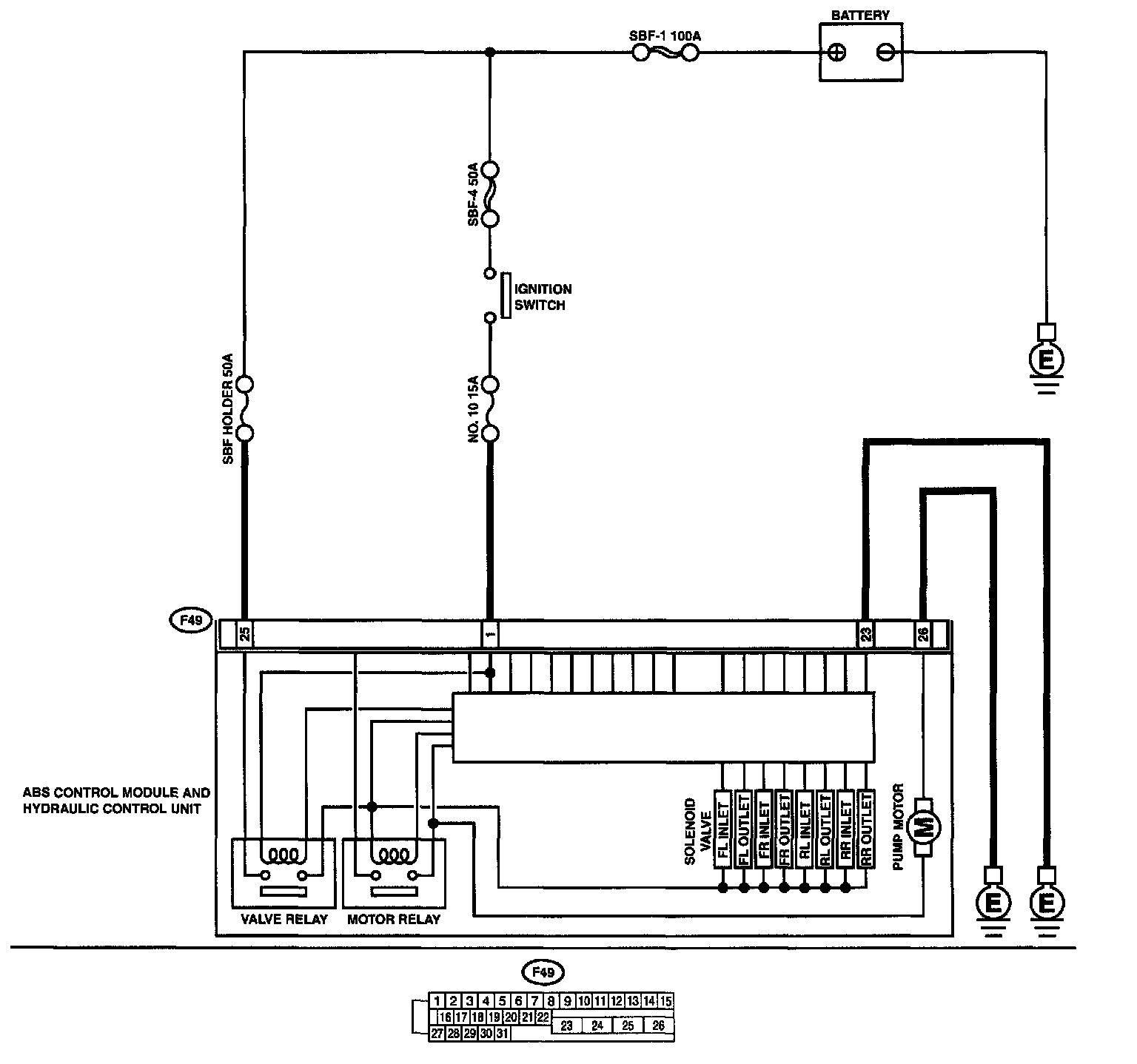

WIRING DIAGRAM

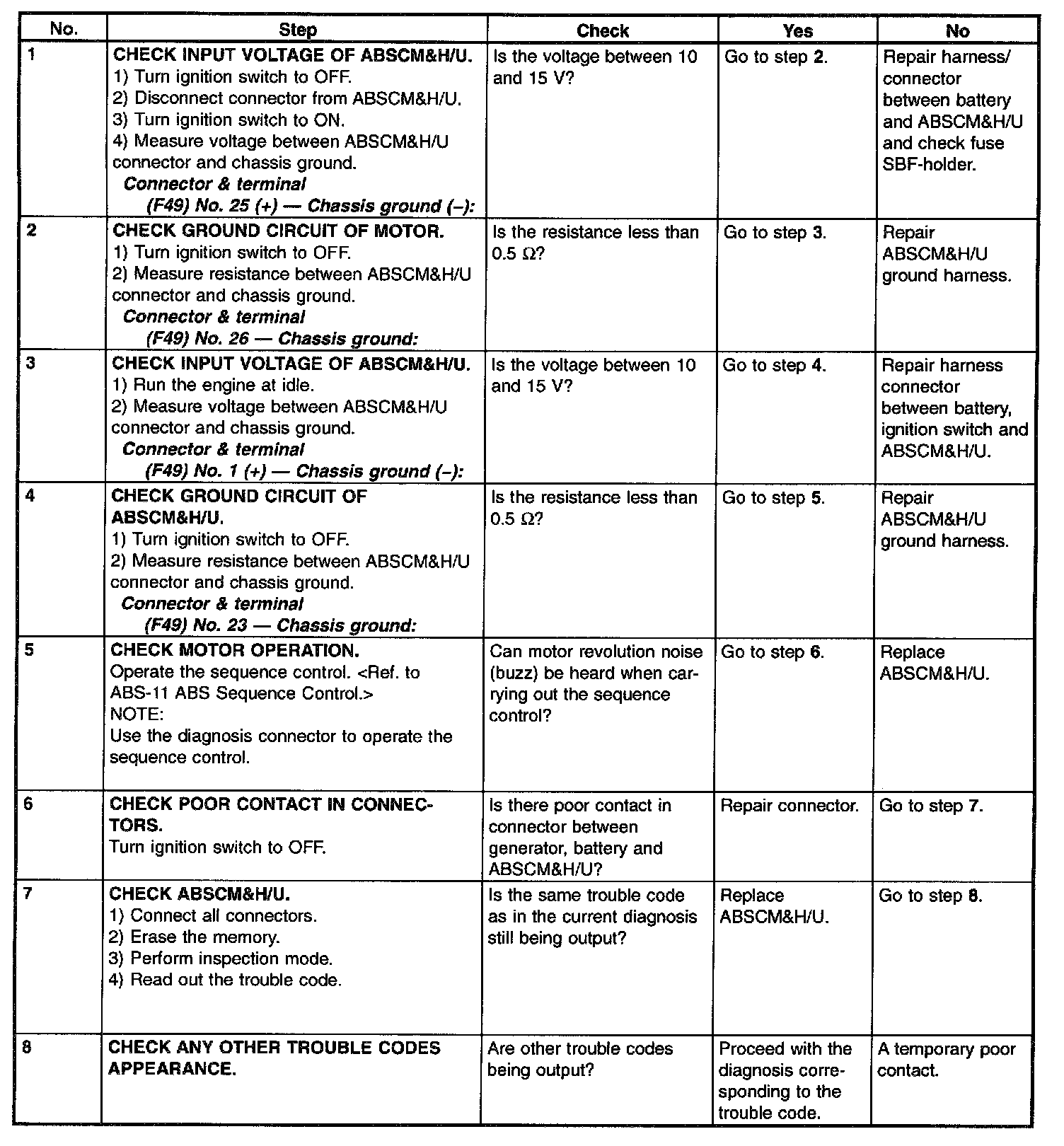

PROCEDURE
