Vdc System Trouble Code Charts For Warning Light Codes

AJ: TROUBLE CODE 51 ABNORMAL VALVE RELAY

DIAGNOSIS:
- Faulty valve relay
TROUBLE SYMPTOM:
- ABS does not operate.
- VDC does not operate.

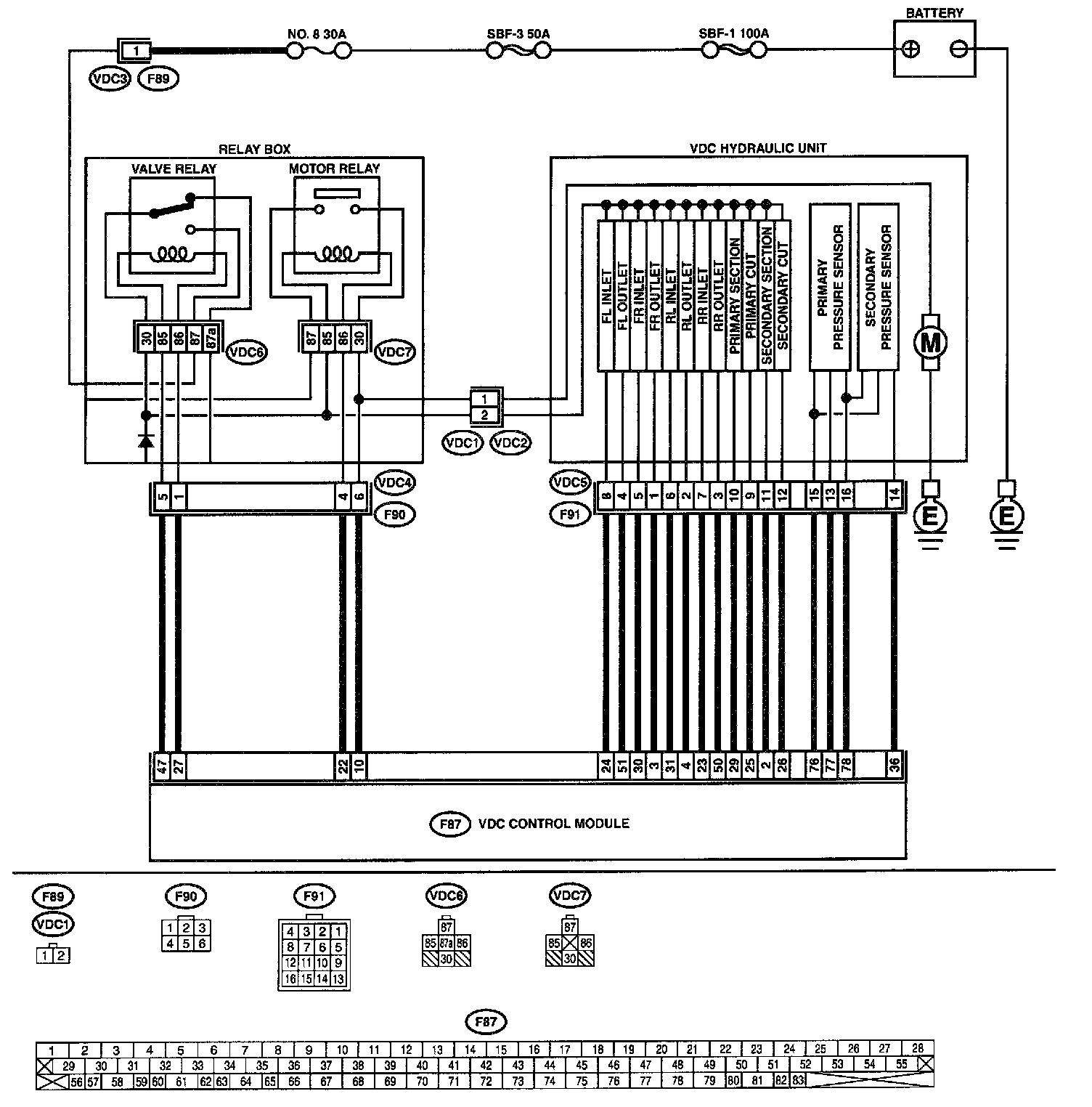

WIRING DIAGRAM

PROCEDURE:

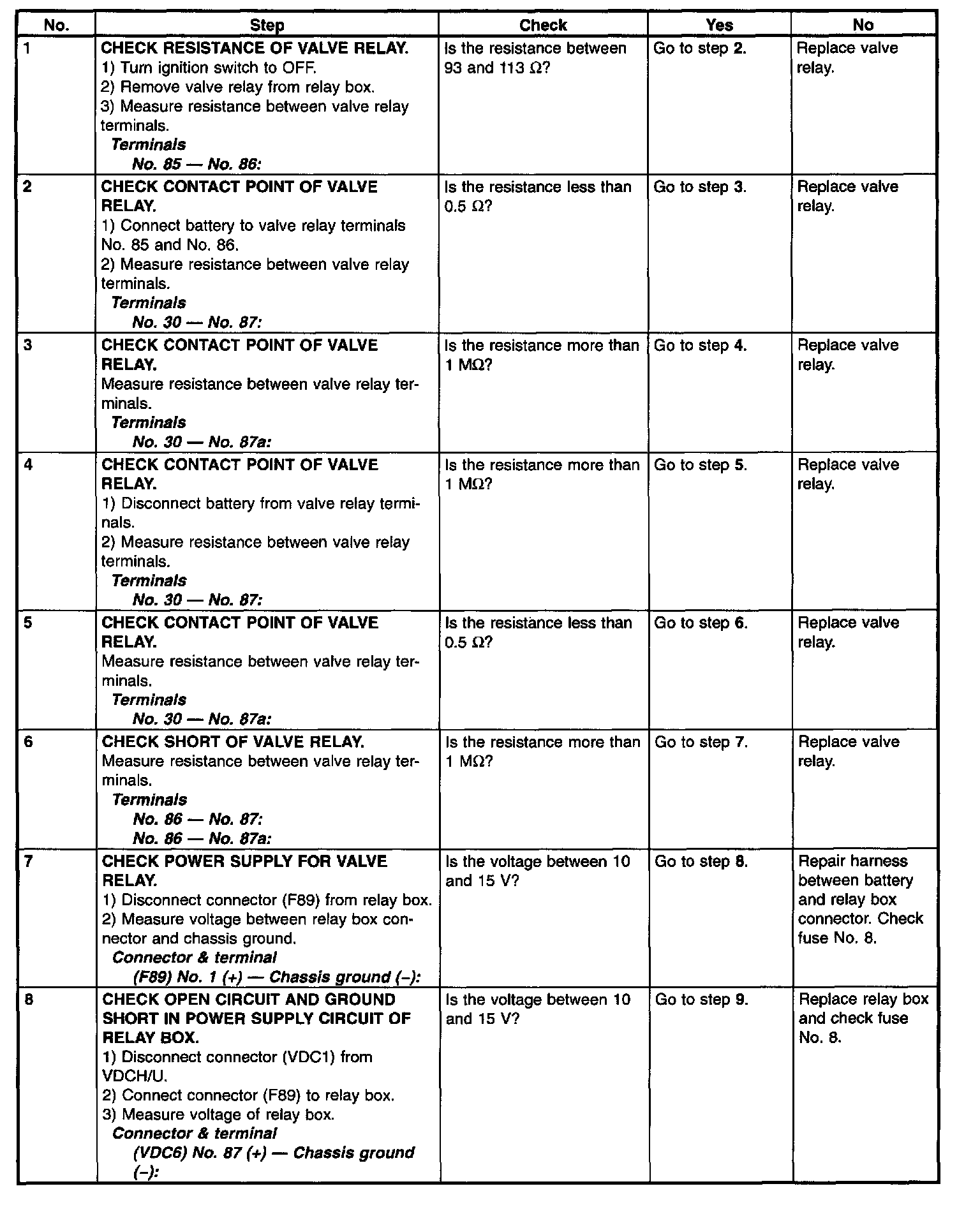

Part 1 of 5

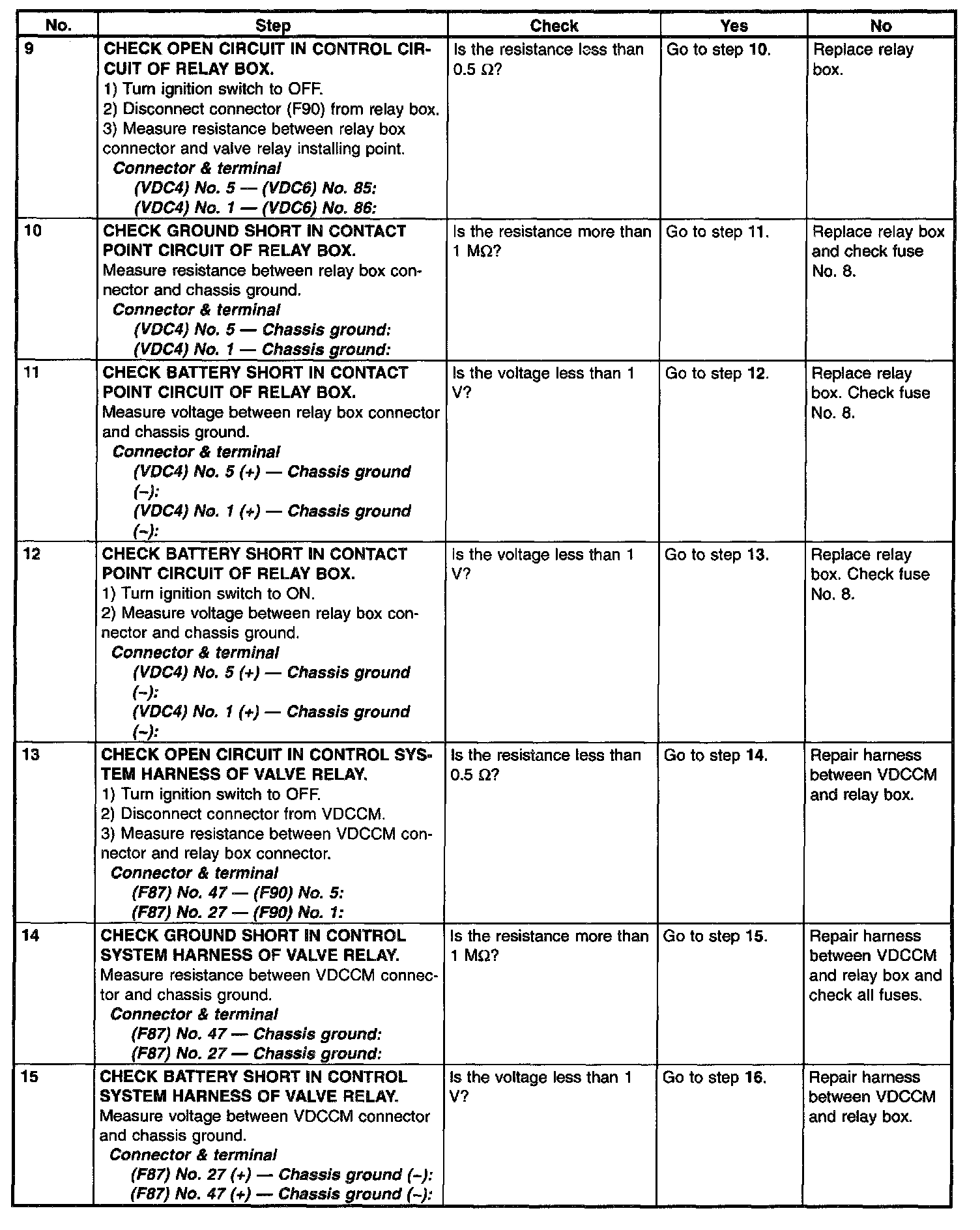

Part 2 of 5

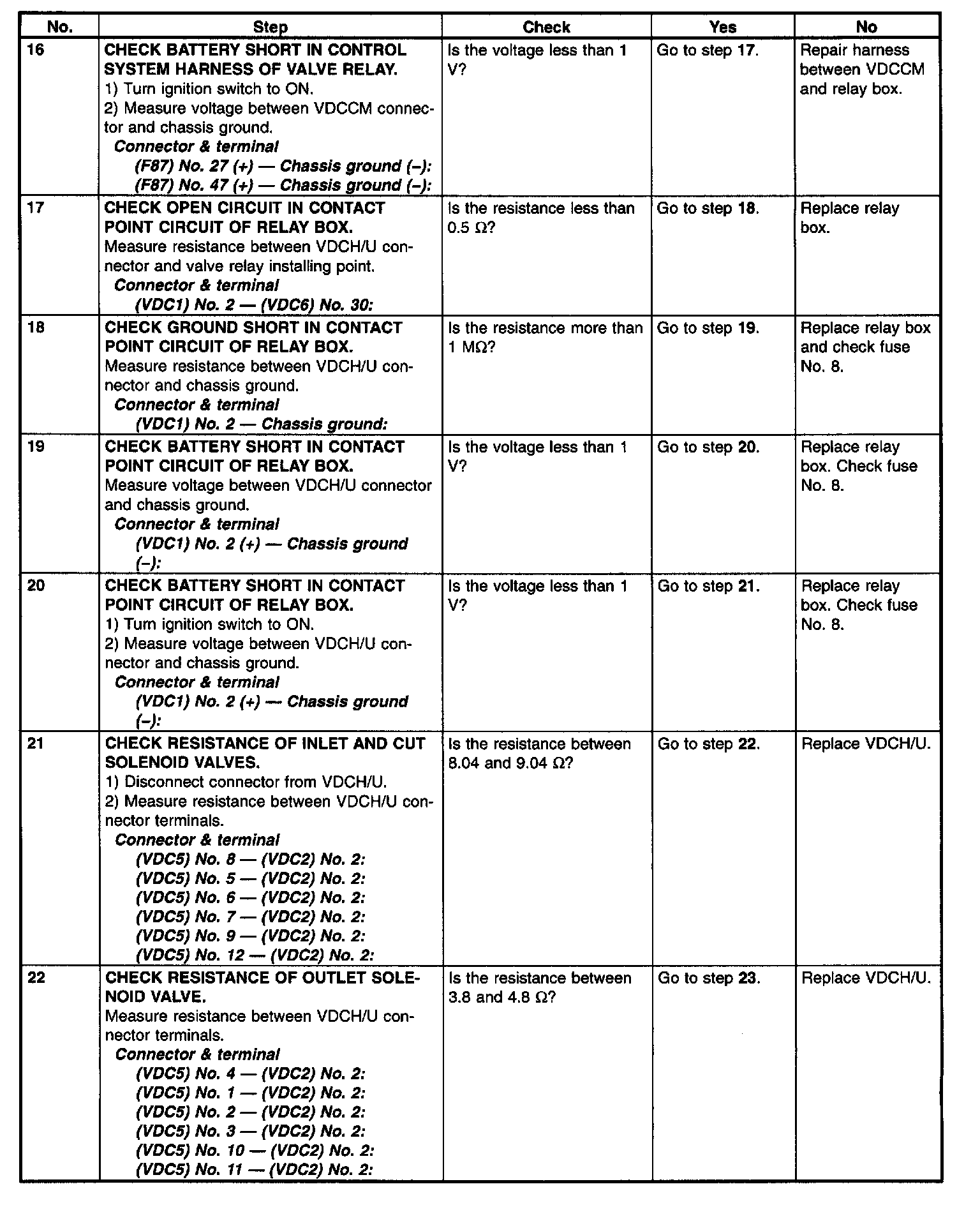

Part 3 of 5

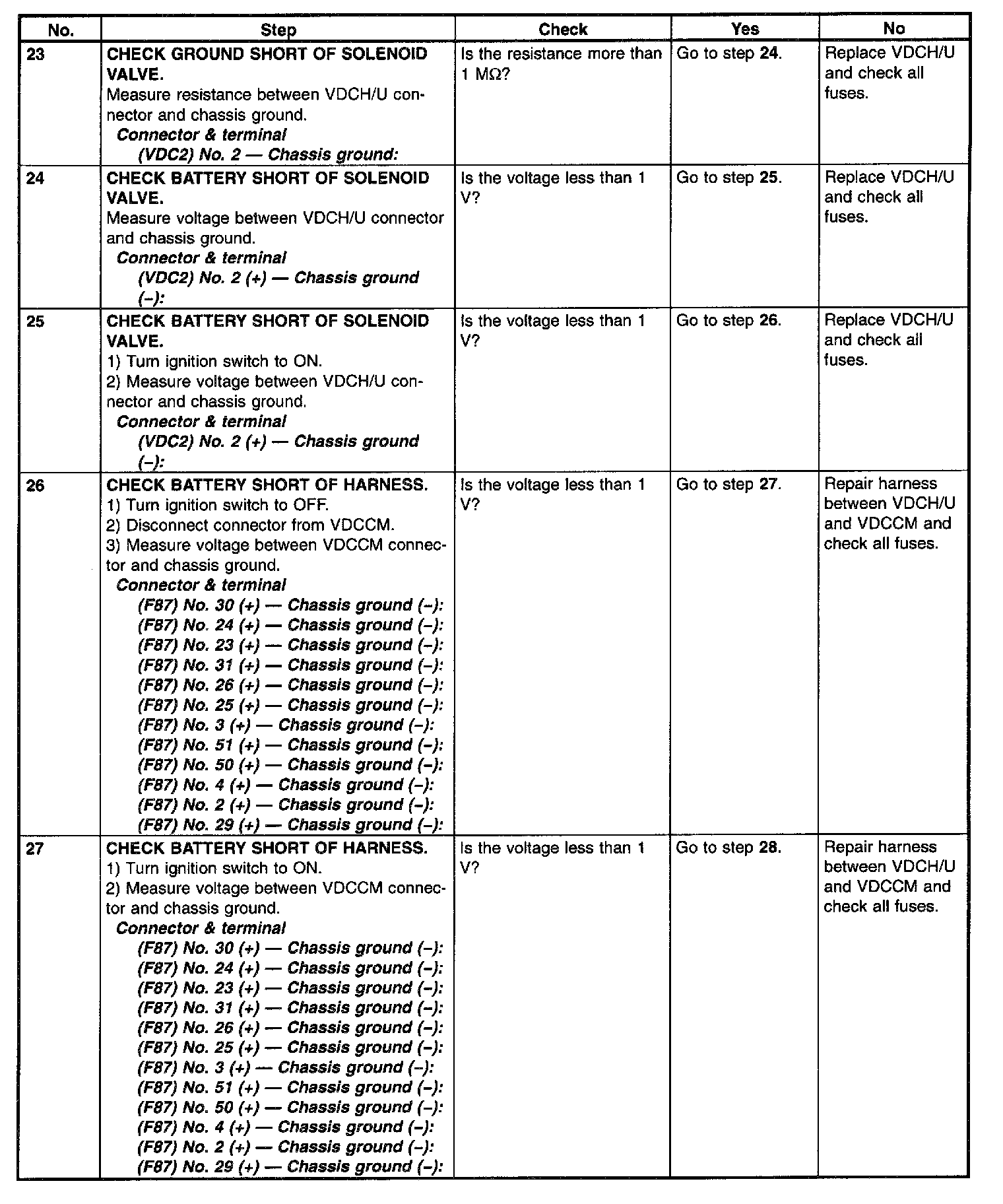

Part 4 of 5

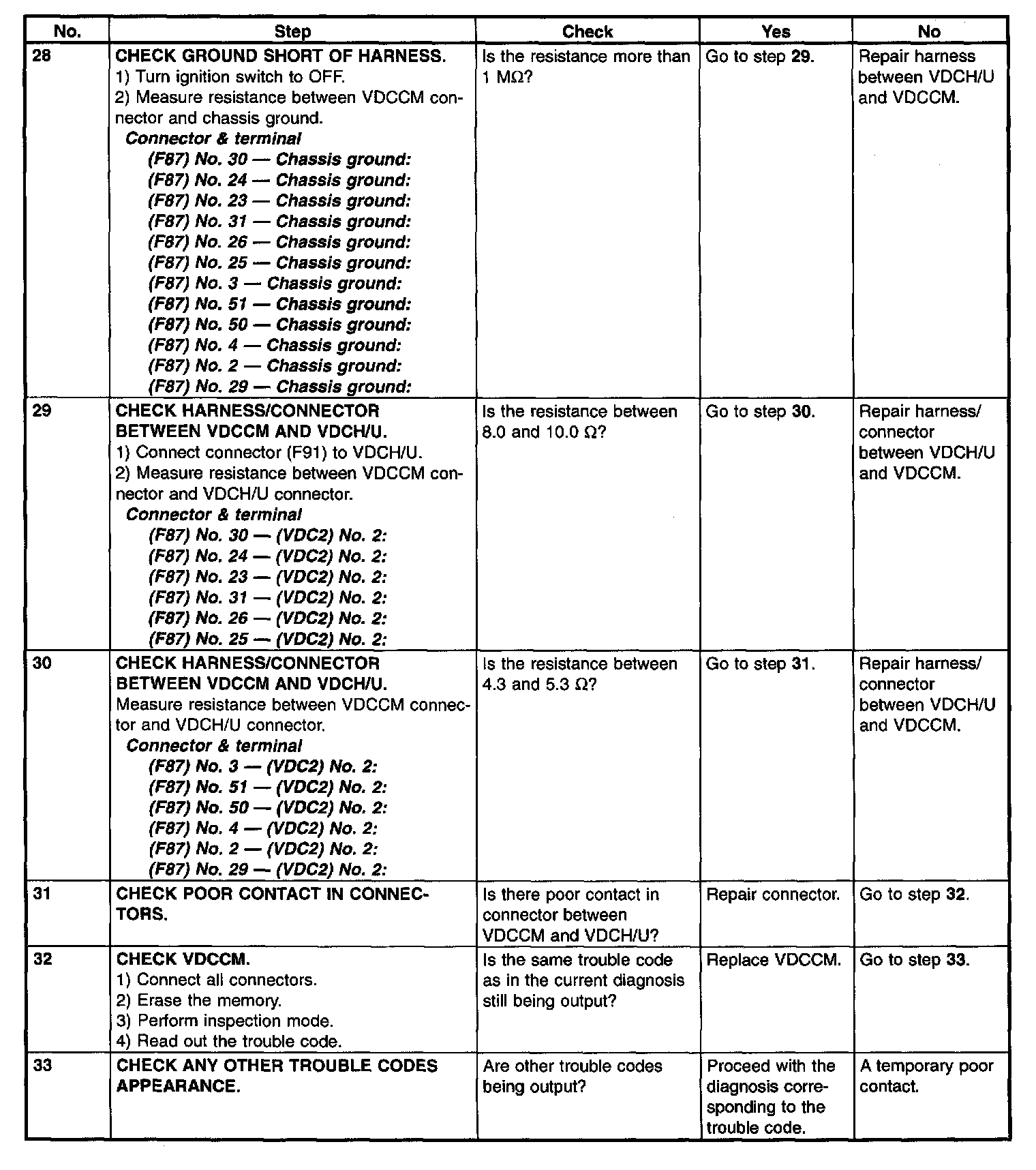

Part 5 of 5
