Valve Relay ON Failure

Z: TROUBLE CODE 51-VALVE RELAY ON FAILURE-

DIAGNOSIS:
- Faulty valve relay
TROUBLE SYMPTOM:
- ABS does not operate.

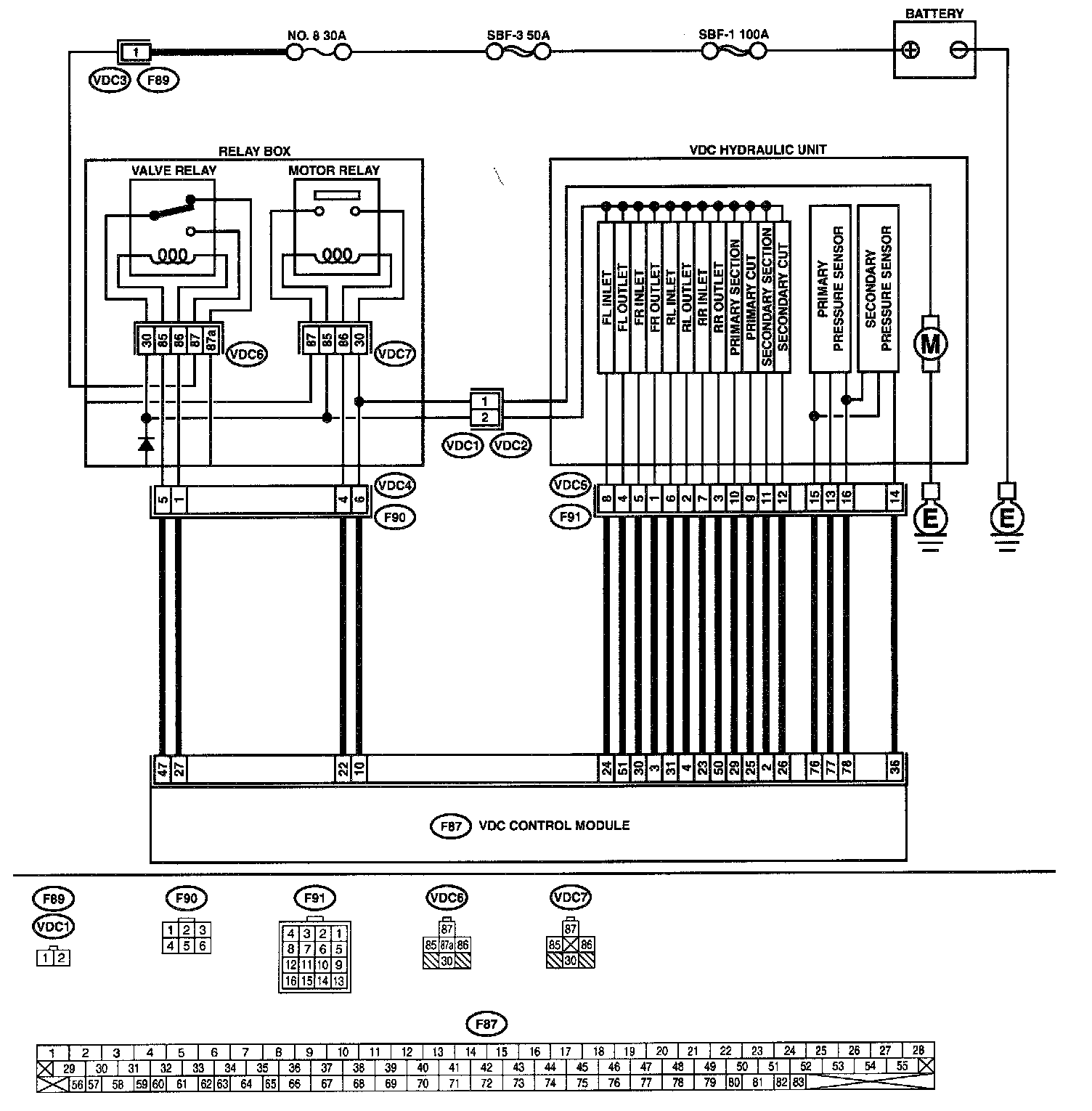

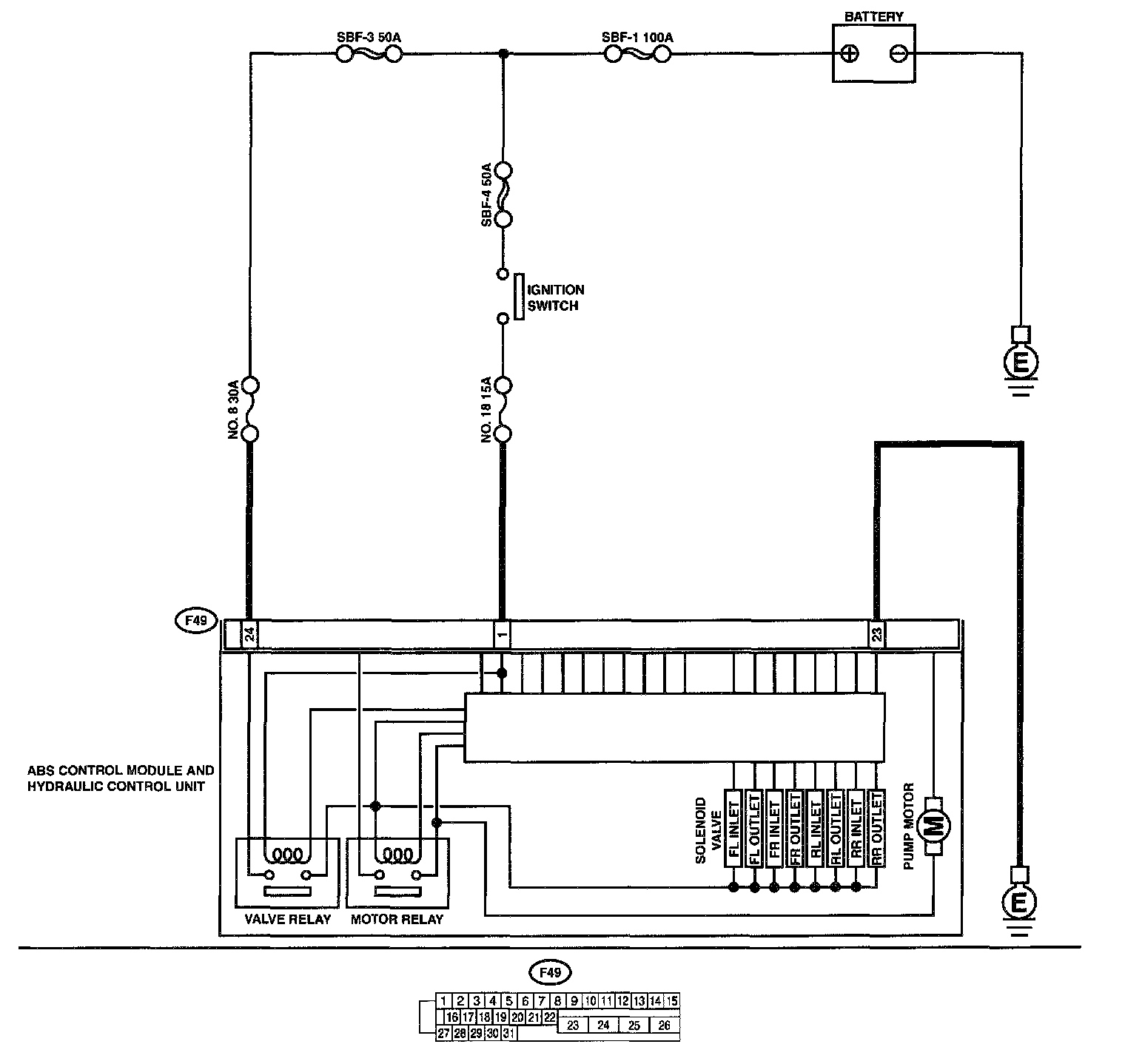

WIRING DIAGRAM

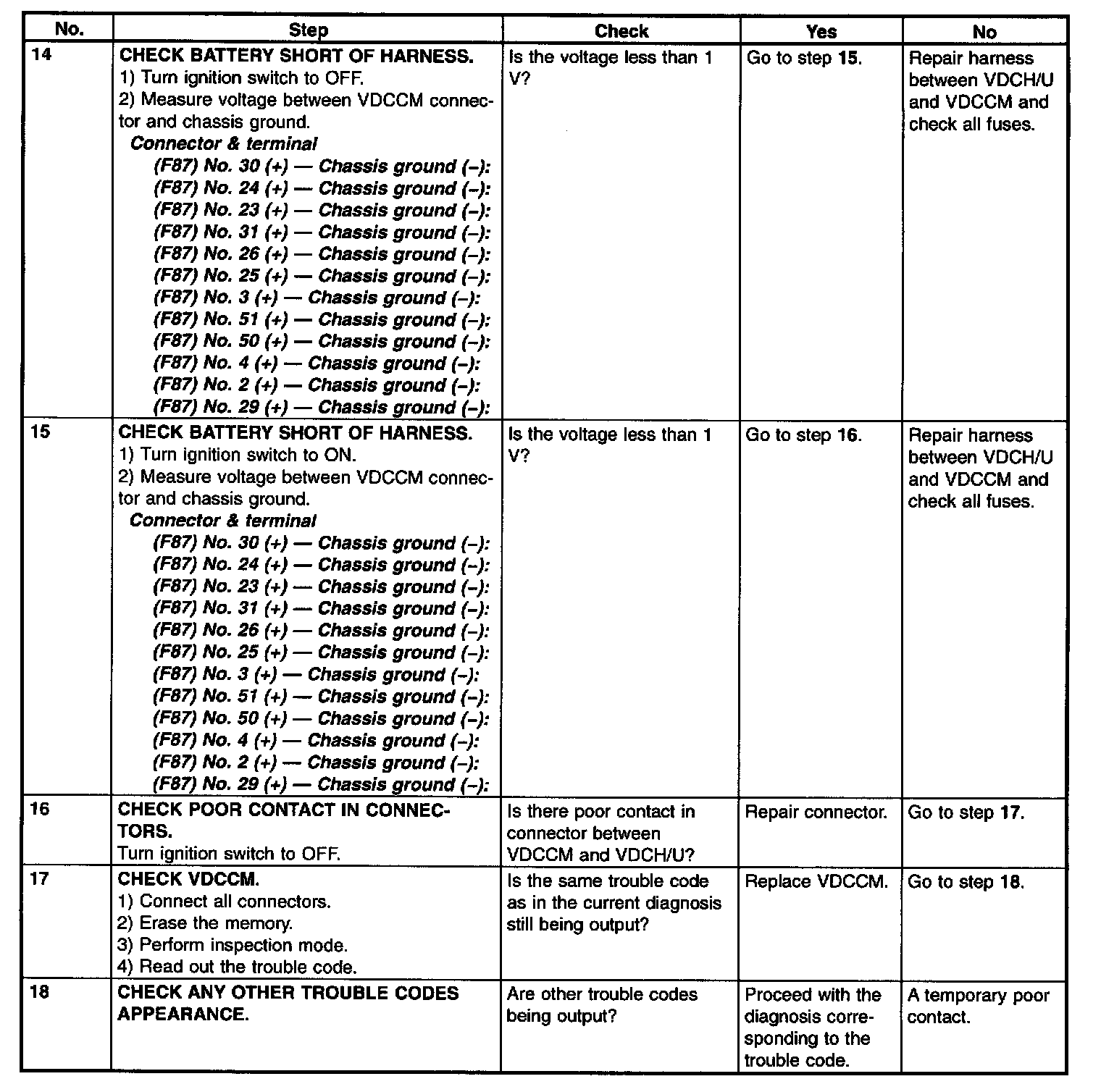

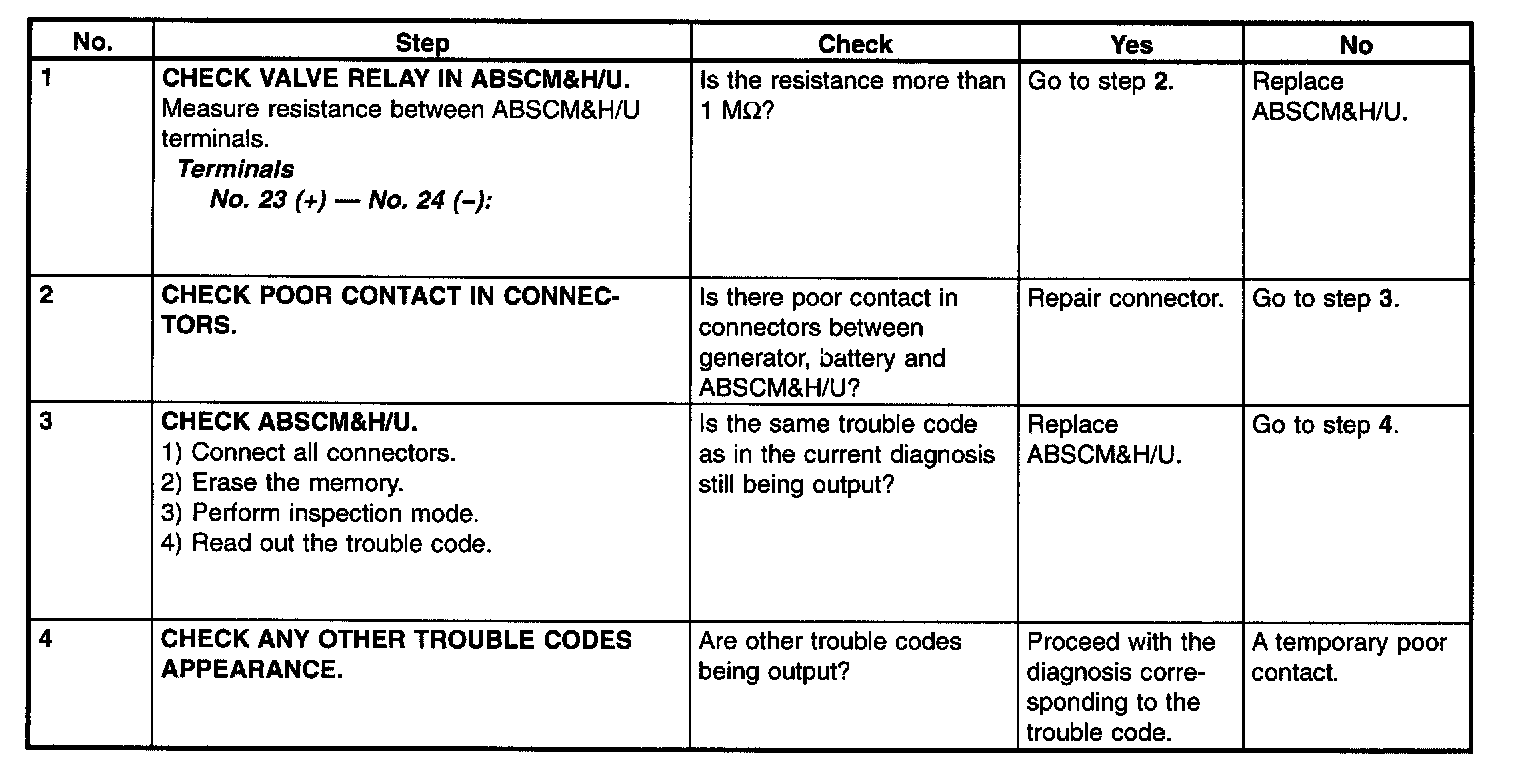

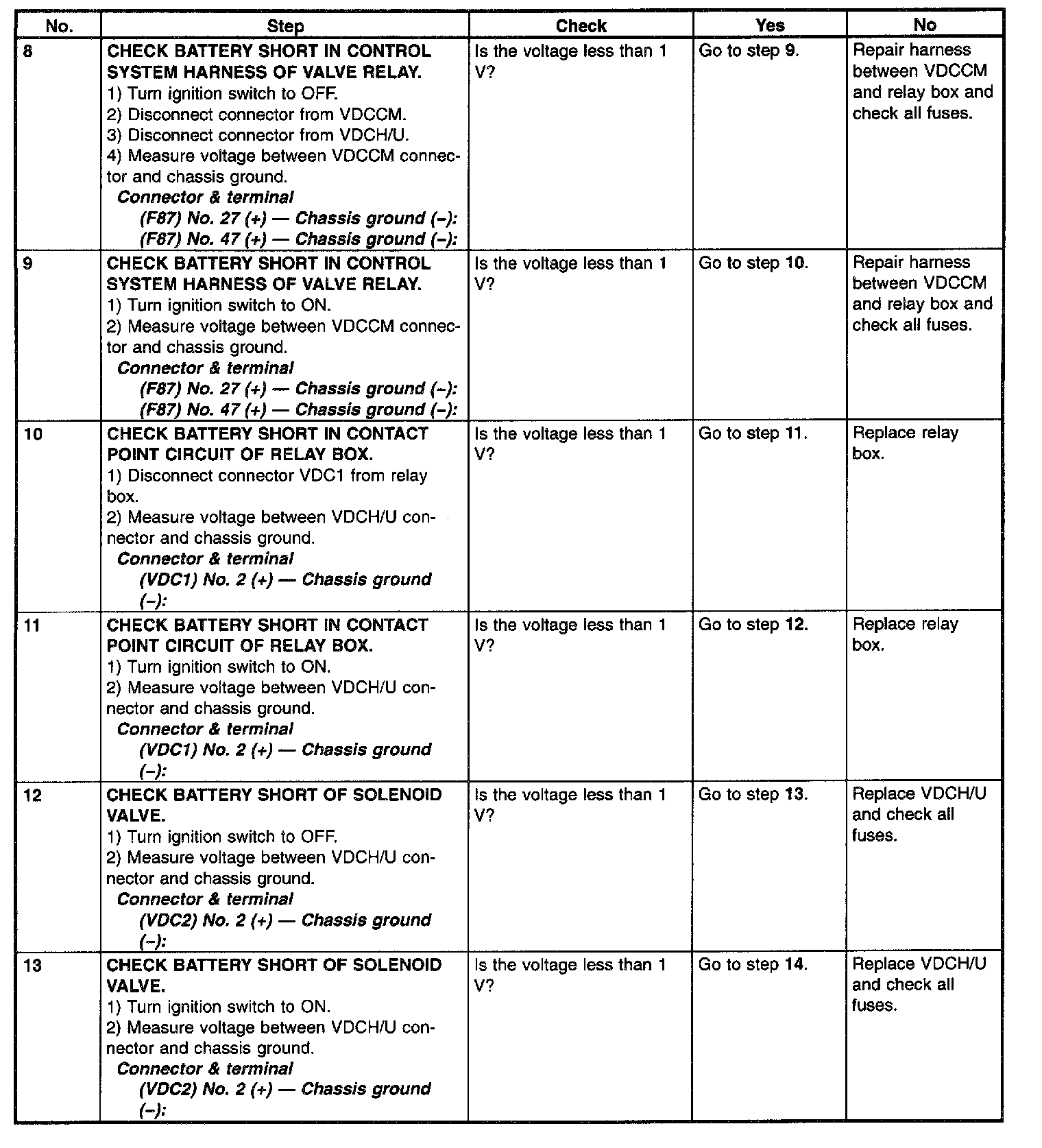

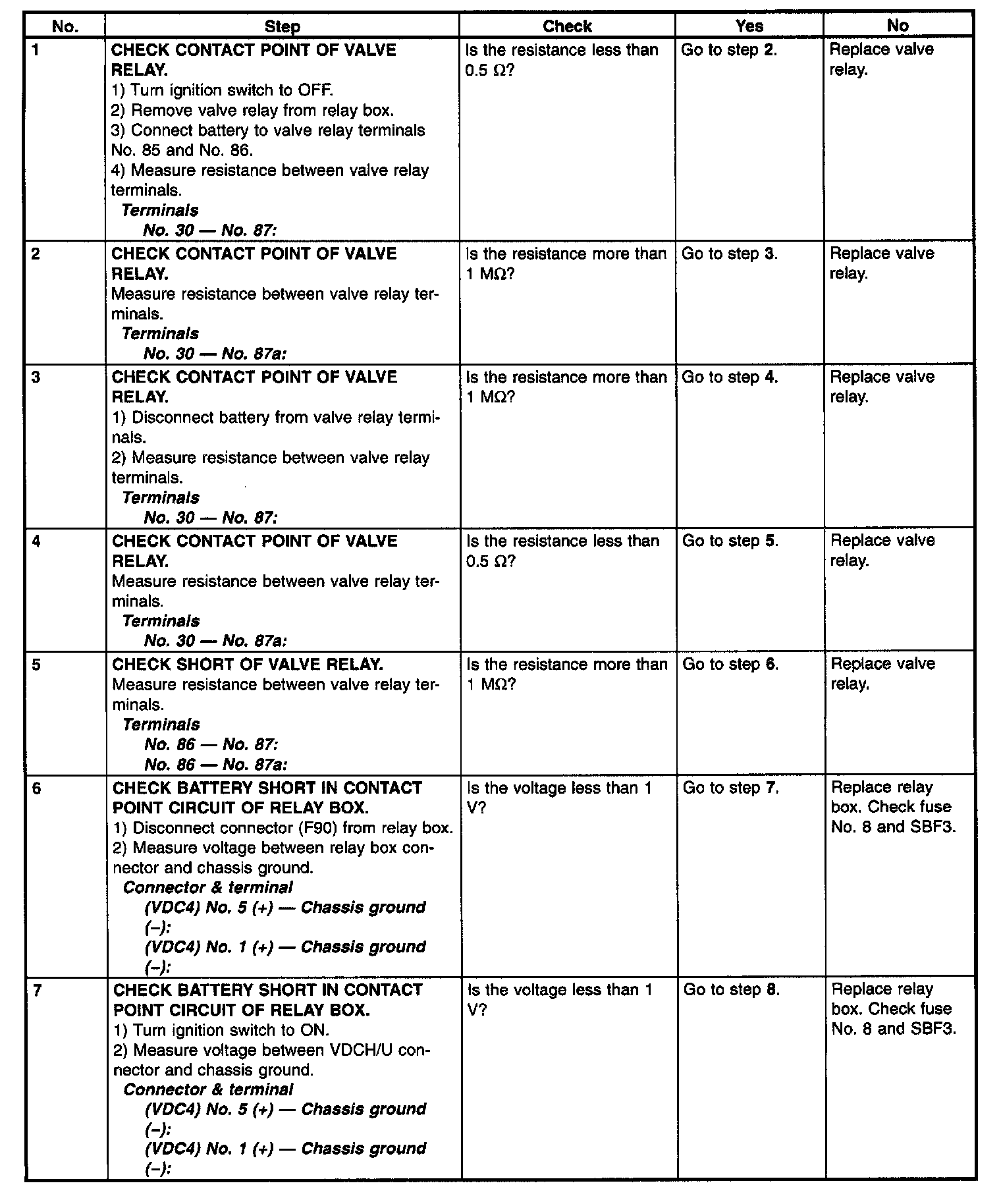

PROCEDURE
