Valve Relay Malfunction

Y: TROUBLE CODE 51-VALVE RELAY MALFUNCTION-

DIAGNOSIS:
- Faulty valve relay
TROUBLE SYMPTOM:
- ABS does not operate.

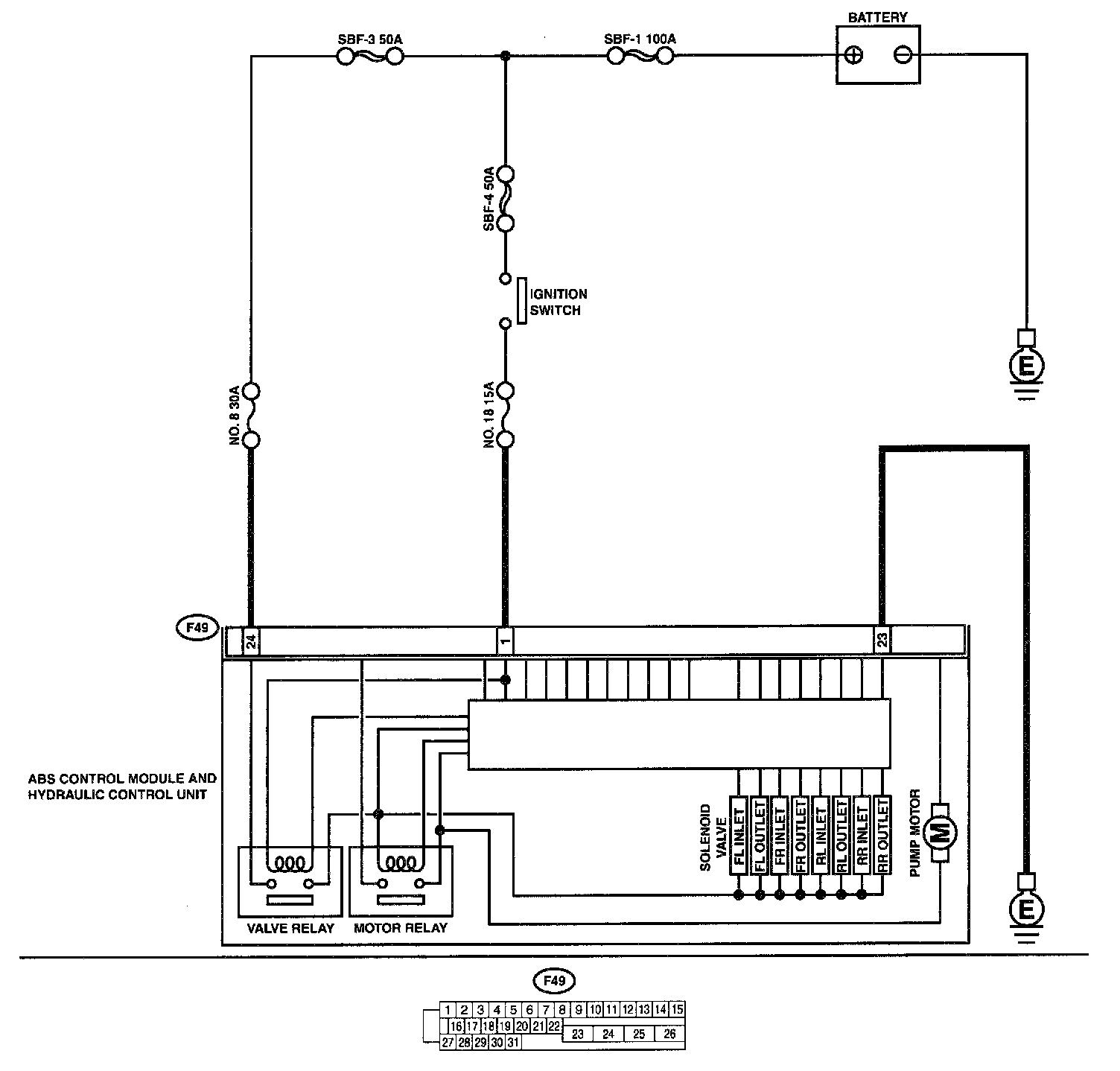

WIRING DIAGRAM

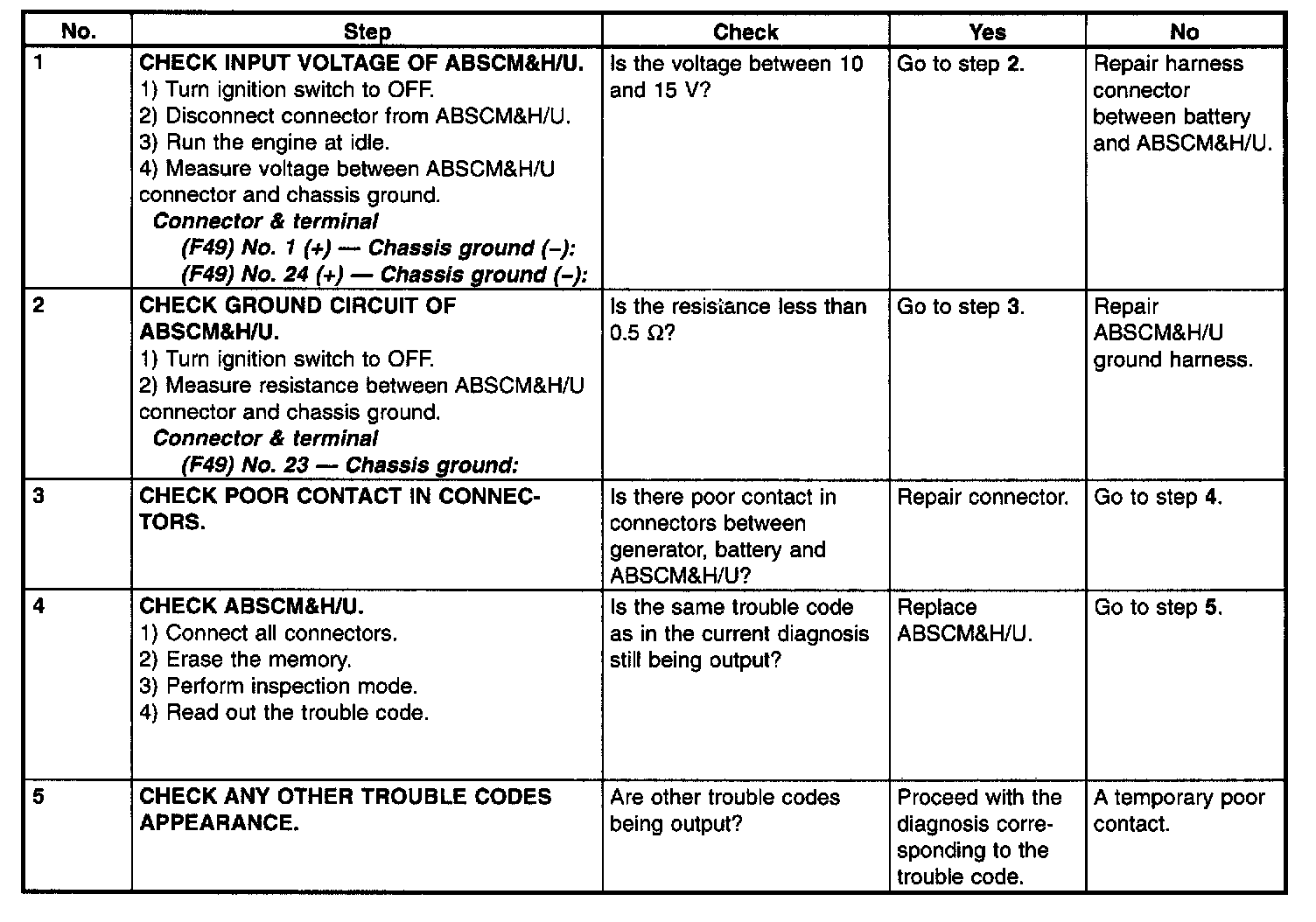

PROCEDURE
