Valve Relay

AK: TROUBLE CODE 51 VALVE RELAY

DIAGNOSIS:
- Faulty valve relay
TROUBLE SYMPTOM:
- ABS does not operate.
- VDC does not operate.

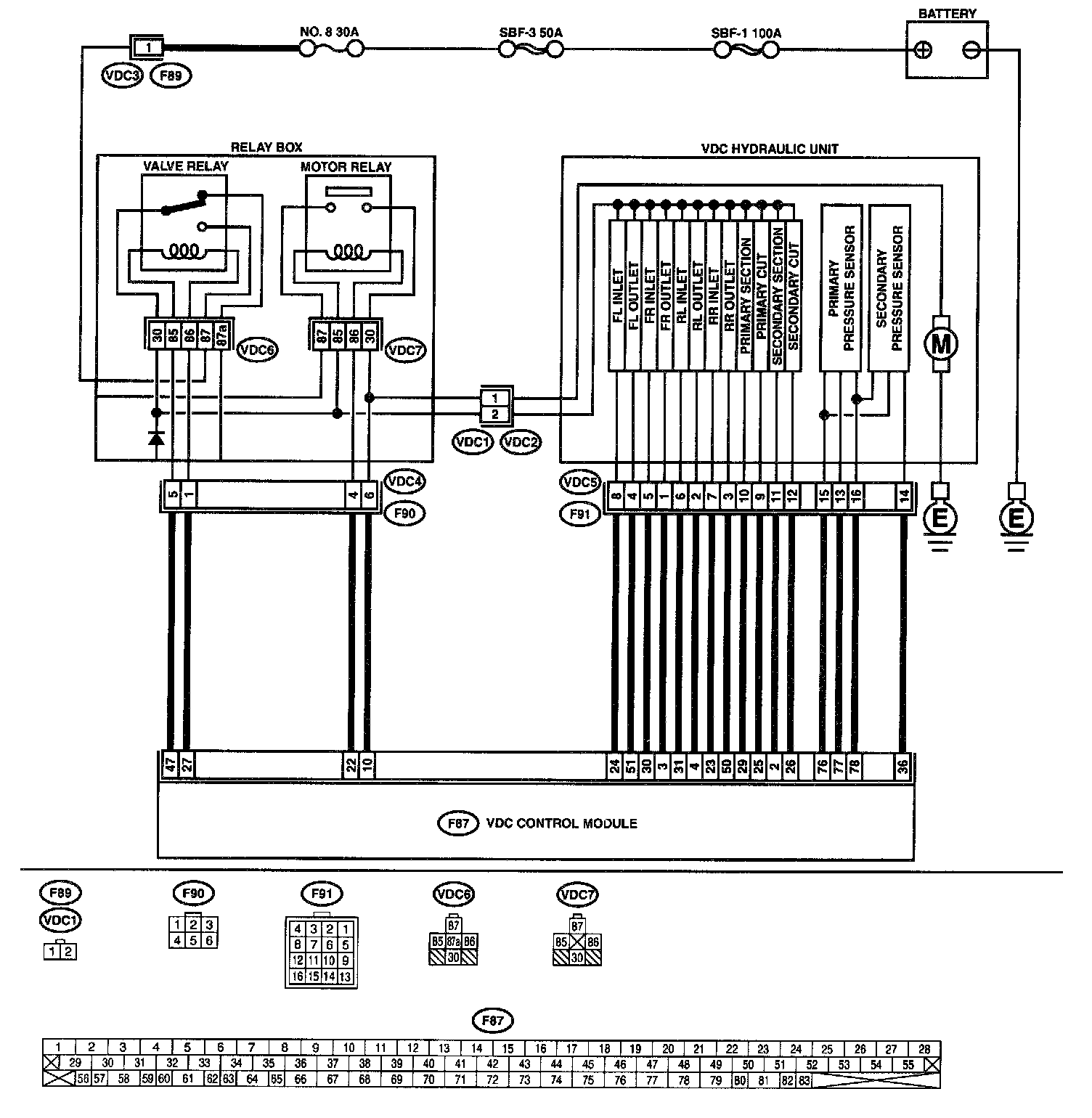

WIRING DIAGRAM

PROCEDURE:

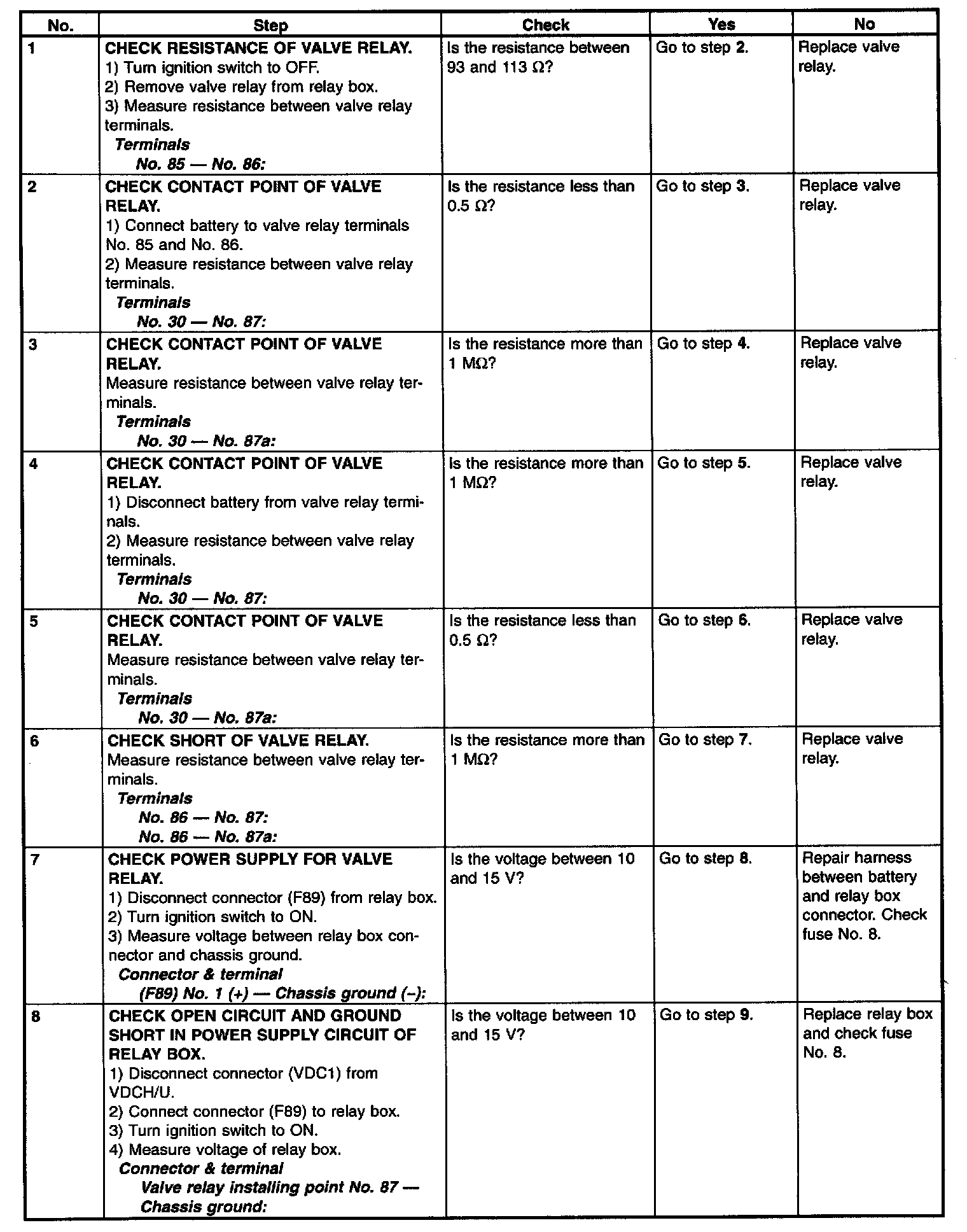

Part 1 of 4

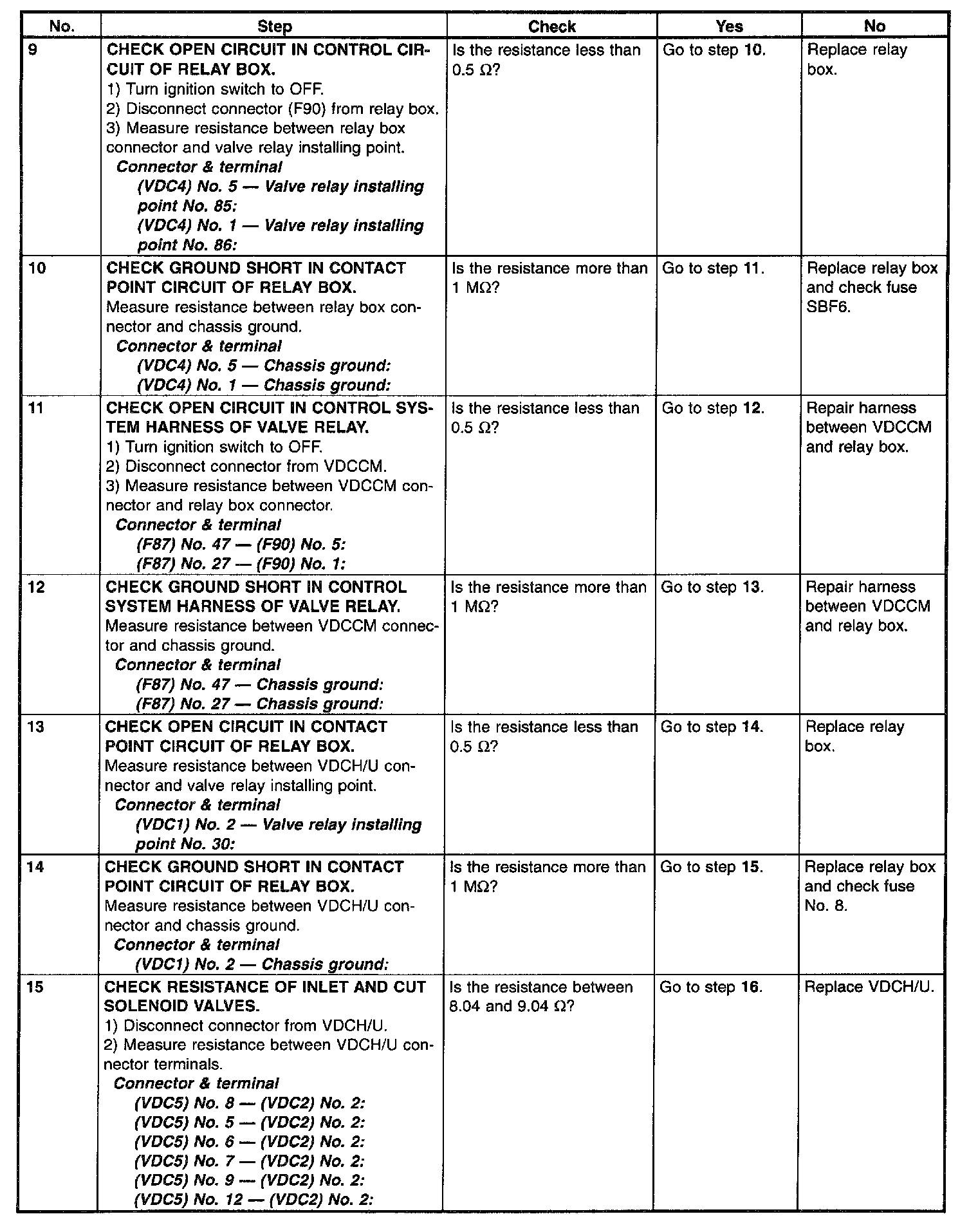

Part 2 of 4

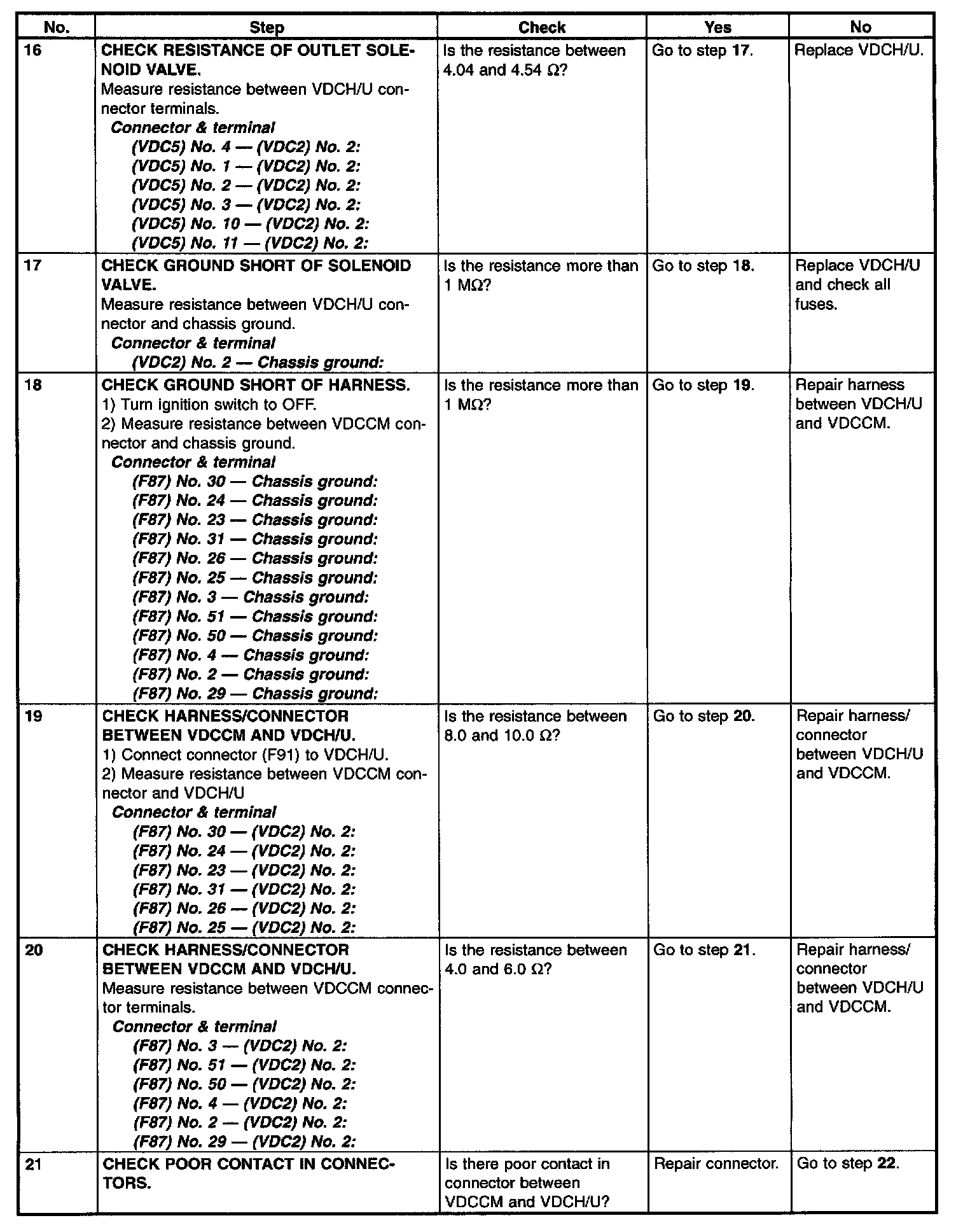

Part 3 of 4

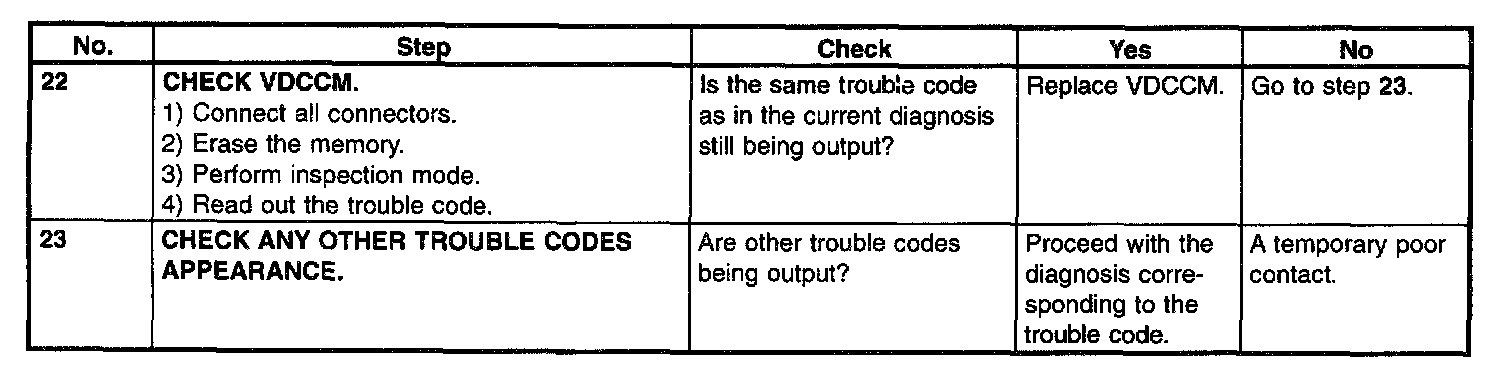

Part 4 of 4
