Vdc System Trouble Code Charts For Select Monitor Results

AJ: TROUBLE CODE 49 ABNORMAL ENGINE SPEED SIGNAL

DIAGNOSIS:
- Engine speed signal line is broken or short circuited.
TROUBLE SYMPTOM:
- VDC does not operate.

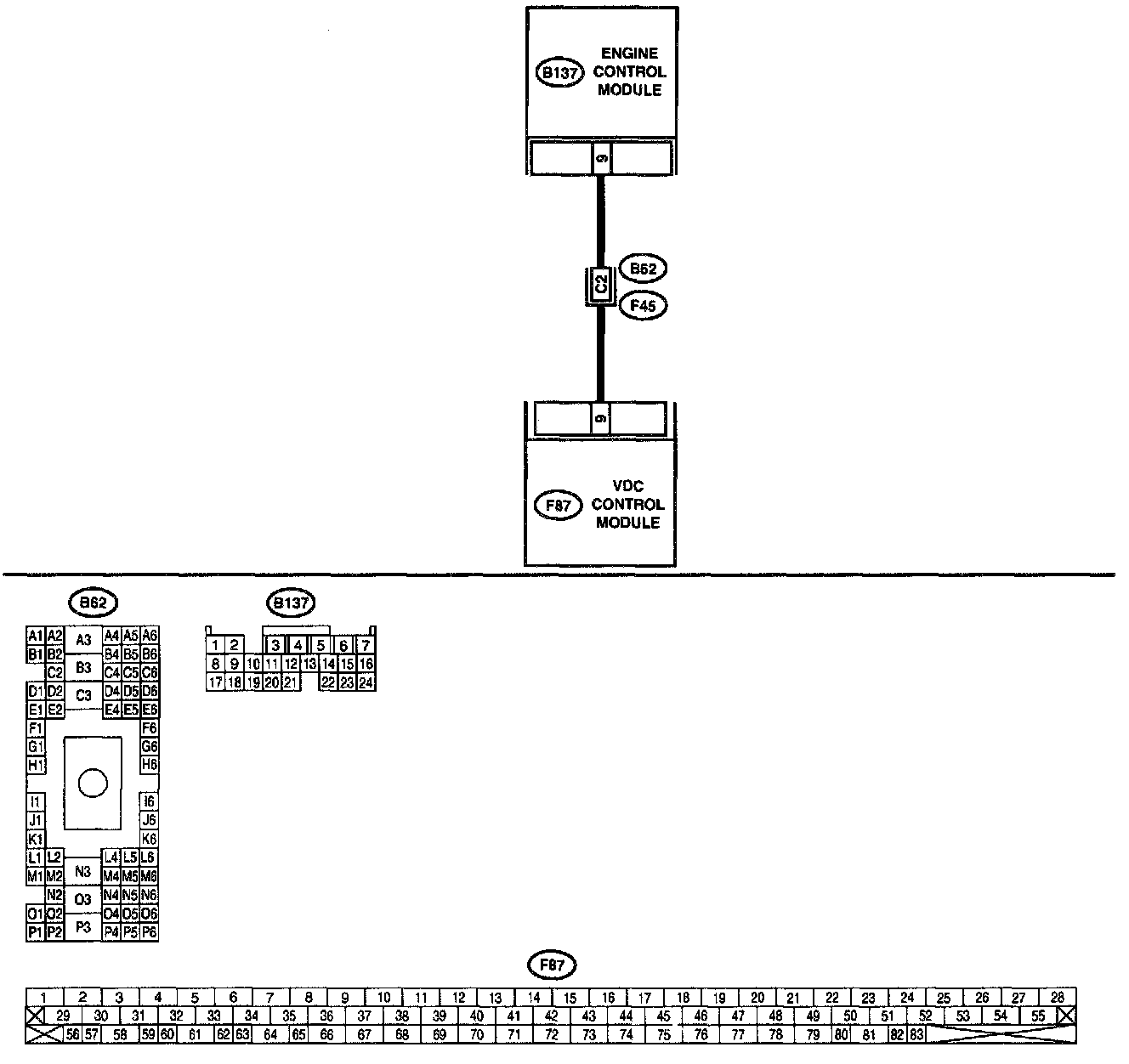

WIRING DIAGRAM

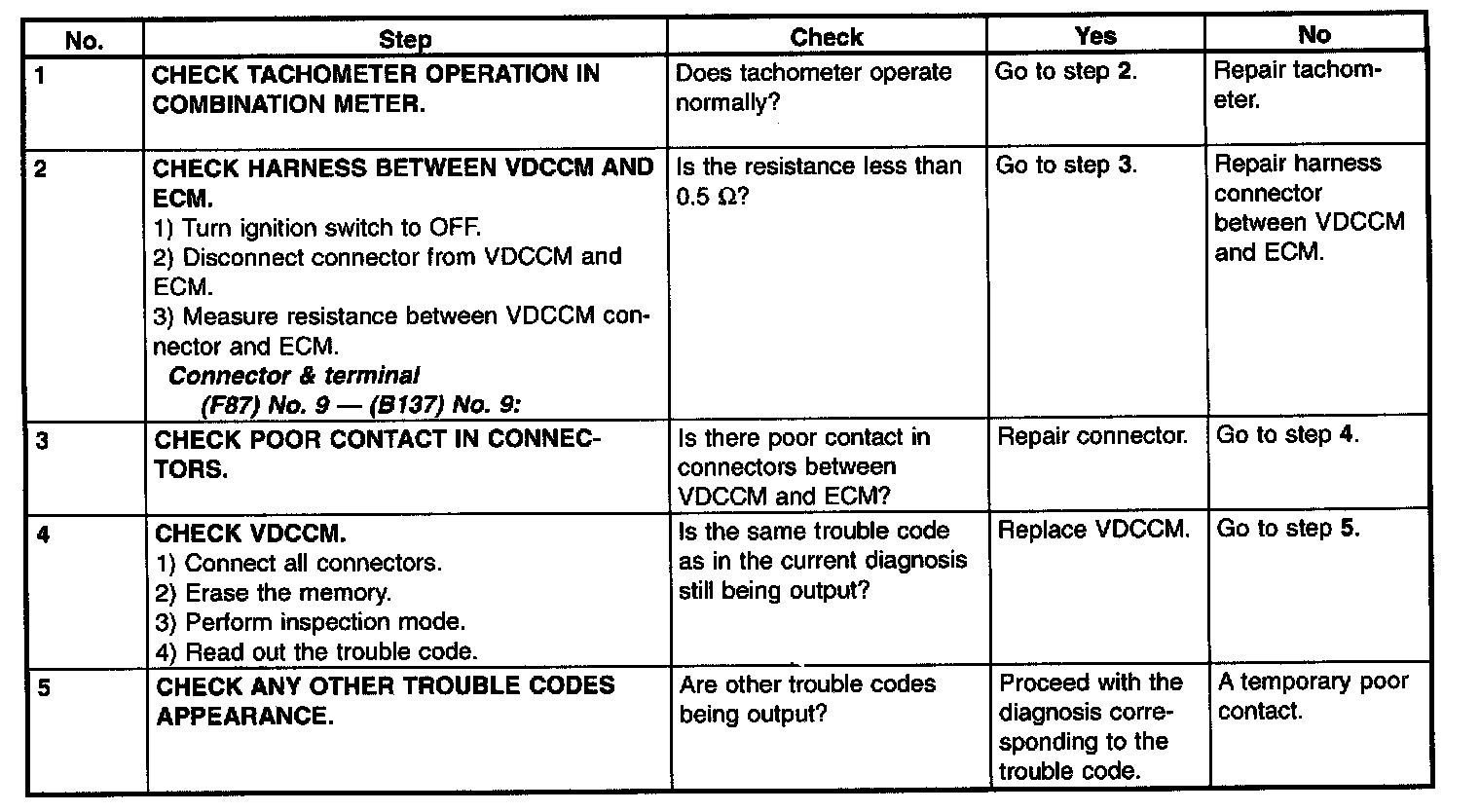

PROCEDURE
