Engine Control System
AI: TROUBLE CODE 49 ABNORMAL ENGINE SPEED SIGNALDIAGNOSIS:
- Engine speed signal line is broken or short circuited.
TROUBLE SYMPTOM:
- VDC does not operate.
WIRING DIAGRAM

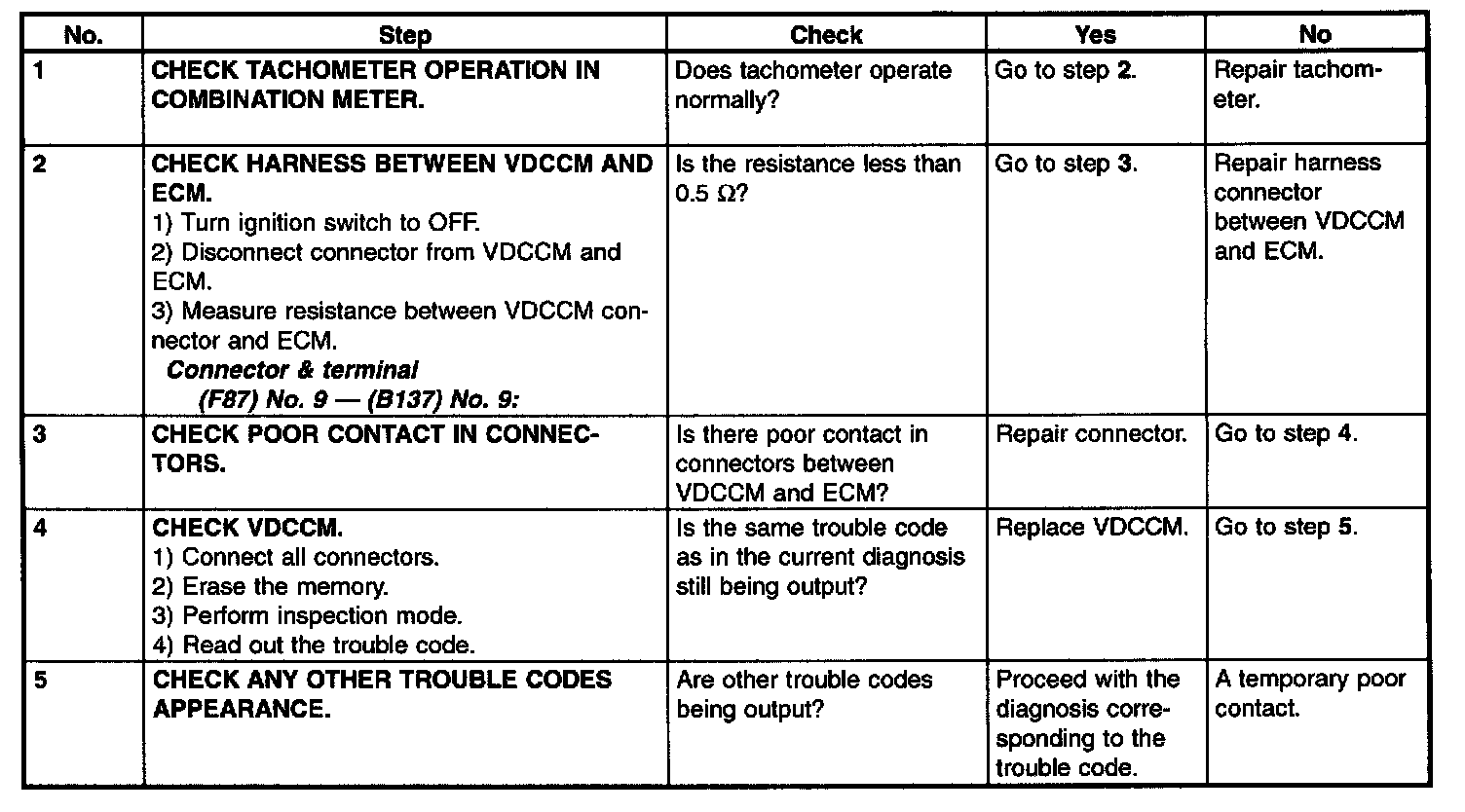

PROCEDURE
DIAGNOSIS:
- Engine speed signal line is broken or short circuited.
TROUBLE SYMPTOM:
- VDC does not operate.
WIRING DIAGRAM
PROCEDURE
