Erroneous Communication From EGI to VDC

AI: TROUBLE CODE 48 ERRONEOUS COMMUNICATION FROM EGI TO VDC

DIAGNOSIS:
- EAS communication line is broken or short circuited.
- EAC communication line is broken or short circuited.
TROUBLE SYMPTOM:
- ABS does not operate.
- VDC does not operate.

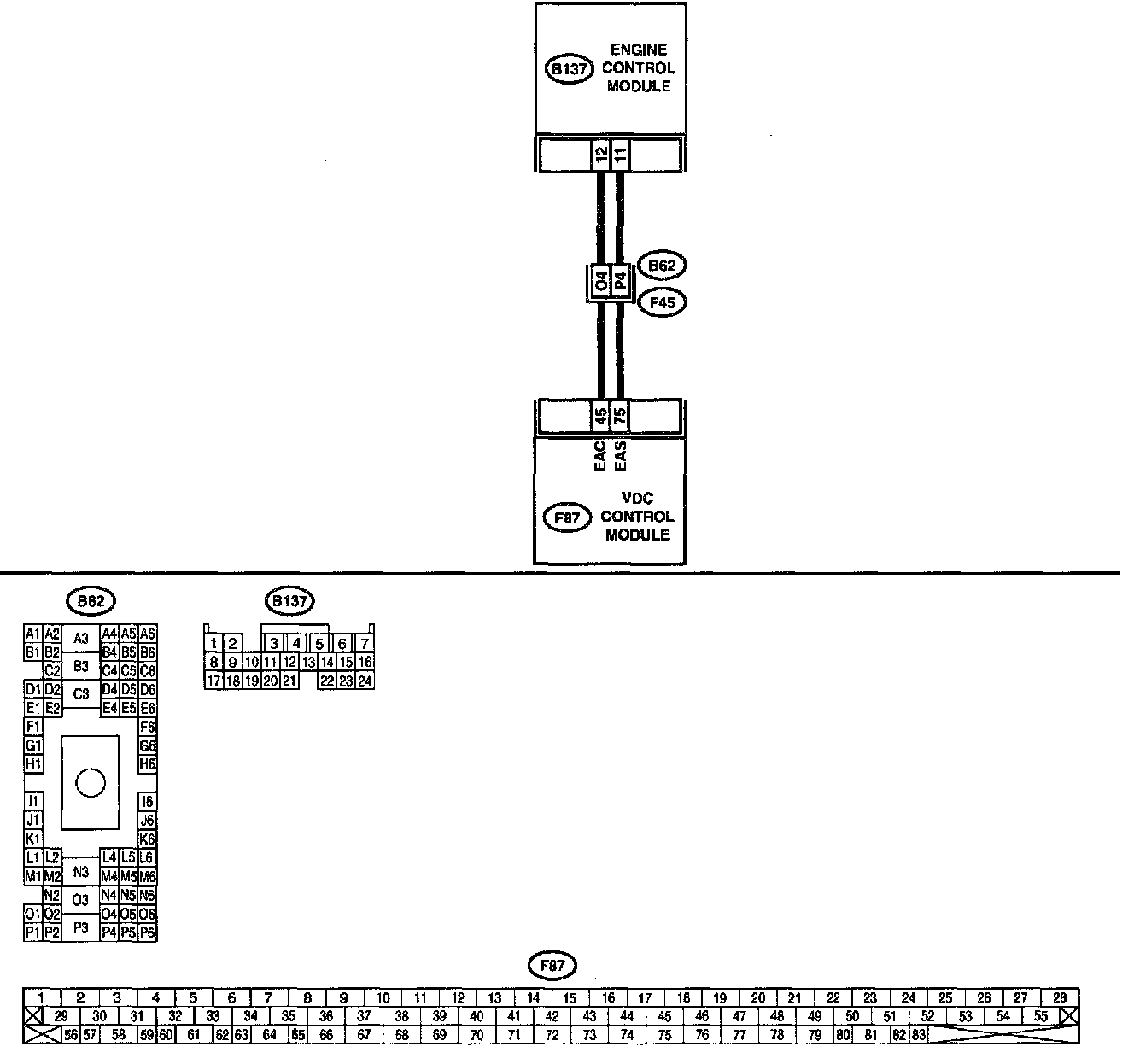

WIRING DIAGRAM

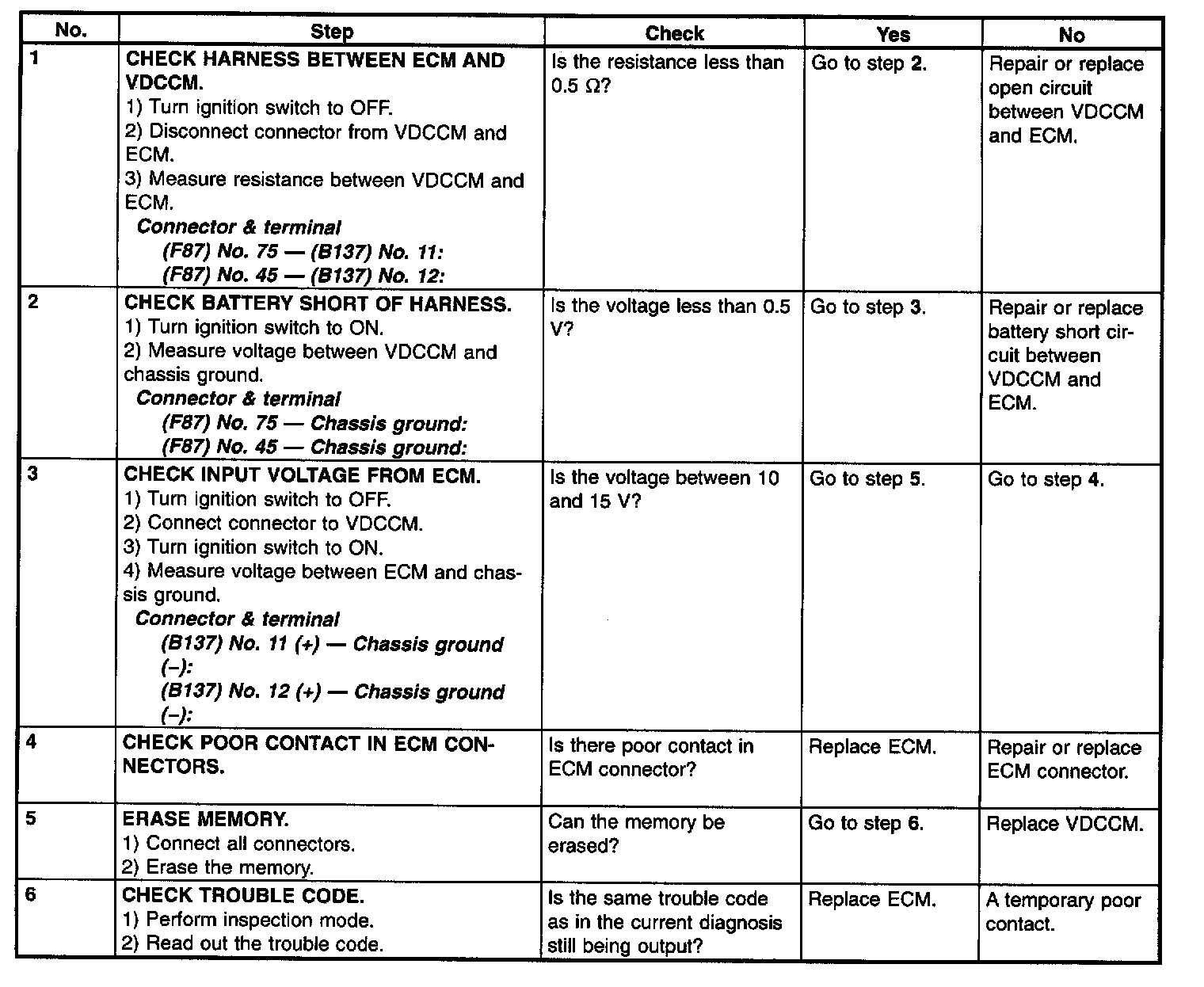

PROCEDURE
