EAS Communication Line Grounding Shorted

AH: TROUBLE CODE 48 EAS COMMUNICATION LINE GROUNDING SHORTED

DIAGNOSIS:
- EAS communication line is short circuited.
TROUBLE SYMPTOM:
- ABS does not operate.
- VDC does not operate.

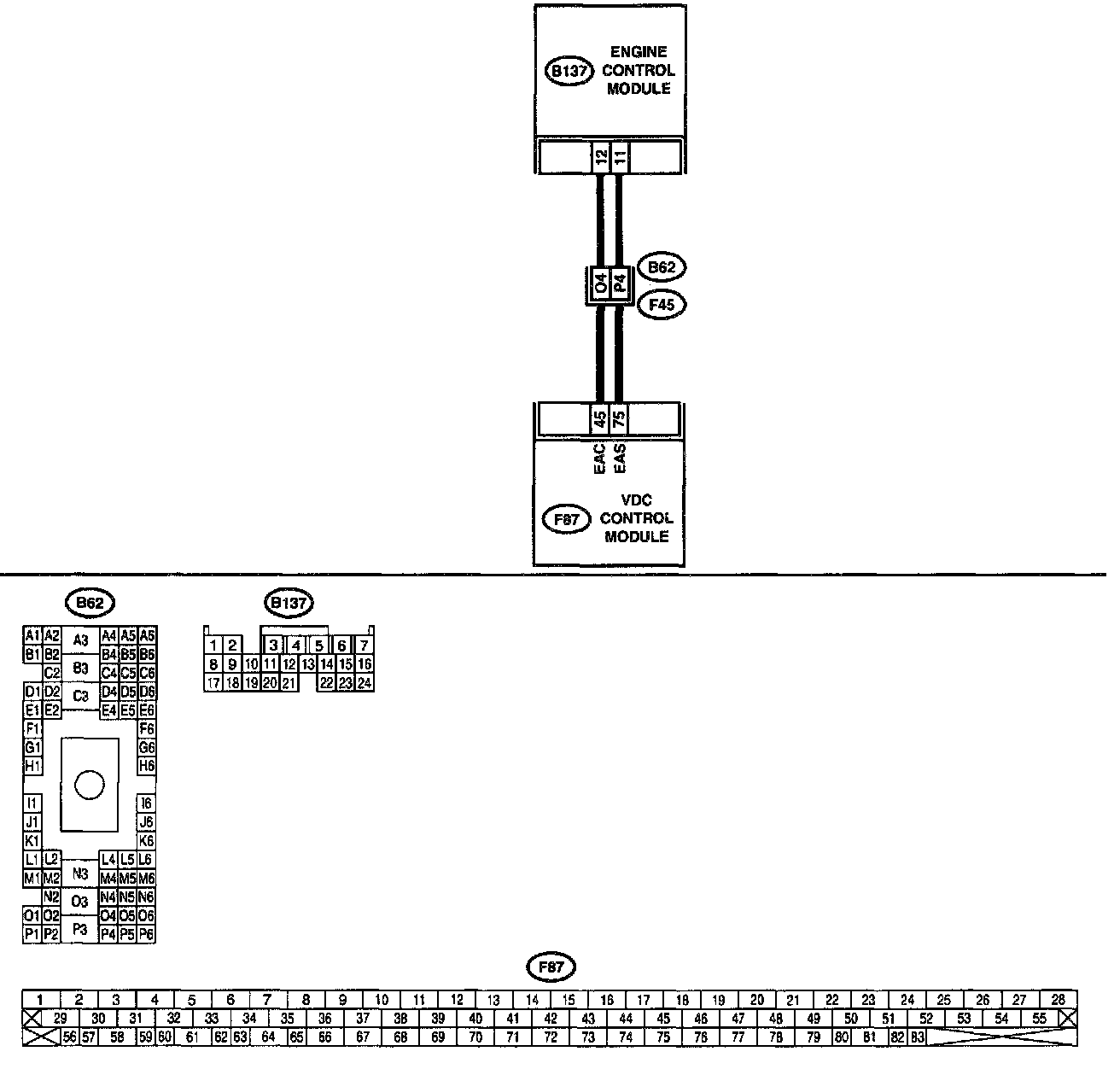

WIRING DIAGRAM

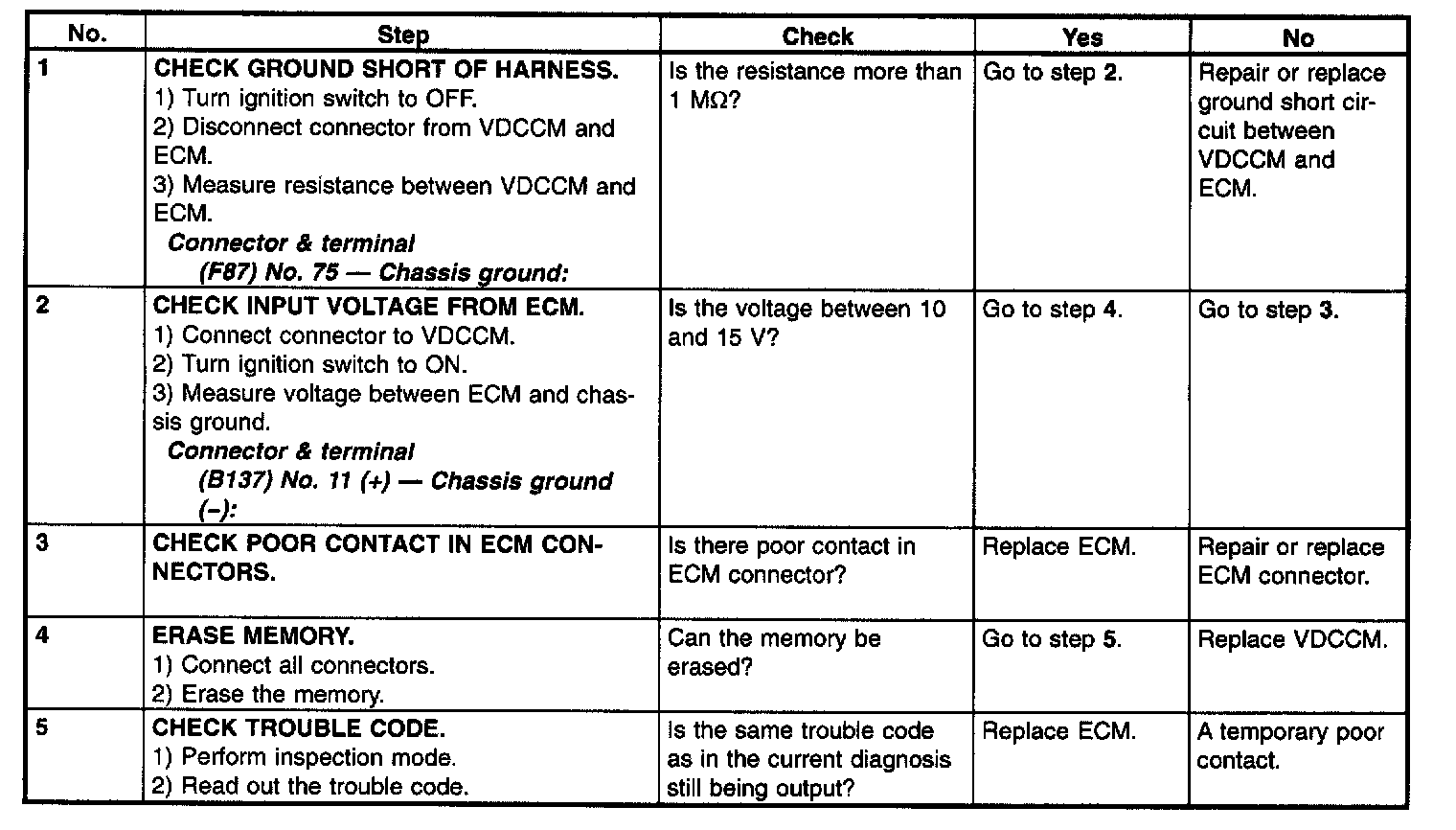

PROCEDURE
