ABS, Vdc trouble Code Charts

AH: TROUBLE CODE 48 FAULTY ECM-VDCCM COMMUNICATION LINE

DIAGNOSIS:
- EAS communication line is broken or short circuited.
- EAC communication line is broken or short circuited.
TROUBLE SYMPTOM:
- ABS does not operate.
- VDC does not operate.

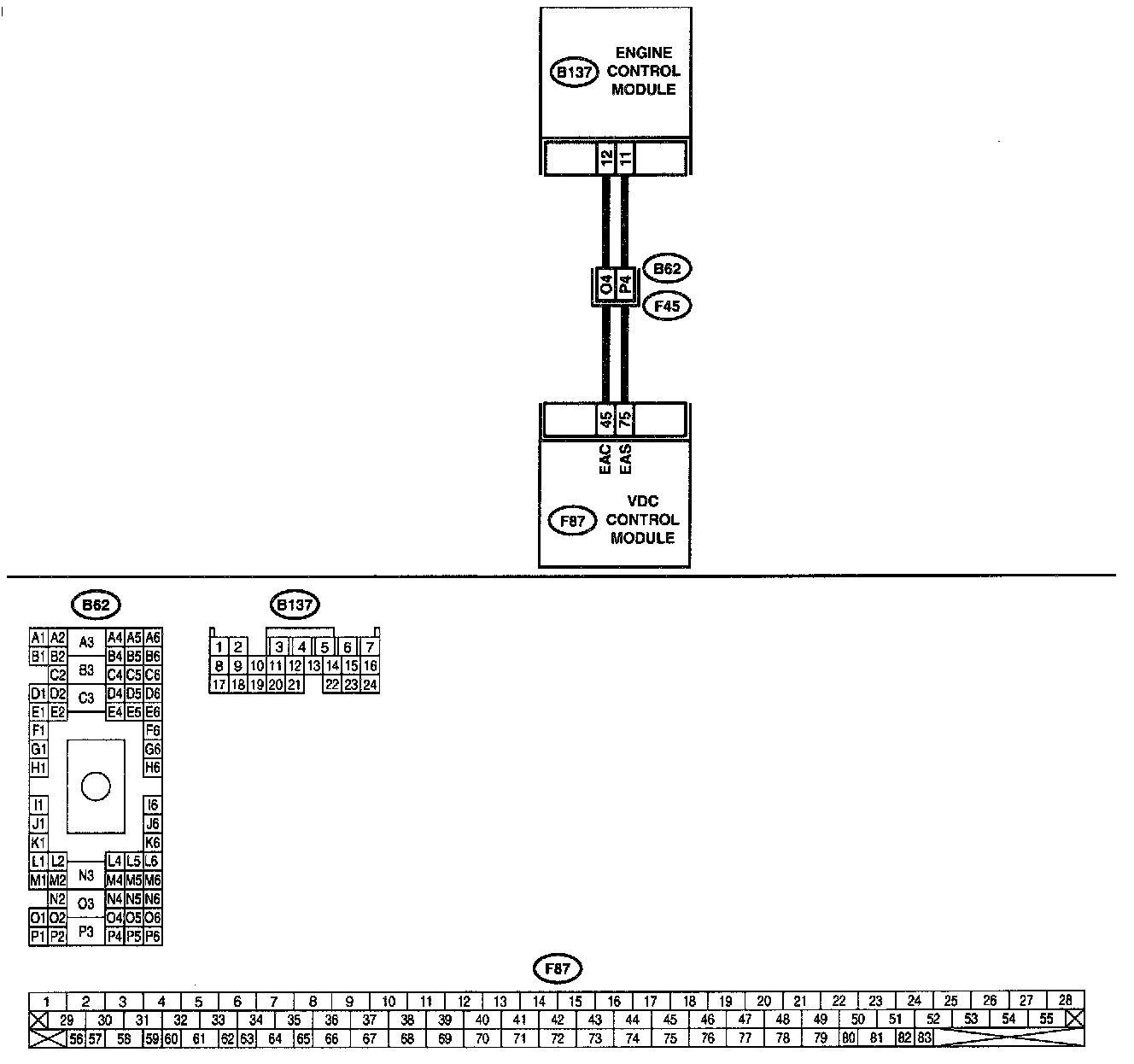

WIRING DIAGRAM





PROCEDURE
