Vdc System Trouble Code Charts For Select Monitor Results

AF: TROUBLE CODE 47 IMPROPER CAN COMMUNICATION

DIAGNOSIS:
- CAN communication line is broken or short circuited.
TROUBLE SYMPTOM:
- ABS does not operate.
- VDC does not operate.

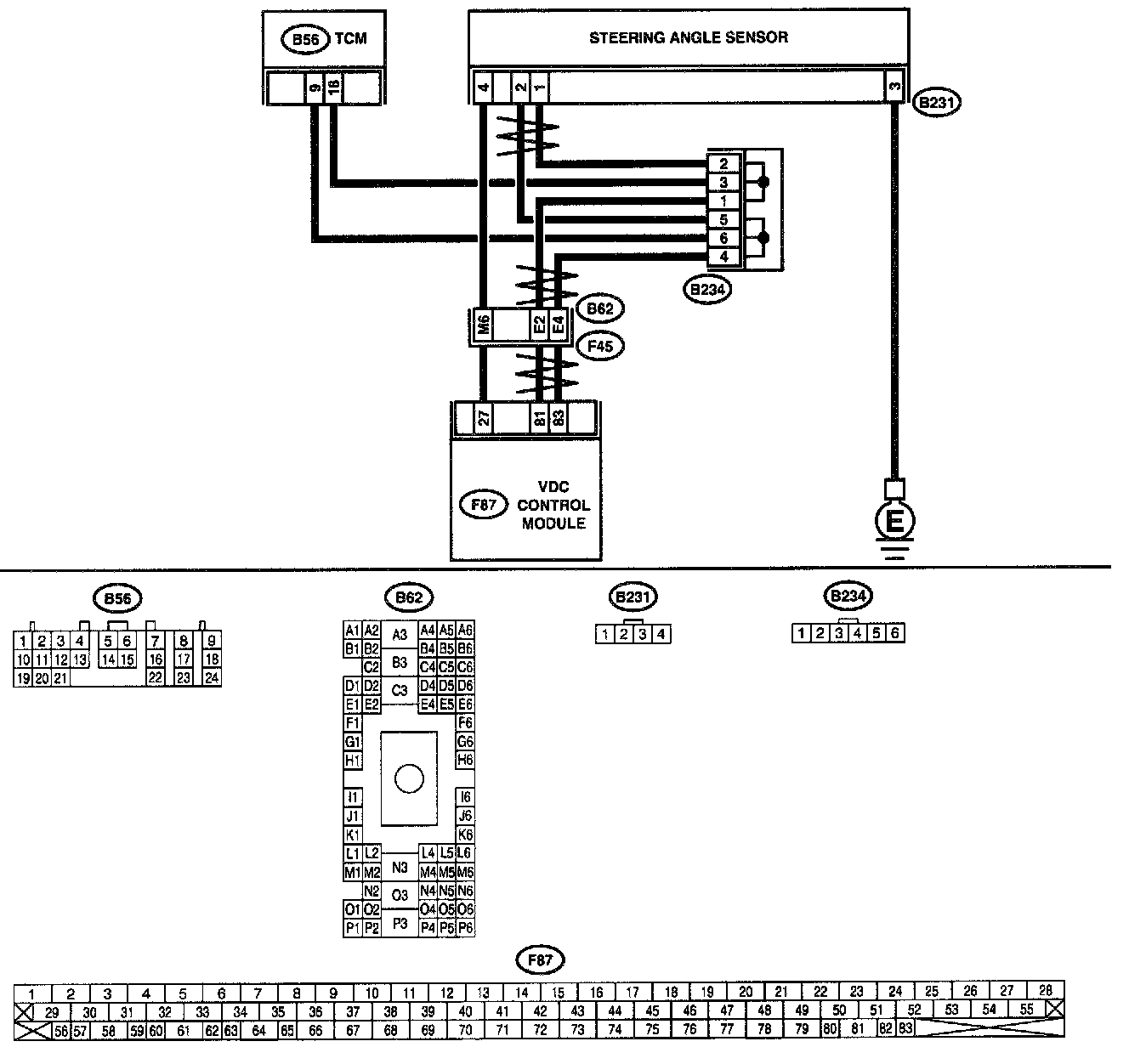

WIRING DIAGRAM

PROCEDURE:

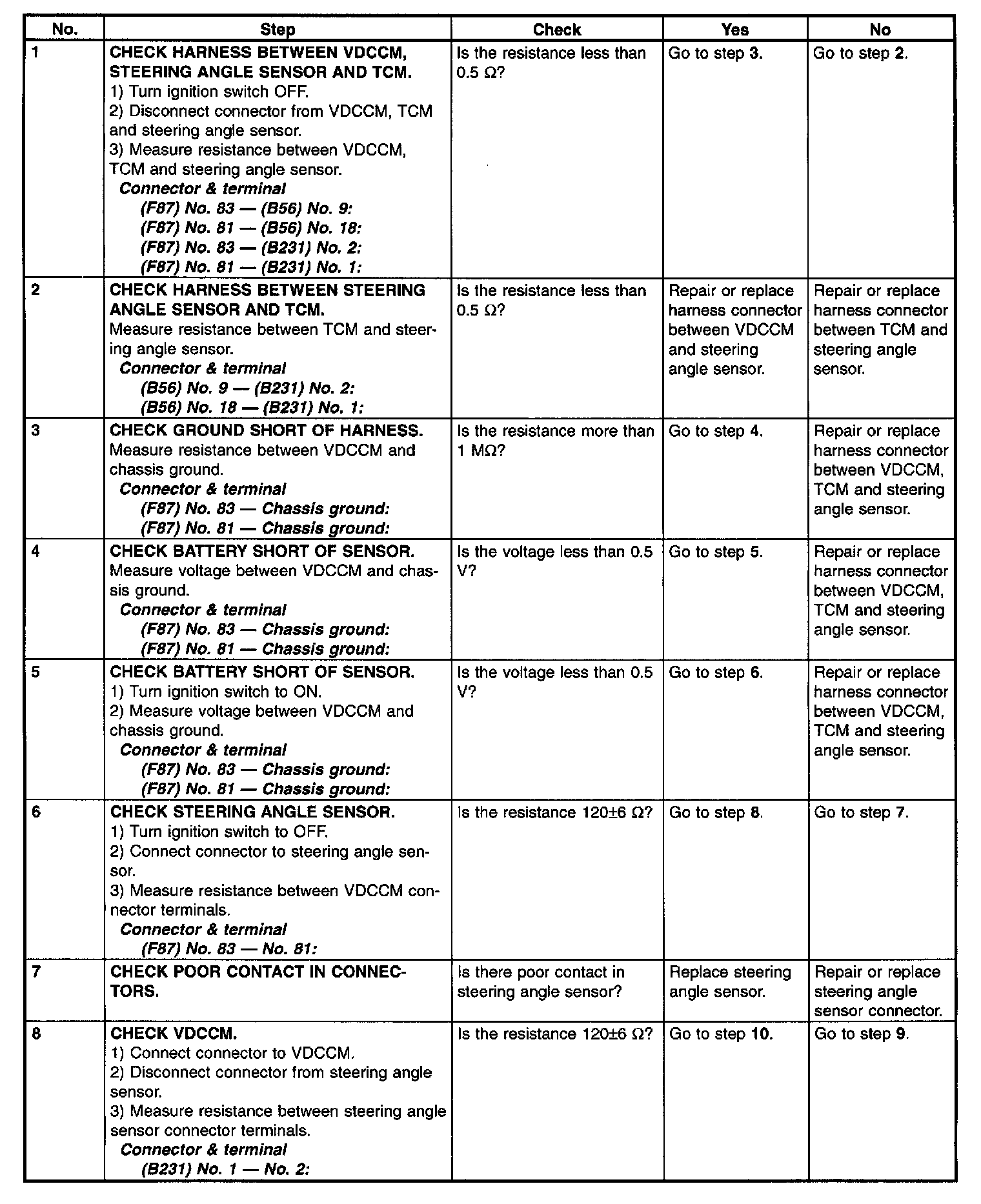

Part 1 of 2

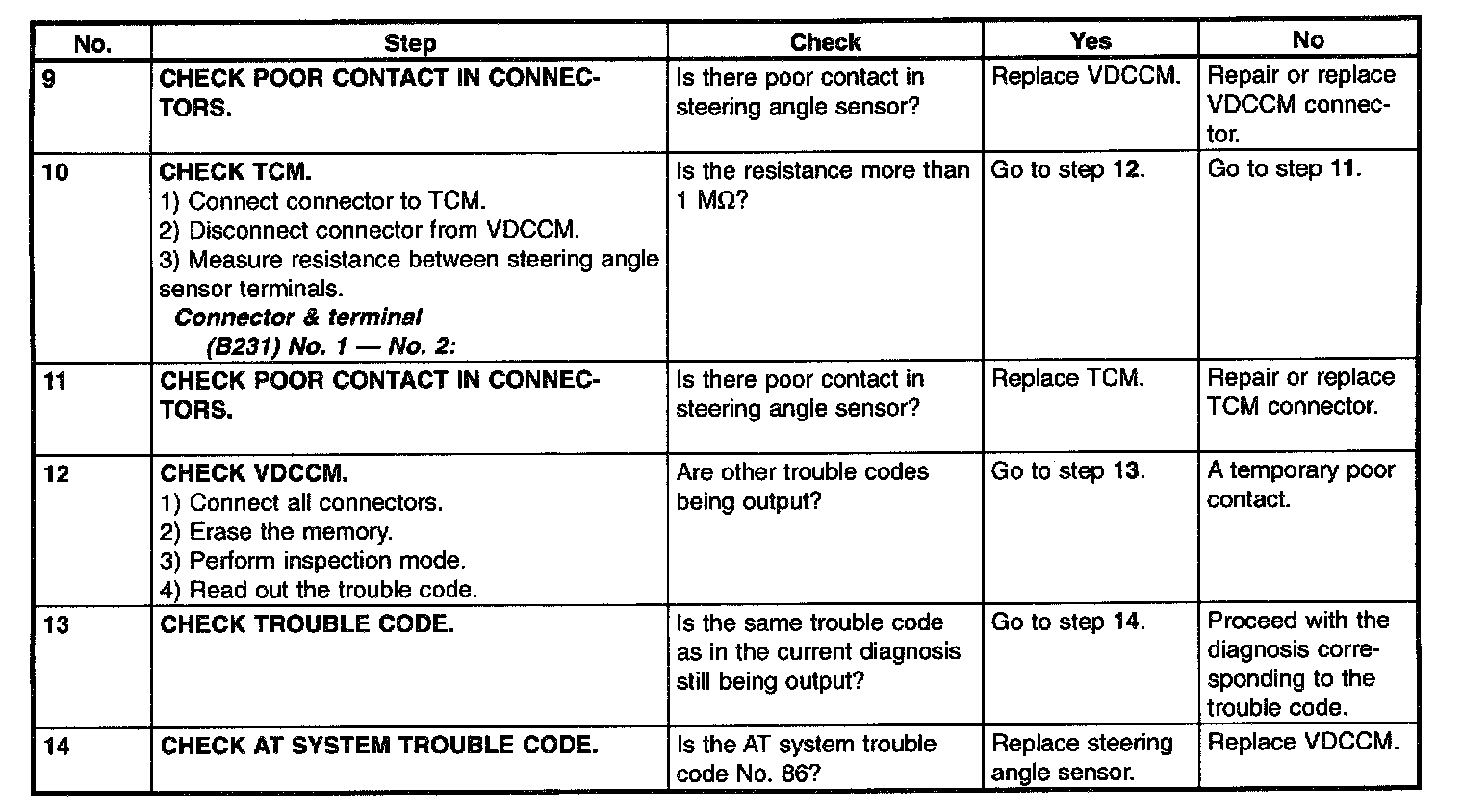

Part 2 of 2
