Vdc System Trouble Code Charts For Warning Light Codes

AF: TROUBLE CODE 46 ABNORMAL VOLTAGE OF 5 V POWER SUPPLY

DIAGNOSIS:
- 5 volt power supply is abnormal.
TROUBLE SYMPTOM:
- ABS does not operate.
- VDC does not operate.

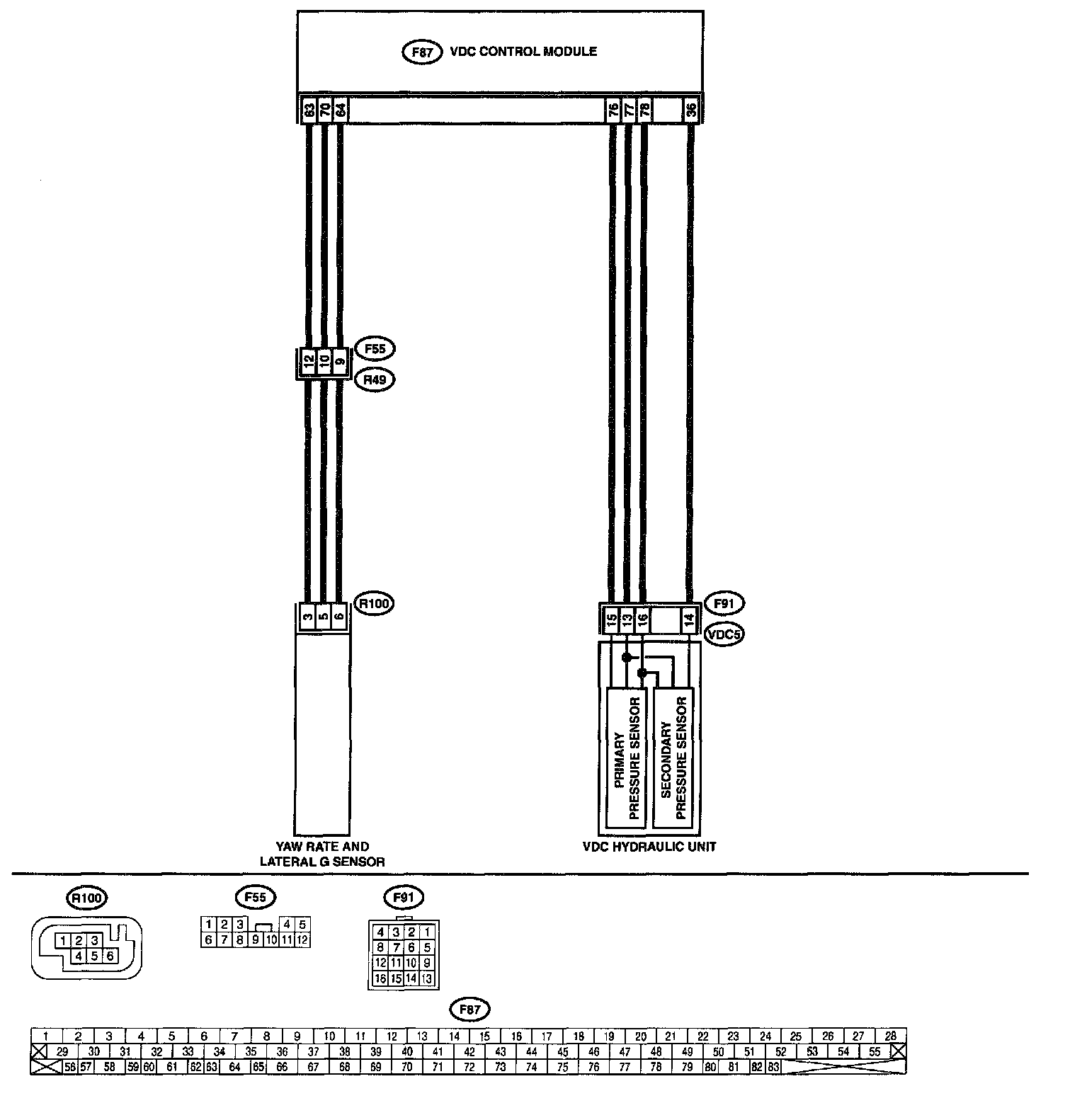

WIRING DIAGRAM

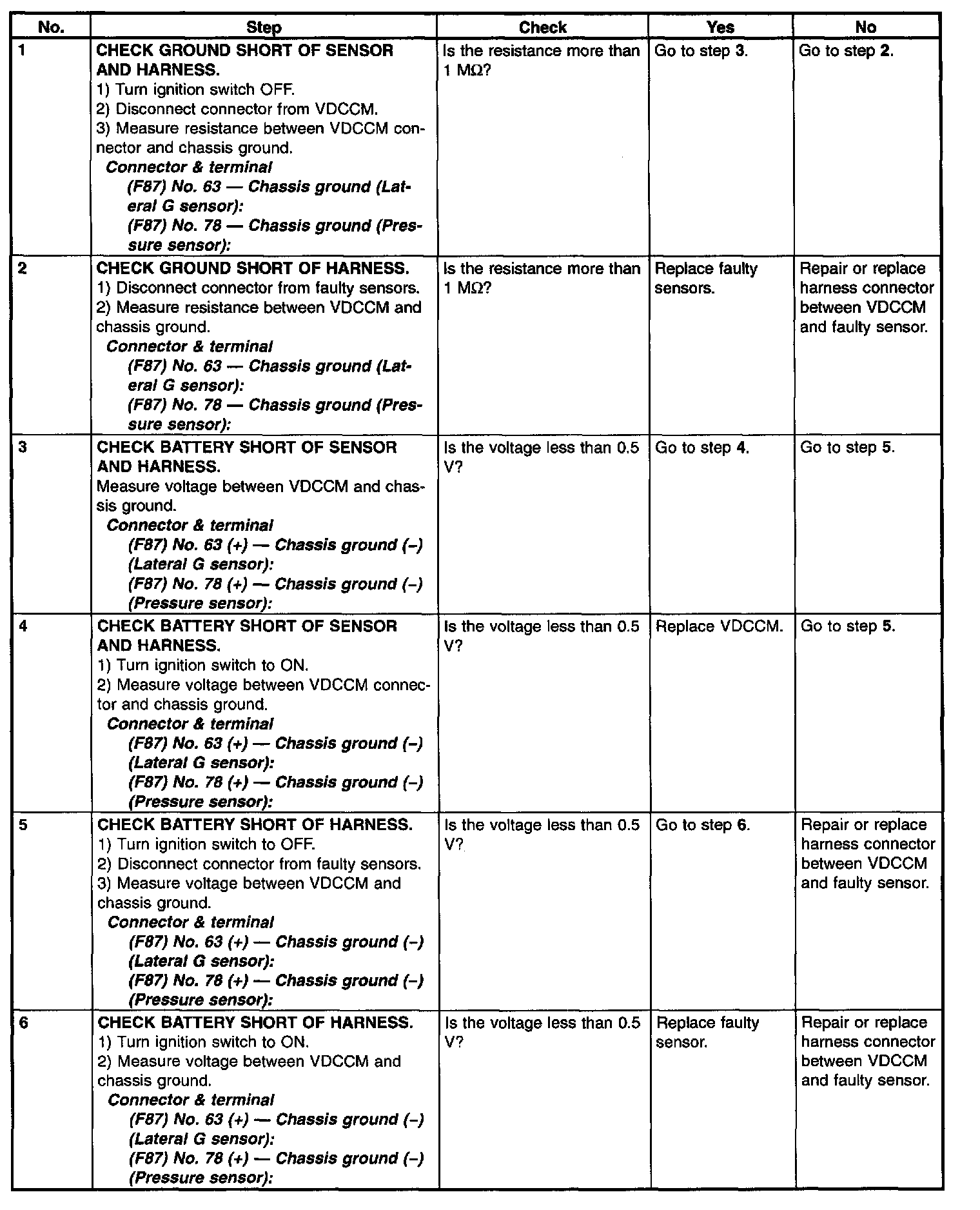

PROCEDURE
