Vdc System Trouble Code Charts For Select Monitor Results

AE: TROUBLE CODE 46 ABNORMAL VOLTAGE OF 5 V POWER SUPPLY

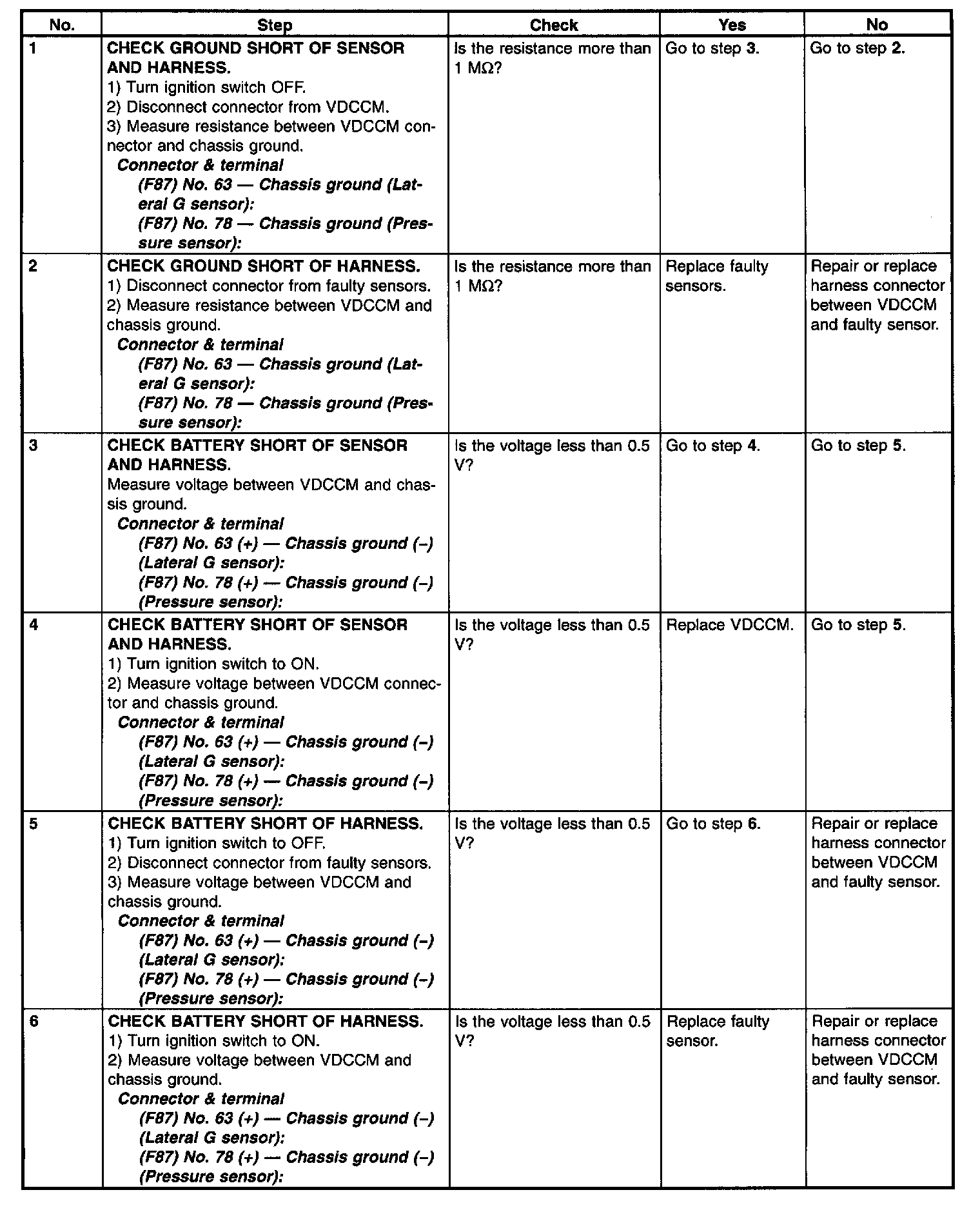

DIAGNOSIS:
- 5 volt power supply is abnormal.
TROUBLE SYMPTOM:
- ABS does not operate.
- VDC does not operate.
