Vdc System Trouble Code Charts For Warning Light Codes

AE: TROUBLE CODE 45 CONTROL MODULE OUT OF SPECIFICATION

DIAGNOSIS:
- Control module out of specification
TROUBLE SYMPTOM:
- ABS does not operate.
- VDC does not operate.

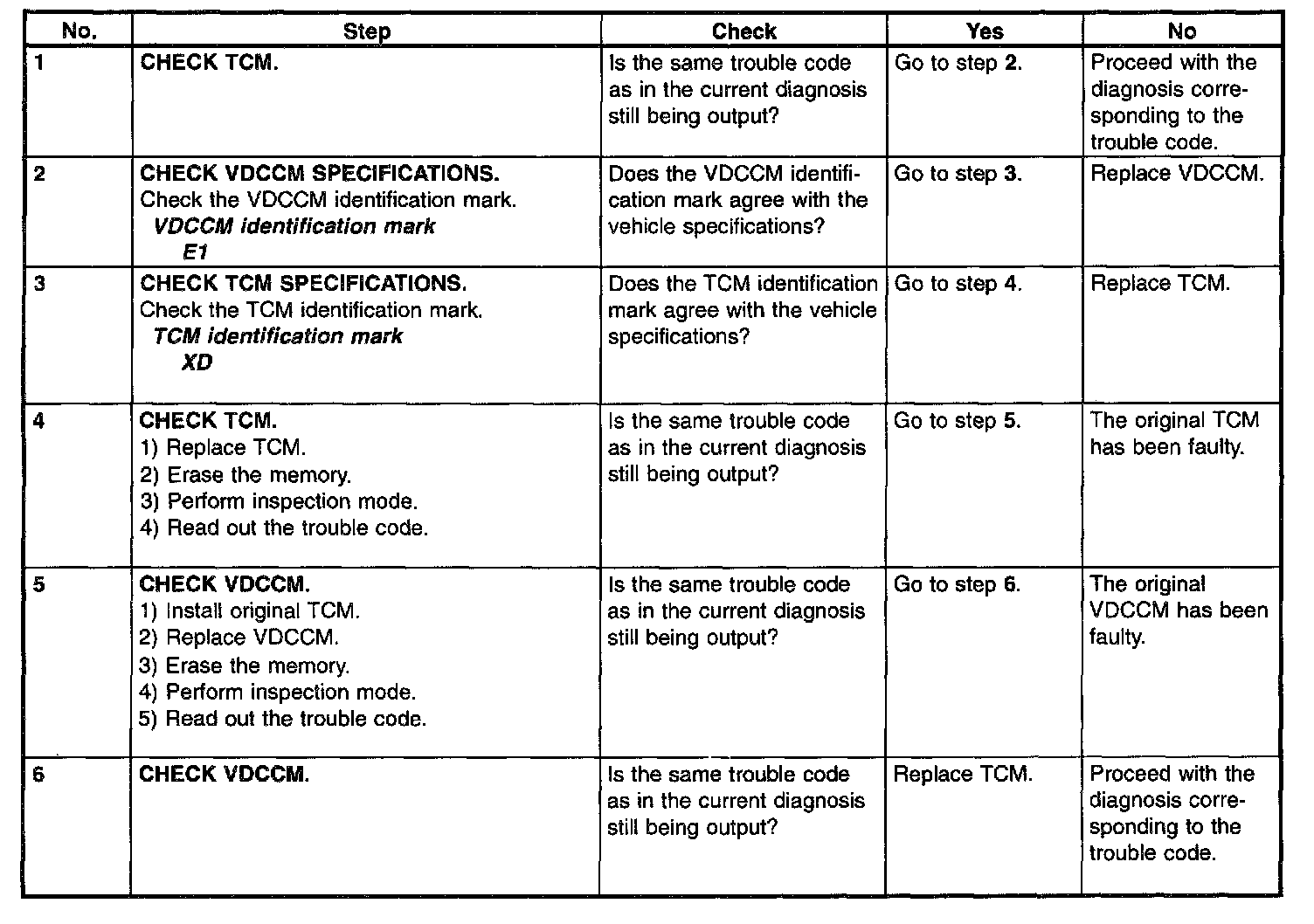

PROCEDURE
