Vdc System Trouble Code Charts For Warning Light Codes

AD: TROUBLE CODE 44 A COMMUNICATION WITH AT CONTROL ABNORMAL

DIAGNOSIS:
- Communication with AT control faults
TROUBLE SYMPTOM:
- VDC does not operate.

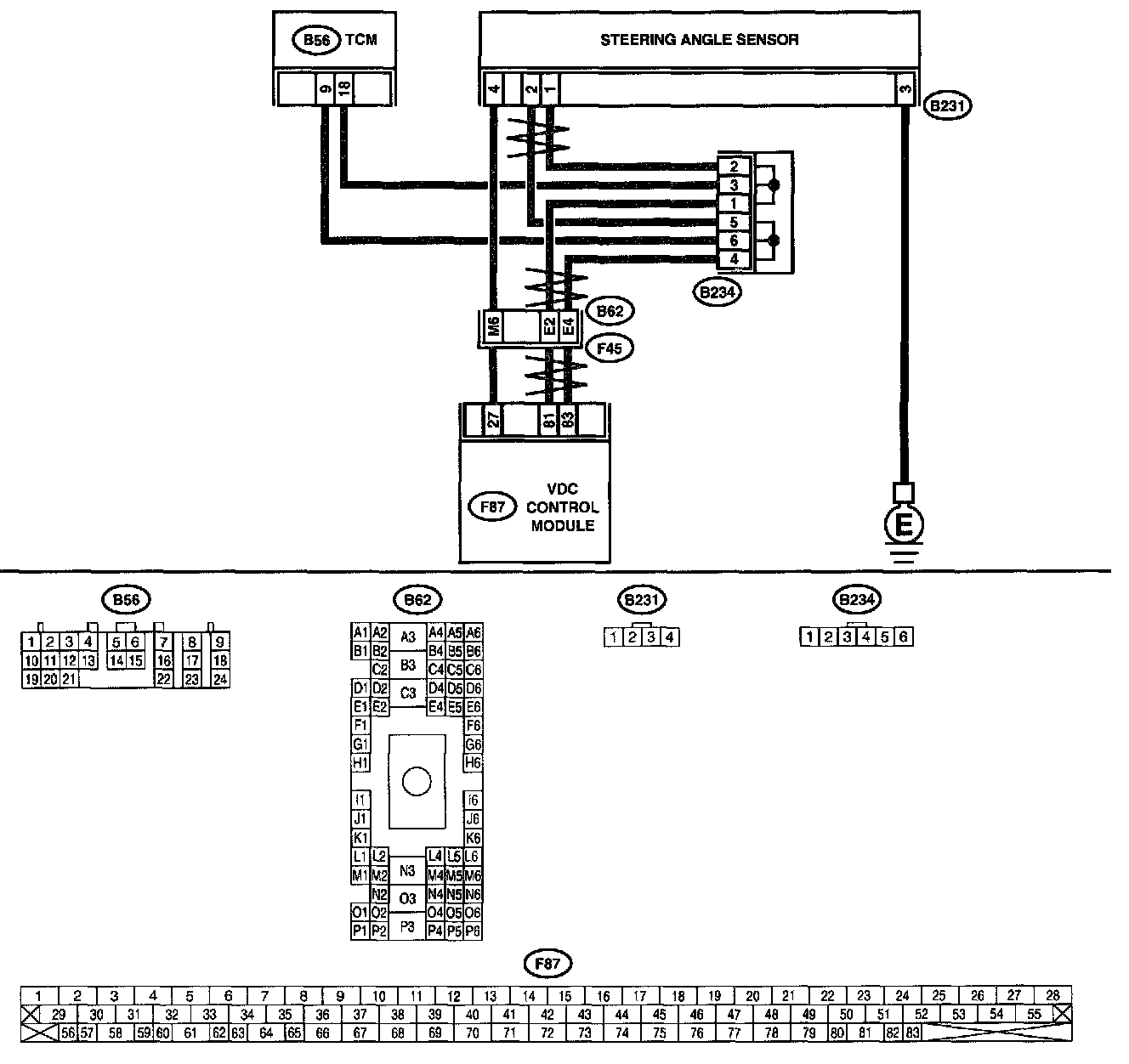

WIRING DIAGRAM

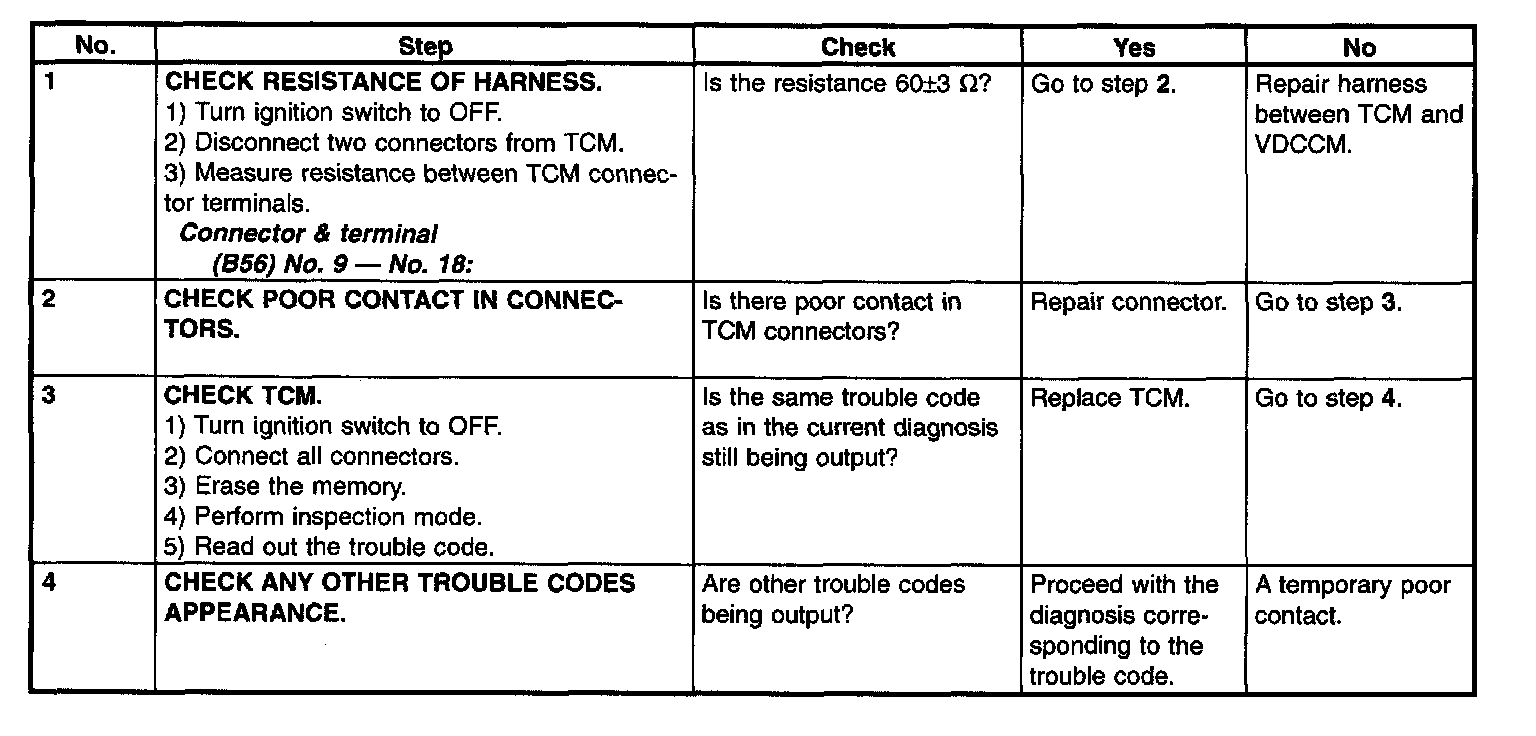

PROCEDURE
