ABS-AT Control (Controlled)

X: TROUBLE CODE 44-ABS-AT CONTROL (CONTROLLED)-

DIAGNOSIS:
- Combination of AT control faults
TROUBLE SYMPTOM:
- ABS does not operate.

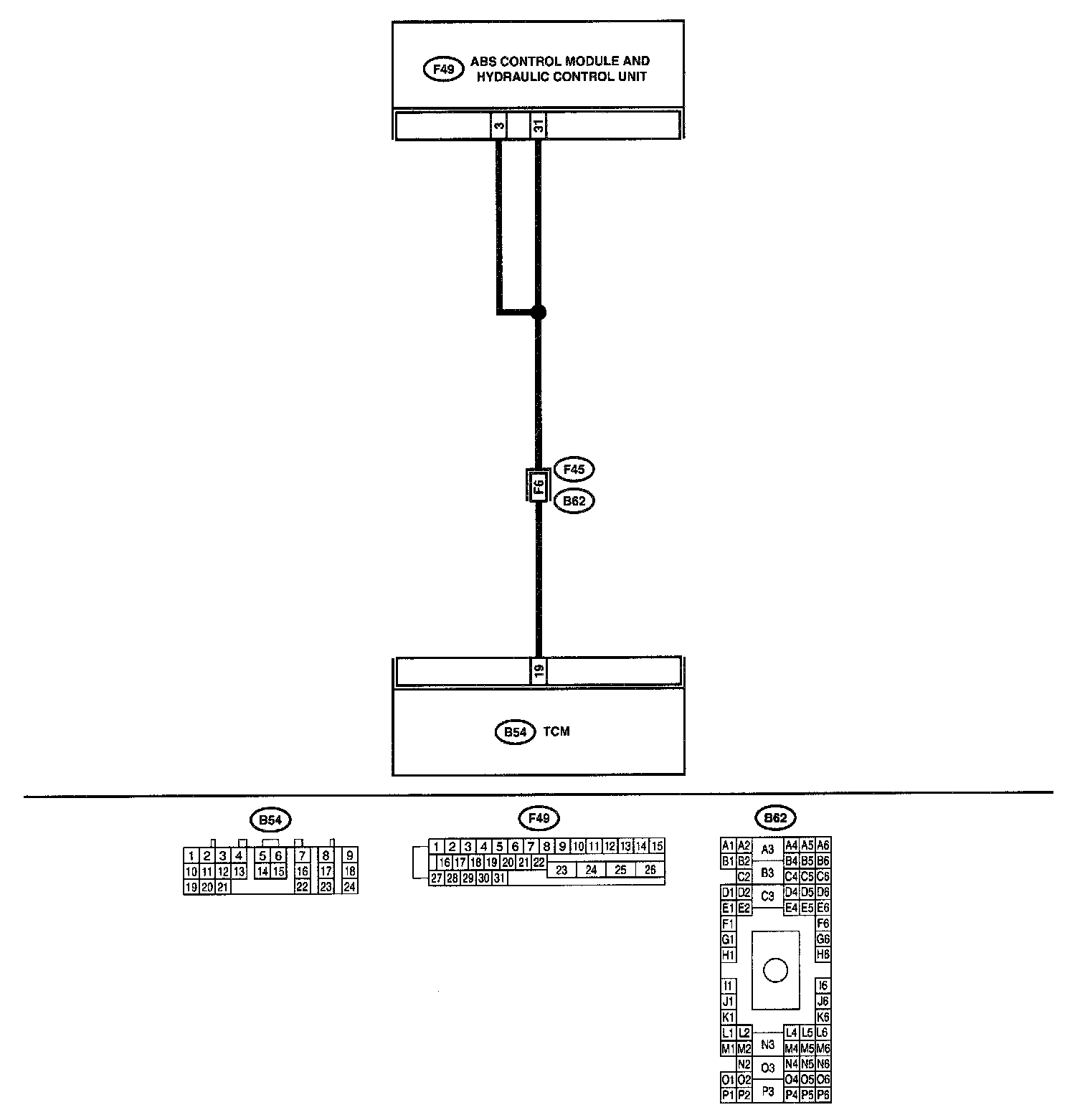

WIRING DIAGRAM

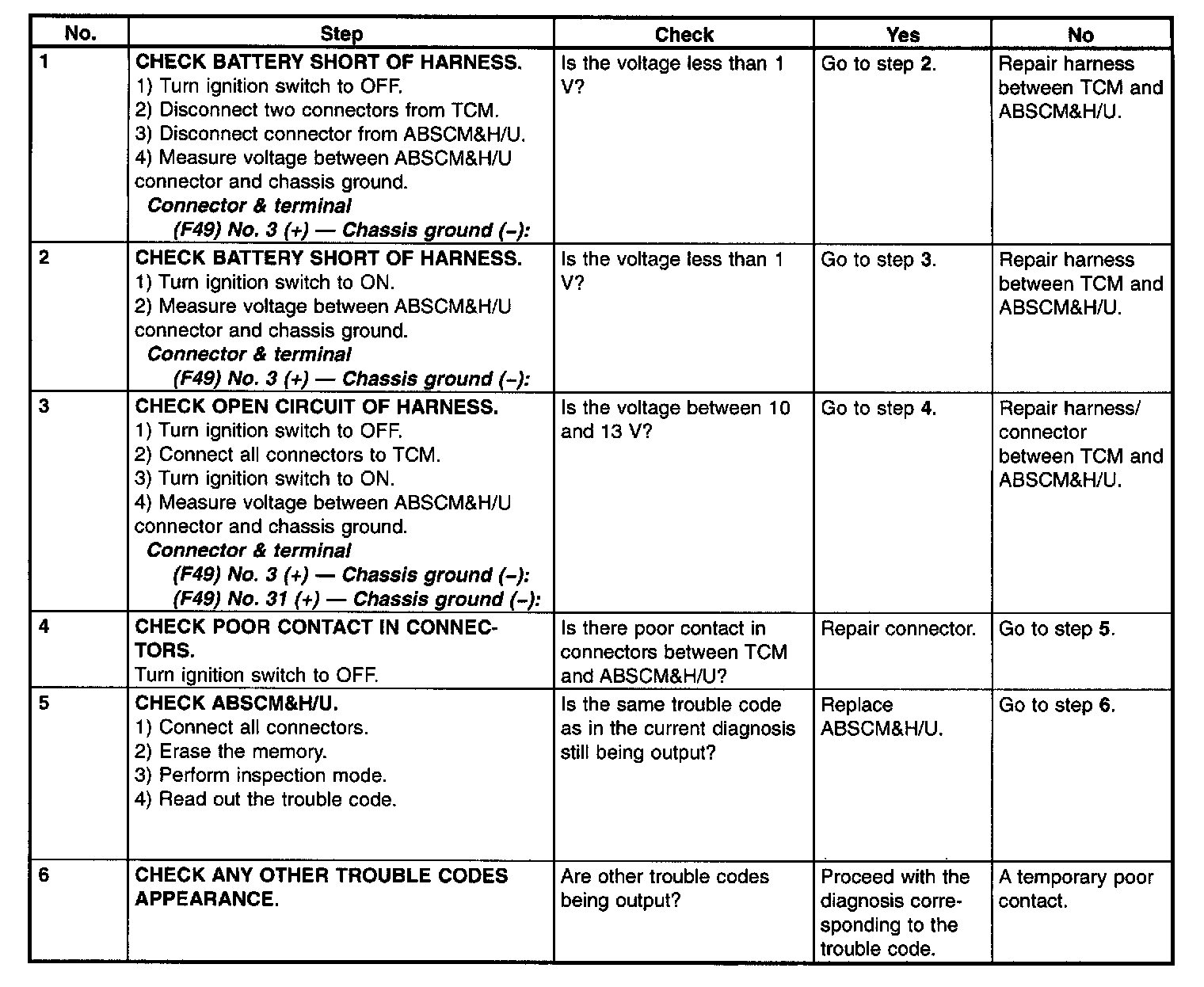

PROCEDURE
