ABS Trouble Code Charts For Warning Light Codes

W: TROUBLE CODE 44 -A COMBINATION OF AT CONTROL ABNORMAL-

DIAGNOSIS:
- Combination of AT control faults
TROUBLE SYMPTOM:
- ABS does not operate.

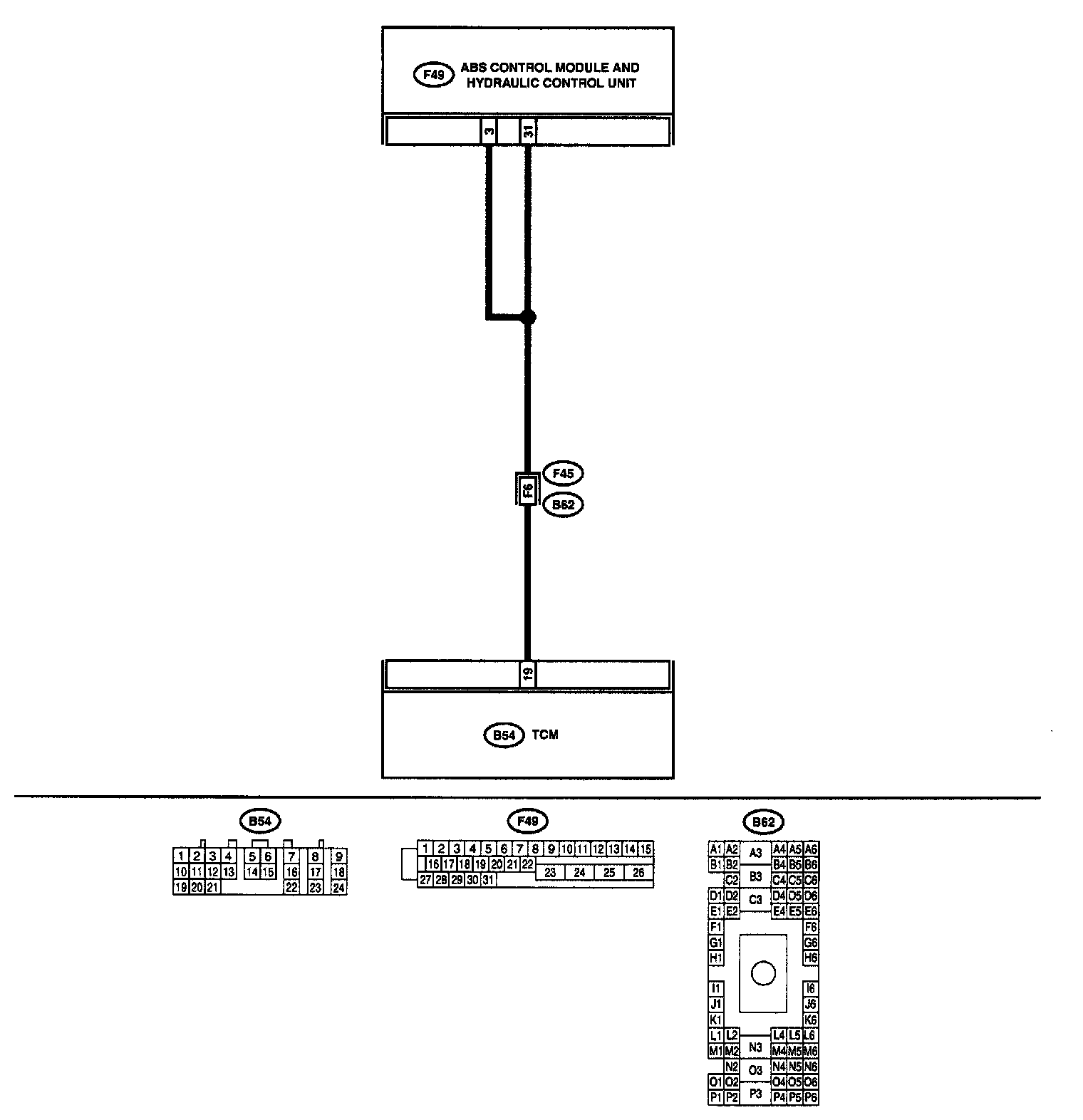

WIRING DIAGRAM

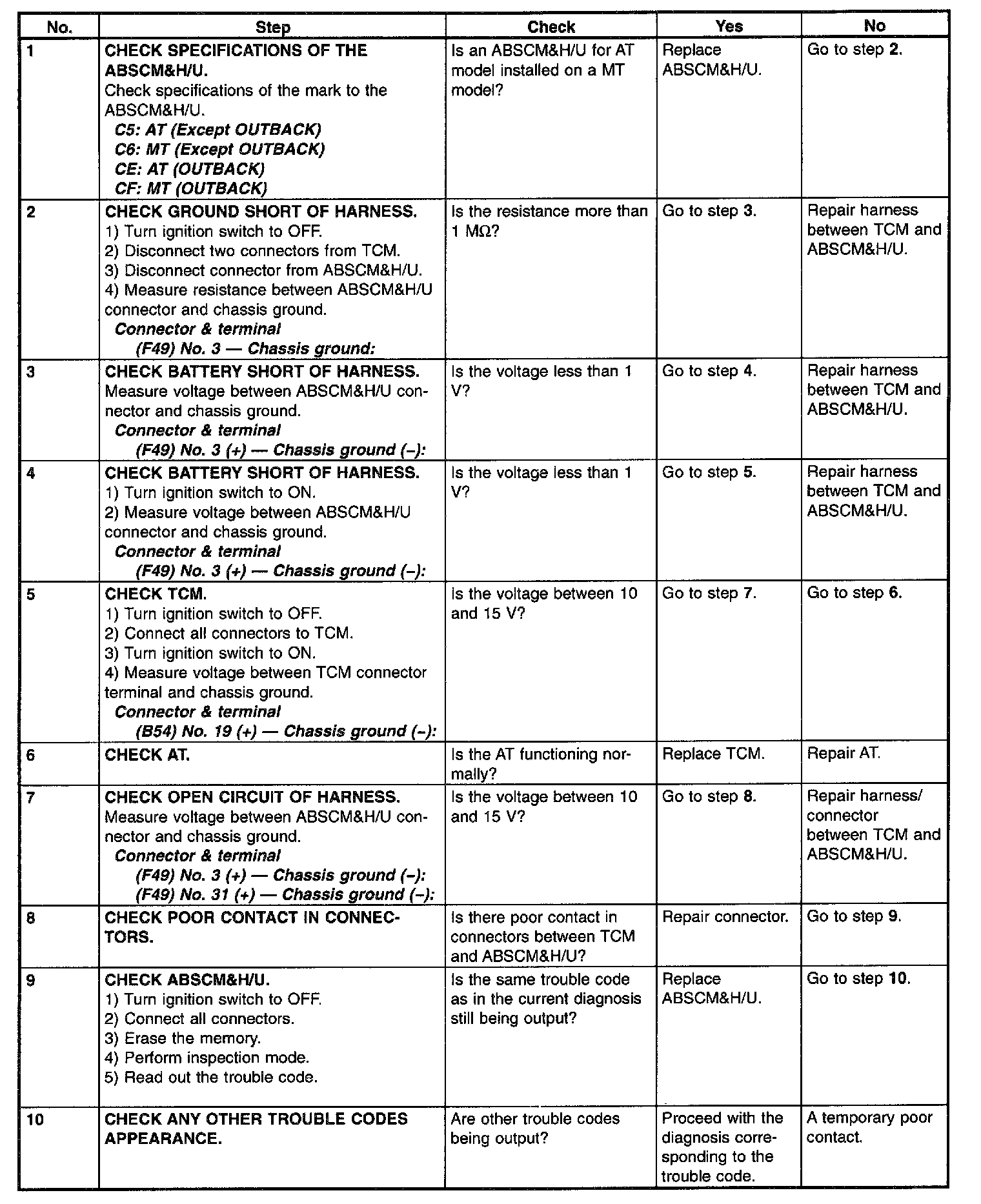

PROCEDURE
