Vdc System Trouble Code Charts For Warning Light Codes

AC: TROUBLE CODE 43 FAULTY VDCCM - ECU COMMUNICATION LINE

DIAGNOSIS:
- AET communication line is broken or short circuited.
- AEB communication line is broken or short circuited.
- AEC communication line is broken or short circuited.
TROUBLE SYMPTOM:
- VDC does not operate.

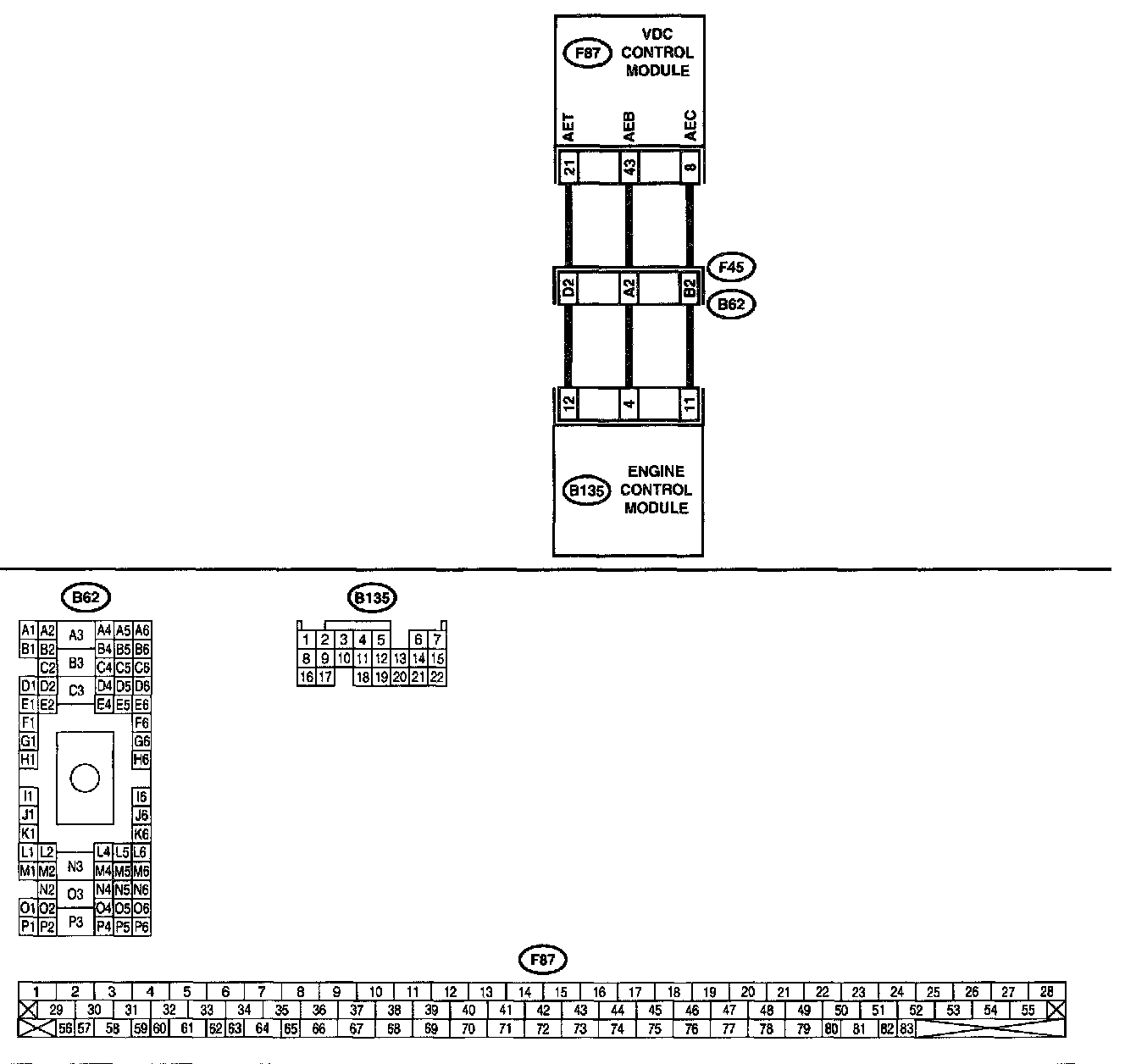

WIRING DIAGRAM

PROCEDURE:

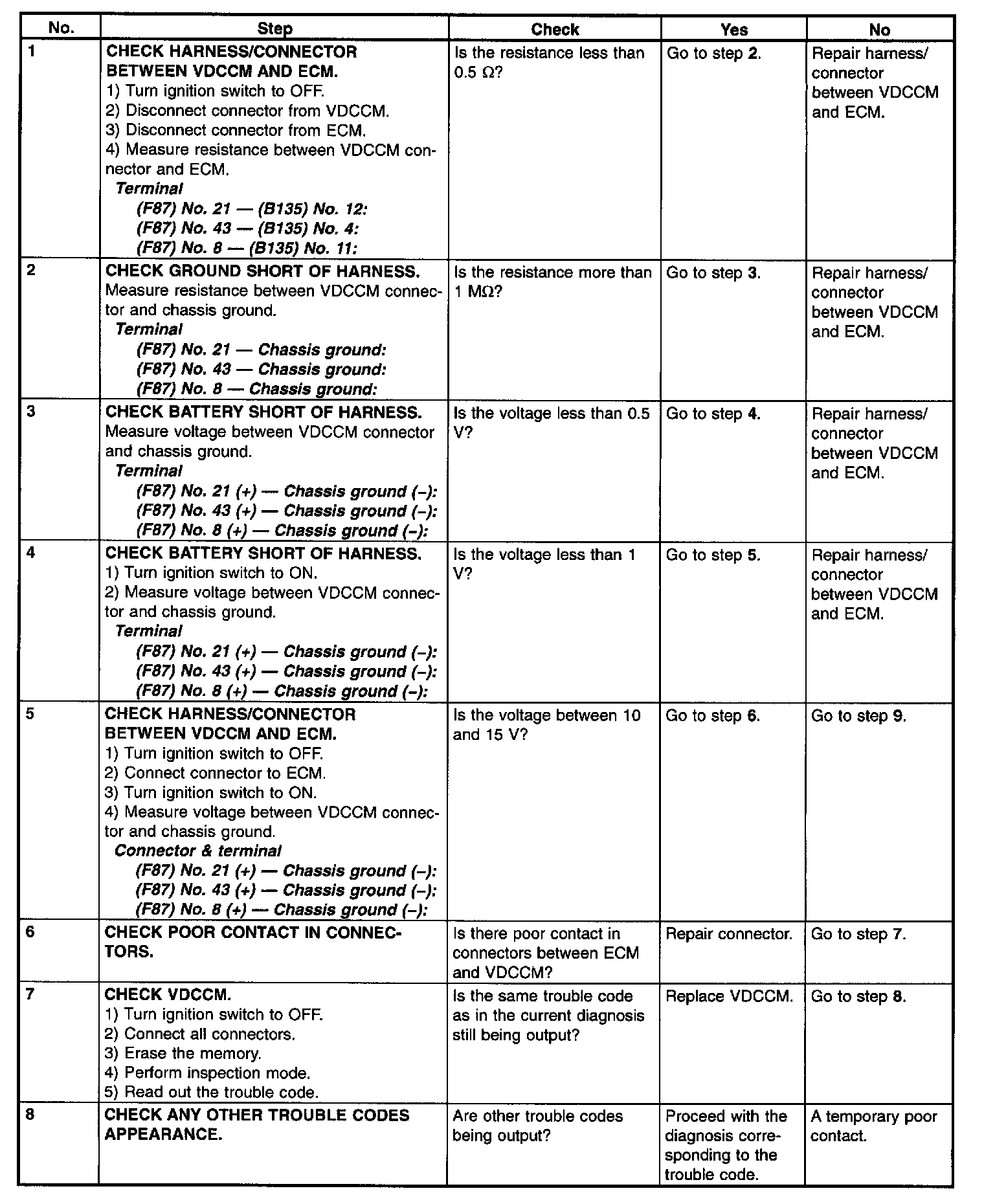

Part 1 of 2

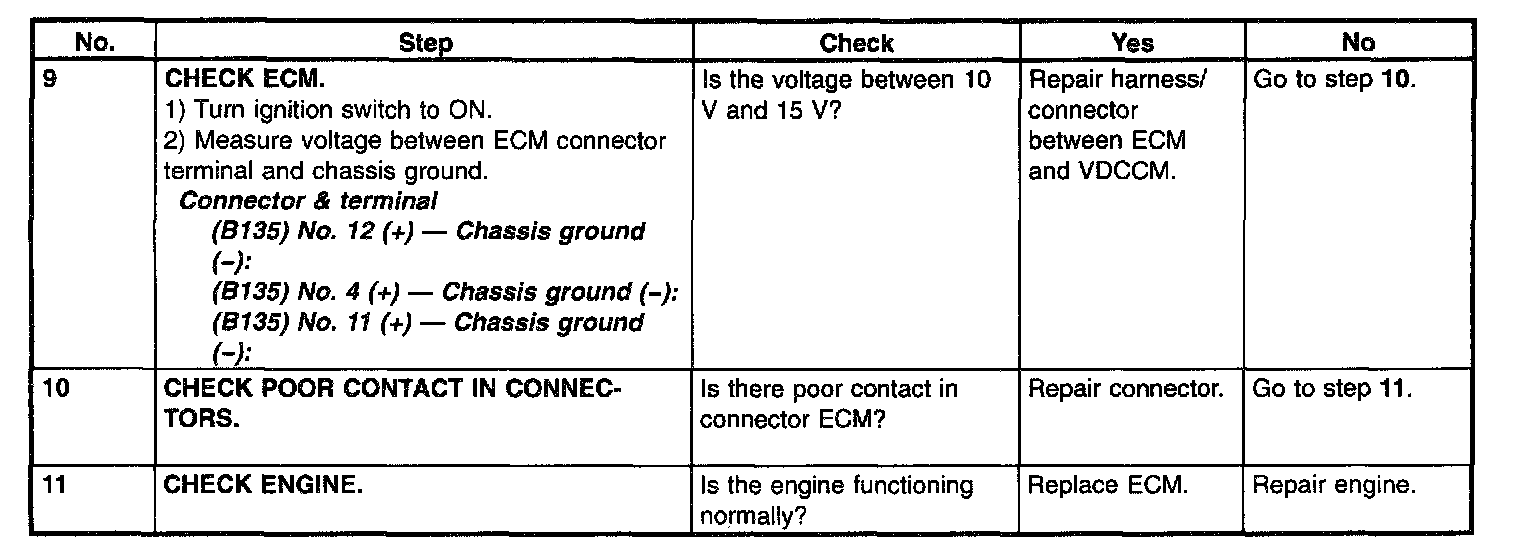

Part 2 of 2
