AEC Communication Line Malfunction

AA: TROUBLE CODE 43 AEC COMMUNICATION LINE MALFUNCTION

DIAGNOSIS:
- AEC communication line is broken or short circuited.
TROUBLE SYMPTOM:
- VDC does not operate.

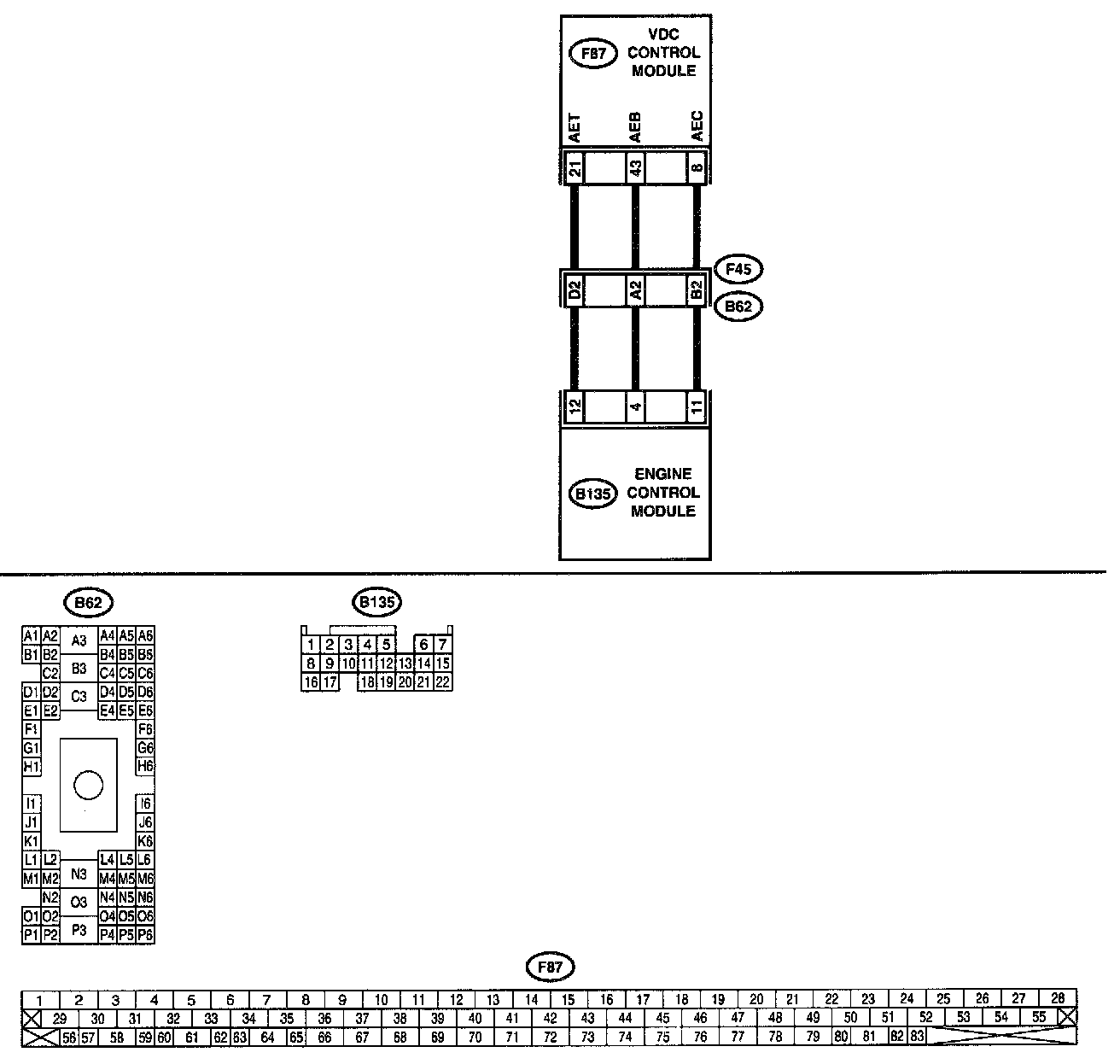

WIRING DIAGRAM

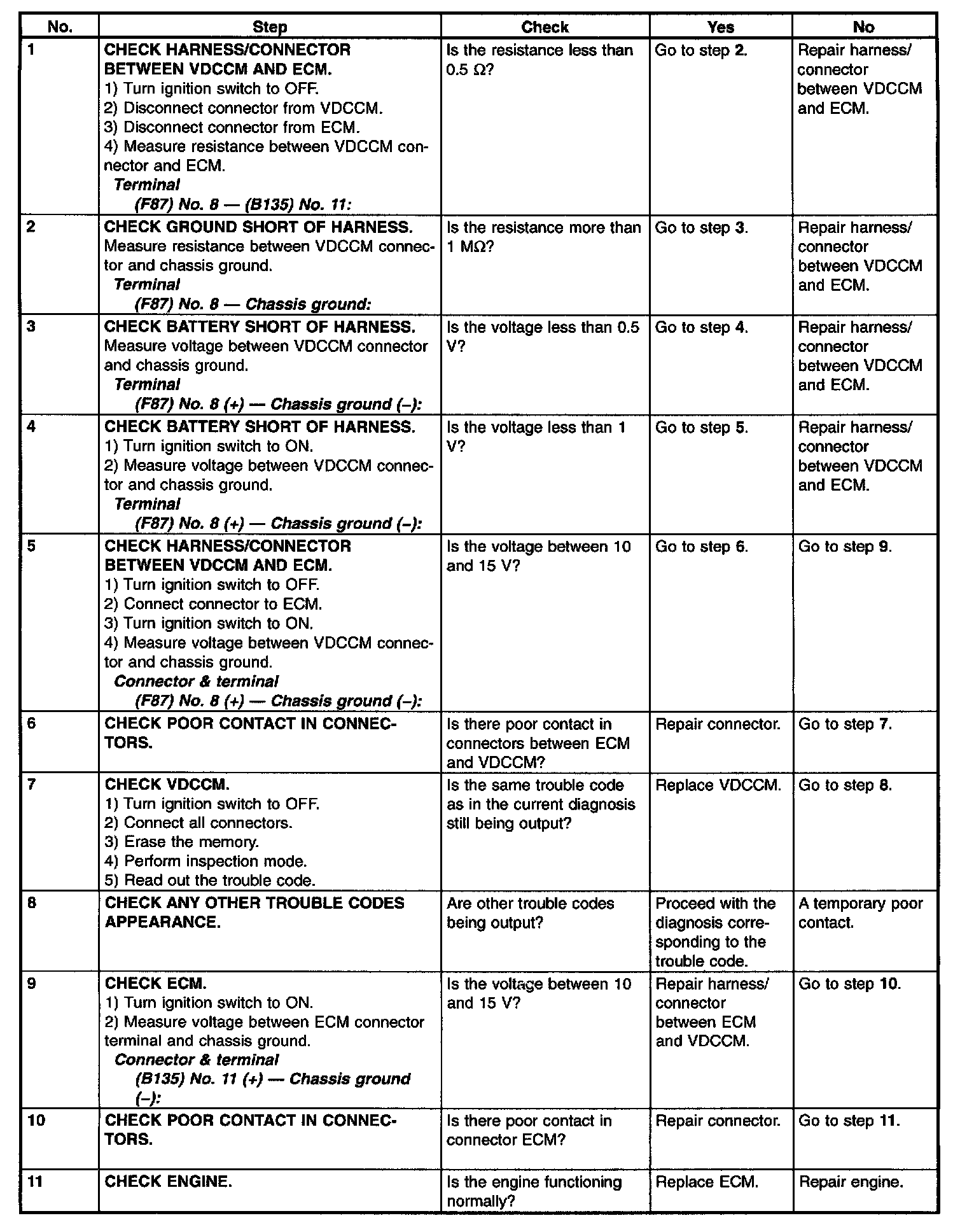

PROCEDURE
