Power Supply Too Low

U: TROUBLE CODE 42-POWER SUPPLY VOLTAGE TOO LOW-

DIAGNOSIS:
- Power source voltage of the ABSCM & H/U is low.
TROUBLE SYMPTOM:
- ABS does not operate.

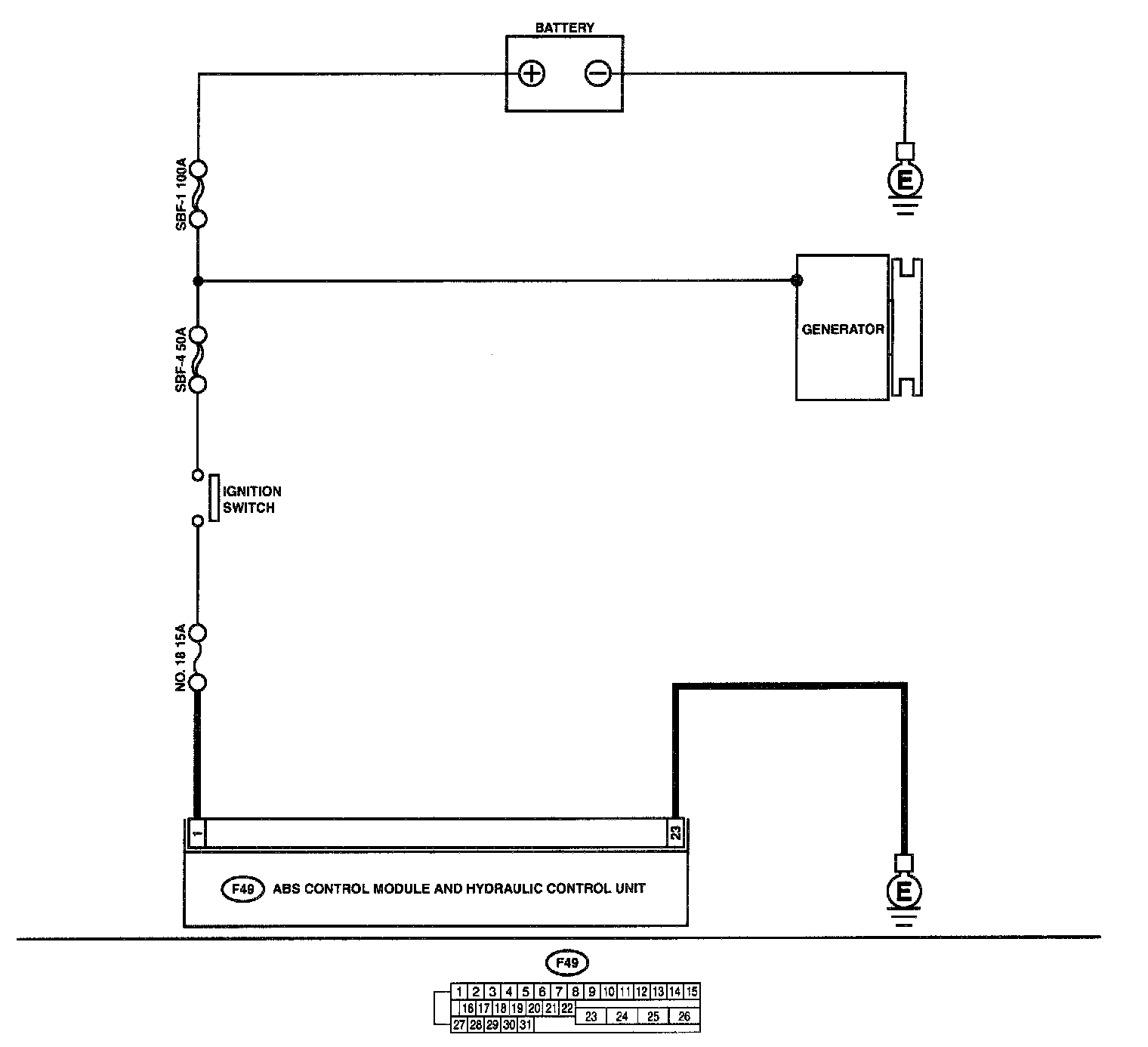

WIRING DIAGRAM

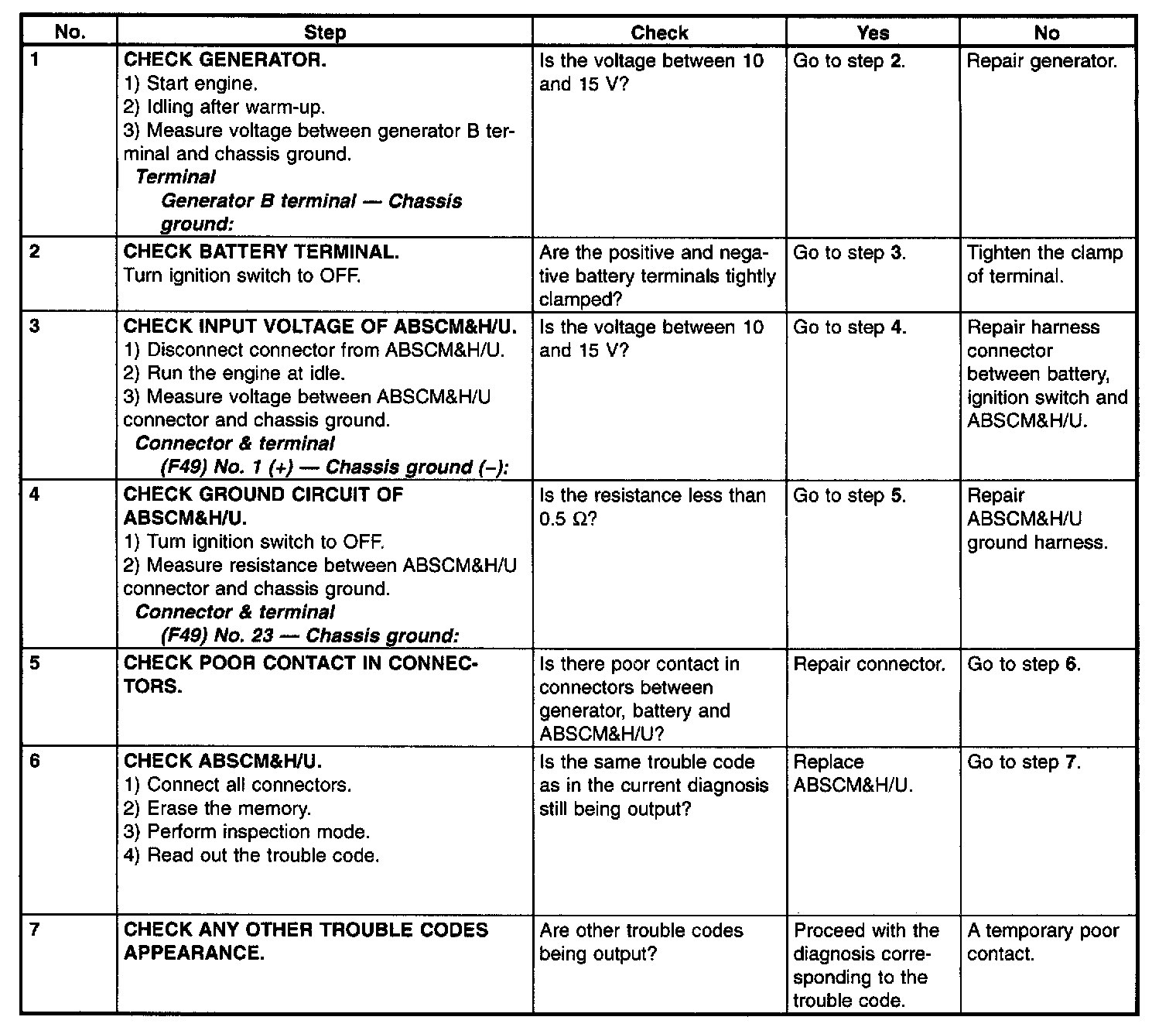

PROCEDURE
