Power Supply Too High

V: TROUBLE CODE 42-POWER SUPPLY VOLTAGE TOO HIGH-

DIAGNOSIS:
- Power source voltage of the ABSCM & H/U is high.
TROUBLE SYMPTOM:
- ABS does not operate.

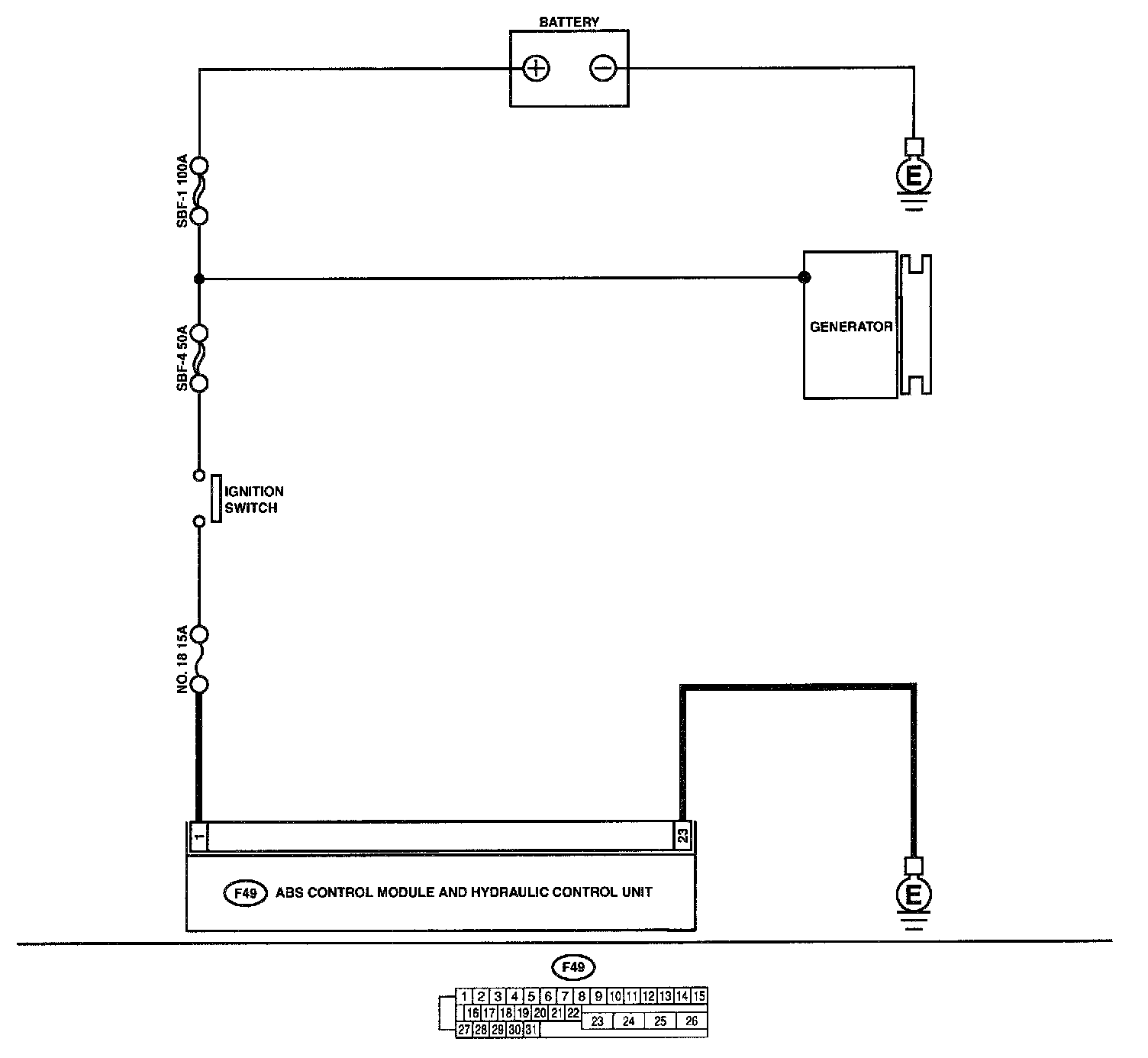

WIRING DIAGRAM

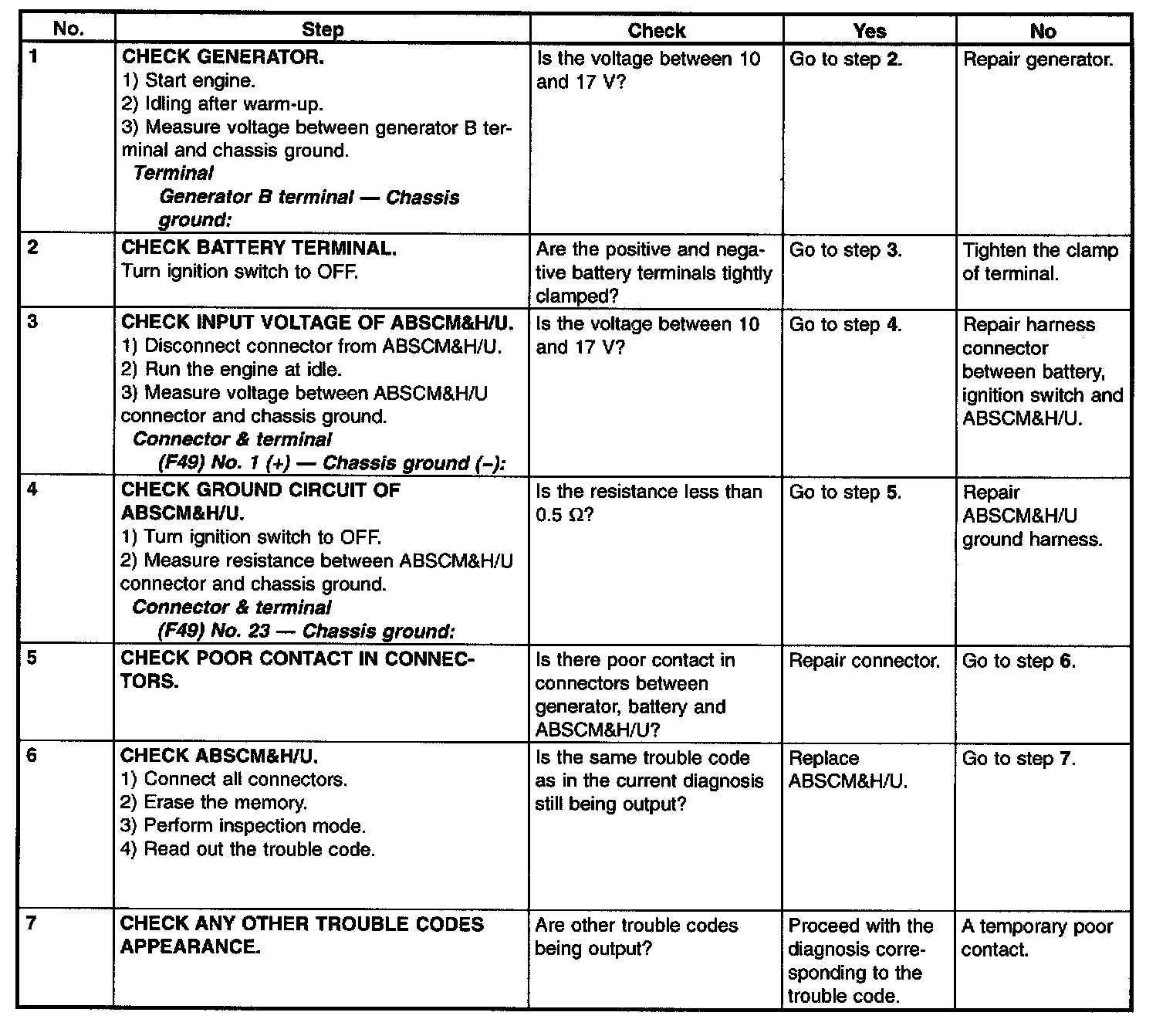

PROCEDURE
