Vdc System Trouble Code Charts For Warning Light Codes

AA: TROUBLE CODE 41 ABNORMAL VDC CONTROL MODULE

DIAGNOSIS:
- Faulty VDCCM
TROUBLE SYMPTOM:
- ABS does not operate.
- VDC does not operate.

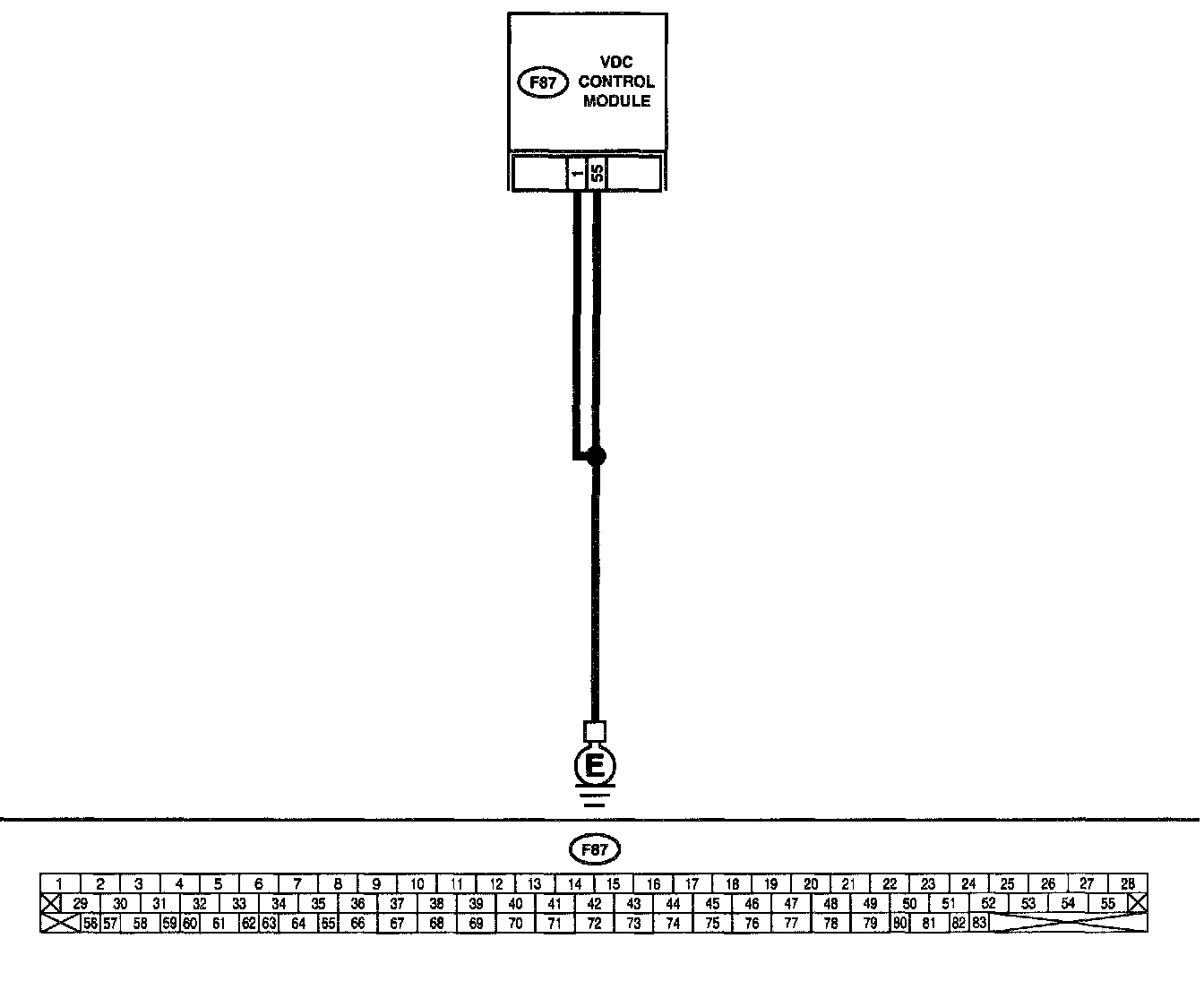

WIRING DIAGRAM

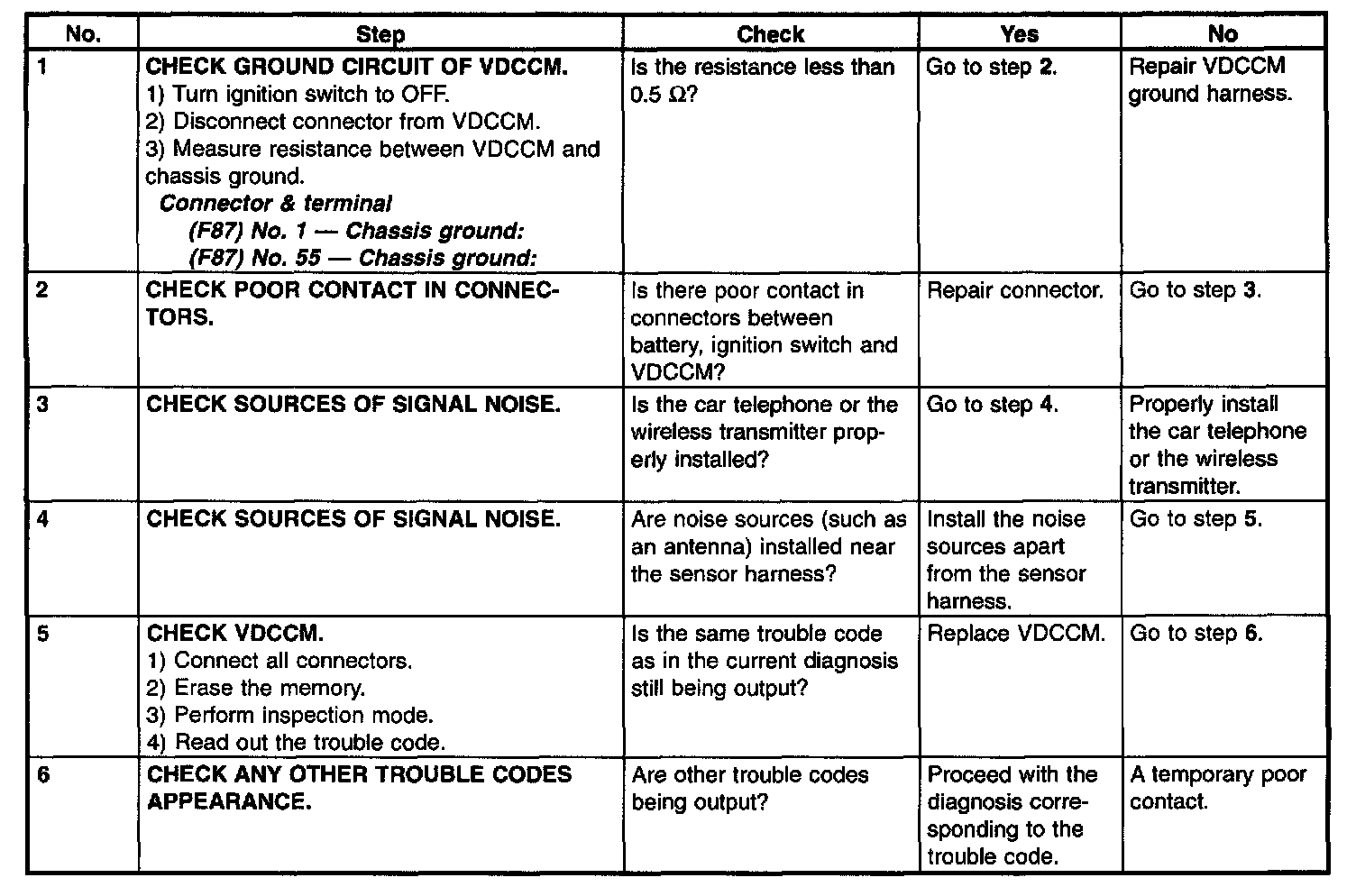

PROCEDURE
