Vdc System Trouble Code Charts For Select Monitor Results

W: TROUBLE CODE 41 ELECTRICAL CONTROL MODULE (VDC CONTROL MODULE MALFUNCTION)

DIAGNOSIS:
- Faulty VDCCM
TROUBLE SYMPTOM:
- ABS does not operate.
- VDC does not operate.





WIRING DIAGRAM

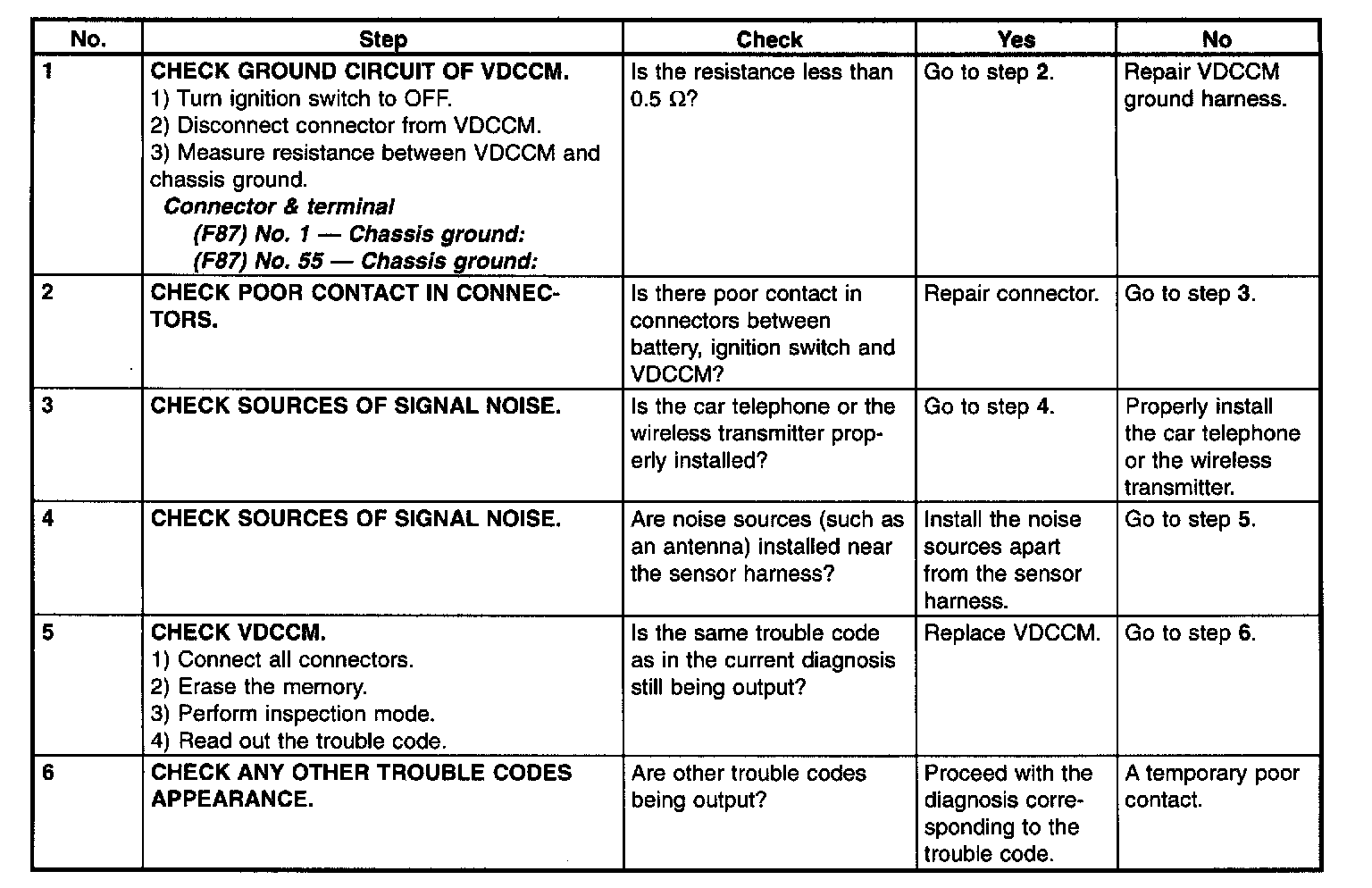

PROCEDURE
