ABS Trouble Code Charts For Select Monitor Results

T: TROUBLE CODE 41-ABS CONTROL MODULE MALFUNCTION-

DIAGNOSIS:
- Faulty ABSCM & H/U
TROUBLE SYMPTOM:
- ABS does not operate.

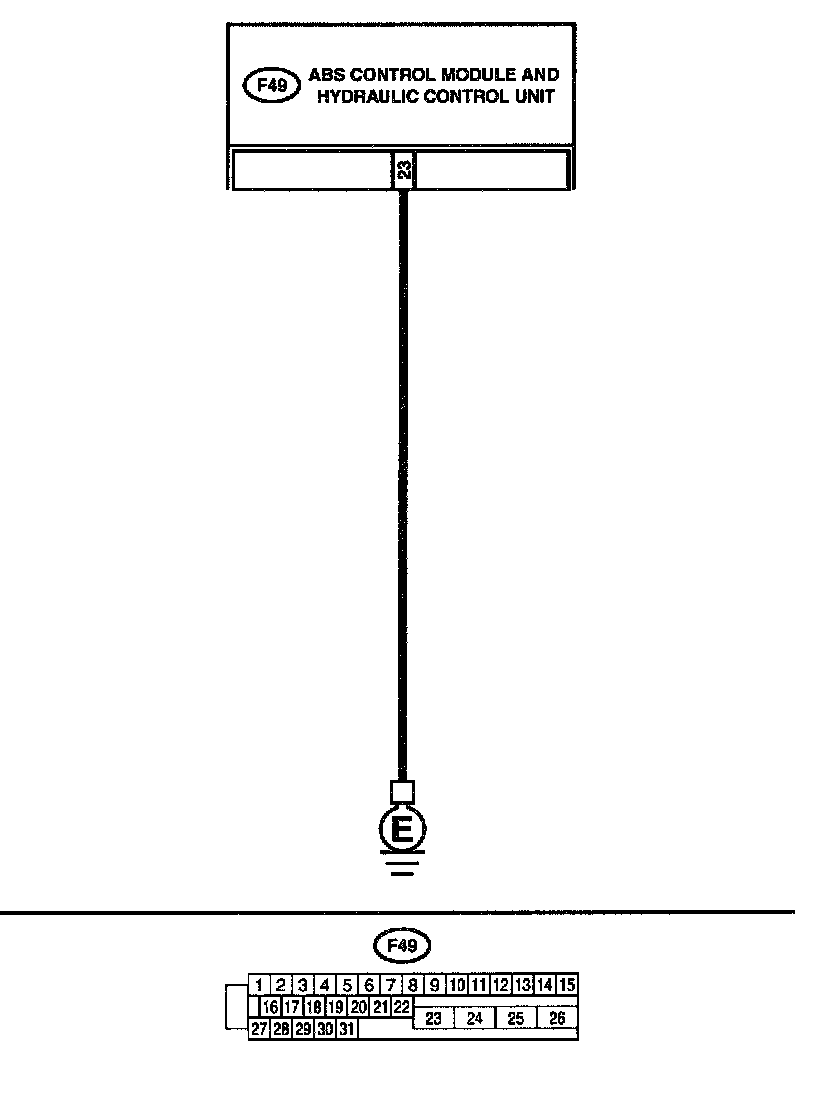

WIRING DIAGRAM

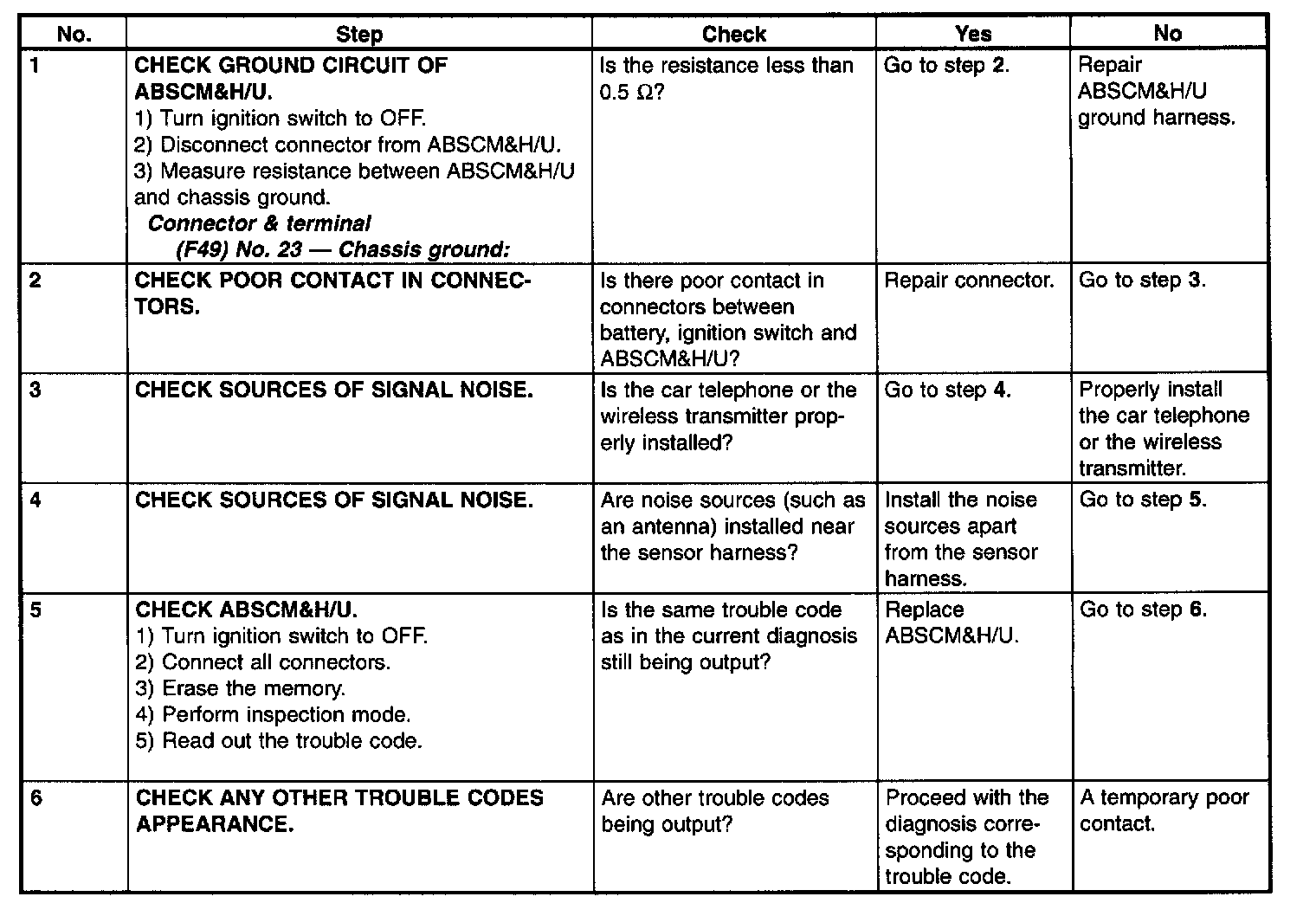

PROCEDURE
